2001 Freelander ODB II pinout

Freela22 said:

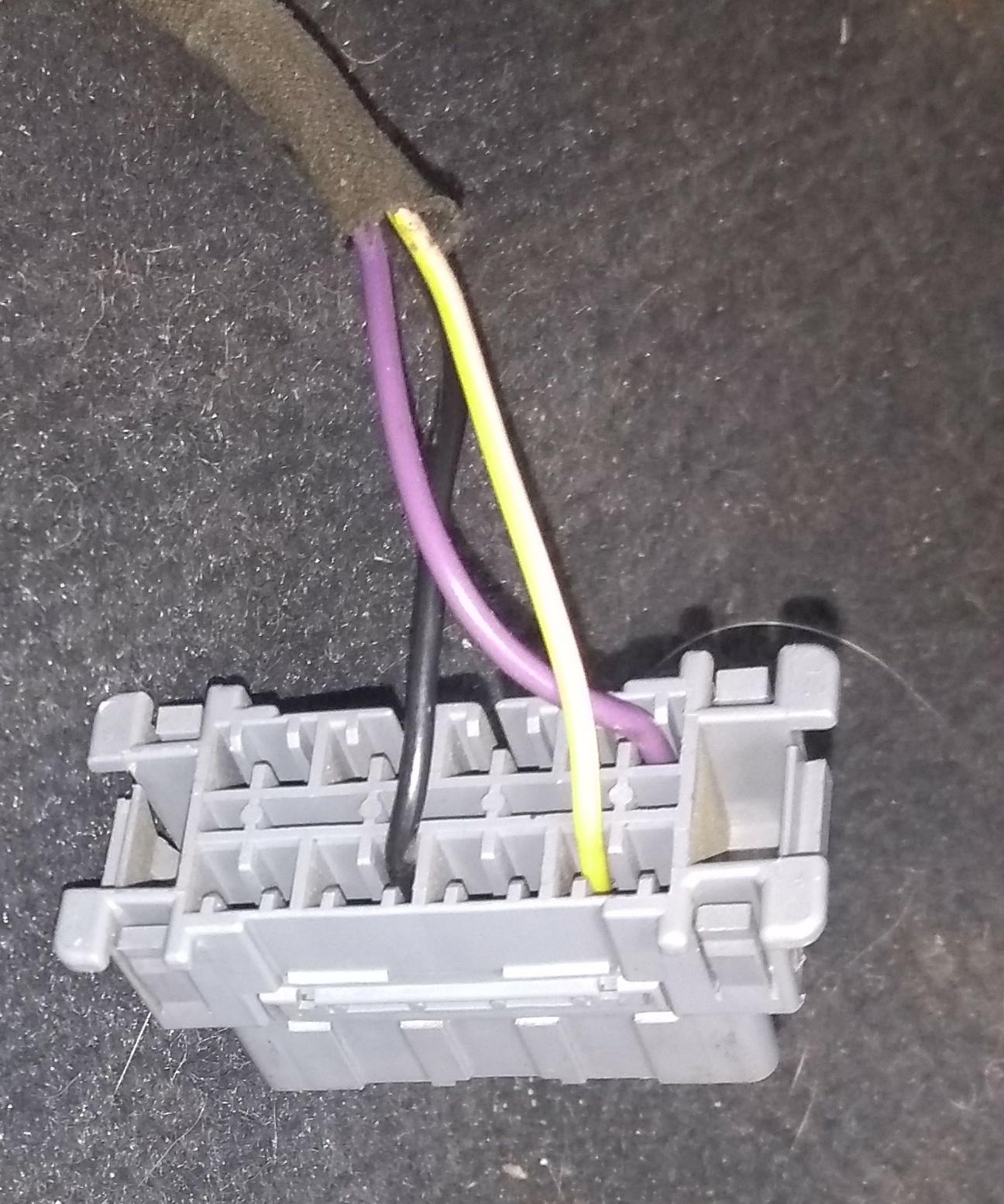

I only have 3 wires to the socket !
View attachment 277840
Seems weird to me...

OBD reader gives no connection to vehicle error

Can anyone confirm, Freelander 2.0 diesel from 2.000

Doe anyone have a pinout ?

Click to expand...

Freela22 said:

Sorry for asking, but what is the purpose of this port on the actual vehicle ???

Click to expand...

GrumpyGel said:

It is (should be) an operating diagnostic port - but not ODB2 compliant, it is a proprietary message format that you need a reader specific to the vehicle for.

For example...

https://pscan.uk/

There are others available and there are threads on here about them.

Is yours the L Series diesel or TD4 - both were available in 2000.

Click to expand...

Freela22 said:

Its the L series 2.0 diesel

Click to expand...

Nodge68 said:

For the L series you either need Land Rovers proprietary T4 diagnostic equipment, or something like Pscan linked above.

There was no requirement for diesel engine vehicles to be OBD2 compliant until after 2006, so early diesels simply weren't OBD2 compliant.

Click to expand...
