1986 LR 90 with Disco 200tdi Engine- Exhaust question

Mudhound said:

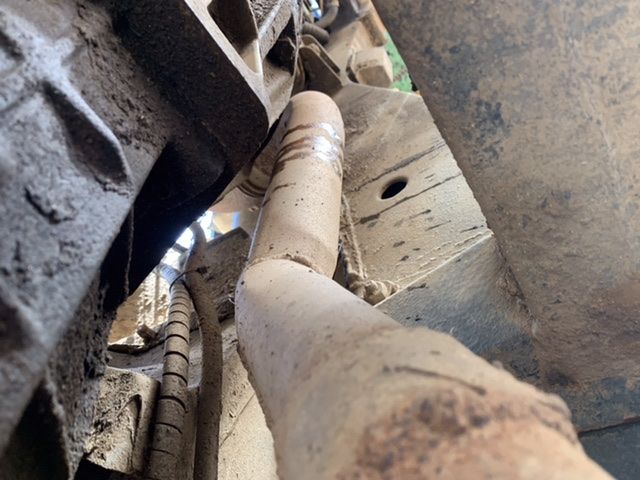

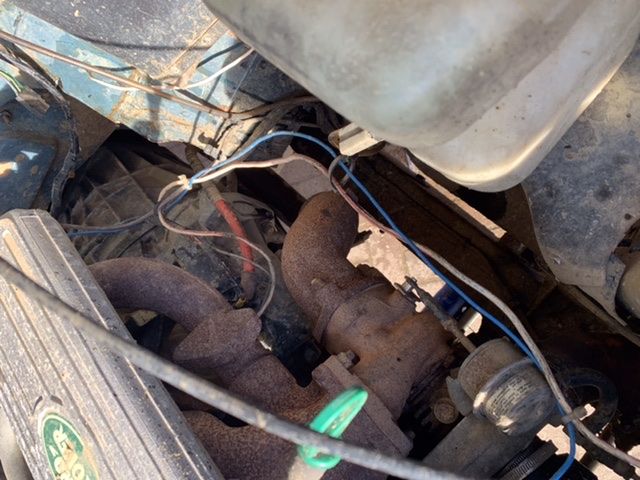

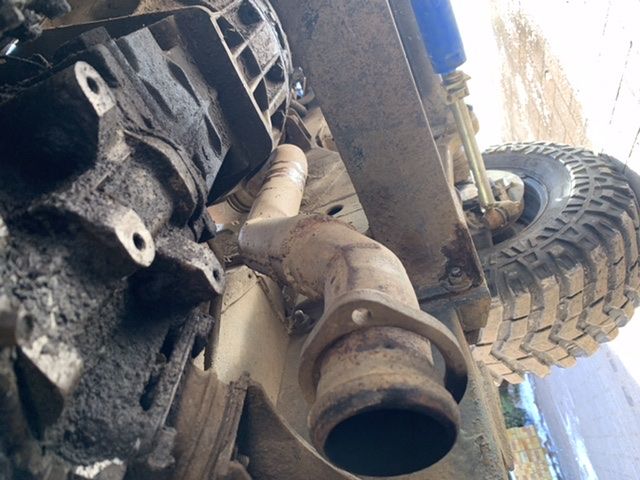

Just got underneath and taken a few photos the best I could. It’s not a three bolt flange but a two. The system I ordered off eBay today looks to be a two bolt (phew). Couple of pics attached

Click to expand...

Cavey_P38 said:

Your front pipes look fairly similar to my 90 as standard 200tdi defender exhaust should fit, u might need to fiddle teh mountings a bit

Click to expand...

Cavey_P38 said:

Your front pipes look fairly similar to my 90 as standard 200tdi defender exhaust should fit, u might need to fiddle teh mountings a bit

Click to expand...

v8250 said:

@Mudhound , for absolute ease just buy a complete off the shelf exhaust system including new manifold...they're cheap as chips and readily available. If the downpipe is some bodge jobbie the new mid and rear sections may not fit and you'll end up wasting hours faffing around to make work.

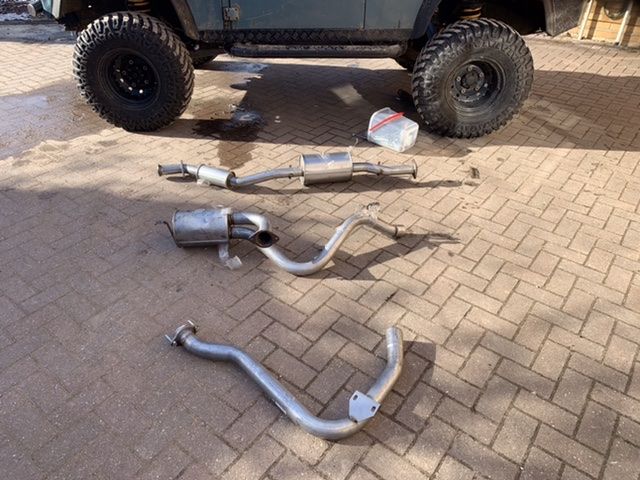

I've just bought a Def 200tdi complete exhaust for my 90 from these people https://www.ebay.co.uk/itm/LAND-ROV...755053?hash=item1a7c9c1b2d:g:qXEAAOSw~Ndc56tq @£137 it's a no brainer, made by GT Exhausts and needed very little fettling to fit. Or buy the individual components from Steve Parker https://www.steveparkers.com/produc...hausts-series-defender-90-and-110-parts-shop/

Click to expand...

v8250 said:

Yes, it comes as a kit. You may find some of the hangers need a flex to fit properly. The only fiddly part is fitting the manifold securing bolt next to the engine mount. I find the best way to fit an exhaust is to completely install, but keep all bolts/nuts lose. Then tighten up from the manifold...working rearwards. This way there's no stress on the manifold itself

Click to expand...

tottot said:

Looks to me that the down pipe you have is as someone said a converted disco one.
As noted before the disco to defender conversion pipe is the expensive bit [ as much as a complete standard system.]
What to do now?
1. Get the conversion pipe.
2. Use the original down pipe and the new Defender down pipe and combine parts of the two to put the flange in the right place for the system. This as you may have guessed is a welding job.

Click to expand...

Mudhound said:

Thanks for the advice, will try and work out where to cut and then weld.

Click to expand...

Cavey_P38 said:

Good luck with that..
a mate made his but it was at rolling chassis stage with bulkhead on so he could trial fit easily, i bought mine it was about £90 which stung but it just bolts in and come with the most impressive exhaust clamp i has ever seen

Click to expand...

Cavey_P38 said:

Here you go

https://www.steveparkers.com/produc...scovery-conversion-land-rover-90-110-spex102/

this page might come in useful


https://www.steveparkers.com/product-category/conversions/200-tdi-discovery-90-110/

Click to expand...
