With the machine I posted above you have to balance one at a time and try to get them "near enough" or if you have a patience, spot on
Classic 175cd2/3/se/???
- Thread starter Mark Piercy
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
If yours are butchered they were aslo fitted to lots of 70's and 80's TC cars such as Triumph Stags, Lotus Elans twincams etc. I believe all the main parts of the carbs are the same irrespective of engine size they just differ by the needle and jet and damper springs.
tomcat59alan
Well-Known Member
- Posts
- 18,611
- Location
- wirral and triquivijate
Plenty of info on Google mate,usually balance, idle, mixture then repeat and repeat until you get it right. There are a few tools on the Bay, if they won't send to France thrn get them to send it to me and I'll forward it. One tool I don't have,went missing years ago when someone borrowed it.it's probably the second hand one on the Bay.
- Posts
- 33,601
- Location
- North Shropshire
If they are knackered, I'd put SU carbs on
Henry_b
Think outside, no box required.
- Posts
- 15,506
- Location
- somewhere else
Holley/Edelbrock
Henry_b
Think outside, no box required.
- Posts
- 15,506
- Location
- somewhere else
I should admit I fix most Strommie carbs by removing them and tossing them in the nearest skip and replacing them with one of these
- Posts
- 33,601
- Location
- North Shropshire
Does that measure air flow then?With the machine I posted above you have to balance one at a time and try to get them "near enough" or if you have a patience, spot on
I monitor vacuum across a pair. Find it really easy
Henry_b
Think outside, no box required.
- Posts
- 15,506
- Location
- somewhere else
Yes it measures the amount of air they draw
- Posts
- 12,634
- Location
- Sud ouest France !
Wow, thank you. OK so there is a bit of investigation to do. I've not touched the float levels but there was a larger. 175 float inlet where as the originals were. 150. The result after the rebuilds is very promising compared to the original pig like running.
- Posts
- 12,634
- Location
- Sud ouest France !
The membranes are all new and installed with the tags in the correct place.
Henry_b
Think outside, no box required.
- Posts
- 15,506
- Location
- somewhere else
It is possible if the floats have been previously fiddled with that they 're installed upside down..
Which is quite easy to do IIRC.
- Posts
- 12,634
- Location
- Sud ouest France !
For example, it wouldn't drive before hand and wouldn't idle without full choke... So I'm closer, I hope.
- Posts
- 12,634
- Location
- Sud ouest France !
I'm.pretty sure they are correct but never say never, I'll check against the diagram I found for what seems to be the same model if the jag v12. There is a cap missing from inside the float bowl the covers the bottoms of the jets on the pistons.
- Posts
- 12,634
- Location
- Sud ouest France !

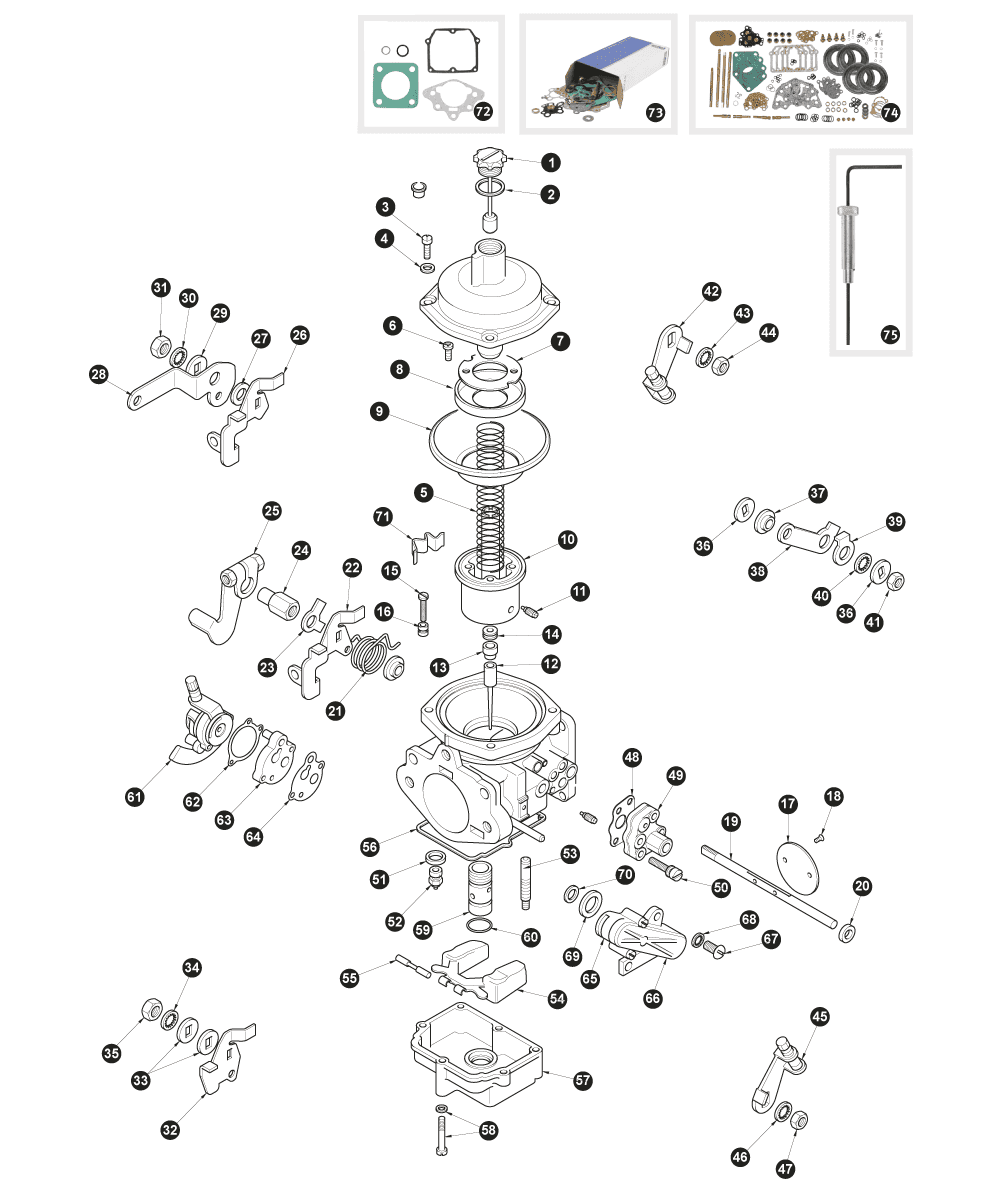

This is the closest I've found. Number 59 is missing with its oring.
- Posts
- 12,634
- Location
- Sud ouest France !
Thanks Paul, I watched a couple of vids but only the rebuilds and couldn't find a match to these installed. I hope they are original and it's not going to be a nightmare for me to sort out. It sounds lovely when it's idling.
- Posts
- 12,634
- Location
- Sud ouest France !
Th
Thanks AlanPlenty of info on Google mate,usually balance, idle, mixture then repeat and repeat until you get it right. There are a few tools on the Bay, if they won't send to France thrn get them to send it to me and I'll forward it. One tool I don't have,went missing years ago when someone borrowed it.it's probably the second hand one on the Bay.
Henry_b
Think outside, no box required.
- Posts
- 15,506
- Location
- somewhere else
That blanking plug should have an O ring on it.
it shouldn't be missing ideally, part no IIRC is 488343 seems to be obsolete though!!
it shouldn't be missing ideally, part no IIRC is 488343 seems to be obsolete though!!
- Posts
- 12,634
- Location
- Sud ouest France !
I've found some in a site called limara. Not sure if it's French. My thoughts are, if the caps are missing are they bleeding fuel up through the needle tube? But then it's running rich already and needing the choke?
- Posts
- 33,601
- Location
- North Shropshire
Choke will make it richer still
