200tdi ayre
Well-Known Member
Will the 200 rear oil seal work ?
Will the 200 rear oil seal work ?
200tdi ayre
Well-Known Member
So can we just clarify does the 200 oil seal work on the 300 crank ?
jamesmartin
Well-Known Member
not quite gear box has bell housingCrazy so the diesels have a flywheel housing AND a bell housing and there are numerous different options?!
Sheesh that could get confusing!!
jamesmartin
Well-Known Member
dont know to be honest as i allways use 300 flywheel housing with 300 ,300 block doesnt have those 2 dowels near crank to keep seal correctly placed
200tdi ayre
Well-Known Member
I know what your saying but there surely can't be that much flex in the plate to break the seal ? The 300 seal more encompasses the rear of the engine whereas the 200 leaves more open, could oil flow through and fill up behind the bottom of the flywheel housing ?
jamesmartin
Well-Known Member
lrs allways had an issue with oil leaks from rear main bearing caps (around the edges)as well as seal so 200 used a gasket for bearing cap and to seal rear of seal and those dowels for locating ,300 uses the seal housing seperated from flywheel housing ,both work to some degree but its not unusual for oil to seep from both behind the seal
200tdi ayre
Well-Known Member
This is what I thought, neither way is perfect but in my mind the 300 design is better, in your opinion is it worth me removing the flywheel housing again to replace with a 300 one and crank seal that I can get quite easily or keep what I've got with the 200 flywheel housing and seal ?
jamesmartin
Well-Known Member
personally id prefer the proper 300 flywheel housing ,
200tdi ayre
Well-Known Member
This is my thought, it's half an hours work
That could save me several hours later on
ScratchyDom
Well-Known Member
Cracking build and fred. Love the fact that you started wiv an axle swap and ended up doing a chassis up rebuild. Looking forward to seeing the end result...
200tdi ayre
Well-Known Member
Haha I know
well it was always going towards being a challenge truck but I never first thought of doing a chassis up build
geoffnewblue
New Member
That's going to be a hard working truck when your done
200tdi ayre
Well-Known Member
It'll take some abuse
it should work well there's several suspention mods that I have planned for when I move up a trials class but I'm getting abit more experience first
200tdi ayre
Well-Known Member
Oohhh toys
ScratchyDom
Well-Known Member
I recognise that'n, glad it made it to you safe 'n sound!
200tdi ayre
Well-Known Member
Right abit more progress tonight, after advice from noisy and mr Martin I've sourced a proper 300 rear crank seal, to fit it I've sourced a flywheel housing off of my mates scrap engine tidied it all up and got it all together

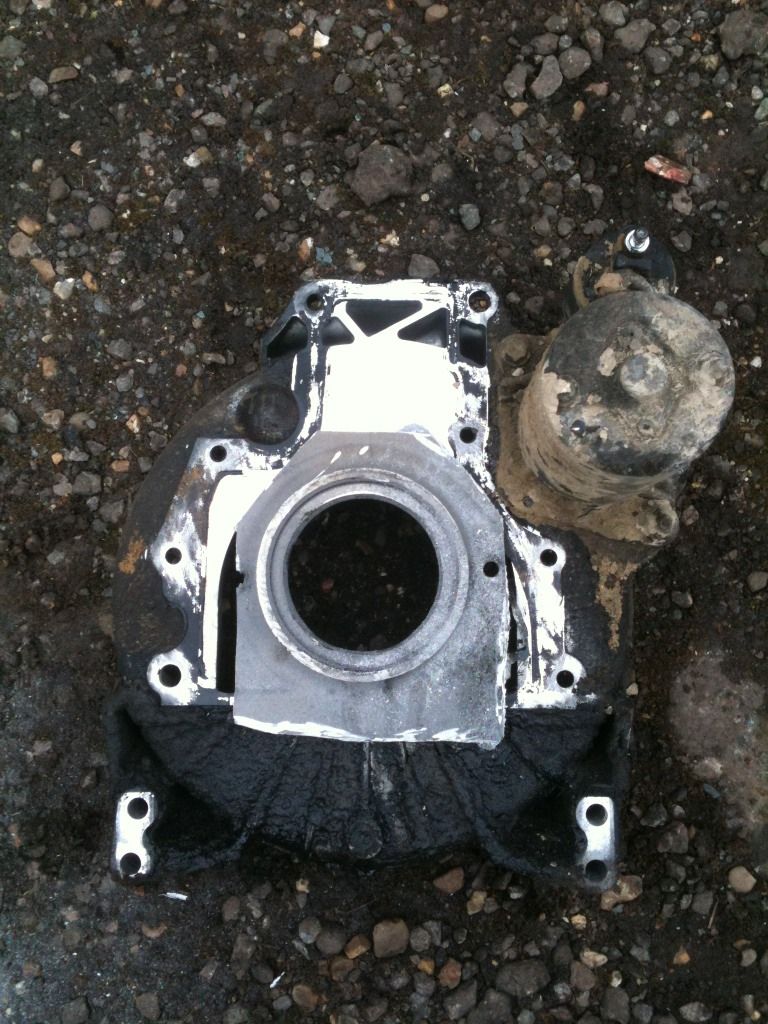

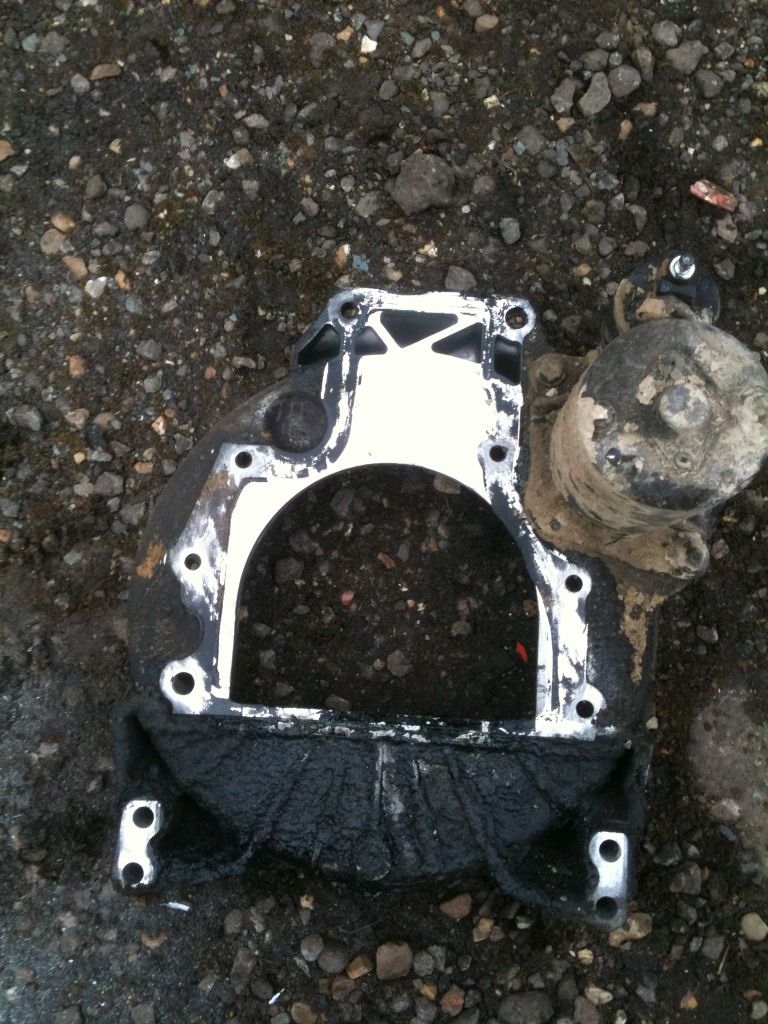

Here's the nice clean flywheel housing

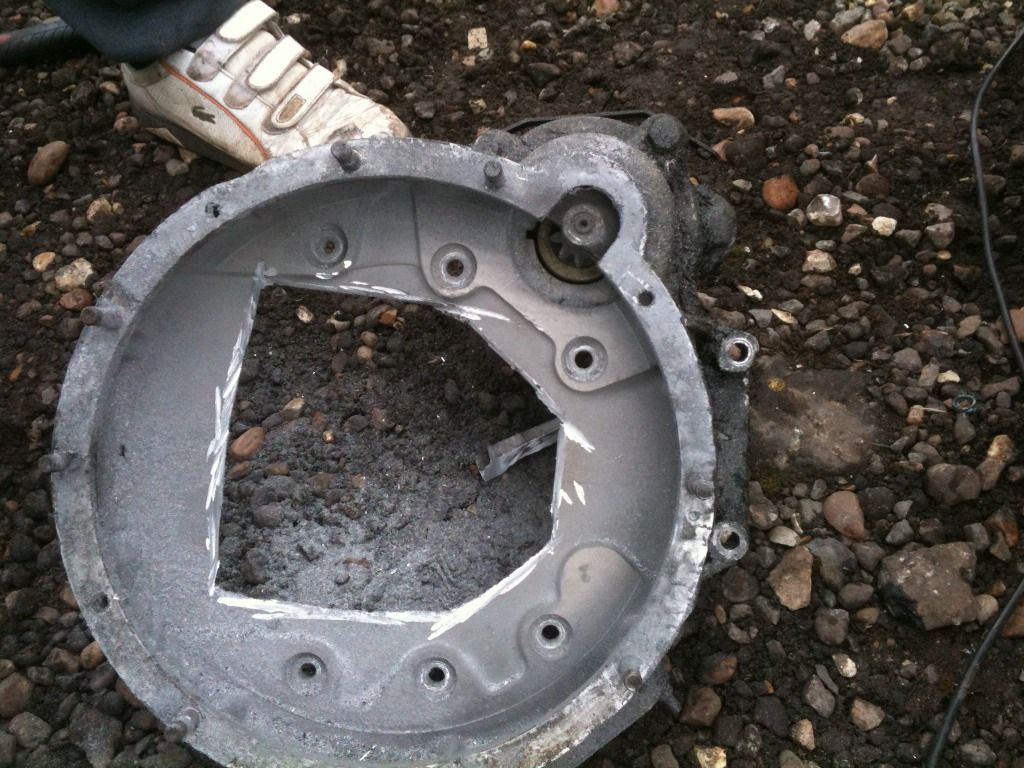

And the back of the engine ready to go
Then everything together clutch and flywheel on, all I've got to do now is make a mounting for the offside of the engine and she's ready to drop in
I've also fitted the x brake tonight, piece of **** to get together after a good de sailsburying
Here's the nice clean flywheel housing
And the back of the engine ready to go
Then everything together clutch and flywheel on, all I've got to do now is make a mounting for the offside of the engine and she's ready to drop in
I've also fitted the x brake tonight, piece of **** to get together after a good de sailsburying
