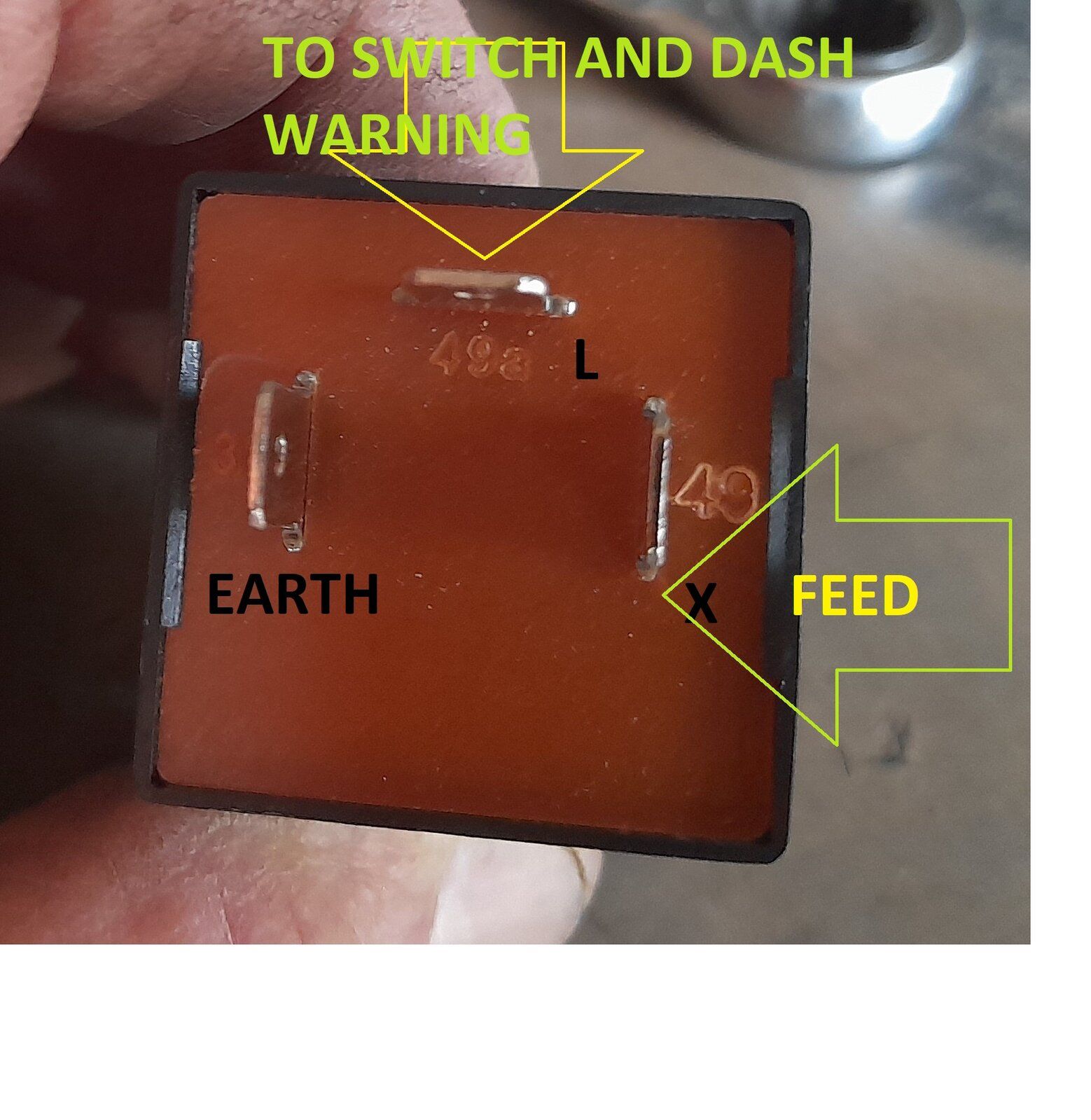

Yes forgot to tell you that when I wired up this way the warning lamp was on constant all the time with Indicators turned off. but flashing when Indicators turned on,
Using it for now to set things up.
Got all lights working now except for 2 Indicators which I need those parts for,
Still got problem with headlights though.
Last edited:
border
Well-Known Member
Last edited:
border
Well-Known Member
Thanks will do that.
Bloody Headlights .
Well can you remember when I changed the wiring from the Yellow and White coming from Stalk, and I was Adamant that they were working properley, Well I was Wrong Again, I thought I had them. with full forward High beam, back to middle low beam, then flicking towards you flashing, My son turned up and he said it was the other way to what I was saying so I tried them one night when it was dark and yes I was wrong, So now put wires back to where they were as you said, and Now, same as before.
Now they are Definitely Full forward, High Beam, Middle, Low beam BUT when flicking towards to flash they will only flash with Just side lights on or no lights at all but ignition on,
They Will not Flash with Headlights on .
border
Well-Known Member
Yes I am certain I have it that way, but will double check tomorrow.
Just to make sure where I have them now,
Stalk Full forward it is in High Beam ie as if you were blinding someone coming towards you,
Back to middle, Low Beam as in normal night time driving,
Think I must have one wire wrong somewhere .
Last edited:
mystery
Well-Known Member
MAIN forward DIPPED middle FLASH pulled toward you , the the lighting switch is working as it should OFF ,SIDE LIGHTS, SIDE LIGHTS AND HEAD LIGHTS
Being a military adapted vehicle the original lighting circuit would have been a six position switch it may well be tide in with the way the loom is wired I would check the U/W from column switch goes direct to driver head light and trace a wire from there to the driver head light and dis-guard any other cable and make safe
Being a military adapted vehicle the original lighting circuit would have been a six position switch it may well be tide in with the way the loom is wired I would check the U/W from column switch goes direct to driver head light and trace a wire from there to the driver head light and dis-guard any other cable and make safe
Last edited:
border
Well-Known Member
Well these wires are a right mess, couldnt really tell what went where as when I started taking tape off some of the wires have been extended but with different colors where they were joined,
Right hop you can understand this lot.

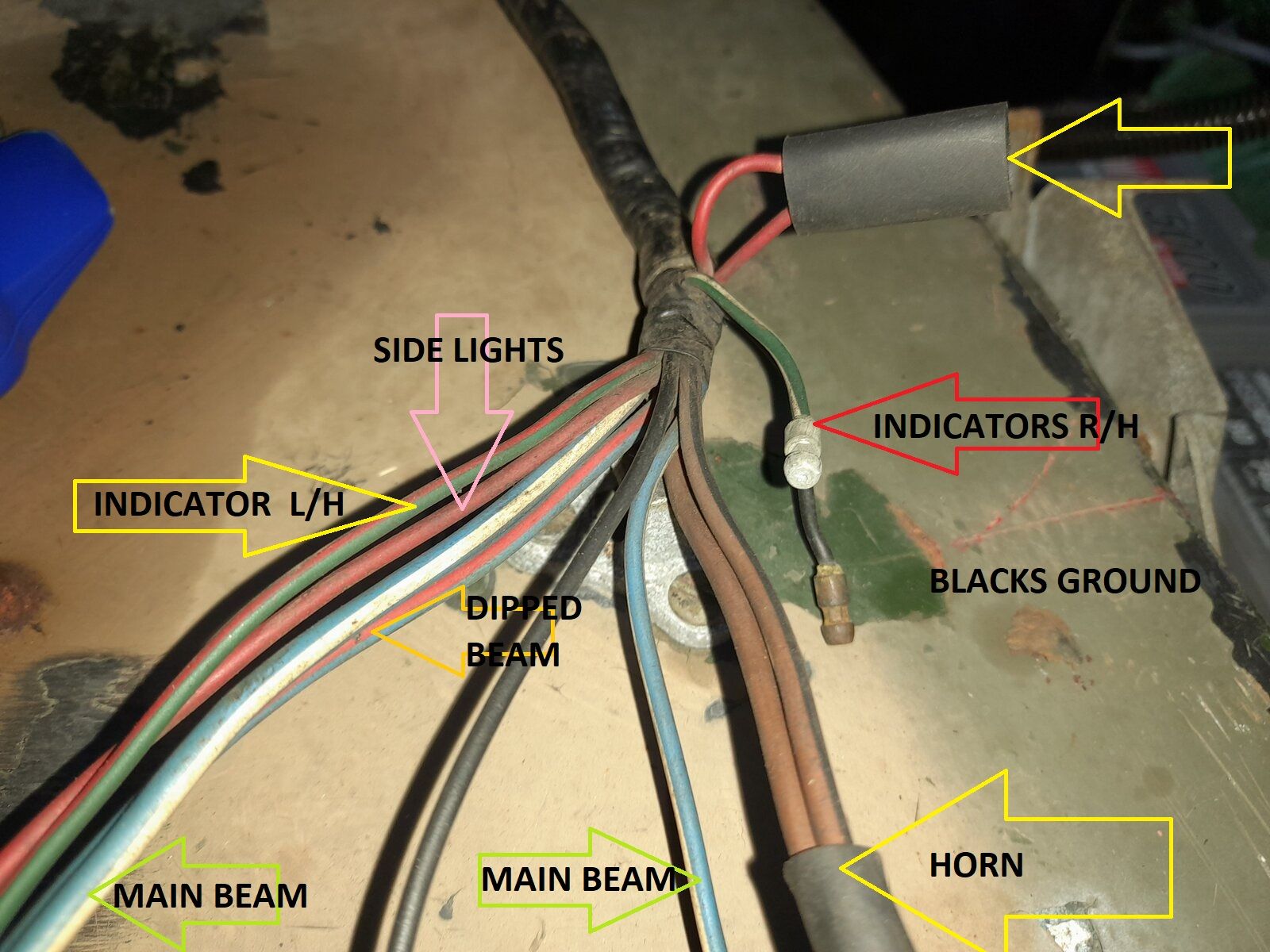

In Dash U goes to Yellow, on column stalk which is joined to those others.
U/R goes to White on stalk.

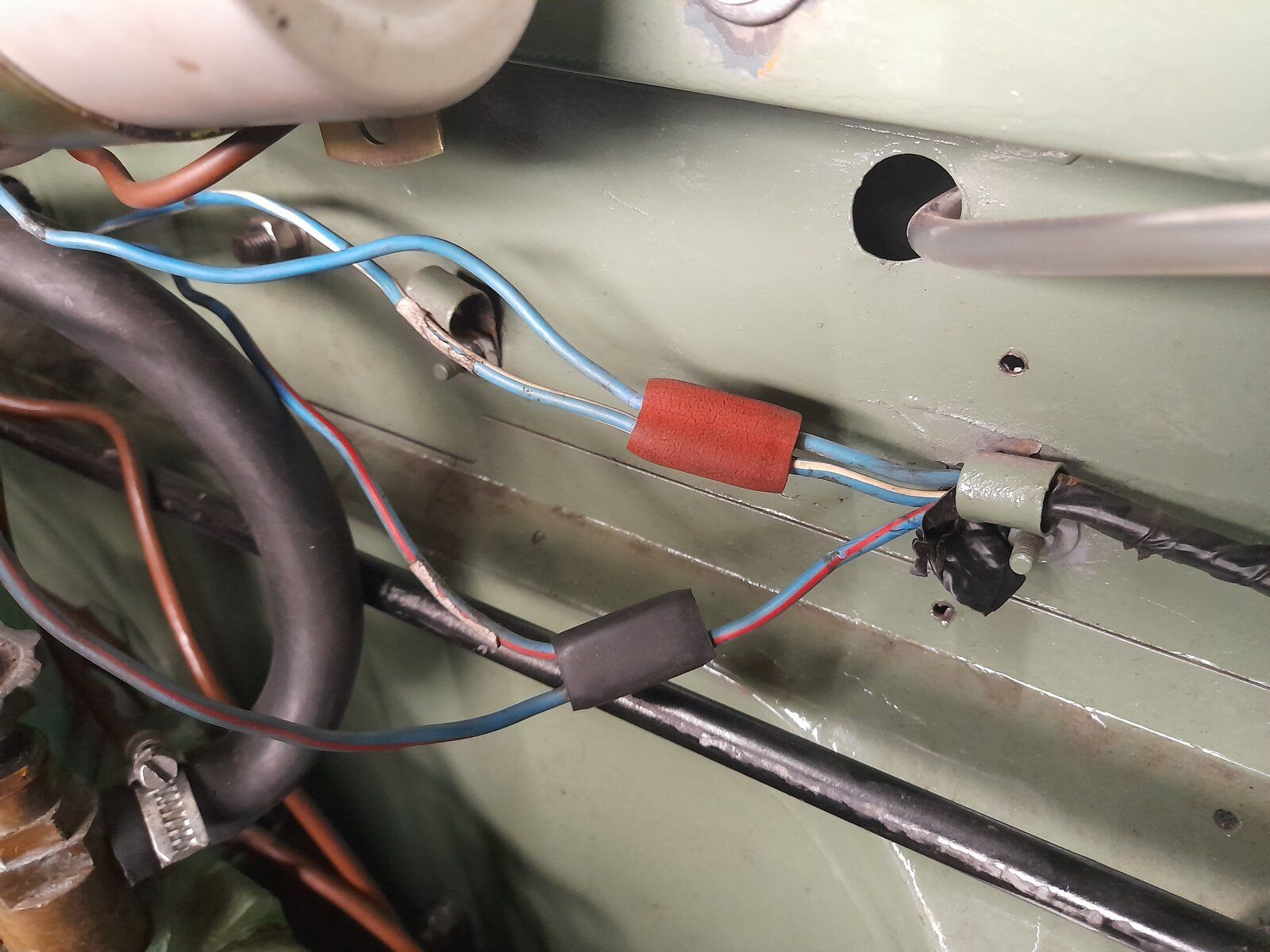

The U from yellow goes to this brown connection box in on top in pic and down to passenger side the U/W with it goes from drivers round to passenger headlights.
The U/R goes to black box at bottom in pic and is joined by another and goes from passenger to drivers headlights
So Drivers side has 3 wires 1 thick U/W 1 THIN U/W and thick U/R the thin U/W goes up to Yellow on stalk which is joined to others.
Passenger side has has 3 wires 1 U 1U/W and 1 U/R
Might be easier to rip the bloody whole lot out and make a new harness
Attachments
mystery
Well-Known Member

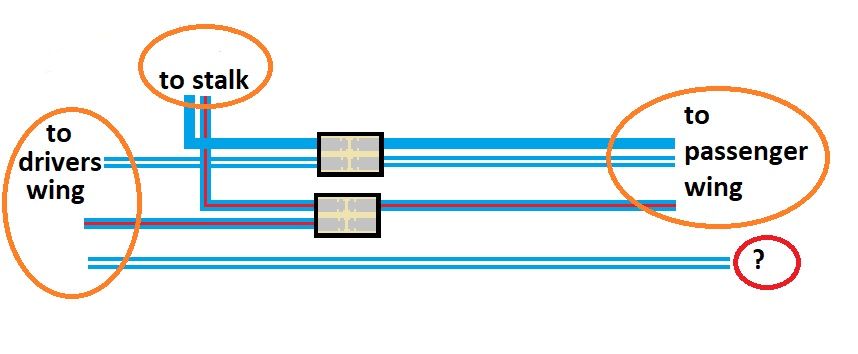

in other words the brown connect looks like the U and the U/W are single tubes so the U and U/W are not connected together if so change it to double
Last edited:
border
Well-Known Member
Yes know what you mean, think I might have a connector, if I don't have one should I join them together ?
border
Well-Known Member

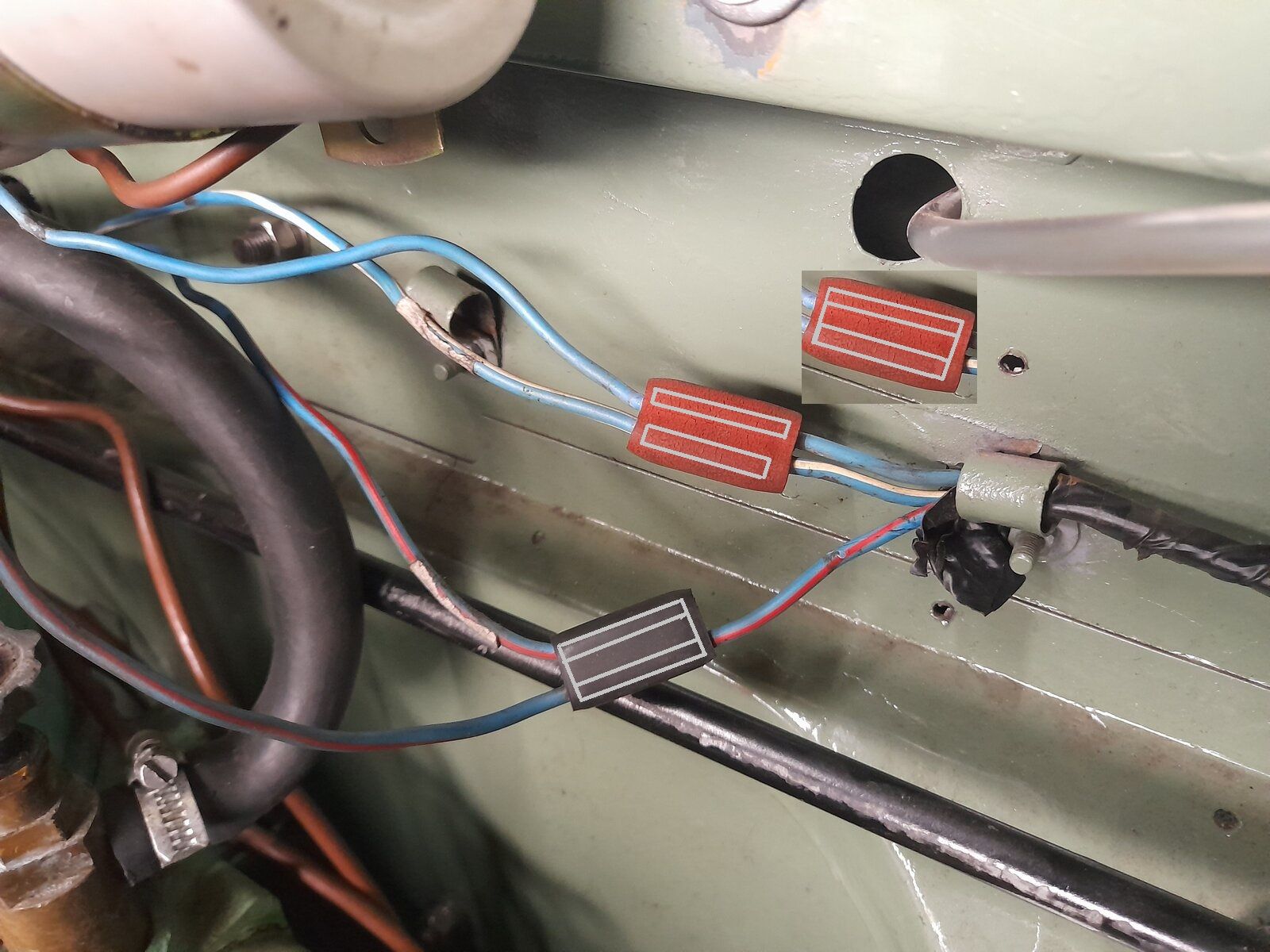

You were right Mate the brown was not connecting the U and UW changed the connector and now they are joined.

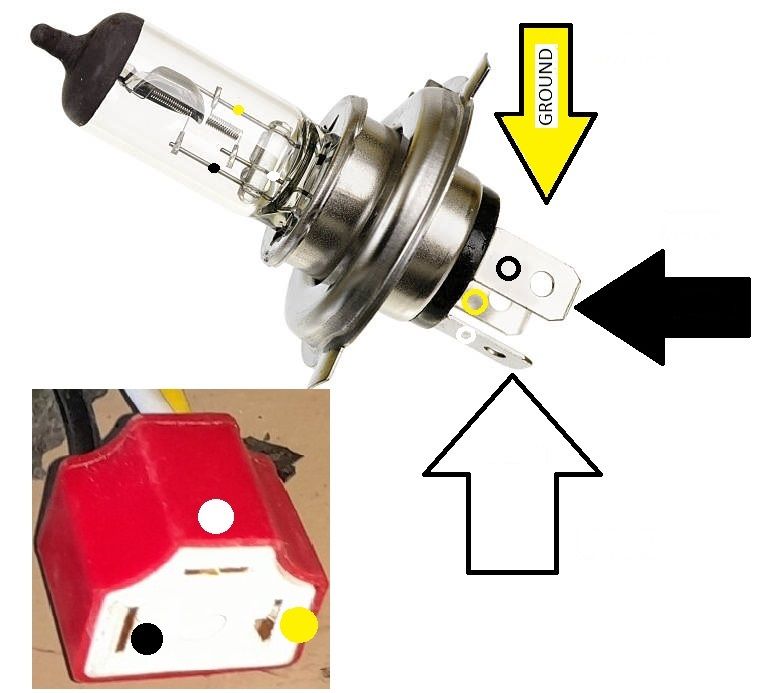

On the H4 I have yellow Ground is White Dipped and Black Main ?
Going to look back over the posts again to see what goes where again as I disconnected wires at headlights.
On the H4 I have yellow Ground is White Dipped and Black Main ?
Going to look back over the posts again to see what goes where again as I disconnected wires at headlights.
border
Well-Known Member
So wires marked in these pics connected to wires marked on H4, do I have to join any together ?
Attachments
mystery
Well-Known Member

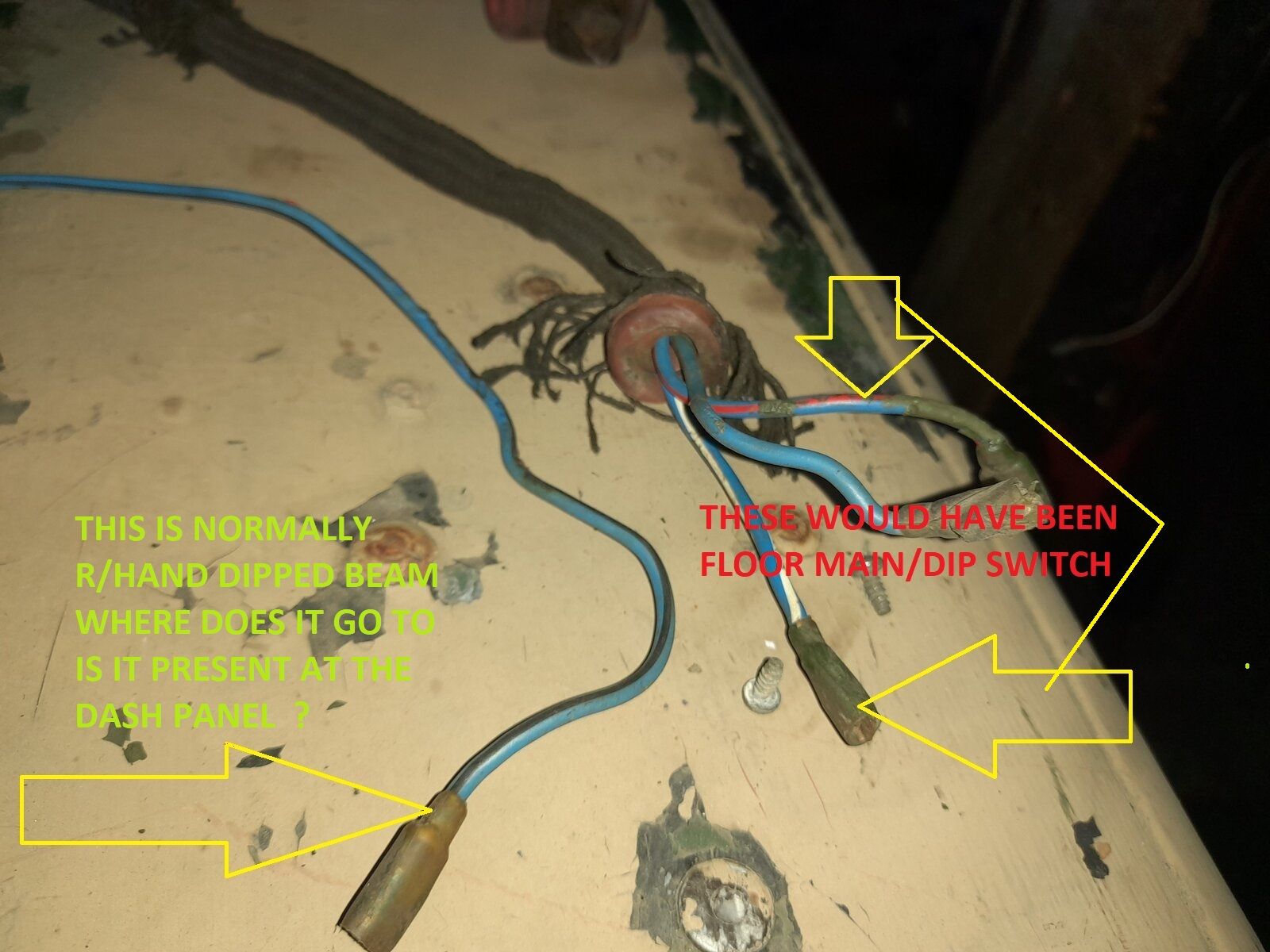

the other U/W from this connector goes to the driver side where you have a small U/W where does this connect to
Last edited:
border
Well-Known Member
Preety sure That thin U/W goes up in to dash and is joined to another of the same coming out from dash then the others that go to one of the B/R s on stalk, will confirm tonight
Last edited:
border
Well-Known Member
BLUE is connected to Yellow at Stalk and the other U/W s then to one of the B/R s at Stalk.
Last edited:
mystery
Well-Known Member
so all you need to do is join the two U/W at driver side and use the one U/W on the passenger side for your head lights the U on the passengers wing I would disconnect from what was the old brown connector and make both ends safe .
it could be used at a later date to supply front fog lights
it could be used at a later date to supply front fog lights
