RangeRoller dt
Well-Sprung Member
Originals usually disintegrate to the touch, staring at them is often enough
Passenger side is ANR4703.
Drivers is ‘4704
The G stands for ghinesium
Passenger side is ANR4703.
Drivers is ‘4704
The G stands for ghinesium
Last edited:
Flossie
Well-Known Member
4704 is the no good one from island so I can crack on with the passenger side then.
.

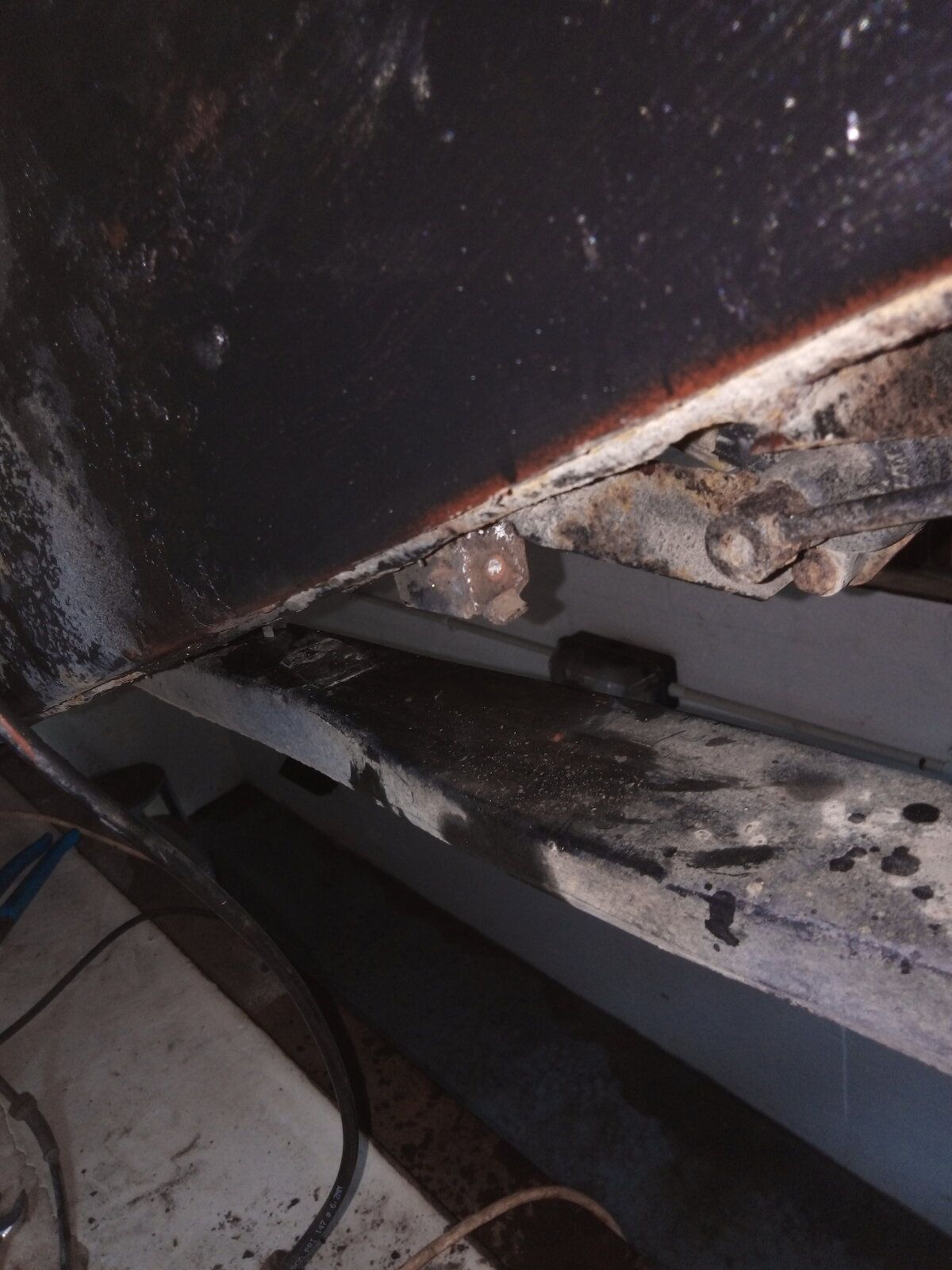

The pipes looked bad glancing underneath and were an MOT advisery just before Duchess was laid up 4/5 yrs ago. Once they were off they didn't look rotted, more peeling and bubbly coating so, yes, maybe they have been replaced with OE at some point.
.The pipes looked bad glancing underneath and were an MOT advisery just before Duchess was laid up 4/5 yrs ago. Once they were off they didn't look rotted, more peeling and bubbly coating so, yes, maybe they have been replaced with OE at some point.

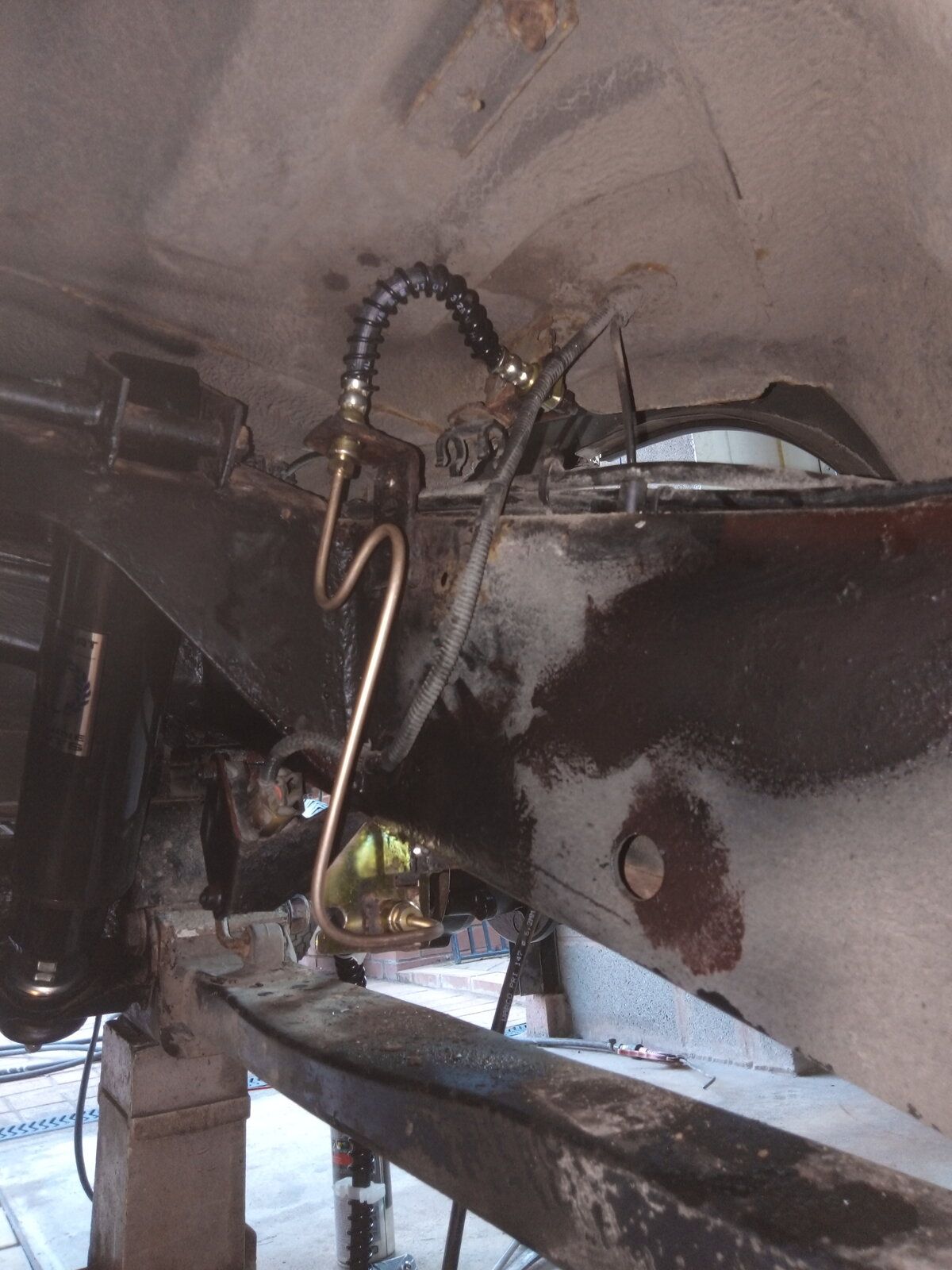

The pipes? Yeah, they were original, same coating as under the bonnet, sort of green coloured, and the bends were machine made.
I ask which side is which because I can rebuild one side with the britpart hose that has all the brackets/banjo bolt whilst waiting for the other britpart one to arrive. The britpart one ive got says left hand on it so rather than trying to work out which side it appears to fit best thought I'd ask here which is the left/right when viewing duchess.
So I can build up the passenger side if yer right...right
Left is always your left when sat in the driver's seat.
Flossie
Well-Known Member
More delays..short jumper brake hoses don't come with the horseshoe clips, 2 per side short of them so just ordered a pack orf eBay. One off the M6 bolts holding the long brake hose lower mounting bracket broke off despite plus gas and heat, no room to drill it out I don't think, just had a cuppa then I'll go and have another look/think.
brianp38dse
Well-Known Member
Which way up have you got your cup washers on your shocks -(-)- or -)-(- they should be the latter i cant quite make it out in the pic.
brianp38dse
Well-Known Member
They are supposed to be the other way round so it gives more clearance for articulation, you can snap the shocks if they catch on the mountings.
Flossie
Well-Known Member
brianp38dse
Well-Known Member
Oh
I'll do it tomorrow ta
Its quite an easy one to get wrong, i seam to remember @Mark Piercy having that issue and RRdt
brianp38dse
Well-Known Member
RangeRoller dt
Well-Sprung Member
Filling the boot with soaking wet mud probably didnt help but spot on with the washers. We both have TF HD shocks mind. They are a PIA to get over the threads.
Some of the early stock had poorly welded lower pins which didn't help with pins staying put!!
Flossie
Well-Known Member
I'd done the fronts wrong too, sorted them but to do the rears I need to jack up the back end off the tow bar which means me being outside and it's tipping it down so that can wait.

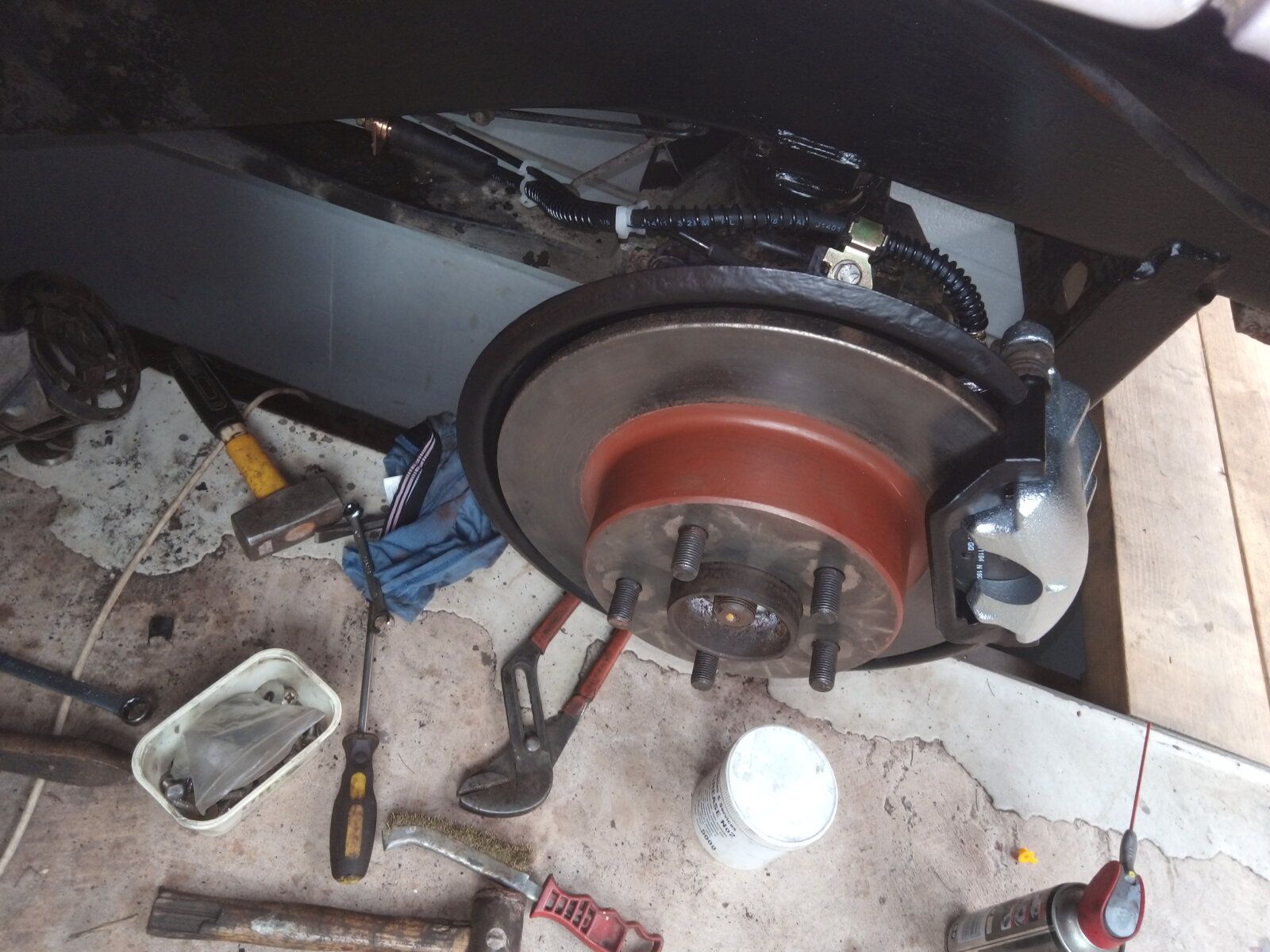

Got on with building up the passenger side hub to completion, can't finish the driver's side until paddocks delivery arrives. Wierd why they list brake hoses as 'special order 2/3 days', but exhausts as a 'stock item ready for despatch'. Surely brake hoses would be fast moving items, not braided just standard rubber ones anorl.
Anywhoo, new hub to axle bolts, carrier bolts, brake hose, caliper and pads, reused the disc which had no wear at all and the abs sensor which removed easily, fitted a new sensor cage though as I had new ones left over from doing the fronts.
Got on with building up the passenger side hub to completion, can't finish the driver's side until paddocks delivery arrives. Wierd why they list brake hoses as 'special order 2/3 days', but exhausts as a 'stock item ready for despatch'. Surely brake hoses would be fast moving items, not braided just standard rubber ones anorl
.Anywhoo, new hub to axle bolts, carrier bolts, brake hose, caliper and pads, reused the disc which had no wear at all and the abs sensor which removed easily, fitted a new sensor cage though as I had new ones left over from doing the fronts.
Ooooh, niceI'd done the fronts wrong too, sorted them but to do the rears I need to jack up the back end off the tow bar which means me being outside and it's tipping it down so that can wait.
Got on with building up the passenger side hub to completion, can't finish the driver's side until paddocks delivery arrives. Wierd why they list brake hoses as 'special order 2/3 days', but exhausts as a 'stock item ready for despatch'. Surely brake hoses would be fast moving items, not braided just standard rubber ones anorl
Anywhoo, new hub to axle bolts, carrier bolts, brake hose, caliper and pads, reused the disc which had no wear at all and the abs sensor which removed easily, fitted a new sensor cage though as I had new ones left over from doing the fronts.
View attachment 249059
brianp38dse
Well-Known Member
I'd done the fronts wrong too, sorted them but to do the rears I need to jack up the back end off the tow bar which means me being outside and it's tipping it down so that can wait.
Got on with building up the passenger side hub to completion, can't finish the driver's side until paddocks delivery arrives. Wierd why they list brake hoses as 'special order 2/3 days', but exhausts as a 'stock item ready for despatch'. Surely brake hoses would be fast moving items, not braided just standard rubber ones anorl
Anywhoo, new hub to axle bolts, carrier bolts, brake hose, caliper and pads, reused the disc which had no wear at all and the abs sensor which removed easily, fitted a new sensor cage though as I had new ones left over from doing the fronts.
View attachment 249059
I looked at that picture and had a good laugh
nothing wrong with you motor its looking very good indeed, But i have one of those Stanley club hammers and mine did exactly the same with the handle years ago, they get longer as you use um
