kermit_rr said:
Put your thumb over the plug hole, you'll feel it blow as the piston comes up as you turn the engine over when the valves are closed
Click to expand...

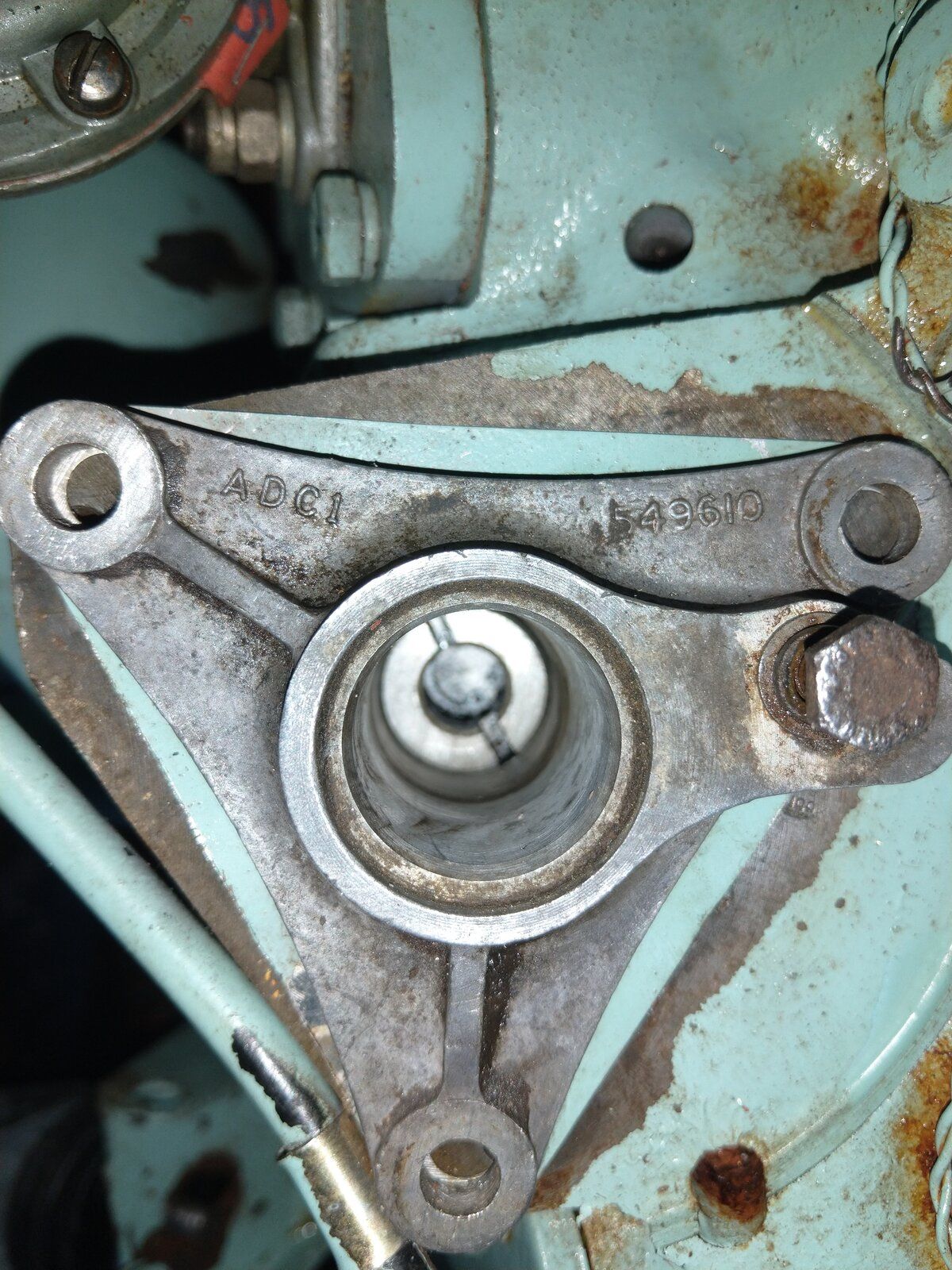

Thanks again, sorry for all qeustions but just want to get it right, will I need any gasket sealer under the top plate before I bolt it in ? there is an aluminium gasket there, also I have the dog thingy in there does the disttbuter just pop in and turn.


Attachments

  • IMG_20211019_172648.jpg
    366.5 KB · Views: 91
  • IMG_20211019_172529.jpg
    261 KB · Views: 77

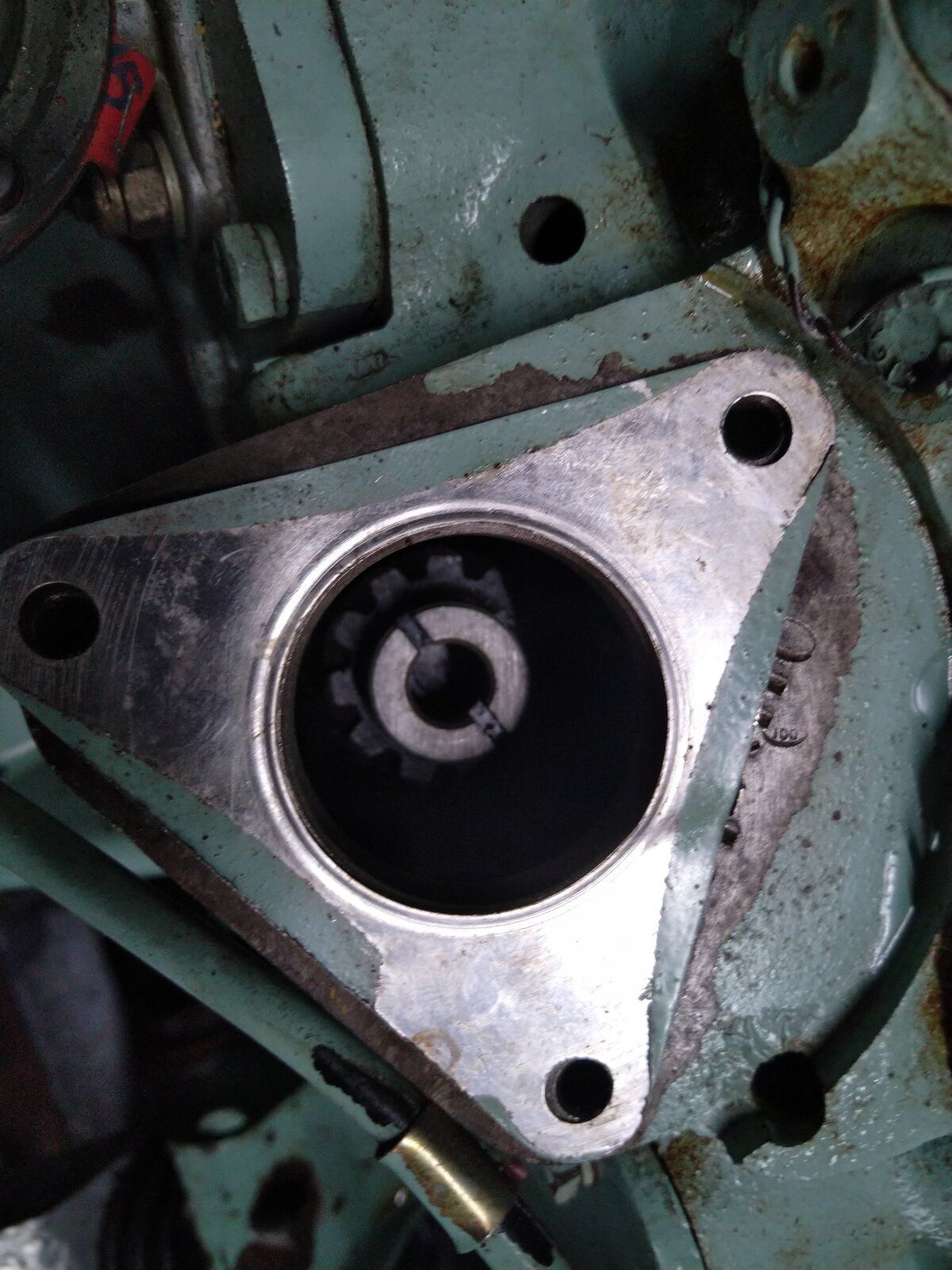

There's the aluminium gasket but i think there should also be an O ring on the shaft?
If i remember, there's the gear you can see with the slot in, there should be another bit that fits in with another slot at 90 degrees which the distributor slots in to. Easy to knock out and get wrong when you fit the distributor

Last edited:
kermit_rr said:
There's the aluminium gasket but i think there should also be an O ring on the shaft?
If i remember, there's the gear you can see with the slot in, there should be another bit that fits in with another slot at 90 degrees which the distributor slots in to. Easy to knock out and get wrong when you fit the distributor
Click to expand...
Yes I have the other bit that the distributor slots in to. Missing o ring unless there's one on new distributor

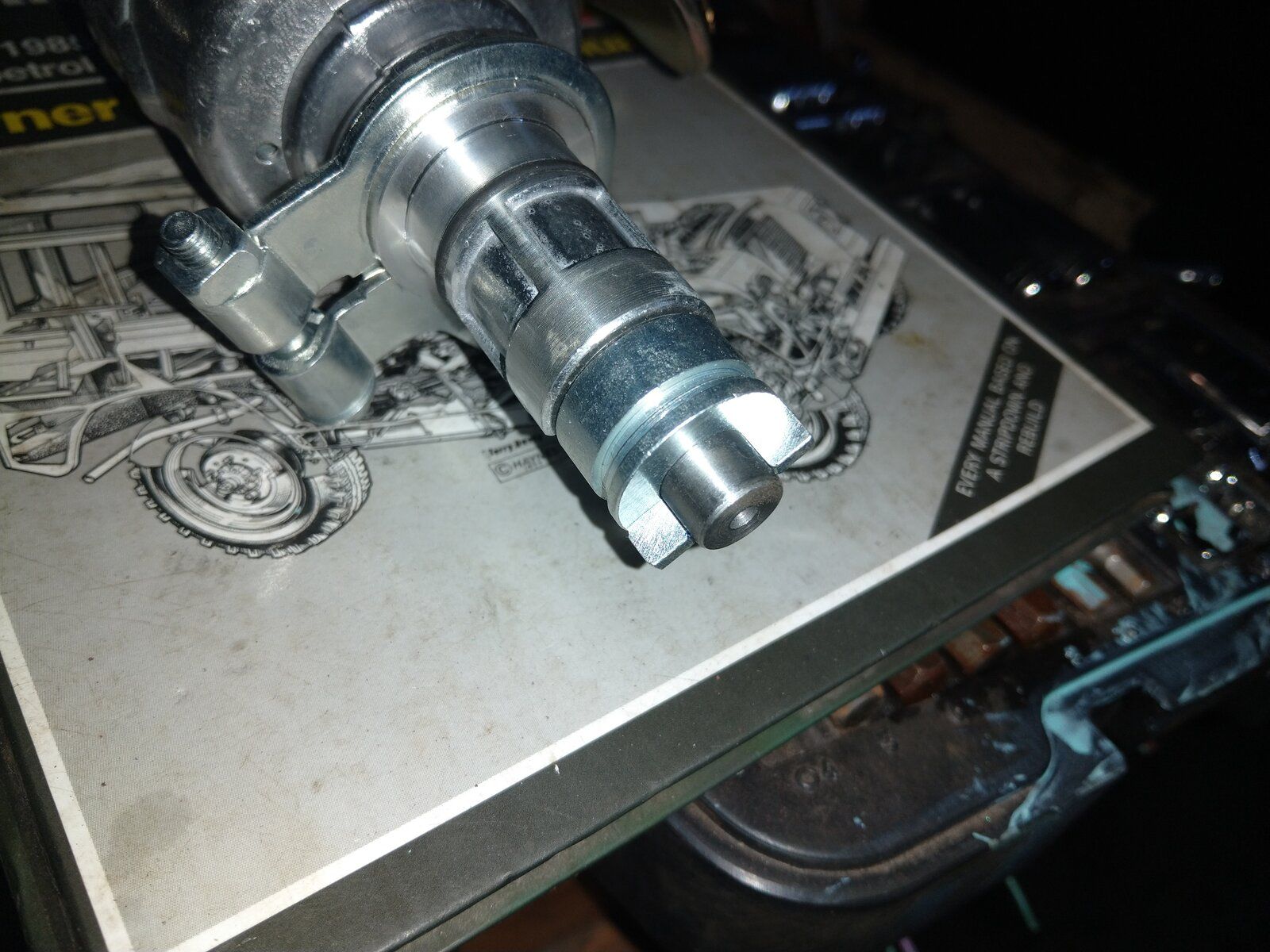

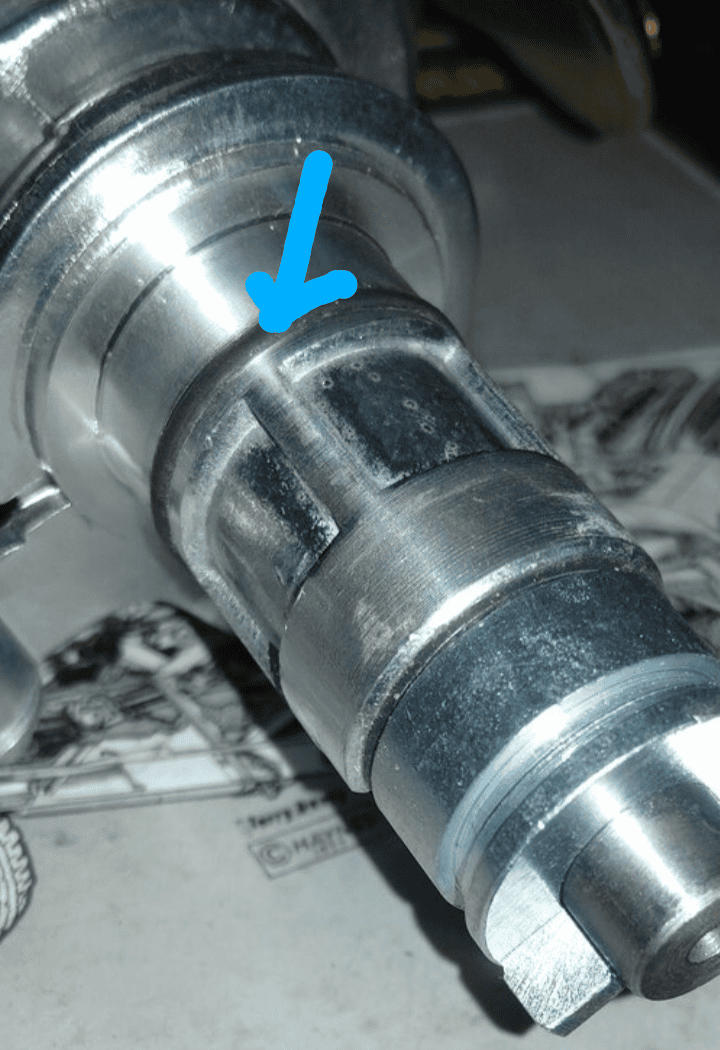

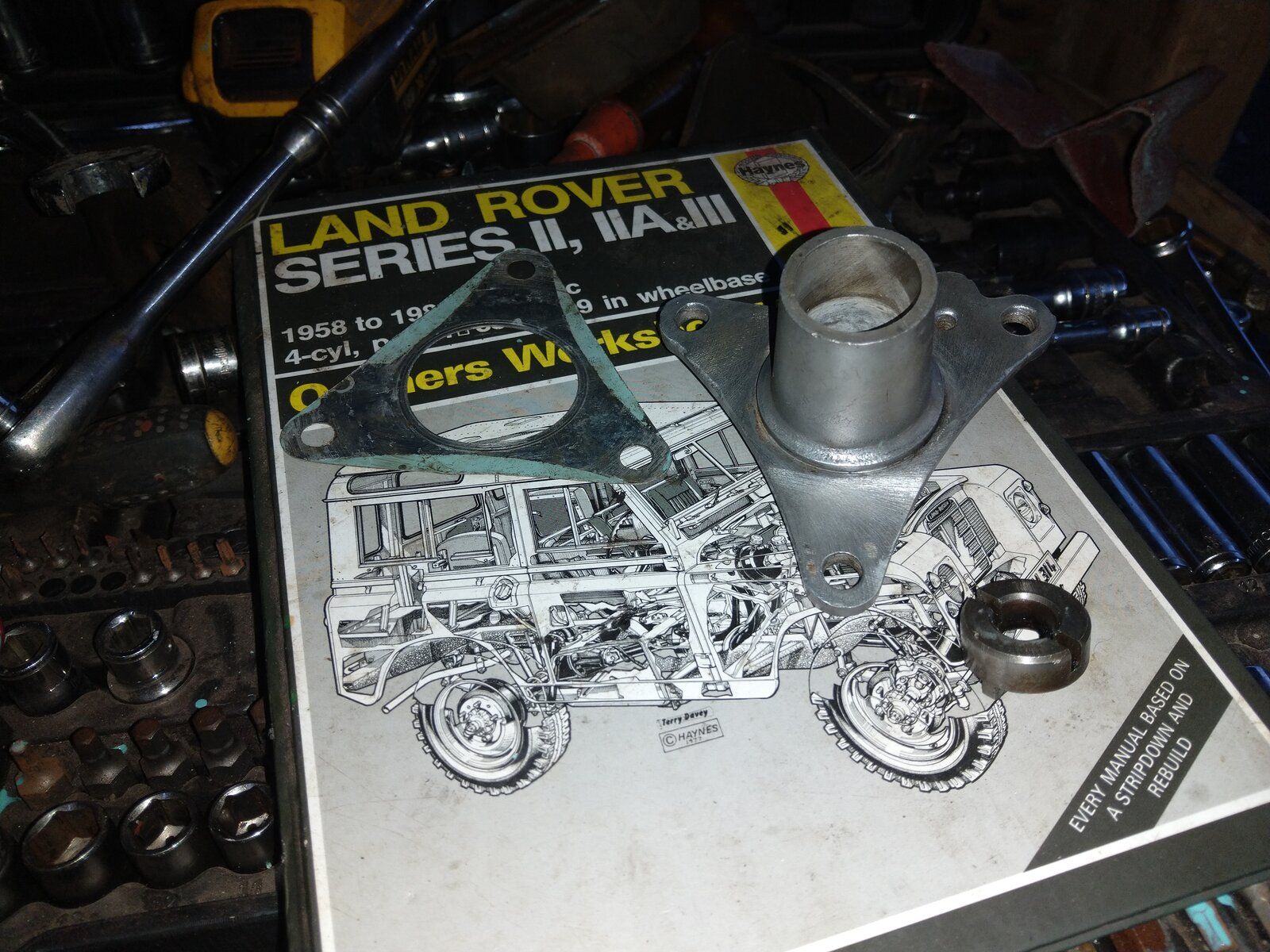

This is what I have in first pic, but missing the O ring, probably wont be able to get one till next week now, unless theres anything else that could be used.

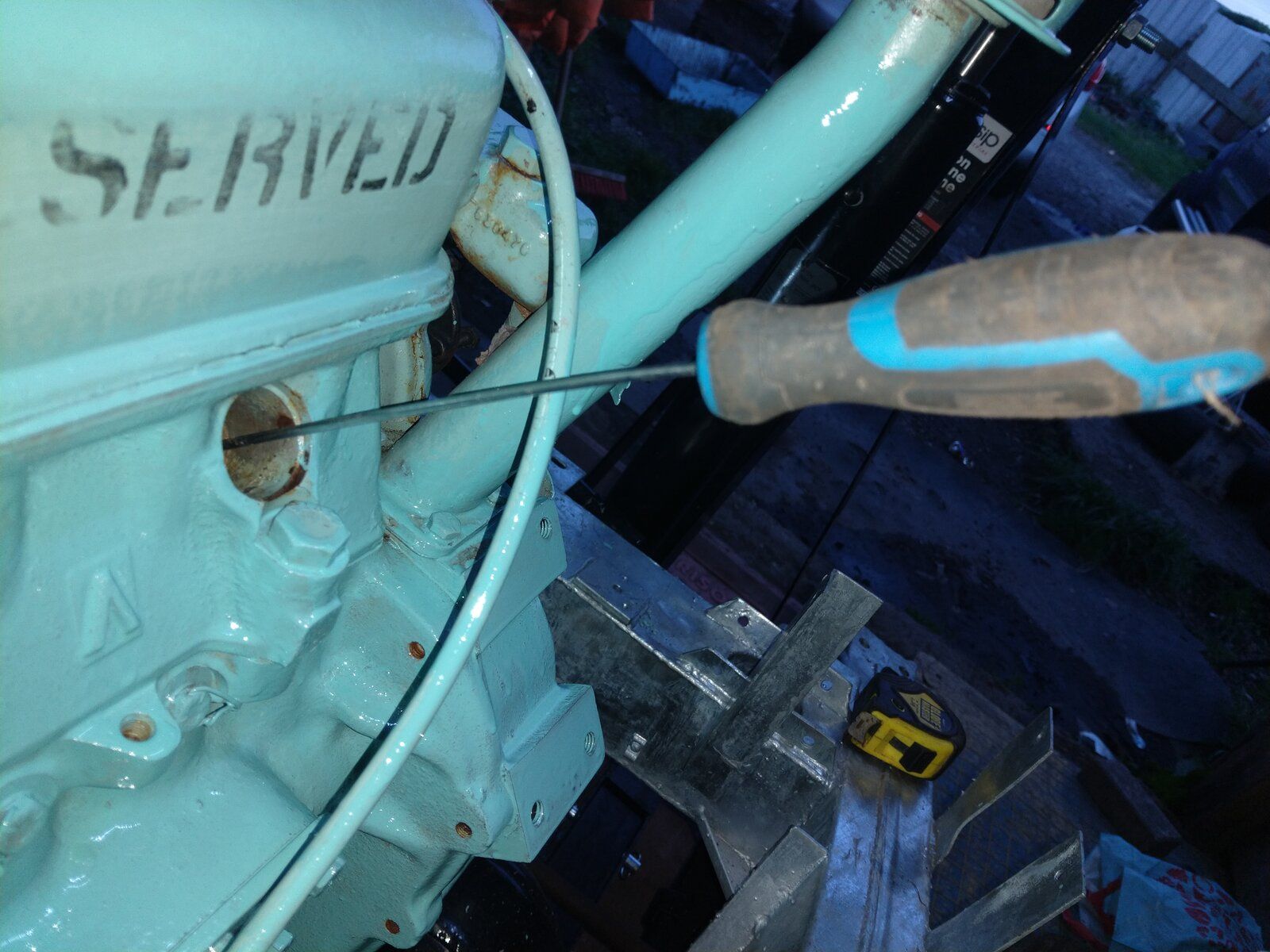

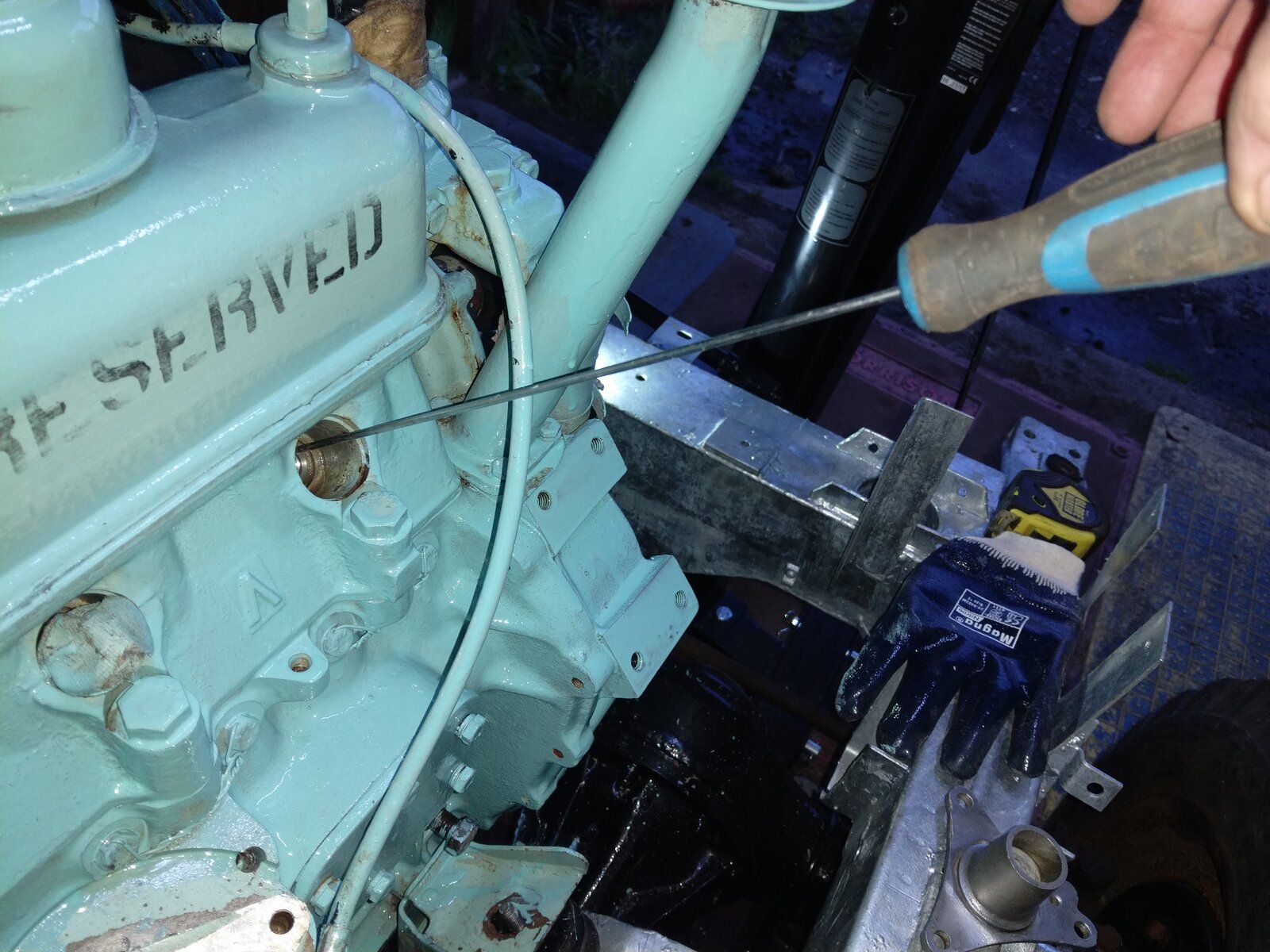

I had to turn engine by hand as Im on my own so couldn't feel for any blowing out of hole but it does come right up with the screwdriver test when the mark is at TDC on flywheel, when I turn it right off TDC I can get the long screwdriver right in, but when its turned back to TDC it only goes in a litle bit as in pics.
Now when its on TDC and screwdriver is only in a little, when I line the bottom grove of distributor up with the groove down in the hole the Cap points to number 1, so does this sound right.
Hope yous can understand all that.


Attachments

  • IMG_20211021_180107.jpg
    348.2 KB · Views: 101
  • IMG_20211021_175647.jpg
    229.8 KB · Views: 100
  • IMG_20211021_175511.jpg
    286.7 KB · Views: 85
  • IMG_20211021_181949.jpg
    257.2 KB · Views: 91
It's not really hit and miss, i can't remember what the workshop manual says but with the 'collar' already in place, the distributor just slots in, it's not hard, but keep it lined up straight or it's easy to dislodge. Turn the rotor arm back and forth a bit too help click in to place

kermit_rr said:
It's not really hit and miss, i can't remember what the workshop manual says but with the 'collar' already in place, the distributor just slots in, it's not hard, but keep it lined up straight or it's easy to dislodge. Turn the rotor arm back and forth a bit too help click in to place
Click to expand...

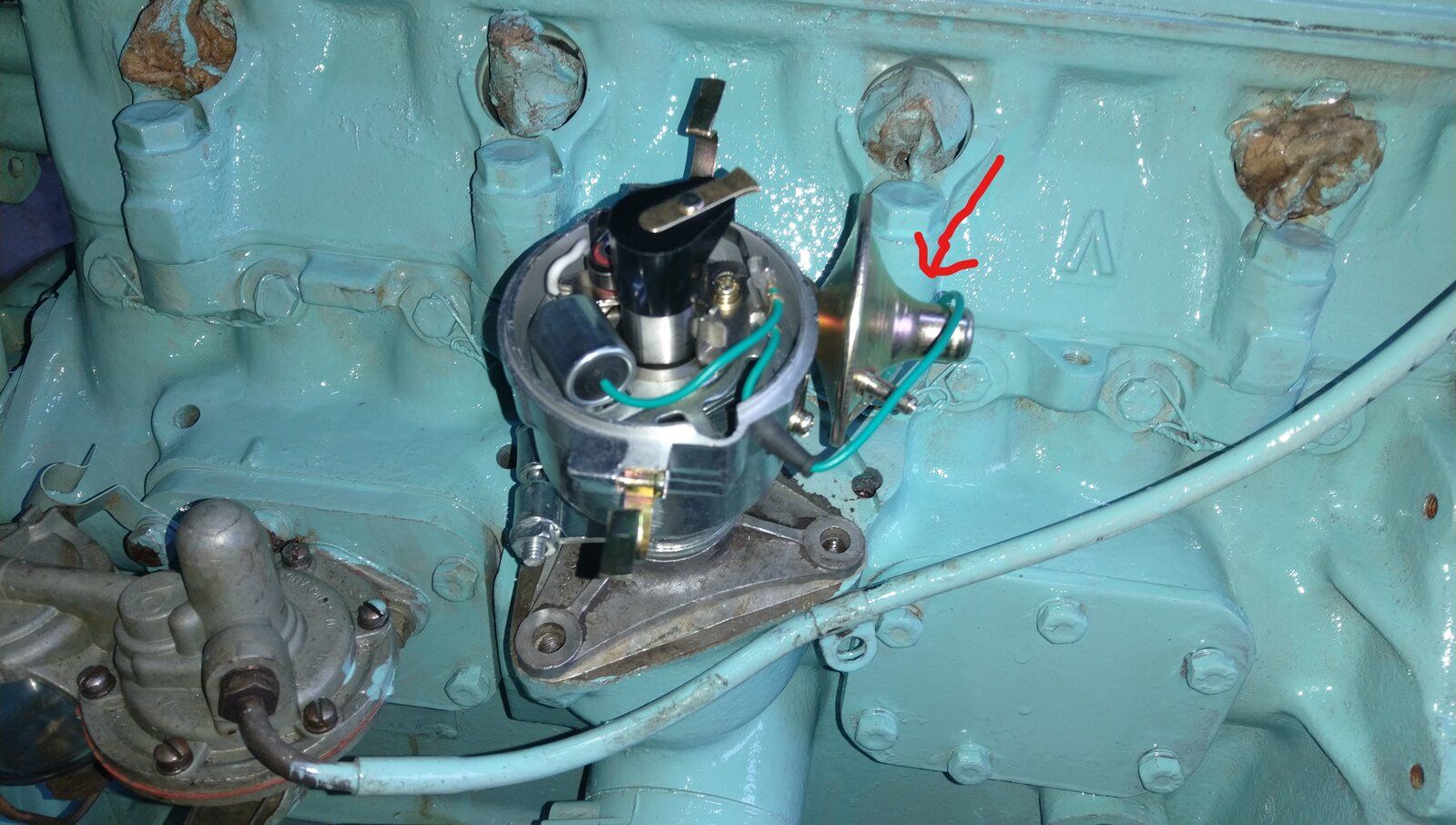

Thanks Again, Nothing bolted in yet just Not sure which way the Vacuum should point, can only seem to get it this way towards front , arrowed in pic, is that right ?


Attachments

  • IMG_20211022_171419 (2)_LI.jpg
    IMG_20211022_171419 (2)_LI.jpg
    241 KB · Views: 80
border said:
This is what I have in first pic, but missing the O ring, probably wont be able to get one till next week now, unless theres anything else that could be used.
I had to turn engine by hand as Im on my own so couldn't feel for any blowing out of hole but it does come right up with the screwdriver test when the mark is at TDC on flywheel, when I turn it right off TDC I can get the long screwdriver right in, but when its turned back to TDC it only goes in a litle bit as in pics.
Now when its on TDC and screwdriver is only in a little, when I line the bottom grove of distributor up with the groove down in the hole the Cap points to number 1, so does this sound right.
Hope yous can understand all that.
Click to expand...

Been away.
All sounds good, but you could be 180 out.
As you are on your own put a plug in number 1 and turn it by hand you will feel the diff between the compression stroke over the exhaust stroke.
J

kermit_rr said:
If you info the clamp bolt it should spin round freely
Click to expand...
Right never thought of that, should it be facing the other way round towards rear of engine ?
marjon said:
Been away.
All sounds good, but you could be 180 out.
As you are on your own put a plug in number 1 and turn it by hand you will feel the diff between the compression stroke over the exhaust stroke.
J
Click to expand...
marjon said:
Been away.
All sounds good, but you could be 180 out.
As you are on your own put a plug in number 1 and turn it by hand you will feel the diff between the compression stroke over the exhaust stroke.
J
Click to expand...
Not sure what you mean, all 4 plugs are in at the moment, I took number 1 out to TDC it, it is back in now.

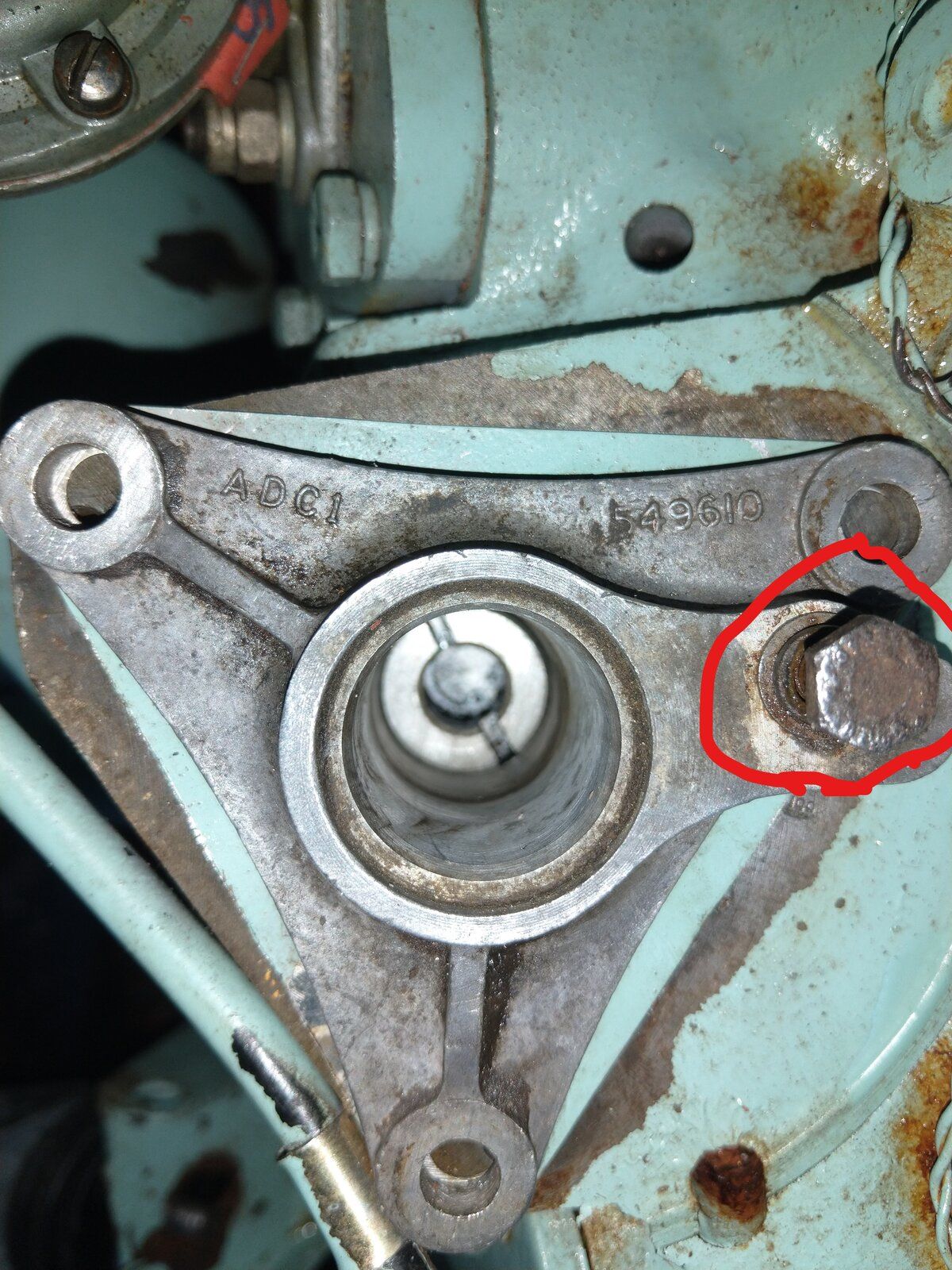

Does it matter which hole this securing nut goes on ?


Attachments

  • IMG_20211019_172648_LI.jpg
    367.3 KB · Views: 115
