Turboman · Oct 29, 2021

border said:
Please excuse me but I just cant figure out how this alt bracket fits Has anyone got a pic of it fitted ? cant find one anywhere on google.

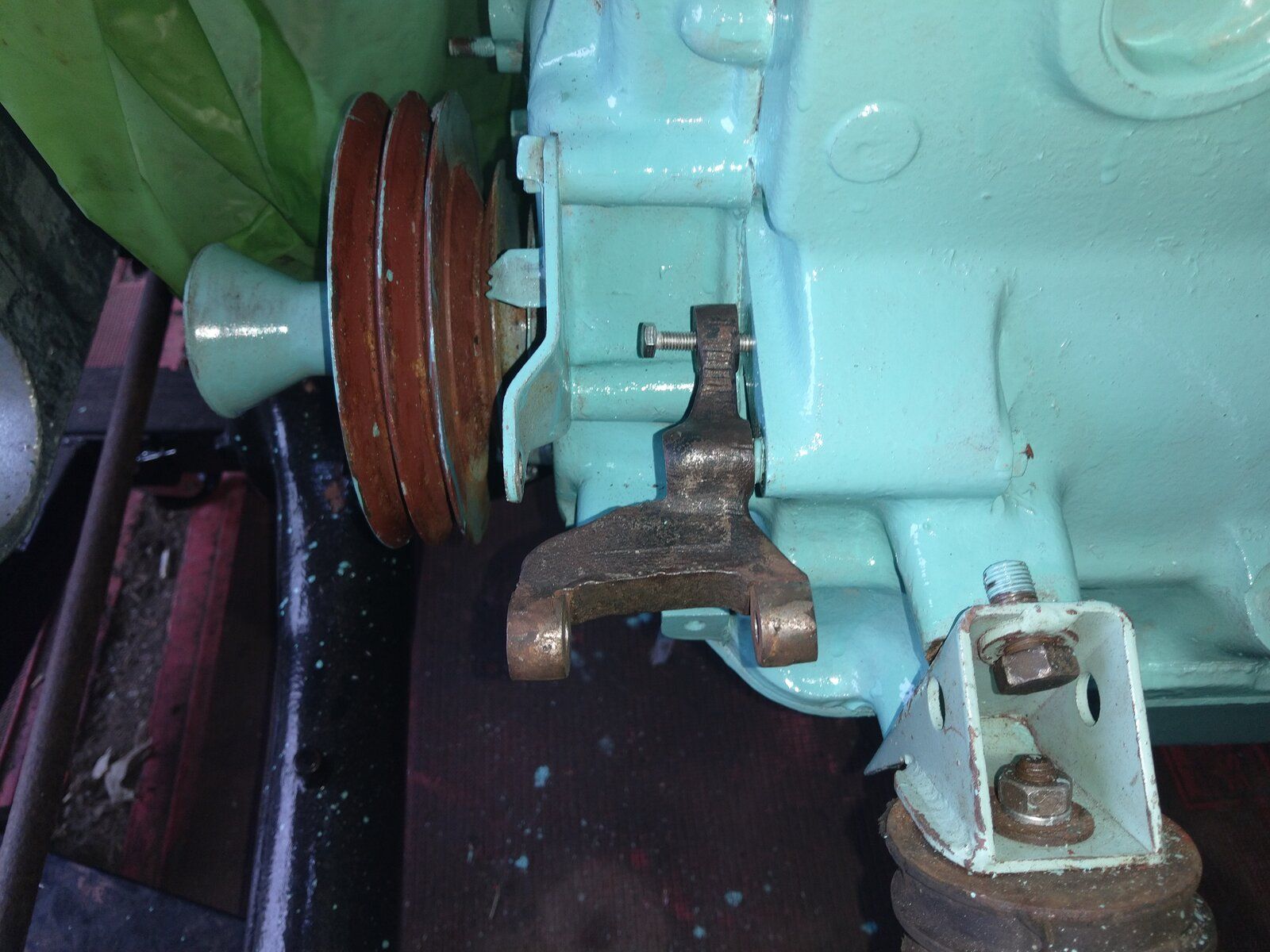

I thought it went through this bit on first pic, but it does not seem to fit on there. This is alternator I have.

Just a thought, but will the alternator itself fit on the existing bracket?

It is not very critical, all you need is the alternator bolted on, a bar with a slot in it bolted on somewhere else for a stay, and the pulleys more or less in the same line.

You can use washers and short lengths of tube over the bolts to move it a bit backwards and forwards if needed.

Shippers · Oct 29, 2021

Turboman said:
Just a thought, but will the alternator itself fit on the existing bracket?

Thats what I thought as well...

It is not very critical, all you need is the alternator bolted on, a bar with a slot in it bolted on somewhere else for a stay, and the pulleys more or less in the same line.

You can use washers and short lengths of tube over the bolts to move it a bit backwards and forwards if needed.

border · Oct 29, 2021

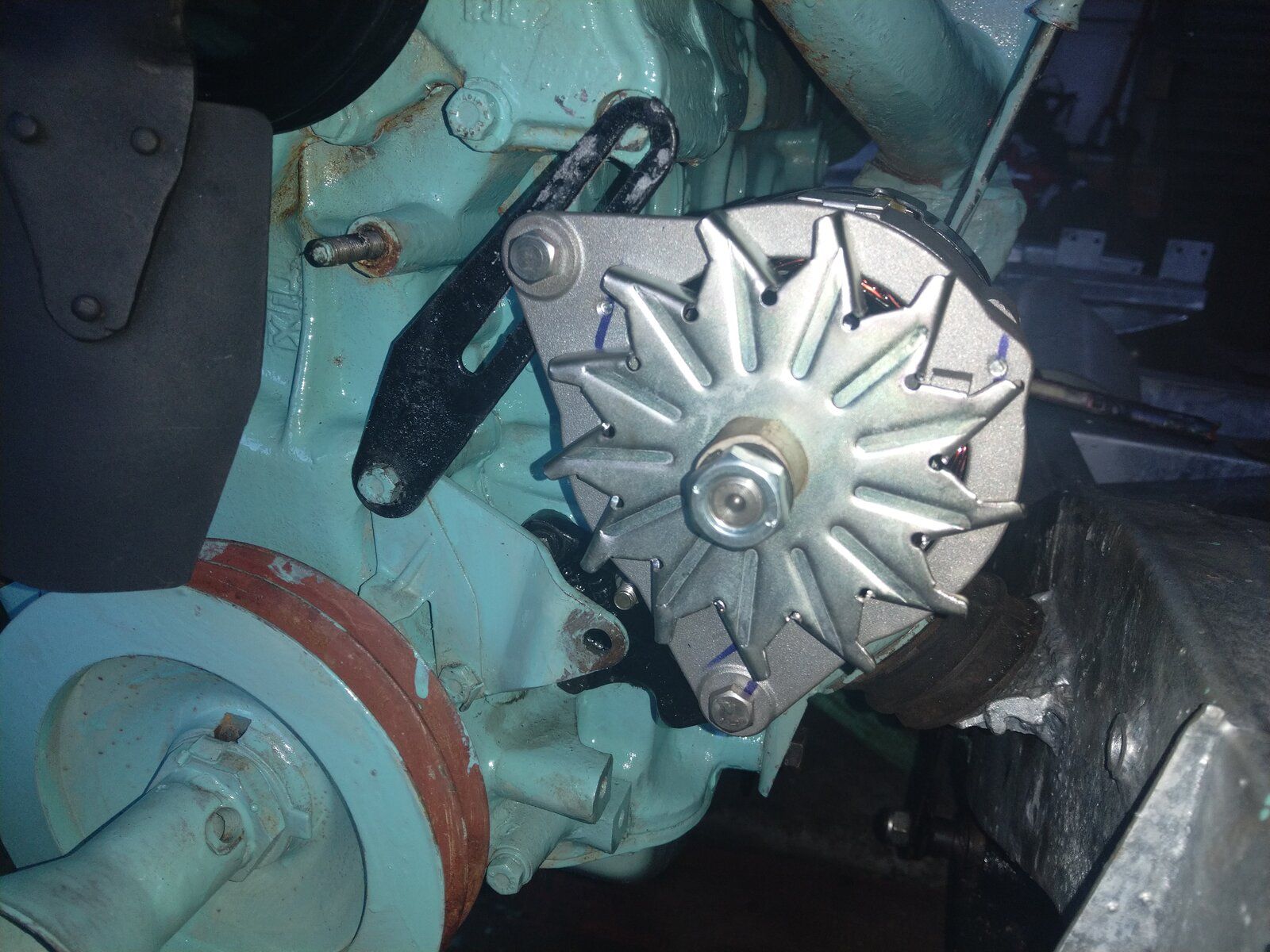

Found out where the bloody thing goes, just sat it in place for now, till I give it a clean and paint, not sure which bolt the adjusting bar goes yet but will figure it out.

border · Oct 29, 2021

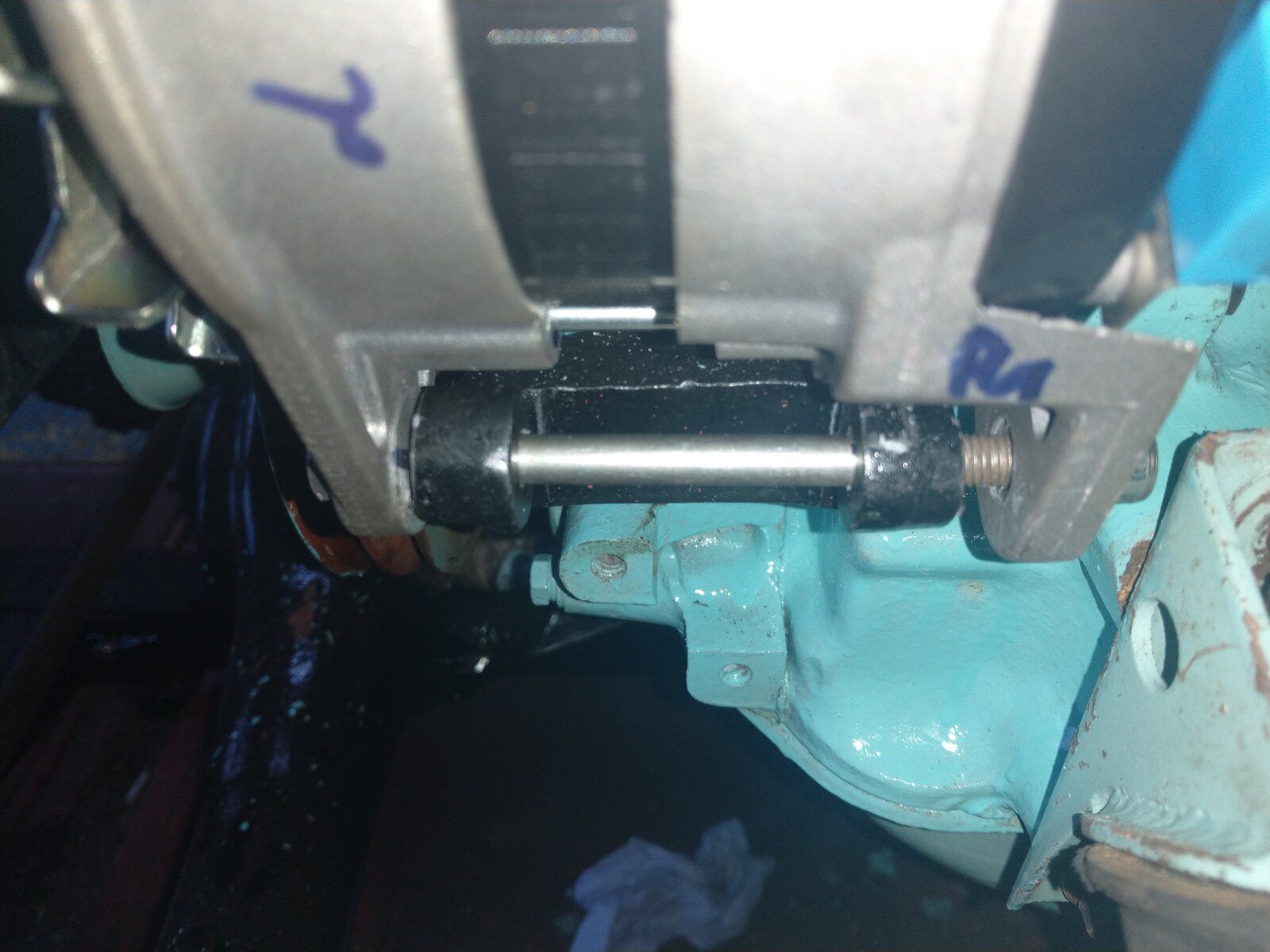

Well got it provisionally fited just need a longer bolt so it goes all the way through bottom of Alt in first pic, there is a spacer, sleeve thing on the end, on right hand side not sure why thats there for.
Looks like the pulleys will line up too, waiting for Alt pulley and belt, hopefully come tomorrow so I can try it.
