the wires yiou want go to the ecu behind the side panel in the drivers footwell/under the steering wheel and they are red & green/pink
the wires yiou want go to the ecu behind the side panel in the drivers footwell/under the steering wheel and they are red & green/pink
DEFENDER90-DAZ
New Member
Cheers mate i'll have a look
Do you think the ebay items will do the trick?
Daz
Do you think the ebay items will do the trick?
Daz
Diesel Do
Well-Known Member
Yeah thanks I'd already found that
question is, is it adjustable enough to keep smoke acceptable and not blow anything up! Or is it all or nothing? DD
DEFENDER90-DAZ
New Member
With the adjustable 1k ohm pot it will be adjustable i think.
What i'll do it mount the pot and switch in the small box and using my multimeter mark on the box the different settings ie: 1k ohm/900 ohms/800 ohms etc...............
So i can tweak it while i'm driving/testing to find the best improvement without smoke setting
Daz
What i'll do it mount the pot and switch in the small box and using my multimeter mark on the box the different settings ie: 1k ohm/900 ohms/800 ohms etc...............
So i can tweak it while i'm driving/testing to find the best improvement without smoke setting
Daz
DEFENDER90-DAZ
New Member
I'll only be towing a small trailer with quad on it - now and again so should be ok.
Will be able to switch it on and off too.
Daz
Will be able to switch it on and off too.
Daz
Sheeprus
New Member
Daz,
Can you post photo's when you do? I'd be keen to see how it;s done.
Cheers
Chris
DEFENDER90-DAZ
New Member
Yep should be able to do that mate - will be easy enough to wire up the box.
Could do a step by step "how to" - still waiting for the bits to arrive
Daz
Could do a step by step "how to" - still waiting for the bits to arrive
Daz
DEFENDER90-DAZ
New Member
The bits arrived from ebay so i've made up the box and will fit it later
The good thing about the 1k ohm pot i bought is that the thumb adjuster is removable - so set it to where you want it power wise and remove the adjuster so it can't be altered/knocked

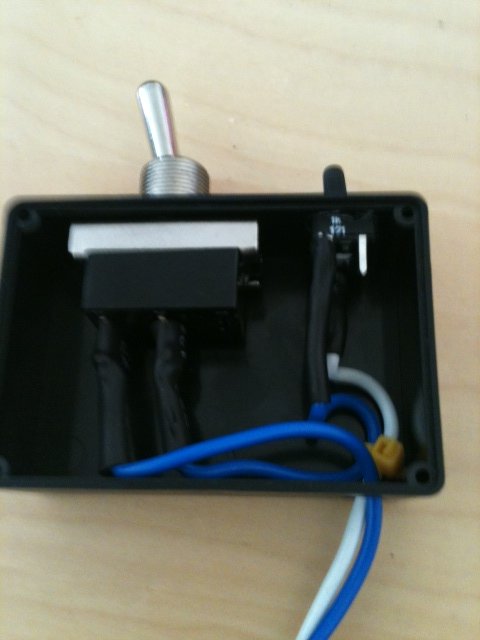

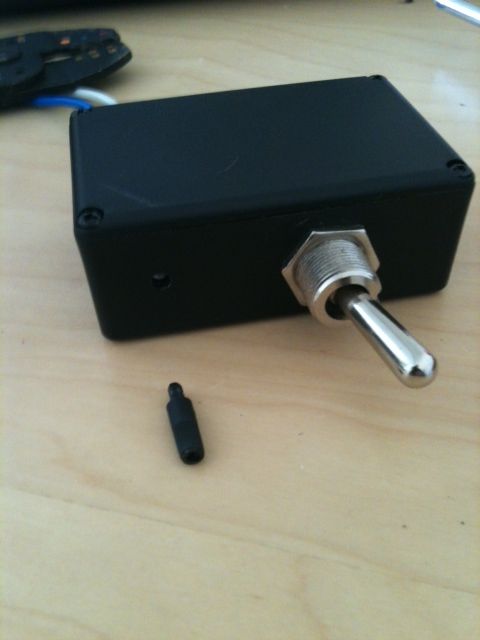

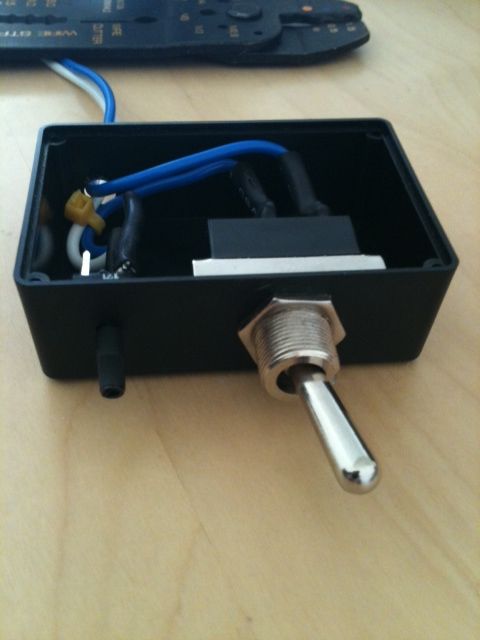

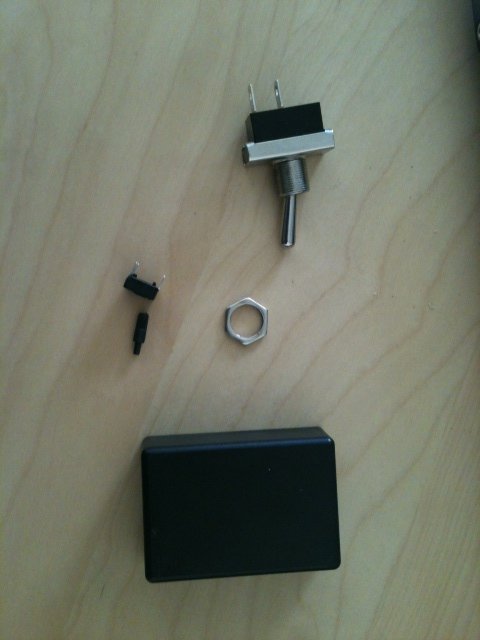

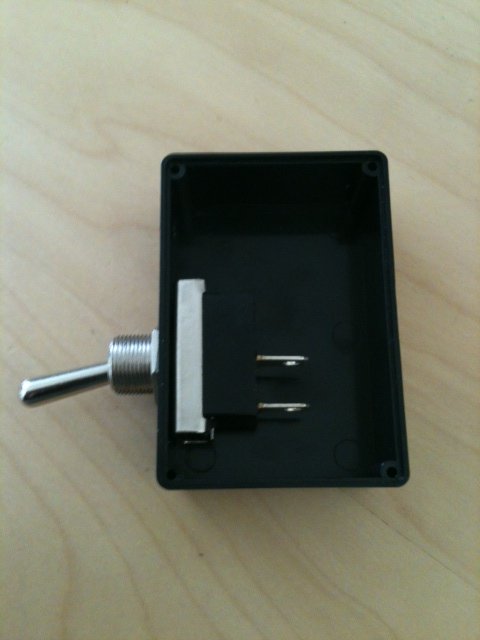

Here are some pics:
The good thing about the 1k ohm pot i bought is that the thumb adjuster is removable - so set it to where you want it power wise and remove the adjuster so it can't be altered/knocked
Here are some pics:
Attachments
DEFENDER90-DAZ
New Member
Thats the box fitted bridged across the red, green/pink wires.
I accessed the ecu wiring loom by removing the black panel above the pedals (there is a black corrogated pipe to protect the loom) Bared the wires (red and green/pink) and soldered the 2 wires from the box - 1 to each wire.
With the black box mounted on the dash next to the drivers door i can operate the switch easily to "turn on/off" the tuning box.
I started by warming up the engine and turned the 1k resistor pot fully clockwise (1k ohm) and slowly turned it anti-clockwise (reducing the resistance) until the idle started to become lumpy. I then turned the thumb adjuster clockwise until the idle was smooth again.
Took it for a test drive and it does make a difference!
Checked that there was no smoke screen on harsh acceleration or kickdown - sorted!
Removed the thumb adjuster and turned the box "off"
Daz
I accessed the ecu wiring loom by removing the black panel above the pedals (there is a black corrogated pipe to protect the loom) Bared the wires (red and green/pink) and soldered the 2 wires from the box - 1 to each wire.
With the black box mounted on the dash next to the drivers door i can operate the switch easily to "turn on/off" the tuning box.
I started by warming up the engine and turned the 1k resistor pot fully clockwise (1k ohm) and slowly turned it anti-clockwise (reducing the resistance) until the idle started to become lumpy. I then turned the thumb adjuster clockwise until the idle was smooth again.
Took it for a test drive and it does make a difference!
Checked that there was no smoke screen on harsh acceleration or kickdown - sorted!
Removed the thumb adjuster and turned the box "off"
Daz
StuRox
Well-Known Member
Good work - how much difference would you say?
Also, my only concerns when messing with the ECU is what potential danger or stress will this put on an already old and possibly worn engine tho?
I am always interested in more power, but also need to consider the downsides if any...
Also, my only concerns when messing with the ECU is what potential danger or stress will this put on an already old and possibly worn engine tho?
I am always interested in more power, but also need to consider the downsides if any...
DEFENDER90-DAZ
New Member
Hi Stu its a good mod for a small price, the thing i like about it is you can switch it on and off. I'll probably only use it for hills as my disco pulls well enough as it is.
Downsides - as hifly said "you might melt something"
The guys with the normal injection pumps have tweaked them and i haven't heard anything bad about that?
Daz
Downsides - as hifly said "you might melt something"
The guys with the normal injection pumps have tweaked them and i haven't heard anything bad about that?
Daz
DEFENDER90-DAZ
New Member
Yep i liked the idea of switching it on and off - the guys that have their ecu modded can't do that
Daz
Daz
StuRox
Well-Known Member
Don't get me wrong, certainly not against this, or remaps/chips, as I have done plenty cars in the past - even had variable tuning boxes on my other diesel cars, but they were a lot newer, and just worried about the old girl and what could go wrong, as you have a hard enough job fixing the everyday jobs
DEFENDER90-DAZ
New Member
Easy solution then mate - don't bother.
