worst wiring I have came across

mlucas110 · Jan 7, 2014

Well after quite a while of having no nearside indicator I thought I would investigate further after no luck elsewhere.

I opened a real can of worms! It turned out I had 3 different bits of wiring looms all bodged in with chocolate blocks and twisted wires! Wires that were not connected at either end. Also loads where the same colour! The icing on the cake was the 2 trailer plugs it had that where destroyed and also bodged!

Overall I sorted it out! Removed un needed crap and cleaned earths as went along. Soldered all joints so no more blocked and twisted wires, shrink wrapped and put it all away nicely instead of wrapped up electric tape and duck tape! Now got all my lights again!

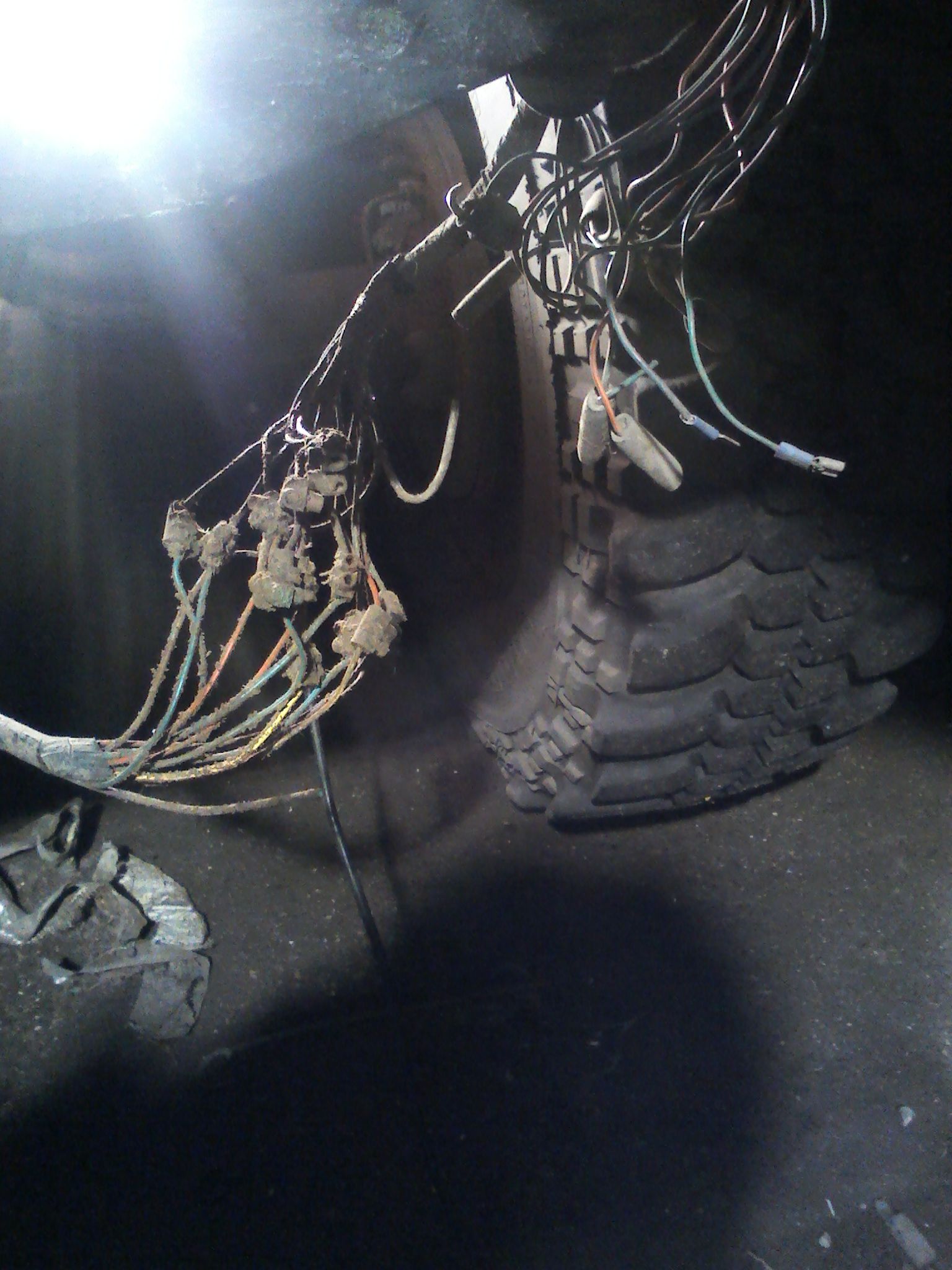

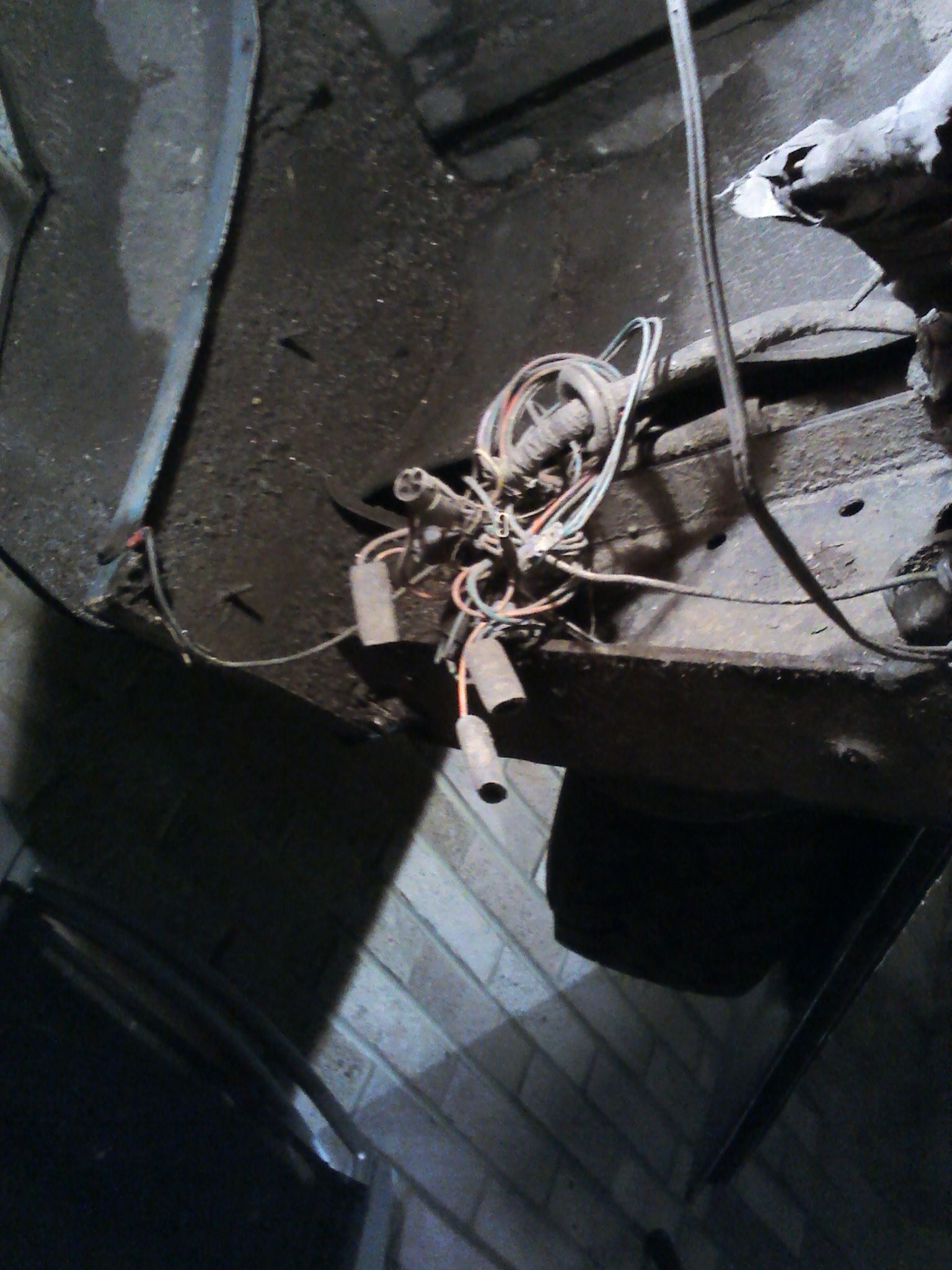

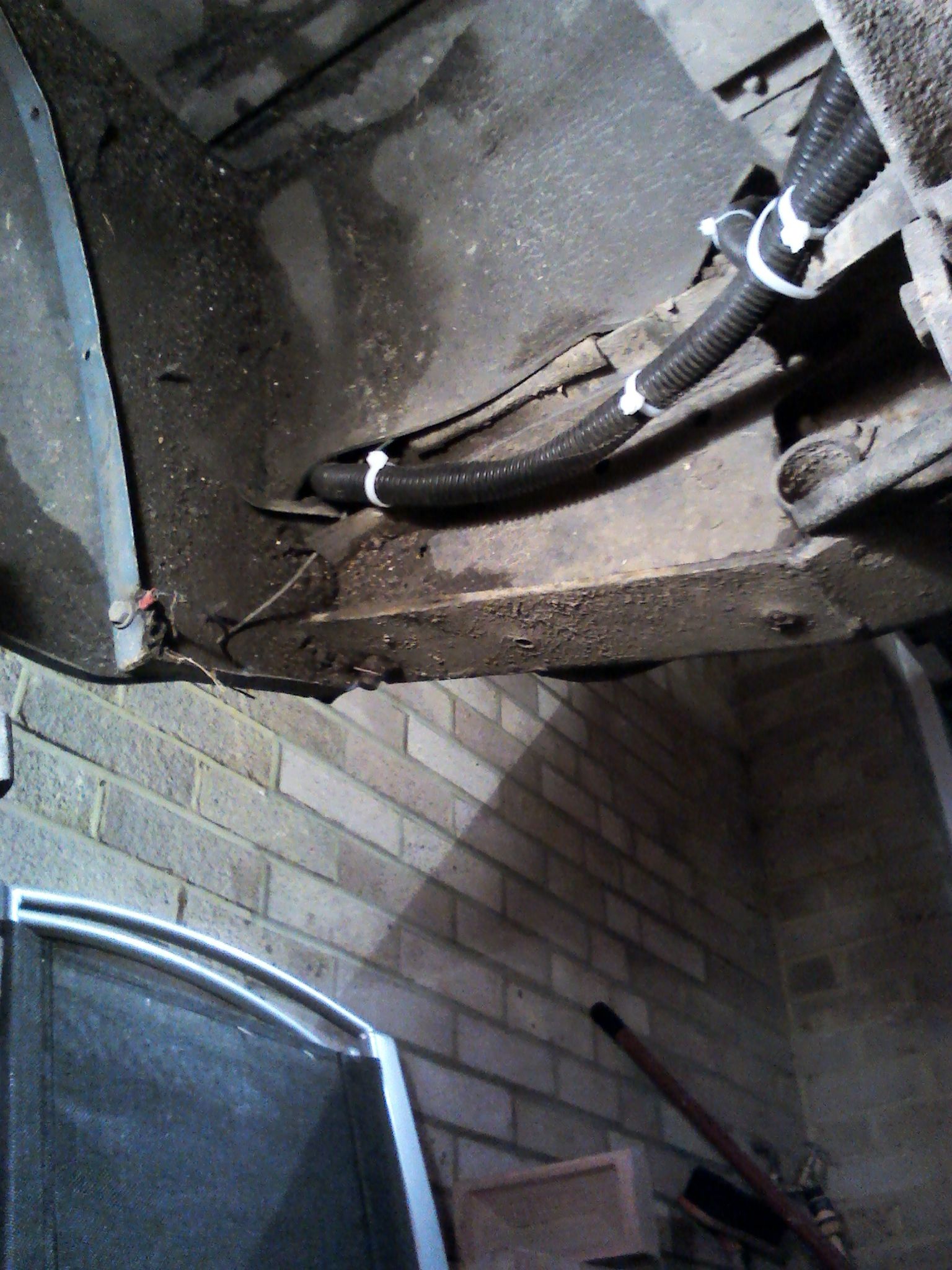

1st to pics are of just ones side and last is when I finished

Landyfox · Jan 7, 2014

Rubbish that sounds a luxurious loom - My wiring came fully insulated with 'PAPER TOWELS'. I had never seen so many open circuits!!

mlucas110 · Jan 7, 2014

I said what I have seen! Seeing as I never saw yours therefore, mines worse!

Do u seeeeee what I mean!

Think wirings made me go delirious

mick the builder · Jan 7, 2014

Landyfox said:
Rubbish that sounds a luxurious loom - My wiring came fully insulated with 'PAPER TOWELS'. I had never seen so many open circuits!!

Yours was insulated?? Luxury

I have the fuse box from an unknown motor that still has 6inch. of different colour wires joined to my loom with connector blocks.

mlucas110 · Jan 8, 2014

makes your wonder what previous owners we thinking when they did it. Alot of people have the same situation, so there is a fair amount of these wollys out there.

Boxer · Jan 8, 2014

I did an emergency repair on my front left flasher wire about two years ago. C u t into the wire near the heater and ran an extra one through the engine bay to the bulb holder. Finally got round to taking the broken wheel arch it was a mess and this had been fully serviced before I bought it so it was a garage job.

AlbertDefender90 · Jan 9, 2014

mine was similar when i stripped it down, looked like someone had been through it with the grinder when they had replaced the rear crossmember.

Landyfox · Jan 9, 2014

Oh the joys of wiring!!!

Litch · Jan 9, 2014

Just think what else these previous owners might have done to your pride and joy if they can't deal with something simple like wiring, checked your brakes lately?

aaronmorris · Jan 9, 2014

Litch said:
Just think what else these previous owners might have done to your pride and joy if they can't deal with something simple like wiring, checked your brakes lately?

Wiring isn't simple to every one, Every one has strong and week points.

Personally I don't like wiring much, More to do with the fact that I have no patience.
But would quite happily do mechanical stuff all day.

mlucas110 · Jan 10, 2014

My brakes are good but thanks for your concern lol! Although handbrake needs some major adjustment!

As said before though a lot of people struggle with the wiring side of stuff but yet could easily remove a rear axle. Also to some people wiring blocks might be a good job to them! Not me though solder all main wires and use proper connectors for the lights as you quite often need to replace them.

I still need to tackle the hazard switch which don't work! Every time you put it on it stop all indicators and the power disappears

but yet doesn't blow a fuse? I'm slowly getting on top of the gremlings!

rappy1 · Jan 10, 2014

When ever i buy a second hand car more so a LAND ROVER

i always pull apart to check for home job wiring. Land rovers seem to never run enough fuses on their systems, and poor wiring can create fires.
I had some one twist the wires together for trailer wiring right where it enters the chassis on my 110. If there was ever someone i wanted to hit, that would have been the person.

Landyfox · Jan 11, 2014

mlucas110 said:
My brakes are good but thanks for your concern lol! Although handbrake needs some major adjustment!

As said before though a lot of people struggle with the wiring side of stuff but yet could easily remove a rear axle. Also to some people wiring blocks might be a good job to them! Not me though solder all main wires and use proper connectors for the lights as you quite often need to replace them.

I still need to tackle the hazard switch which don't work! Every time you put it on it stop all indicators and the power disappears but yet doesn't blow a fuse? I'm slowly getting on top of the gremlings!

I had exactly the same fault and was reliably informed that the switch was knackered, so I bought a new switch - turned out to be the wires were the wrong way around!

Test your wires at the switch to see if they're live when the switch is in the on position, if not and only then replace the switch.

Landyfox · Jan 11, 2014

aaronmorris said:
Wiring isn't simple to every one, Every one has strong and week points.

Personally I don't like wiring much, More to do with the fact that I have no patience.
But would quite happily do mechanical stuff all day.

Wiring is simply the work of the devil!

aaronmorris · Jan 11, 2014

Landyfox said:
Wiring is simply the work of the devil!

Yes especially in vehicles, At least at work it's my own installation and I know what goes were so I actually understand it. Sometimes
