Hi guys

Im after a some photos inside the front grill looking at the oil cooler and the pipes that go to the gear box.

Im guessing the pipes run along the top of the chassis.

V8bob · Jul 12, 2021

I don’t have a picture, but have a wolf
The pipes run along the side of the engine, just below the block to oil pan line. Pretty much straight forward from gearbox.

landy-lee · Jul 12, 2021

V8bob said:
I don’t have a picture, but have a wolf
The pipes run along the side of the engine, just below the block to oil pan line. Pretty much straight forward from gearbox.

cheers mate!

Are the pipes clipped to the engine block then? P clips maybe?

V8bob · Jul 12, 2021

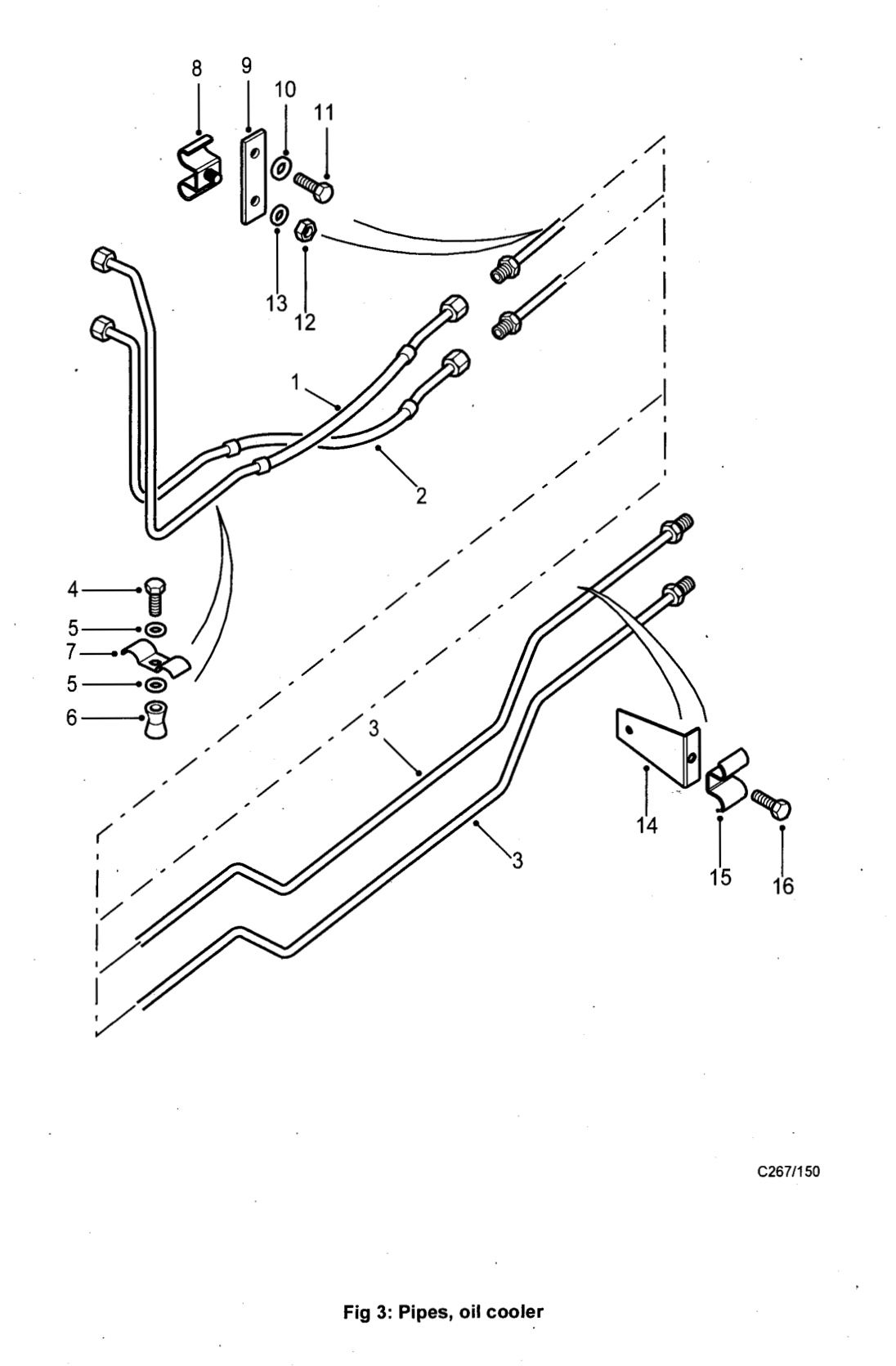

Yes, a bracket. From memory bolted to the block, it has a weld nut that holds a double u clip for clamping them.
