Wiring for heater matrix

djl403 · Monday at 16:07

I’ve just become the proud owner of a series 3 88 canvas top 1970.
So far I’ve fixed the indicators and brake light and now having a go at fixing the heater. I’ve traced the wires from the switch on the dash and found them by the matrix unattached.
Struggling to see where they attach to though?
Can someone point me in the right direction?
Thanks

grewth · Monday at 16:19

djl403 said:
I’ve just become the proud owner of a series 3 88 canvas top 1970.
So far I’ve fixed the indicators and brake light and now having a go at fixing the heater. I’ve traced the wires from the switch on the dash and found them by the matrix unattached.
Struggling to see where they attach to though?
Can someone point me in the right direction?
Thanks

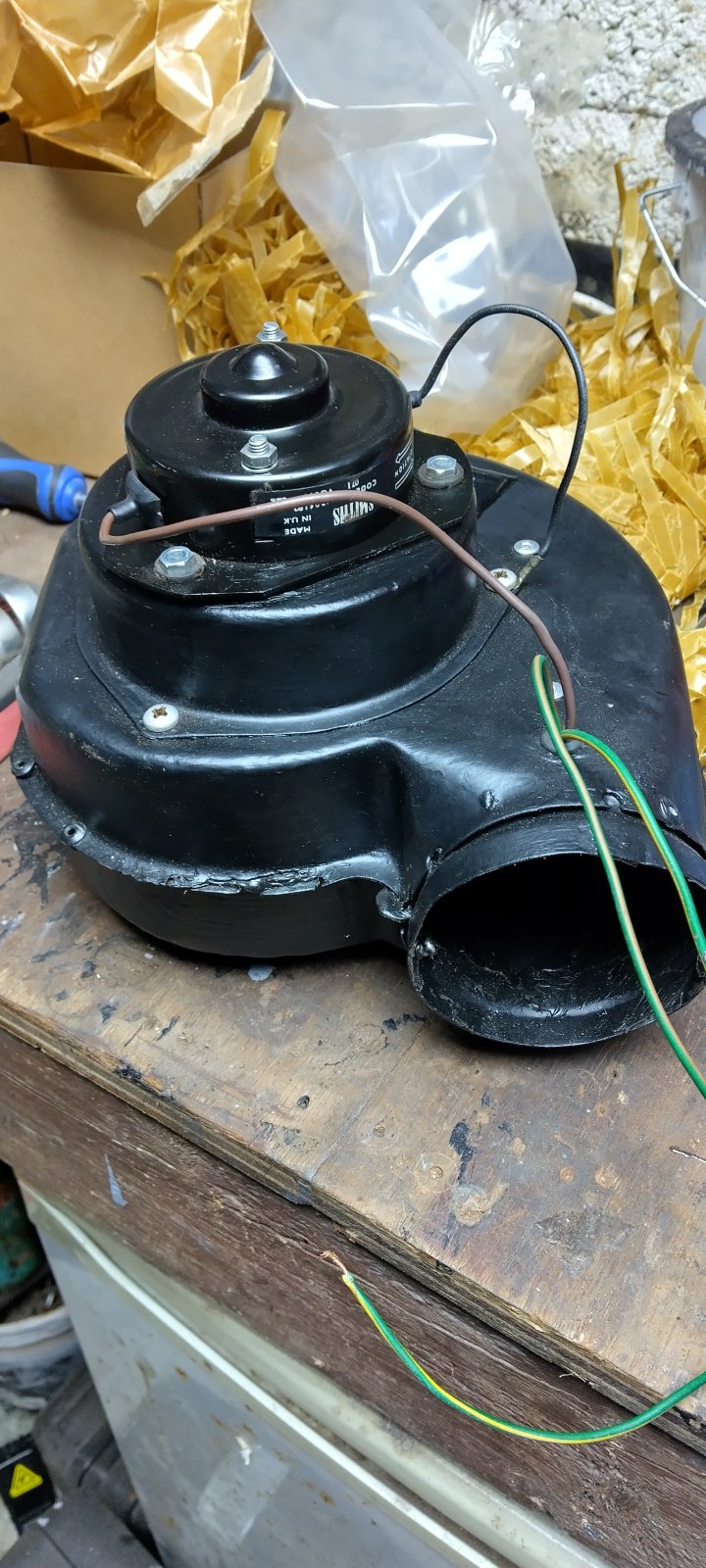

Looks like you're missing the blower unit.
Sits next to the matrix on top of the footwell

steve2286w · Monday at 17:06

Congratulations you will have lots fun with it.,
Any pics
There is also a resistor wire wound as shown which drops the 12v to allow two speeds

codfather79 · Monday at 17:29

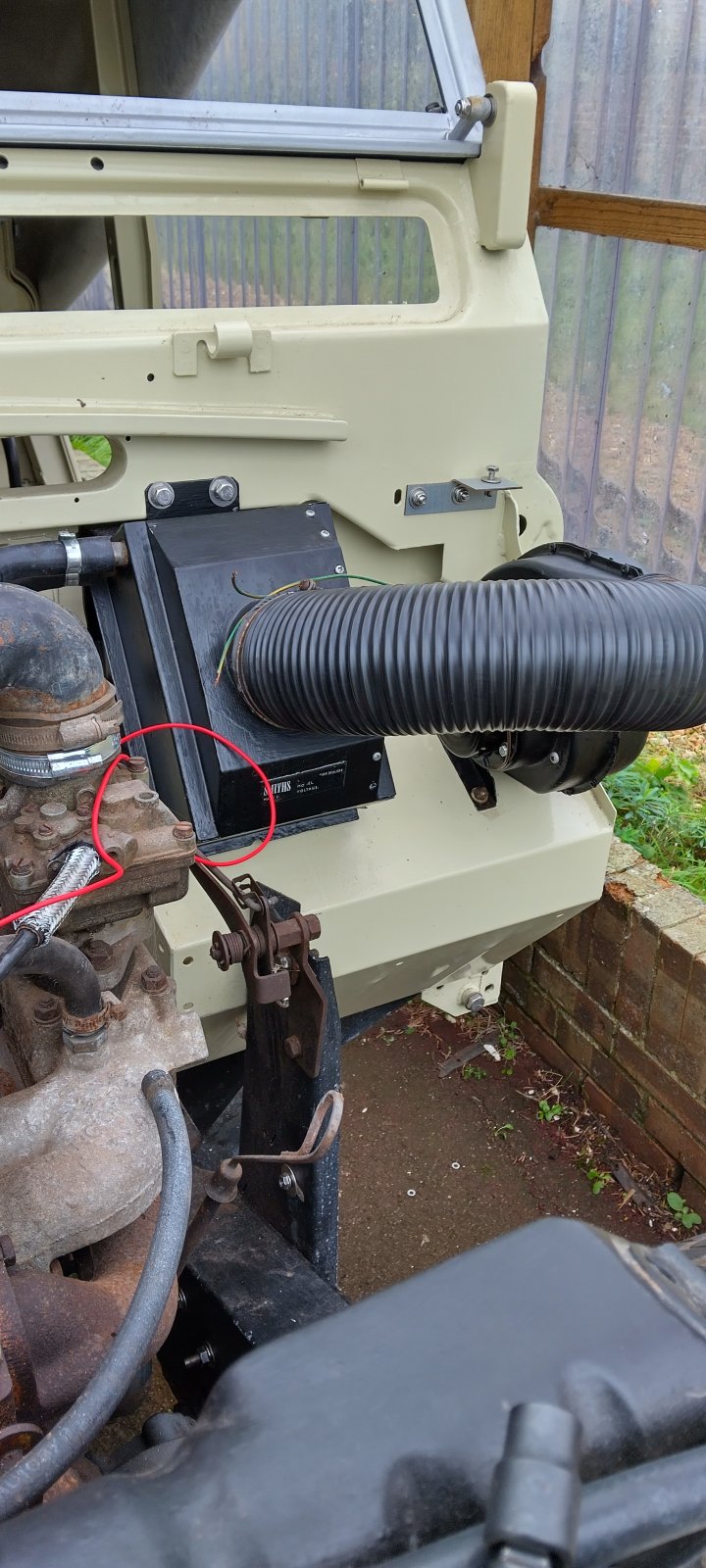

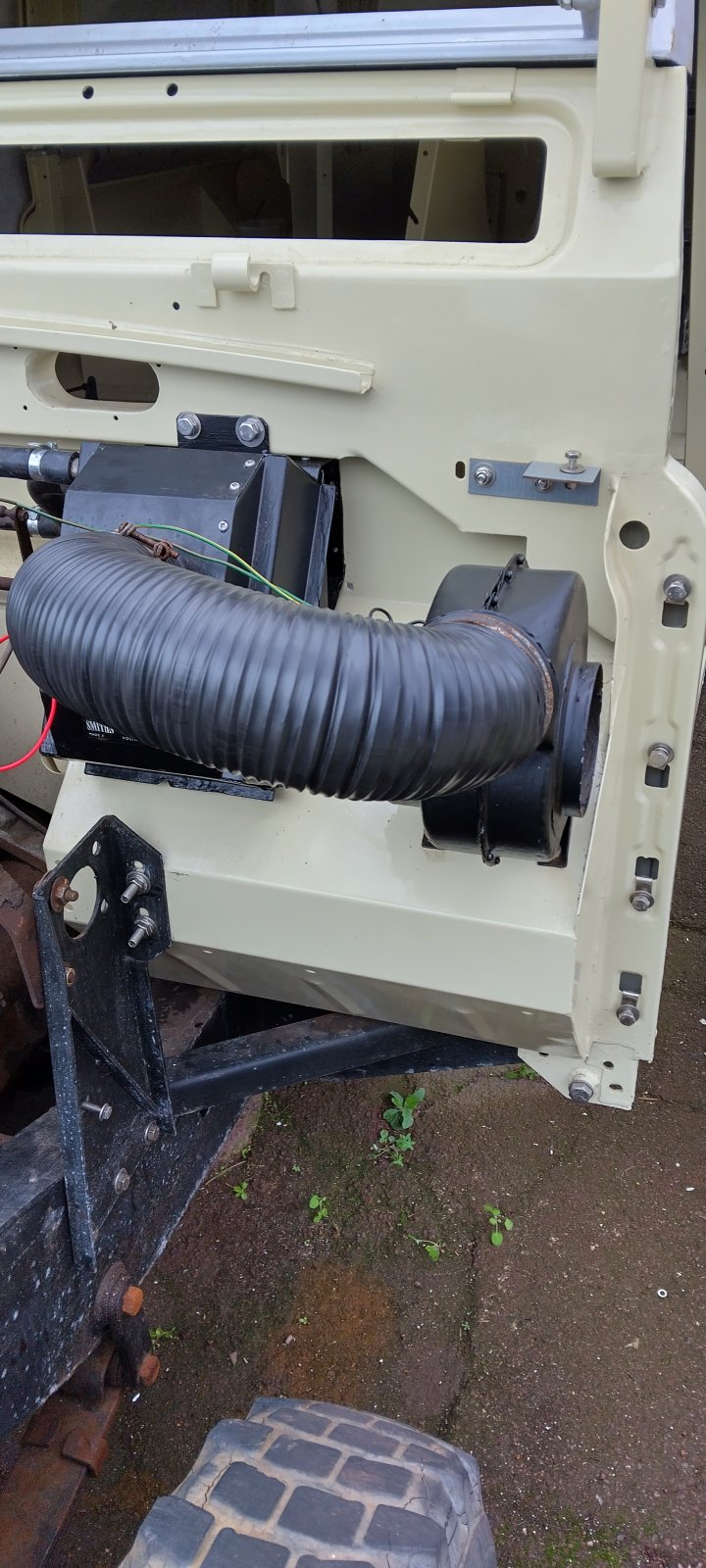

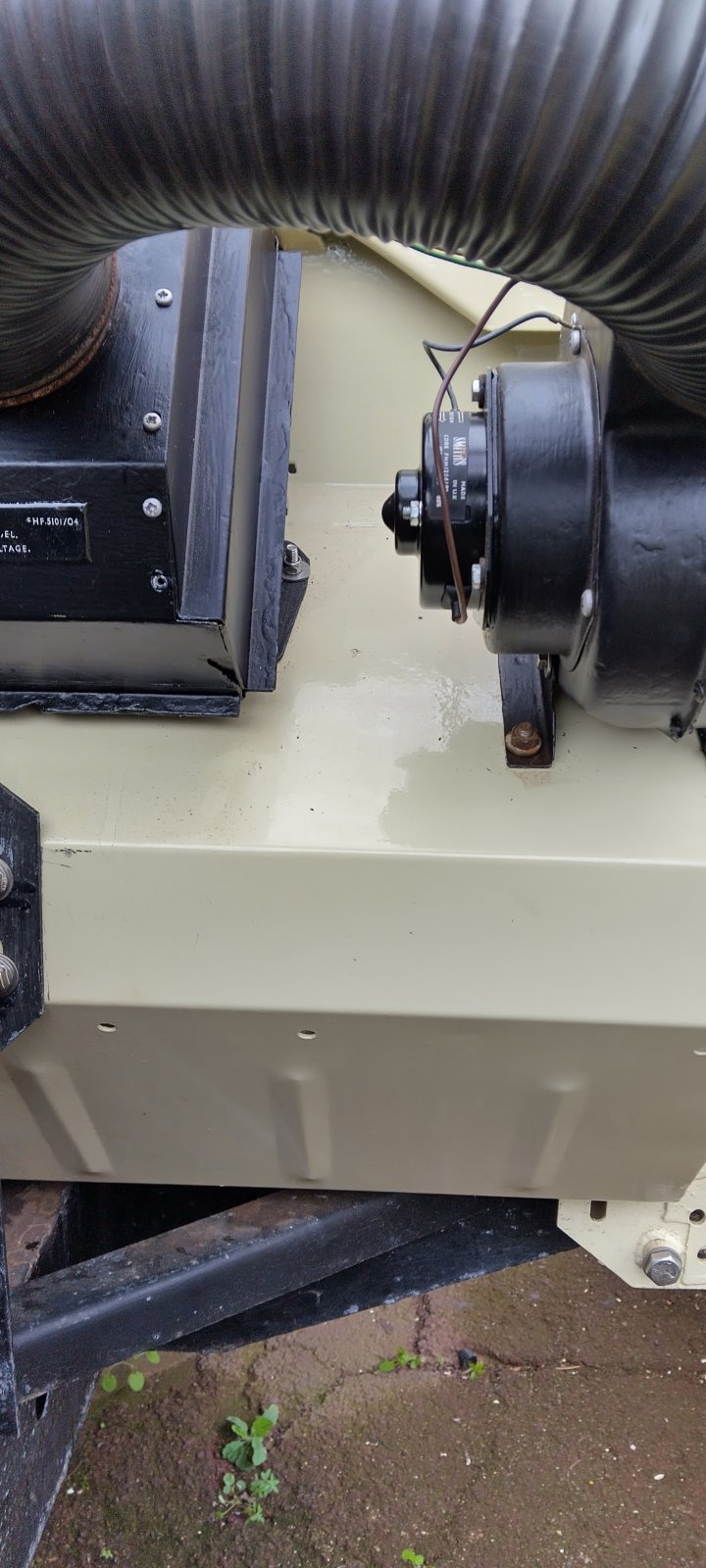

Do any of these help?
