Wiring 2.5 NA or 300TDI?

neilly said:

@alex2701

Sorry , but with my hangover this morning , I am not computing what it is you are asking.

Cheers

Click to expand...

Haha

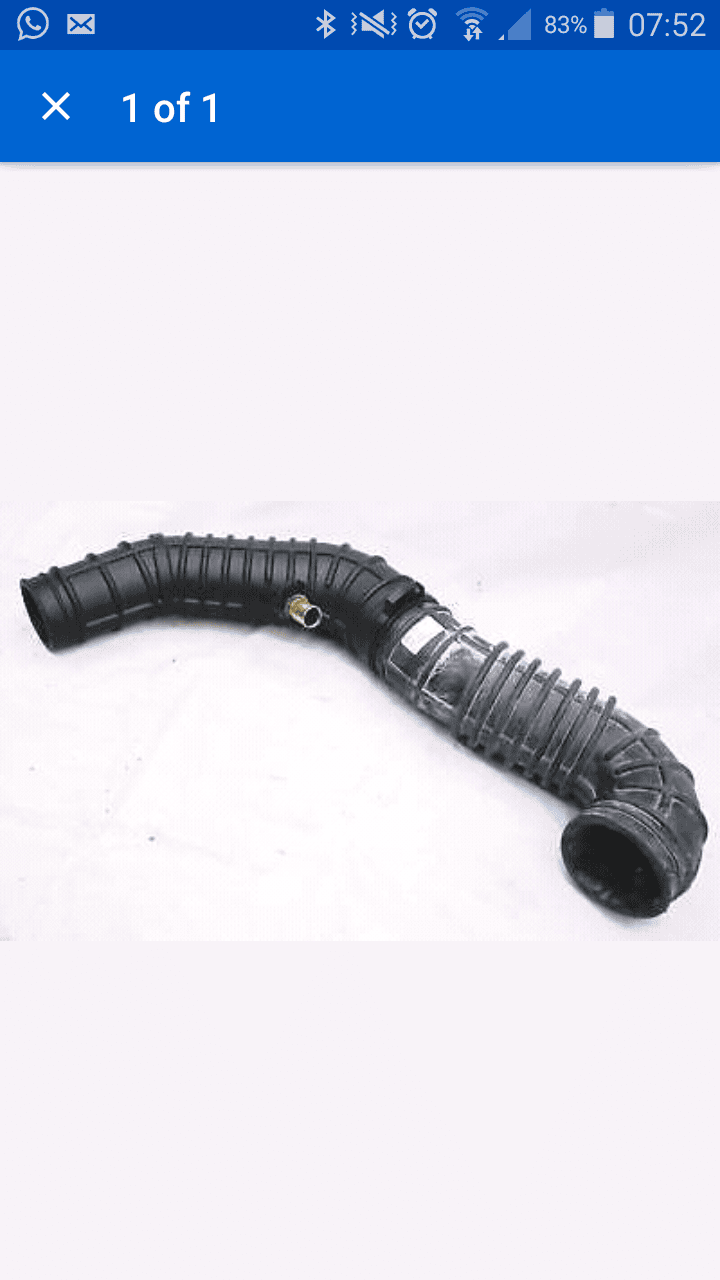

The hose that goes from the turbo- the air cleaner

Comes in two sections I was wondering if the first section would still fit on the cleaner if you knew cos I don't have the other part was gana just mount the cleaner on bulkhead solve 2 problems of not buying new hose or all the brackets and mounts just make something to hold it on bulkhead

Rorie said:

Hi folks,

Stripping down the bulkhead ready to change it out, but the wiring is stressing me out.

I'm trying to label everything up, but its proving difficult. I am also finding that there have been a load of changes (light relays etc) that are not too easy to follow. Finally I'm finding a load of block connectors which maybe only have a couple cables going into them. I.e. a block of 8 cables on one side only has 2 cables on the other. I'm unsure if this is just additional capacity from land rover, or if things have been changed by a user?

Its a G reg defender 90 2.5N/A, but had a conversion to a 300TDI. I'm considering buying a new wiring harness to make my life a bit easier. I have seen harnesses from £50 to £1050! Not too sure exactly what I'm looking for - are there different harnesses for different parts of the car?

Also, the thing I'm really not sure of - would they have changed the harness when they did the engine conversion? Should I be looking for a 300tdi harness?

Thanks

Click to expand...

There wouldn't need to be any loom changes to go from 2.5NA to 300tdi - it has all the same connections, one for the starter solenoid, glow plugs oil and temperature, most that would have been needed would be to change the terminals on the temp sensor as it would have been blade but 300tdi was a round bullet type pin, alt may have needed a ring terminal fitted for the exciter wire but that's it - no reason whatsoever to fit a new loom for this engine mod.

Looking at the loom from the distance the photo is taken from most of it, it looks very much the same as my 1990 loom which was a 2.5 petrol but it was the same loom for the 2.5NA they just didn't connect things like glow plug relays.

I'd just get in amongst the loom and tidy it all up. Blocks of 8 with only 2 wires to be honest sound about right, LR did this, used a standard plug but didn't populate all pins - 2 out of 8 seems a bit odd but can you actually see cut wires?

Bear in mind there are lots of unused circuits in a standard loom - sometimes people just get rid of stuff if they get in a big of a jumble and want to tidy up.

GATSO said:

na think was a glass fuse system ,,,300 has spade fuse box ,,what is your fuse type

Click to expand...

They changed this in the late 80's - about 88/89 from what I have seen so he could be blades. I have a 1990 with blades I have owned it since 2005 and my friend had is from 2000 - it came to him stock so no messing had happened.

Rorie said:

My reverse gear is below 5th gear. So according to Ashcroft, that gives me an R380. I was told when i bought it that it had a disco gearbox... maybe its a defender R380?

Click to expand...

Your engine is in the 2.5NA position (much further back than a 300tdi would be stock) now that vehicle would have had an LT77 - without seeing the bellhousing I can't be sure, but there is the chance that someone fitted an R380 short shaft - or stumpy as they were called, usually used in MOD vehicles. I bought one of these from Ashcrofts because I have 300tdi in my 1990 90 it was on an LT77 which I knew would pack up, and when it did I just went for the short shaft so I could just do a direct swap but I wanted an R380 to deal with the 300tdi increased torque and HP.

Thanks for all the help. My main concern was changing the main loom and what to change it for, so looks like changing it out for a 300tdi is the best option. The engine loom seems standard for 300tdi.

If everything in the cab hooks up nicely too, thats all sorted

Going to really look at the loom and what i've got in the landy and decide if i need to get a new loom, or if i can neatly fix up the existing wiring.
