Winch ID and wiring advice

Hoggs · Nov 22, 2013

Hi guys, looking to get my winch wired up and in action. Just looking for some advice on what I'd need.

Here's the winch,


I've been told I still need the solenoid part. Would this kind of thing do the job?
WINCH SOLENOID 12V HEAVY DUTY. Albright replacement. Original Durite. | eBay

Or this?
Winch solenoid box pack complete wireless and wired remote, 500 amp solenoid 12v | eBay

I've already got the hand wand remote thing but would that be compatible with the new solenoid?

DiscoPol · Nov 22, 2013

the first link is all you should need to use the wander lead, do you have the socket for the lead too?

warrior · Nov 22, 2013

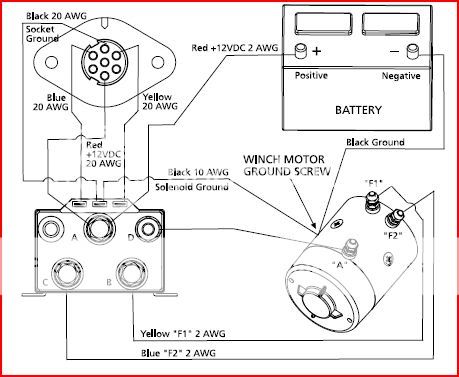

This should help, as for the colours that's up to you

micknkatenki · Nov 22, 2013

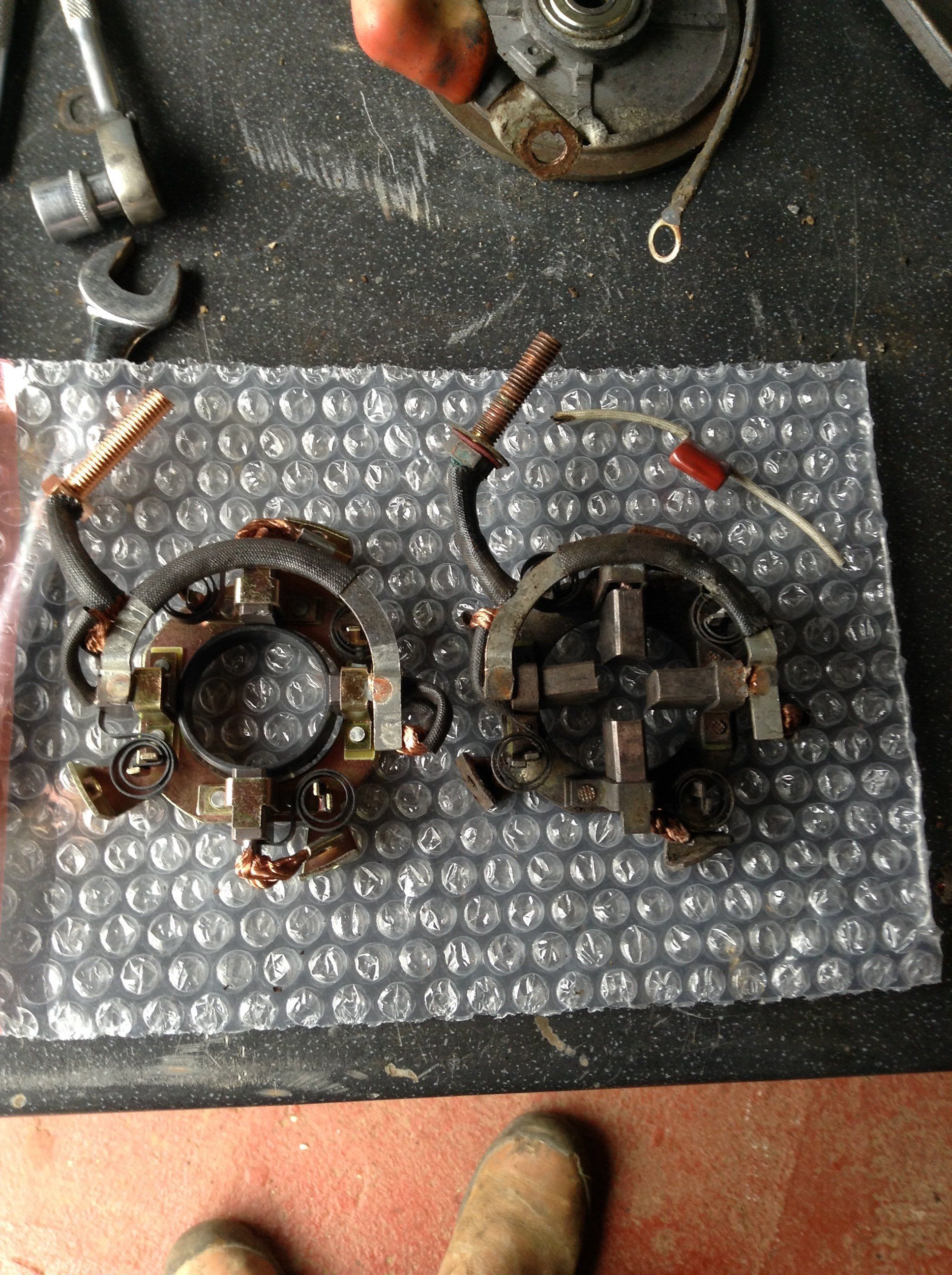

Hi, sorry to hijack, what does the wire from terminal D do ? Also in the picture below there is a 2 sets of brush contacts 1 old and 1 new also a thermal or resister of some kind ? Anyone know where it fits, goes to and from ?

Hoggs · Nov 23, 2013

Cheers guys! Got one on the way
