Strapped a GoPro to the chassis rail and went trundling to find the source of my latest rattle, sounds like a stack of aluminium plates being shaken in a sack when going over a bump.......
......didn’t take long, trailing arm bushes shot to bits - rattle about like a Ginger Baker solo.
Add to list.
Off to the Gaydon LR show tomorrow, if it’s pooh i’ll be returning early for some more punishment under the Landy
......didn’t take long, trailing arm bushes shot to bits - rattle about like a Ginger Baker solo.
Add to list.
Off to the Gaydon LR show tomorrow, if it’s pooh i’ll be returning early for some more punishment under the Landy
Hicap phill
Well-Known Member
- Posts
- 16,363
- Location
- Wiltshire
Drove it for the first time this week.
Still has the mud from Monday's green laning up the doors. May wash it soon
Still has the mud from Monday's green laning up the doors. May wash it soon
- Posts
- 9,113
- Location
- North Lincs
I started her up and let her run for 15 minutes. Radiator warm all over matched temp gauge not working but secondary gauge all good
No leaks
matched temp gauge not working but secondary gauge all good No leaks
neilly
Well-Known Member
- Posts
- 20,000
- Location
- Oxfordshireness
I started her up and let her run for 15 minutes. Radiator warm all over
No leaks
Took you long enough, but still good to hear.
Cheers
- Posts
- 9,113
- Location
- North Lincs
Indeed, far too long!!!! I will take her out tomorrow for a shakedown run
- Posts
- 7,920
- Location
- East Midlands

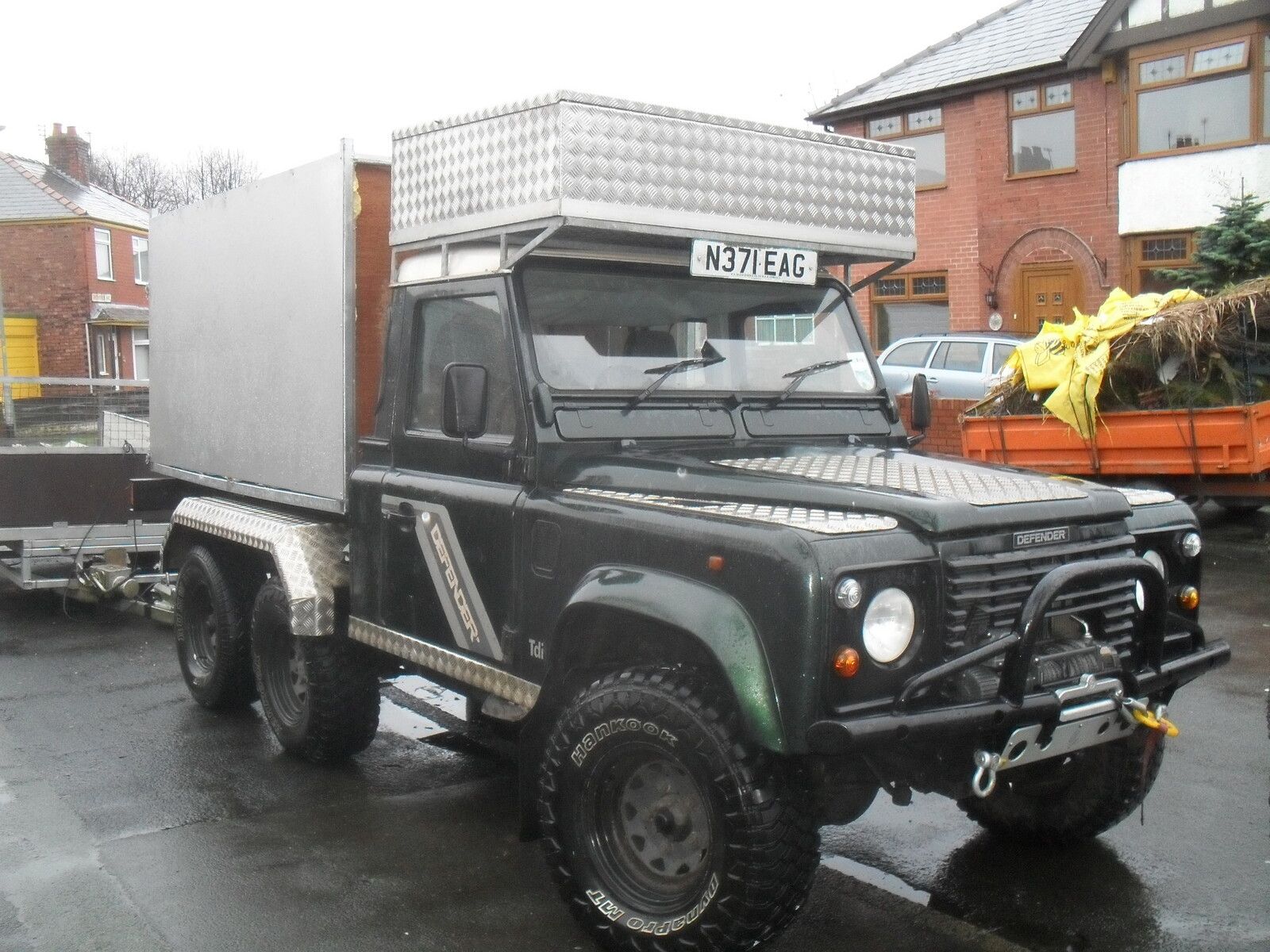

Looks very neat and workmanlike. If it's a tool truck for work, you might benefit from something a little stiffer on the rear so it doesn't sit too low. The handbook payload for these is typically in excess of 700kg so it'll be fine In standard trim, but the rear tends to sink when you're getting close to this.
I would suggest Discovery springs on rear, my 90 sits a little higher with them fitted as disco is heavier and 90 lighter without load, my 90 doesn't sag with heavy trailer and has nice soft ride when empty but then you are always loaded. You could use air bags to assist the springs, my mate has them on his six wheeler
Attachments
ivancrx
Well-Known Member
- Posts
- 601
- Location
- Burton on Trent
Got the roof in to primer
neilly
Well-Known Member
- Posts
- 20,000
- Location
- Oxfordshireness

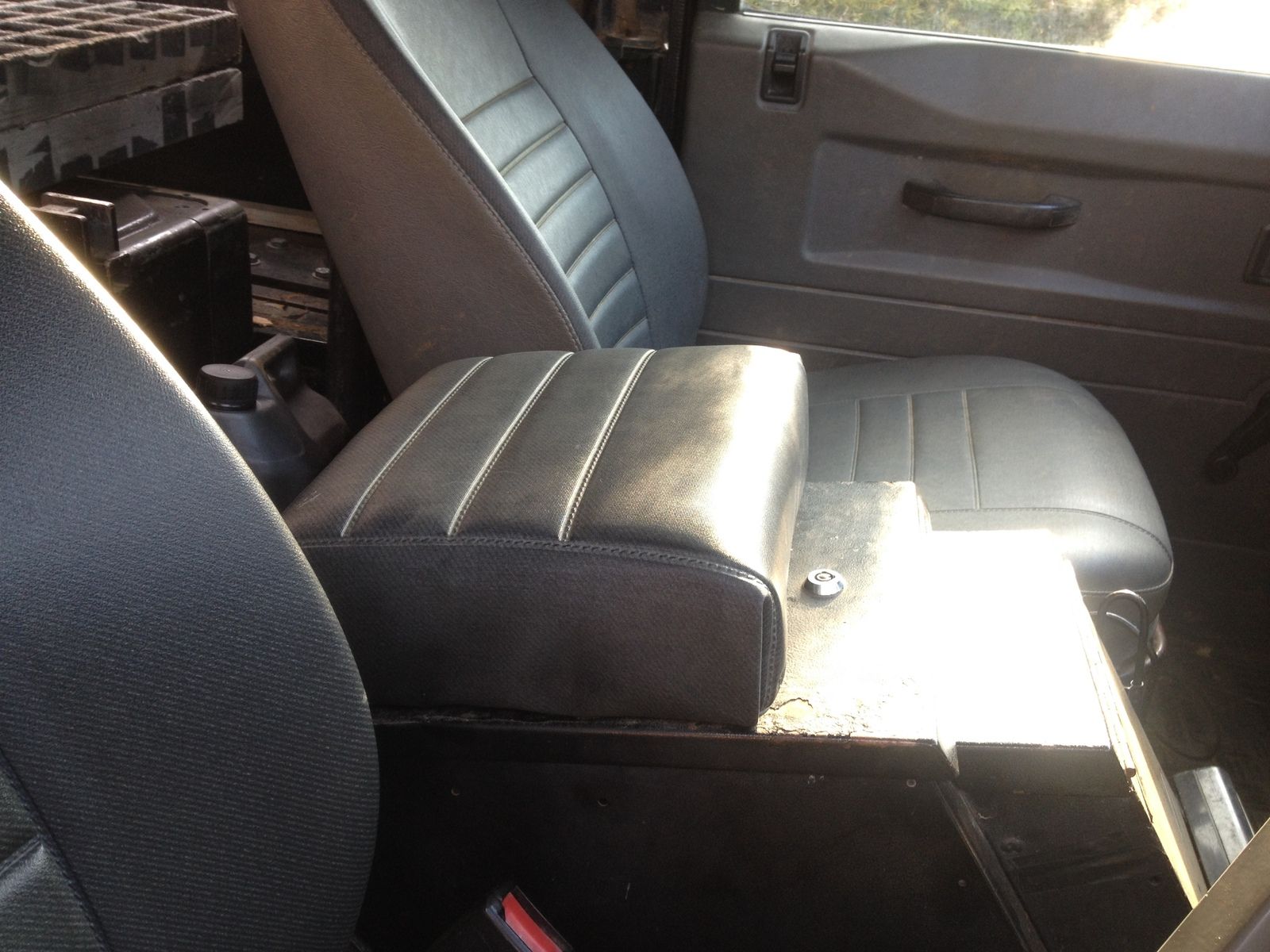

My Cubby box foam pad cover split, So I found an old seat cover .
now my forearm smells of old farts.
Cheers
now my forearm smells of old farts.
Cheers
- Posts
- 11,024
- Location
- North of the Wall
Replaced the radius arm bushes. Took twice as long as I thought it would. Things always do
Inner tube loose
Inner tubes just tapped out cos the were goosed.
Did three saw cuts to get bush out.
Used a big wood pad saw to cut slot in rubber first
Knocked the small wedge out and the bush just fell out
Lubed the poly bushes and tapped them in with a mallet.
Test drive and it's a solid drive again
Inner tube loose
Inner tubes just tapped out cos the were goosed.
Did three saw cuts to get bush out.
Used a big wood pad saw to cut slot in rubber first
Knocked the small wedge out and the bush just fell out
Lubed the poly bushes and tapped them in with a mallet.
Test drive and it's a solid drive again
neilly
Well-Known Member
- Posts
- 20,000
- Location
- Oxfordshireness
Replaced the radius arm bushes. Took twice as long as I thought it would. Things always do

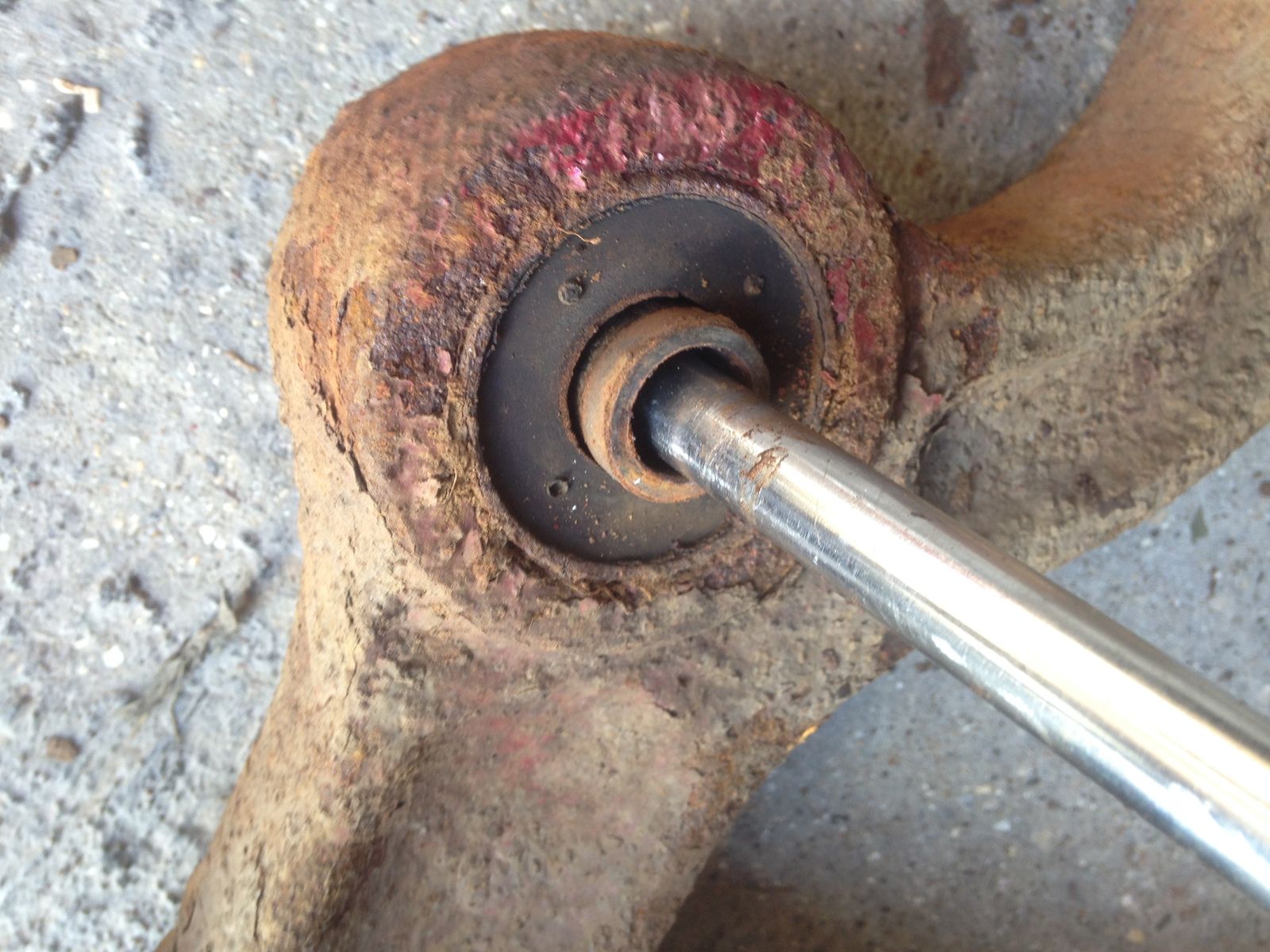

Inner tube loose
View attachment 177660
Inner tubes just tapped out cos the were goosed.
Did three saw cuts to get bush out.

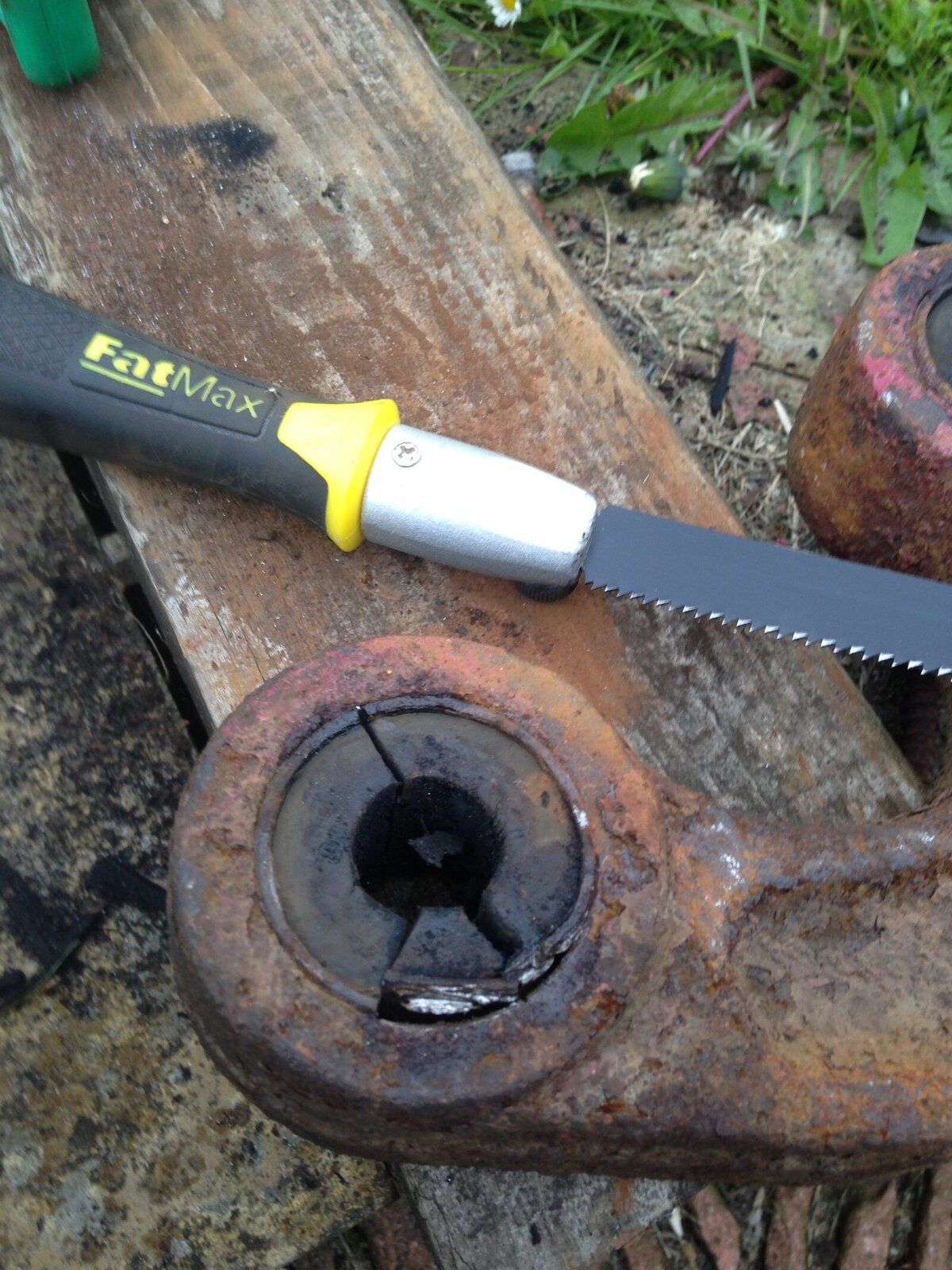

Used a big wood pad saw to cut slot in rubber first
View attachment 177661

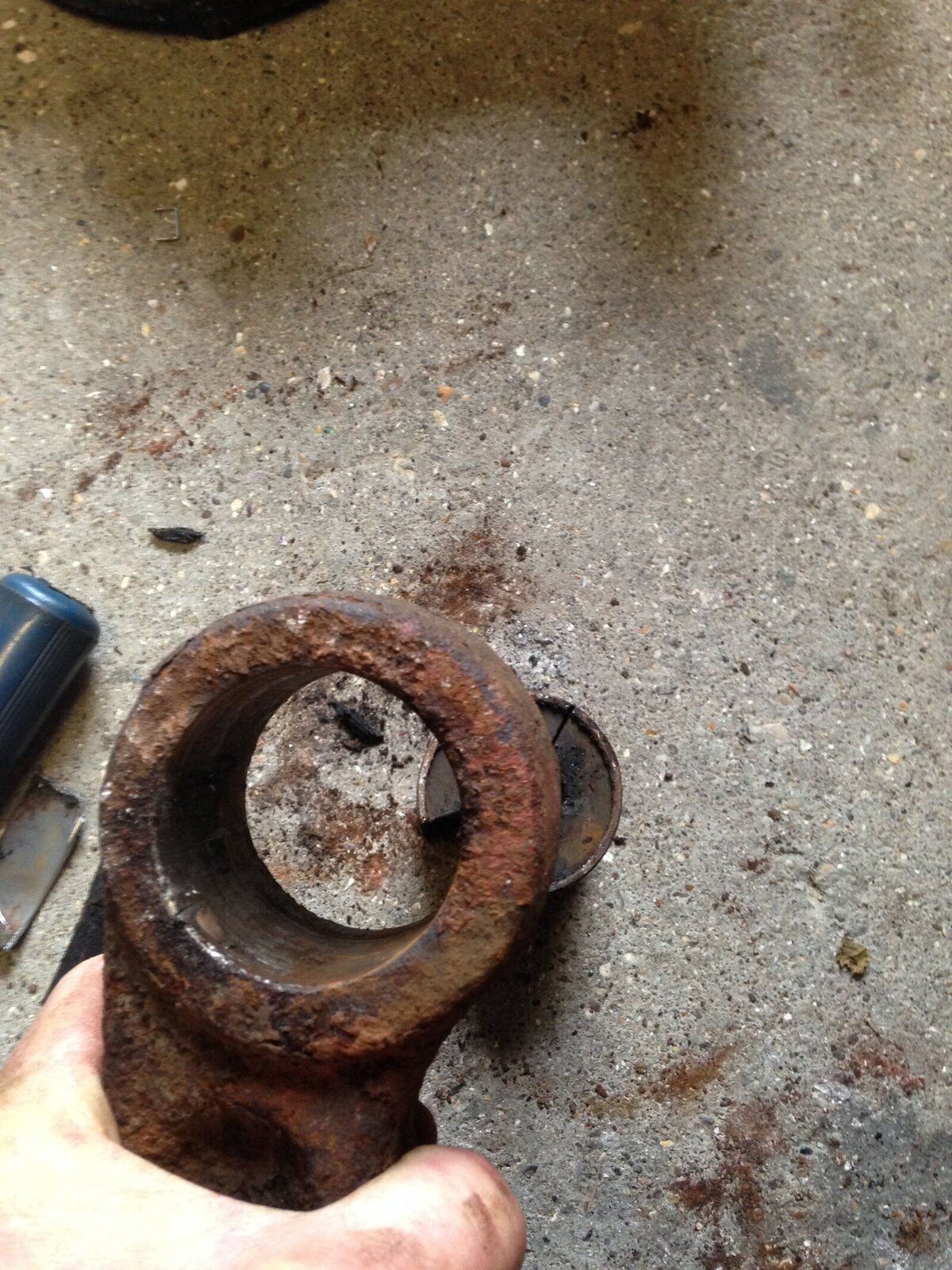

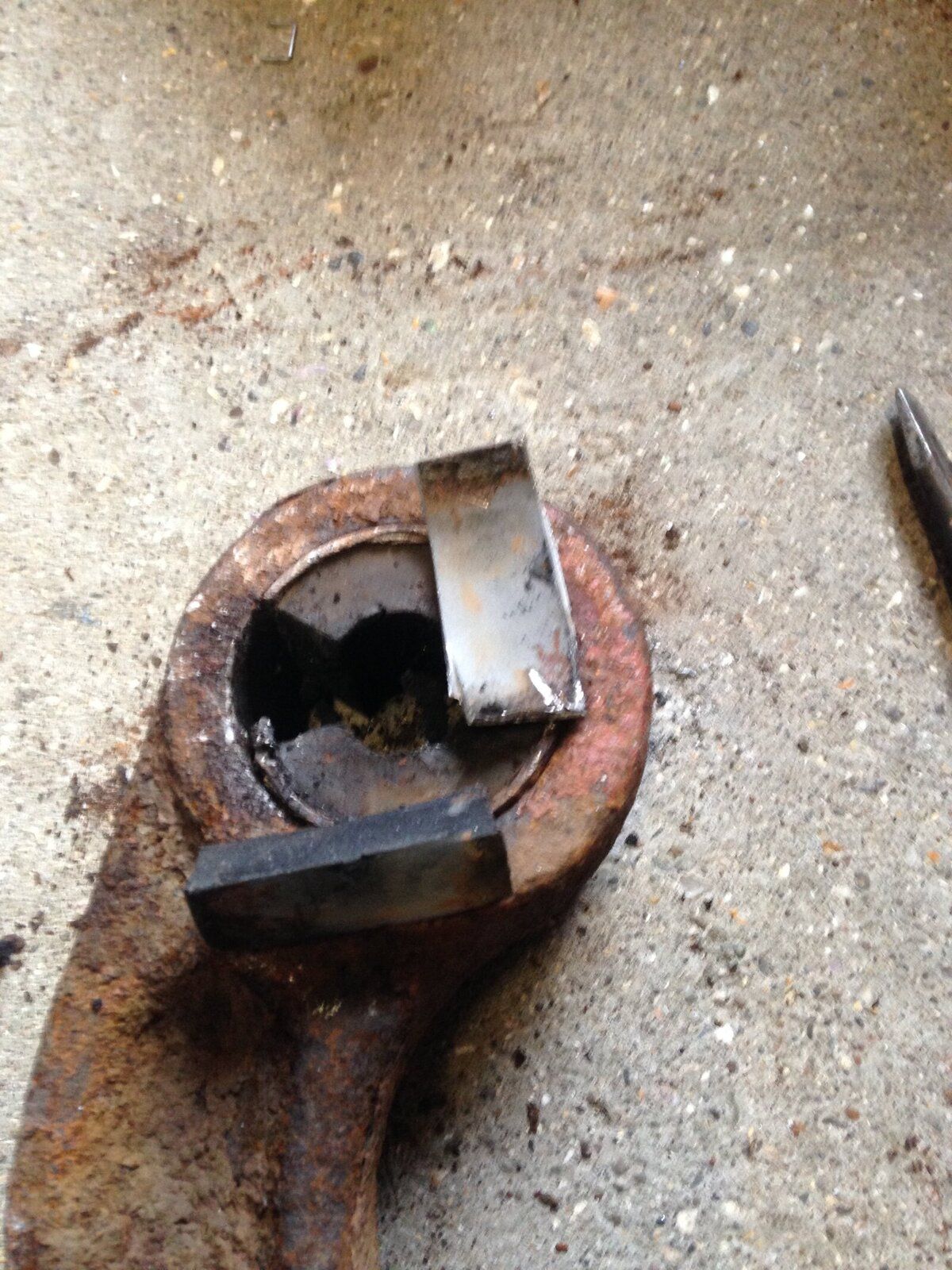

Knocked the small wedge out and the bush just fell out
View attachment 177662
View attachment 177663

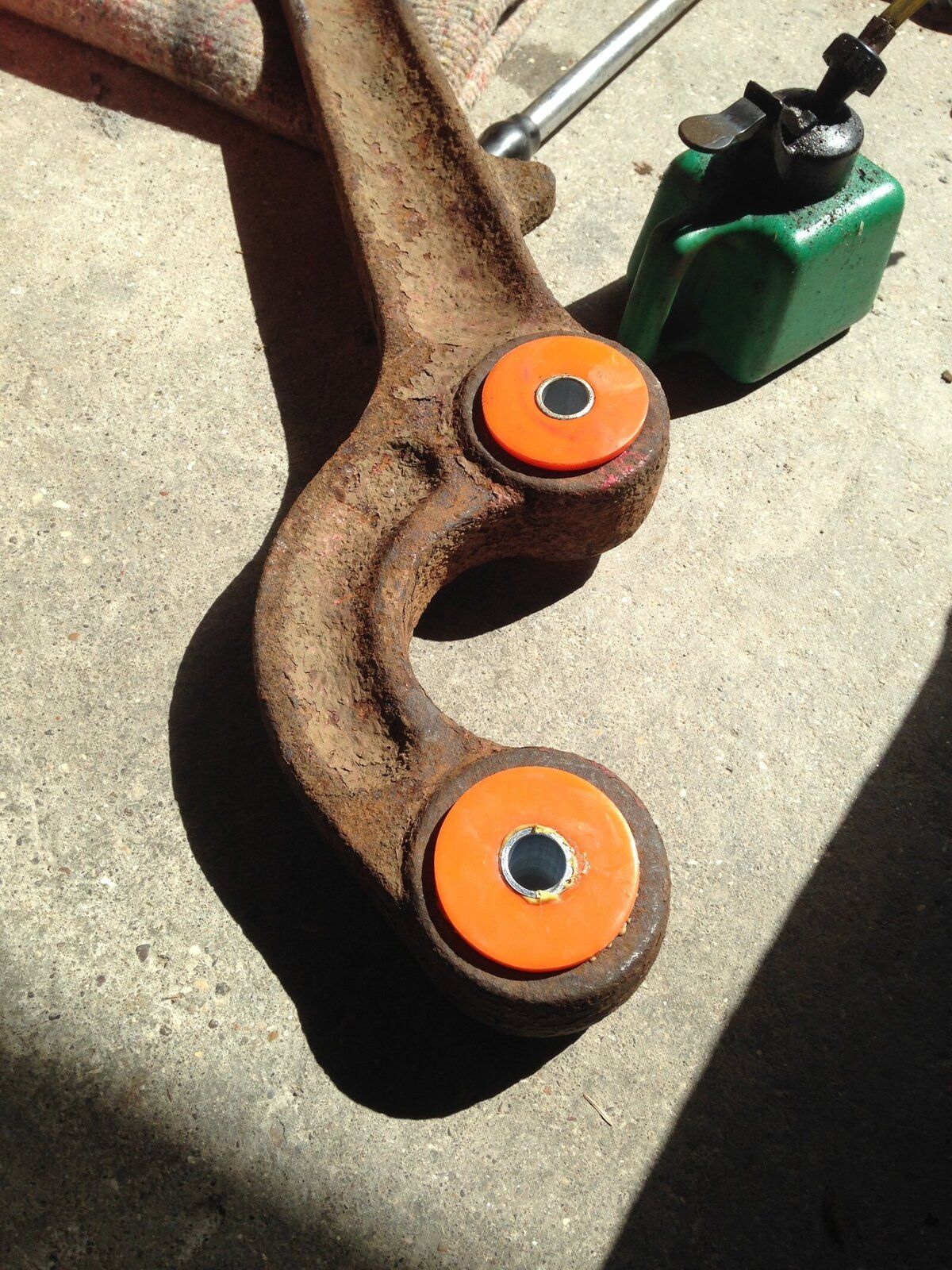

Lubed the poly bushes and tapped them in with a mallet.View attachment 177664
Test drive and it's a solid drive again
What was the feel you were getting before the work?
Cheers
- Posts
- 11,024
- Location
- North of the Wall
Front end wobble, similar to when the panhard rod bushes go. Mrs refused to use it for work on Friday because of how it was shaking on Thursday. Having said that, she new the bushes had arrived and I planned to replace them today.
Britpart bushes used during the rebuild
never again. The centre tubes had come away from the rubber and the rubber was starting to come away from the outer tubes too. You can see in the picture where I knocked the first wedge of bush out, the rubber fell off the outer tube leaving clean metal. The thing with those bushes is they hold on that inner metal tube, up against the bracket on the axle. The poly bushes, on the other hand, have a poly bush flange that goes out to the width of the tube. Everything is then clamped inside the bracket, tube and poly bush material.
- Posts
- 9,113
- Location
- North Lincs
After three weekends and many evenings of I finally got to the stage of a road test. Noting that after 20 minutes of idling there was no sign of a leak and the temperature looked good, we pushed off for a days driving......... 15 miles, thats all the brand new water pump lasted before its bearing seal gave up and started marking its territory on the road . I will order a better part this time I am putting the old one back on as there was nothing wrong with it and I only changed it as you usually do when doing a timing belt
15 miles, thats all the brand new water pump lasted before its bearing seal gave up and started marking its territory on the road . I will order a better part this time I am putting the old one back on as there was nothing wrong with it and I only changed it as you usually do when doing a timing belt
neilly
Well-Known Member
- Posts
- 20,000
- Location
- Oxfordshireness
After three weekends and many evenings of I finally got to the stage of a road test. Noting that after 20 minutes of idling there was no sign of a leak and the temperature looked good, we pushed off for a days driving.........
Damn, not good. Does the 200tdi have an auto tensioner or is it set manually?
On amore positive note, I took the roof off of mine and enjoyed driving around getting the wind in my hair.
Cheers
- Posts
- 11,024
- Location
- North of the Wall
Hair
- Posts
- 9,113
- Location
- North Lincs
No auto tensioner so I followed the instructions in the book. I don't have any hair so I won't take my roof off
neilly
Well-Known Member
- Posts
- 20,000
- Location
- Oxfordshireness
Hair
OK, it was abit of an exaggeration , as there is some missing on top...... Buut to get around that, I hang my arm out to get a breeze in my arm pit.....LOL.
Cheers
- Posts
- 11,024
- Location
- North of the Wall

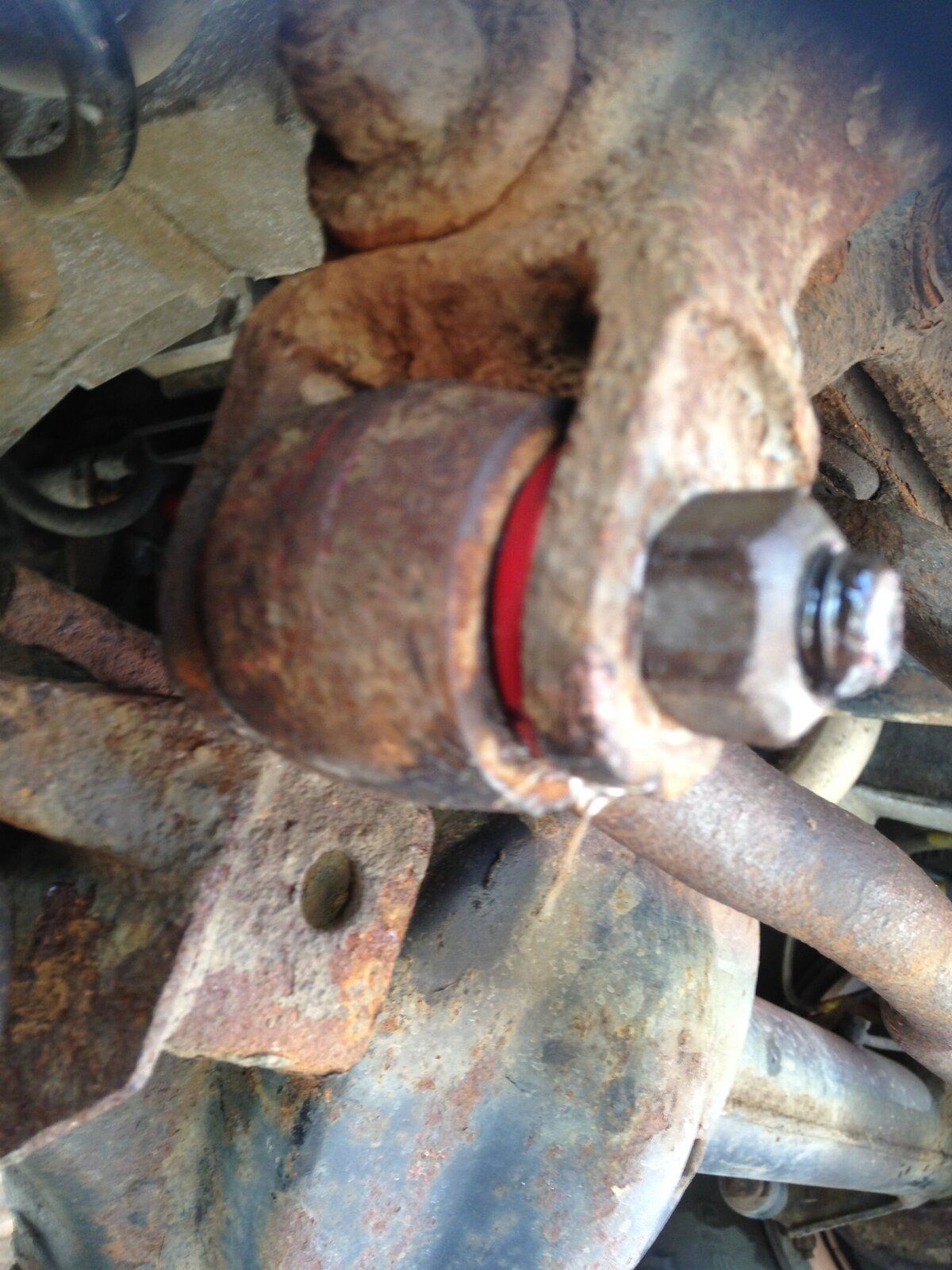

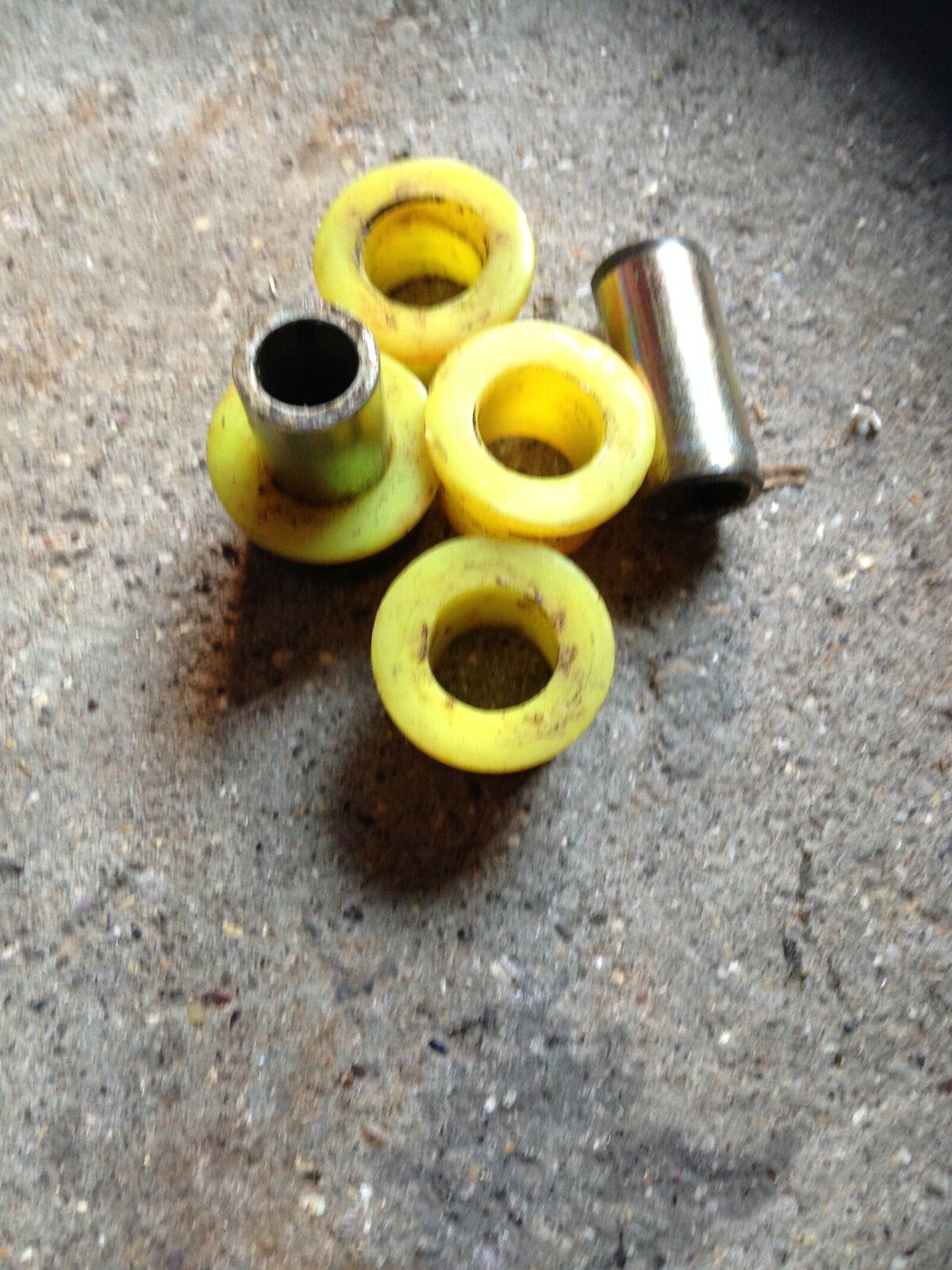

Been marshalling a half marathon this morning, in some woods near us. Got back about two and replaced the panhard rod bushes. Only changed them a few weeks ago, but want happy when I put them on as they felt soft. They were yellow
New ones are harder and red

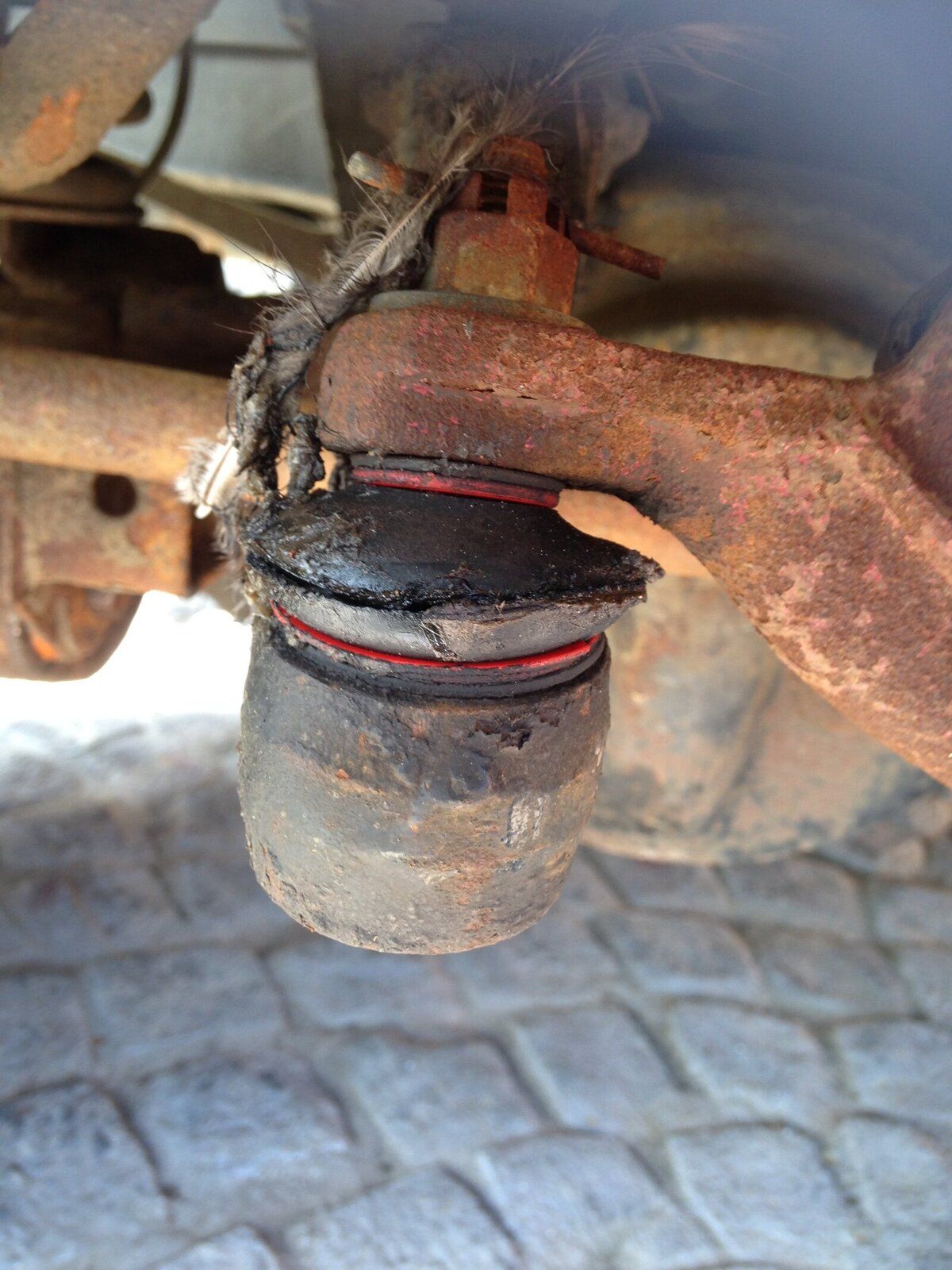

Not long changed the drop arm ball joint either, but the boot has split already

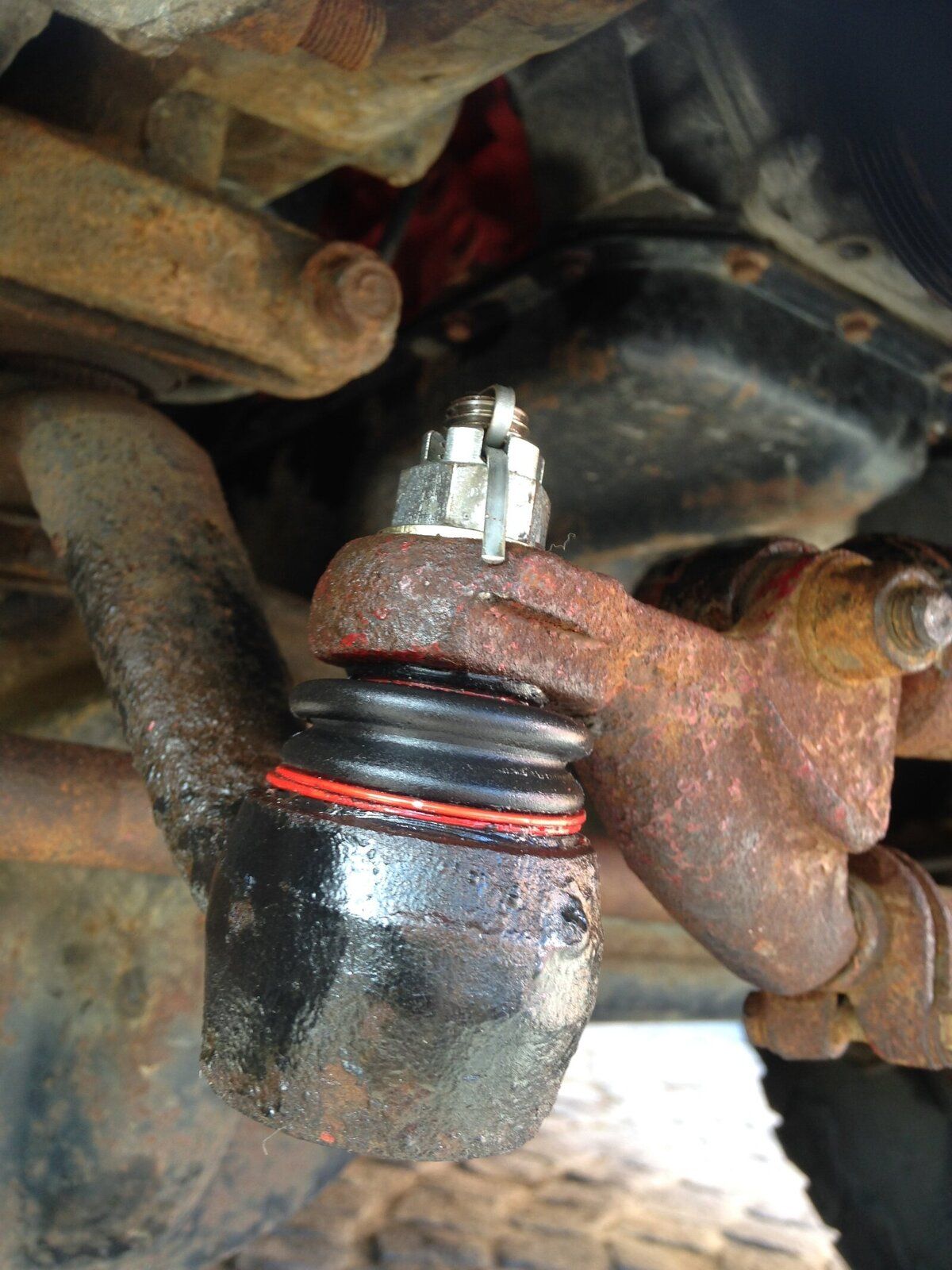

Bought an OEM G suffix one for nearly 4 times the price and fitted that too.
Everything tight as a drum now.
New ones are harder and red
Not long changed the drop arm ball joint either, but the boot has split already
Bought an OEM G suffix one for nearly 4 times the price and fitted that too.
Everything tight as a drum now.
