Hi. When we had our Freelander 1 the fuel tank cradle looked a bit scabby. I took it to our local Indy and he replaced the plates rather than swap the whole frame. Said the frame is a pita do to.

Having looked at mine the bars are so rotten I'm amazed it still there to be honest. Will have a go later, hopefully once the x2 15mm bolts each side are undone the bars will drop enough for me to cut them off. Will change them one side at a time.

Question is, is this an easy job or a son of a bitch, how do I get the cradle off without dropping the rear sub frame, can I use an angle grinder to cut the cradle off, is that safe to do so by a diesel tank?

So the plates provide protection against the tank being pierced by debris or stones etc. Plus if the prop throws something up.

The subframe need to be dropped to get the new brackets in anyway so no point in cutting.

Sorry to break bad news. The subframe happily lowers with bolts out then feed the bars through and clamp up. Replace subframe bolts but lift weight of frame first and align or you will strip bolts or damage threads in chassis if you use the bolts to pull it up.

So the plates provide protection against the tank being pierced by debris or stones etc. Plus if the prop throws something up.

The subframe need to be dropped to get the new brackets in anyway so no point in cutting.

Sorry to break bad news. The subframe happily lowers with bolts out then feed the bars through and clamp up. Replace subframe bolts but lift weight of frame first and align or you will strip bolts or damage threads in chassis if you use the bolts to pull it up.
So left work early to make a start, been wd40ing the x4 fuel cradle bolts all week, x3 undo but x1 is just spinning it will not undo all all so what’s the best way to get this bolt out please guys?

This could be useful information:

That's a shame!

Had this on mine, I would adjust it and it would after a few miles of driving stretch again, turns out it was actually the self adjuster pushing the shoes away from the handbrake causing a little binding.

£30 to fix
A couple of years ago we had a guy come on here ranting about the brake adjuster saying it couldn't possibly work. Turns out he had his fitted on the wrong side of the car. Someone (probably him) had taken apart both sides at the same time and mixed them up.
Is this possible?

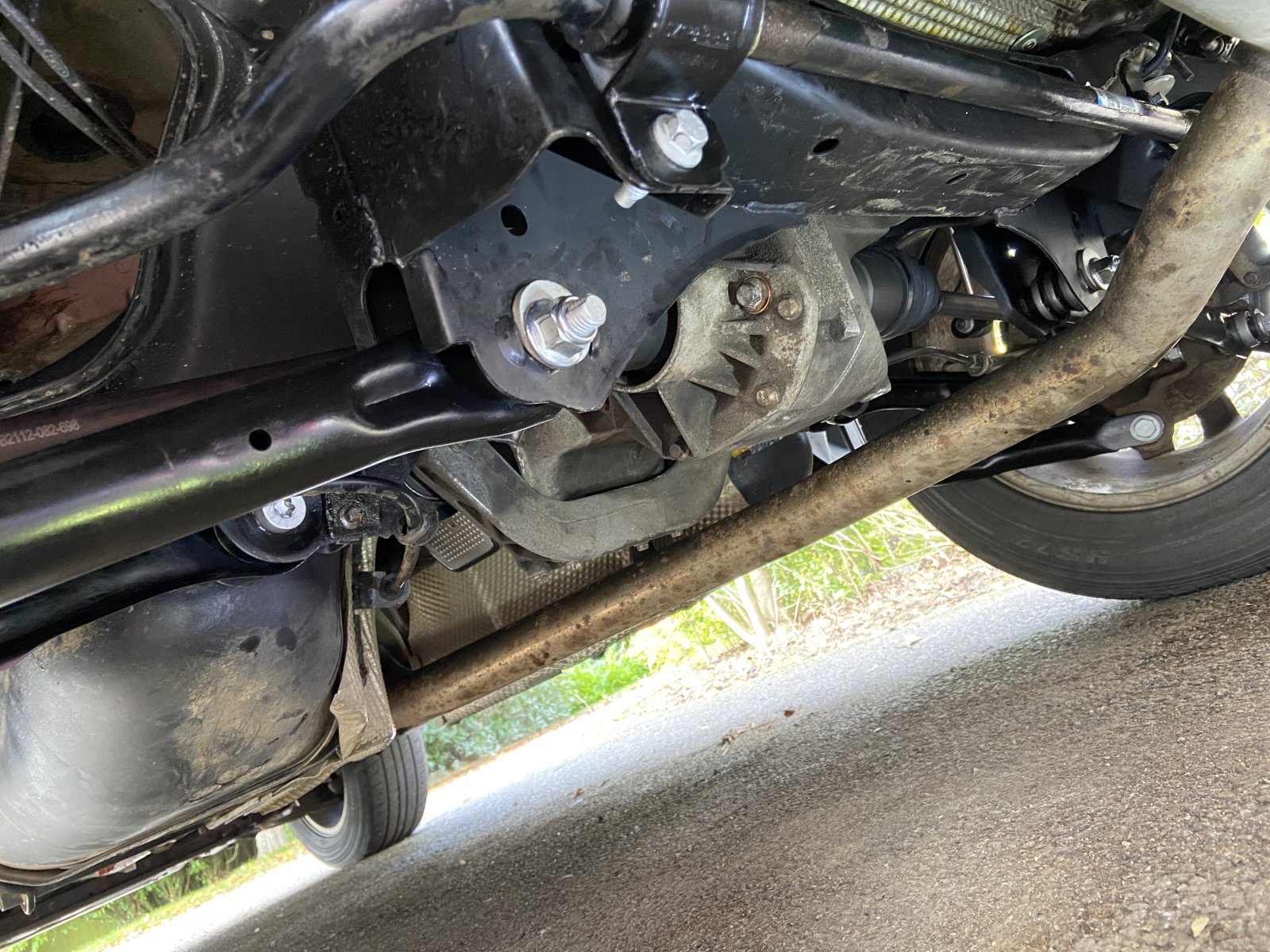

Finished the job of fitting a new rear sub frame and suspension arms and new rear driveshafts to the F2.
Went quite well, but then I was not rushing.
Also treated it to new battery.



A couple of years ago we had a guy come on here ranting about the brake adjuster saying it couldn't possibly work. Turns out he had his fitted on the wrong side of the car. Someone (probably him) had taken apart both sides at the same time and mixed them up.
Is this possible?
I refuse to do 2 drums at a time! I can't even keep track of 4 bolts let alone 2 drums and all their silly springs and installation order 😂

But someone could have been there before you. Best to check it is all assembled correctly. Photos are on here and in Haynes manual.
I mean at the same time 😂 one then the other, I always replace brakes in either pairs or full sets, normally if they are rotors all round then full sets but if it's FWD then really only need to do 2 at a time but always replace in at least pairs! Did the drums on my one only about 6 months ago after I bought it, did rotors, pads, shoes, drums and needed a new adjuster as that was F*****

Hi. When we had our Freelander 1 the fuel tank cradle looked a bit scabby. I took it to our local Indy and he replaced the plates rather than swap the whole frame. Said the frame is a pita do to.
Done mine on the drive in less that 2hours
Just sweating as the bolts are long winded I would just change the lot with a new one and add extra paint
