Henry_b
Think outside, no box required.
- Posts
- 15,506
- Location
- somewhere else
I've got a £20 allmakes on mine and everything is good
What did you do with your Range Rover today
- Thread starter Dopey
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 33,600
- Location
- North Shropshire
Thanks! I think i need the black bush, not the copper coloured one?I've got a £20 allmakes on mine and everything is good
https://rimmerbros.com/ItemImages/Large/FTC2249.JPG
Henry_b
Think outside, no box required.
- Posts
- 15,506
- Location
- somewhere else
The Black'un IIRC!
Scotiawhiskers
Well-Known Member
- Posts
- 877
- Location
- Manchester
Can you simply bridge the feed / return from the stalk and see if that then gives you panel lights? Should at least prove / eliminate the stalk issue.
Scotiawhiskers
Well-Known Member
- Posts
- 877
- Location
- Manchester
Just been looking at the instrument panel illumination in RAVE (E2, page 4 on my copy).
As far as I can see power / signal for the panel illumination comes from BECM signal on terminal 7, connector C258 of the BECM. That then splits 2 ways at splice S205 and goes to terminals 4 and 14 on the instrument cluster. 4 feeds the message centre, 14 goes, via various routings, to the 6 panel bulbs, in 2 sets of 3 (presumably for redundancy, you should only lose half at a time).
Then the panel lights all earth, via connectors 7 and 17 on the cluster to earth point E254. So if you have lost all panel lights I think you need to check earthing point E254 (or the wires to there from both 7 and 17), or the feed in at 14 from splice 205 for loss of power.
Unless I am reading those diagrams completely wrong. I may be as I can't figure out how the dimmer affects it all unless it signals the BECM to vary the feed in to the whole set up. In which case that is somewhere else in the wiring but means you could be looking in the wrong place all this time? If the BECM varies the feed according to the dimmer signal, and it thinks (due to a short / open) that the dimmer is set to off, it is all doing exactly what the signals to it say it should?
RAVE J1, page 1, Dimmer switch says illumination level is stored by the BECM, so it looks like that is the source of your woes. Signal to there being faulty somehow.
RAVE J1 page 6 - dimmer feeds to earth from 2 terminals on BECM. Connector C256, earthing terminal 4 brightens the panel lights, earthing 12 dims them.
Last edited:
MacMan6107
Well-Known Member
- Posts
- 196
- Location
- Somewhere in Scotland.
If you're reading it wrong then I am also reading it wrong. Because that was my exact take on it too.
Cheers for looking into it for me. I'll check all of those connections, both ends, see where it's all at there, then, if there are no issues there it really only points to one place, as far as I can tell. The BECM.
I'm goingto pull apart the original stalk tomorrow, if I can,and see where corcuit leads to and work from there back through the car.
Scotiawhiskers
Well-Known Member
- Posts
- 877
- Location
- Manchester
Full brightness is a bit dazzling - if you can otherwise find / create a 12v or 6v feed and tap that in on the feed to the cluster from the BECM that should at least give you full / partial brightness on the instruments. Best to disconnect the relevant pin at the BECM though in case back feed does something nasty....
- Posts
- 33,600
- Location
- North Shropshire
It's it with mentioning there is no 'off' only various dim levels
Enthusiastman
Well-Known Member
- Posts
- 1,016
- Location
- AS LONG AS ITS NOT ****ING WALES!!!!
Or a " flid arm " LOLStanding room only these days, maybe a knee trembler
Enthusiastman
Well-Known Member
- Posts
- 1,016
- Location
- AS LONG AS ITS NOT ****ING WALES!!!!
Fully shaved is the way forward today Kermie. No black and deffo no ginger!!! LOL
- Posts
- 33,600
- Location
- North Shropshire
Bits ordered.. let's hope i can get the old abs sensor out
MacMan6107
Well-Known Member
- Posts
- 196
- Location
- Somewhere in Scotland.
Honestly I don't know but whatever setting it is called, right now the lights are off. What I'll do next time I take the IC out I'll see if I can apply 12v to the circuit and see if it illuminates then. If not, well the board is screwed. If it does, then it's on with the plan of checking continuity on the wires.
Last edited:

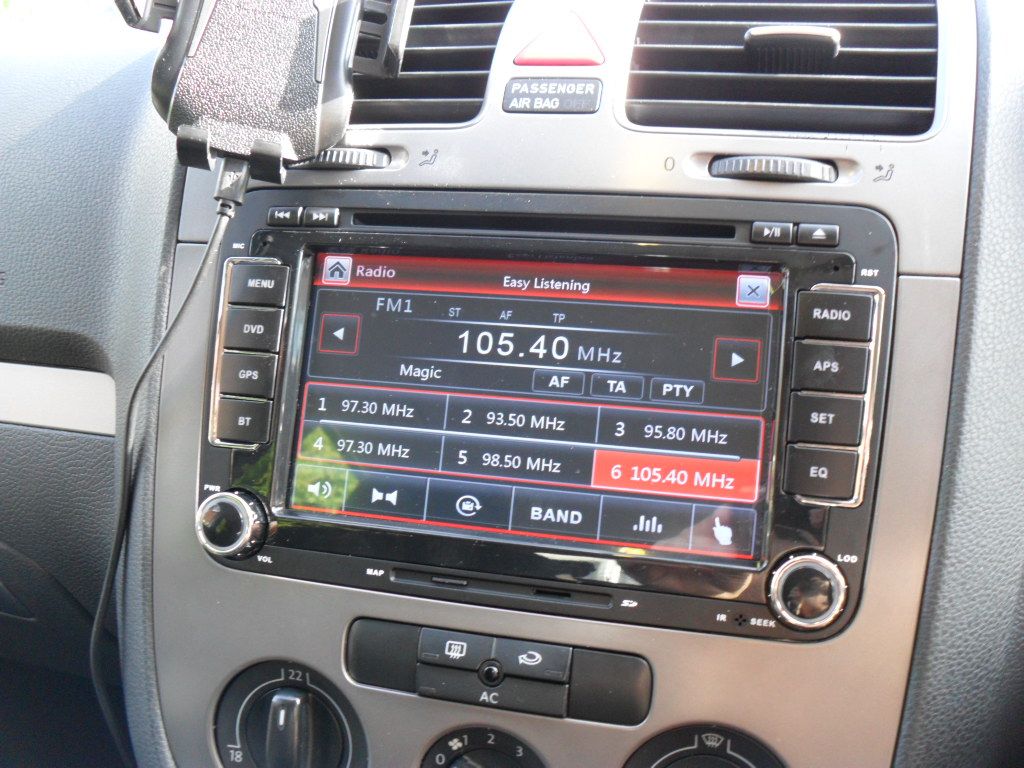

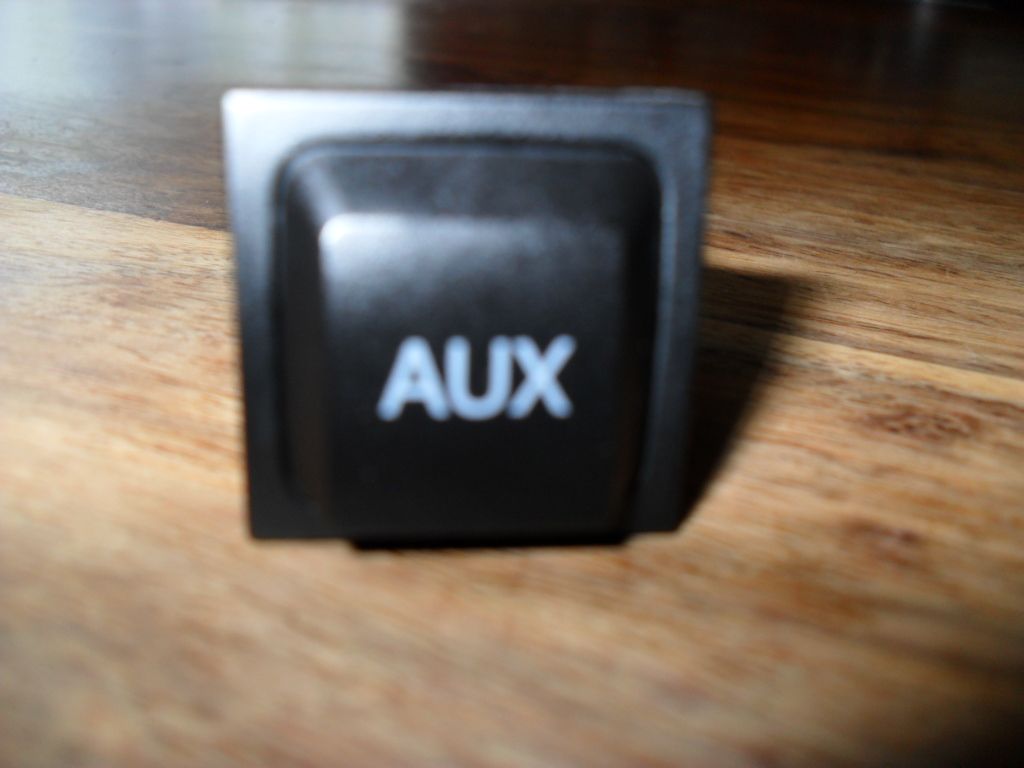

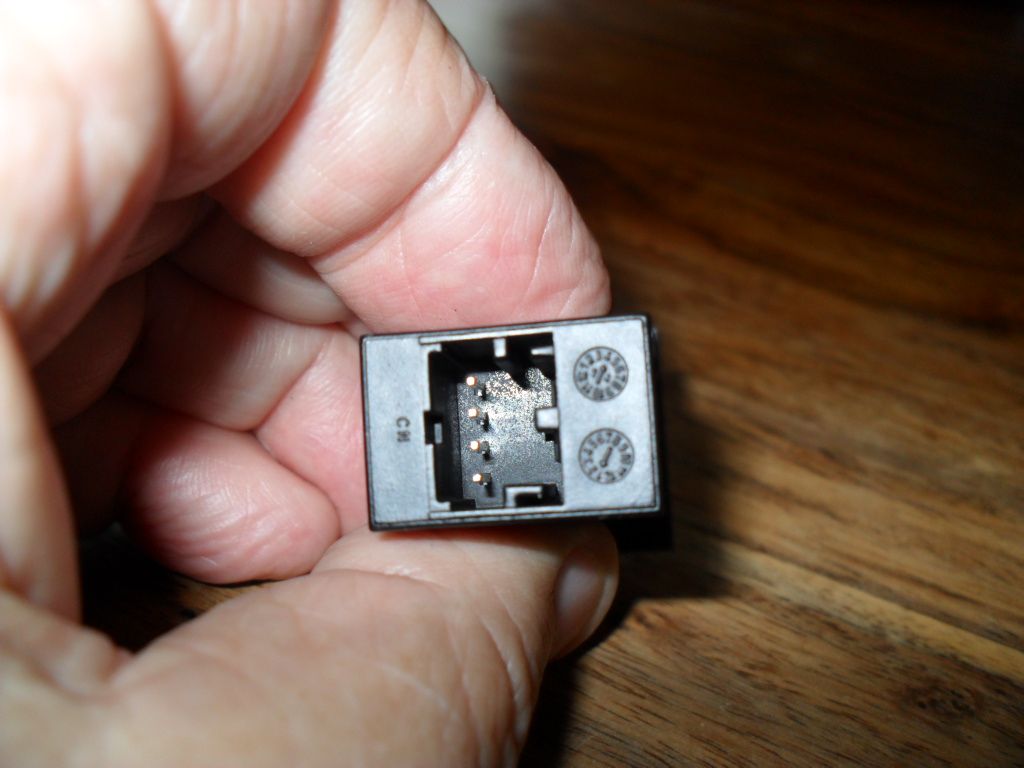

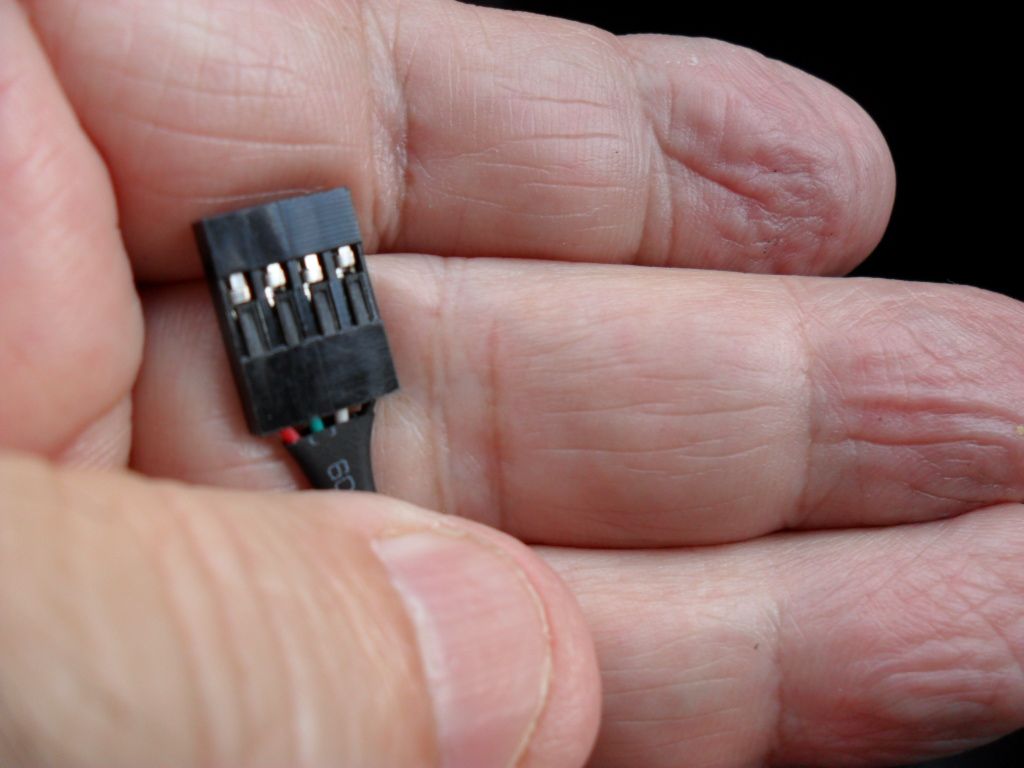

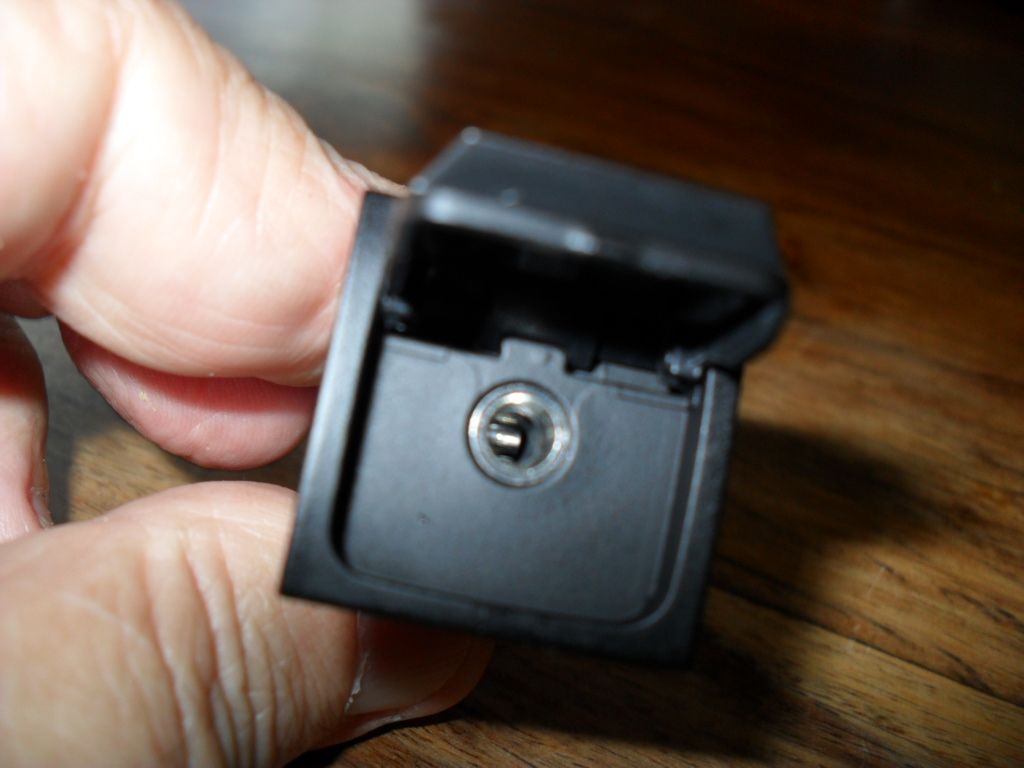

Can someone help me out here, I bought an AUX plug, and wire, the 4 wires are Red Green White and Black, I can't see any way for the right orientation, there are no lugs, so it only fits one way, apart from plugging it in and giving it a 50/50 and blowing knowing then I got it wrong, how do I get to know what way to put it in?
gold rover
Well-Known Member
- Posts
- 10,240
- Location
- dùthaich Dhè fèin
You just out the bath before those pics @Dopey ?
- Posts
- 33,600
- Location
- North Shropshire
Looks like the type of plug you might have had from a CD player in a computer. If i recall it's pos/neg for left and right channels, if you put it in wrong then you'll get left channel from the right speakers
- Posts
- 33,600
- Location
- North Shropshire
Either that or the phase will be 180 out, but you likely won't care about that
Scotiawhiskers
Well-Known Member
- Posts
- 877
- Location
- Manchester
Lowest according to RAVE is 6%, but on mine that certainly looks like off. Bit weird when you do that and lose all sight of the revs and speedo, etc on an unlit motorway at (hmmm) mph!
Had a shower, how did you know?
tomcat59alan
Well-Known Member
- Posts
- 18,611
- Location
- wirral and triquivijate
Nowt wrong with a ginker,had one once she was so wild I thought she was having an epileptic fit and howled like a scalded dog.
