harrytooth
Member
- Posts
- 84
- Location
- sussex
no, it is 110 station wagon
Tub not fitting
- Thread starter harrytooth
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
its not uncommon when fitting a new chassis ,some of the problem is the new chassis but a lot is the old rotten bent chassis body over time settled to fit a taper bar ,jacks ,clamps, ratchet straps and starting all fastenings before tightening any helps
- Posts
- 11,023
- Location
- North of the Wall
That's interesting. I thought mine must have been a one off! I thought they were all set up in a jig, so they could not be out. Thought I'd just been extremely unlucky.
- Posts
- 11,023
- Location
- North of the Wall
How do the upstands from the tubular outriggers line up with the front of the tub? How is the front of the tub, is it rotten?
- Posts
- 12,098
- Location
- Far out West
I got my chassis in December '13 when did you get yours?
harrytooth
Member
- Posts
- 84
- Location
- sussex
the front of the tub has been completely redone by the previous owner so hasn't got any rot, don't think it has tubular outriggers

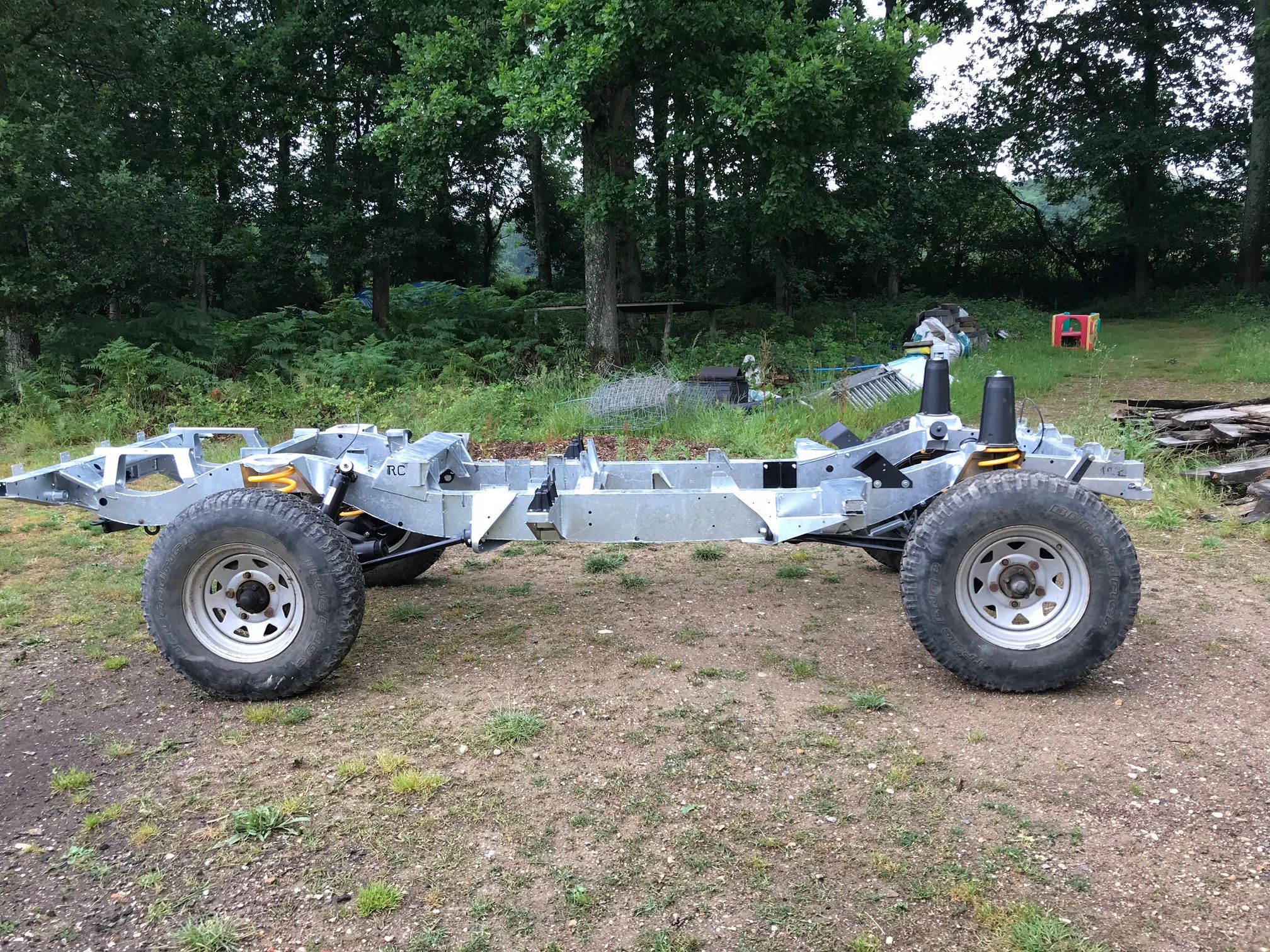

Attachments
harrytooth
Member
- Posts
- 84
- Location
- sussex
I got mine Feb 2017
- Posts
- 11,023
- Location
- North of the Wall
I got mine April 2014
- Posts
- 11,023
- Location
- North of the Wall
No you don't. I had a look at some other 300Tdi 110 Richard Chassis and they don't have them either. You have black brackets on top of straight outriggers, just in front of the trailing arm brackets. How do they line up!
harrytooth
Member
- Posts
- 84
- Location
- sussex
it is a defender 110 v8 chassis, they line up good with some persuasion
- Posts
- 11,023
- Location
- North of the Wall
You're doing the right thing, dry fitting things together. It'll help you realise that things rarely go back together the same way twice, this will make you relax about feeling you need to get everything precise, will make you feel confident with the 'fettling' you will inevitably end up doing and you'll discover that you need to slowly tighten stuff up. ie if you tighten something up on one side of you landy then bolt holes on the other side won't even line up. Best to get a bolt through and turn a nut on a thread or two, then get a bolt in other side with a thread or two, then another etc. Then slowly work your way around tightening them up.
Just a thought, why don't you start a rebuild thread and you can put all the snags in one place. We can watch your progress! Lot's of pictures though as non of us can read too well. Us Northerners can't, anyway
Just a thought, why don't you start a rebuild thread and you can put all the snags in one place. We can watch your progress! Lot's of pictures though as non of us can read too well. Us Northerners can't, anyway
harrytooth
Member
- Posts
- 84
- Location
- sussex
that sounds like a good idea, yeah I will make a rebuild thread. thanks for your helpYou're doing the right thing, dry fitting things together. It'll help you realise that things rarely go back together the same way twice, this will make you relax about feeling you need to get everything precise, will make you feel confident with the 'fettling' you will inevitably end up doing and you'll discover that you need to slowly tighten stuff up. ie if you tighten something up on one side of you landy then bolt holes on the other side won't even line up. Best to get a bolt through and turn a nut on a thread or two, then get a bolt in other side with a thread or two, then another etc. Then slowly work your way around tightening them up.
Just a thought, why don't you start a rebuild thread and you can put all the snags in one place. We can watch your progress! Lot's of pictures though as non of us can read too well. Us Northerners can't, anyway
- Posts
- 11,023
- Location
- North of the Wall
You'll find this forum is full of enthusiasts, obviously
Good thing about that is they'll enthusiastically try to help wherever they can. Good luck with the project.
crofter65
Member
- Posts
- 35
- Location
- Ross-Shire
Watching this with interest as I am about to reassemble my own 90 using a diferent rear tub, and I was wondering what people use for the pads that go between the tub and chassis, I have seen them on eBay but they look a bit thicker than the ones that were previously fitted to mine and I fear this will lead to the same problem as the Harrytooth is having.
- Posts
- 11,023
- Location
- North of the Wall
Yours will have been squashed! I doubt there are different ones, but there may be. You can easily look the part number up for your vehicle.
Gmacz
Well-Known Member
- Posts
- 968
- Location
- Forfar/Dundee
I used an old rubber mudflap cut up into squares..Pop rivets to hold it on.
