Defo some way to go yet. But, it's great fun (eventually) and massive sense of job satisfaction in the end. Just keep your standards and your chin up
Trying to Rebuild 1987 110 C S W
- Thread starter border
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK

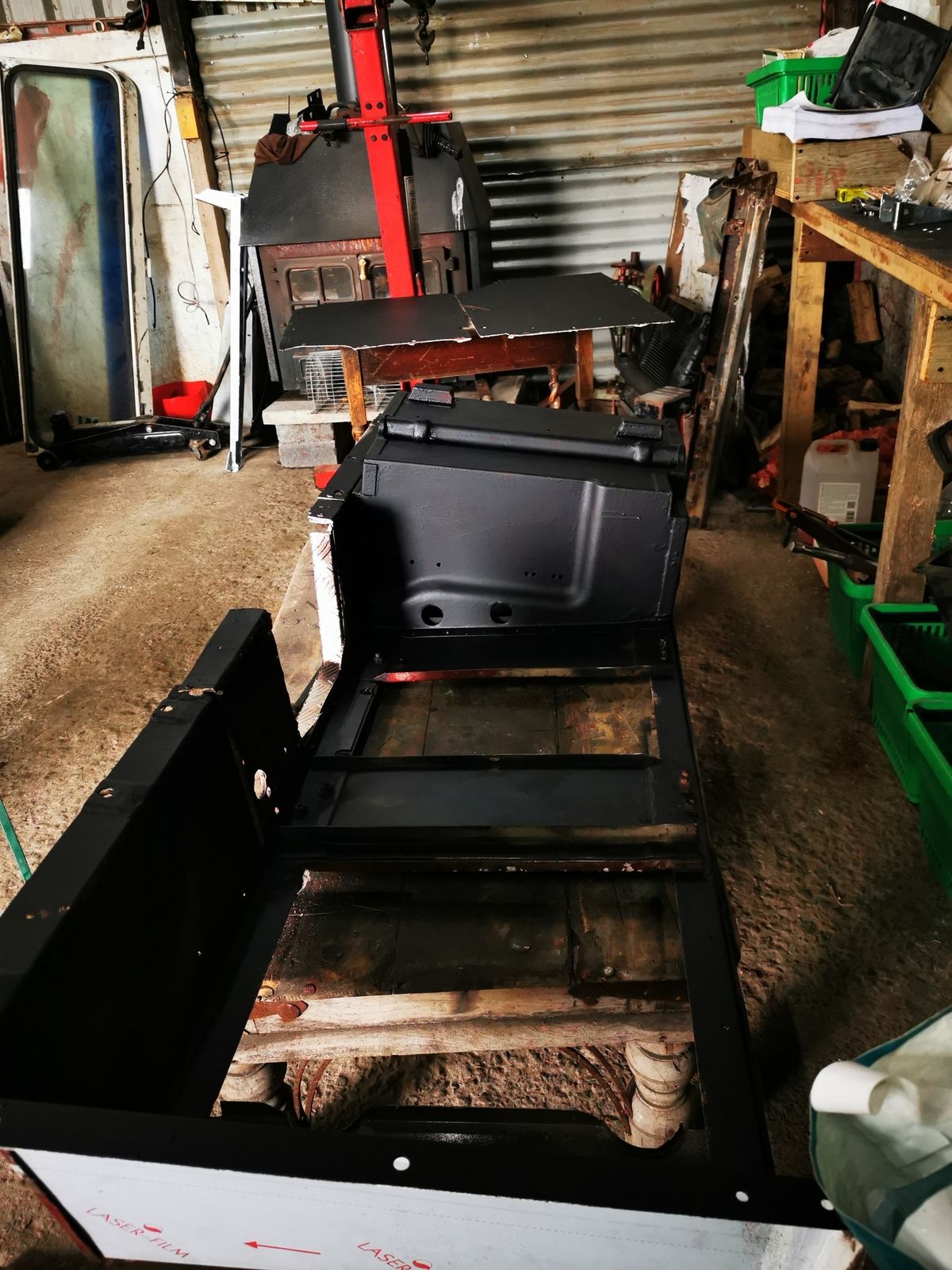

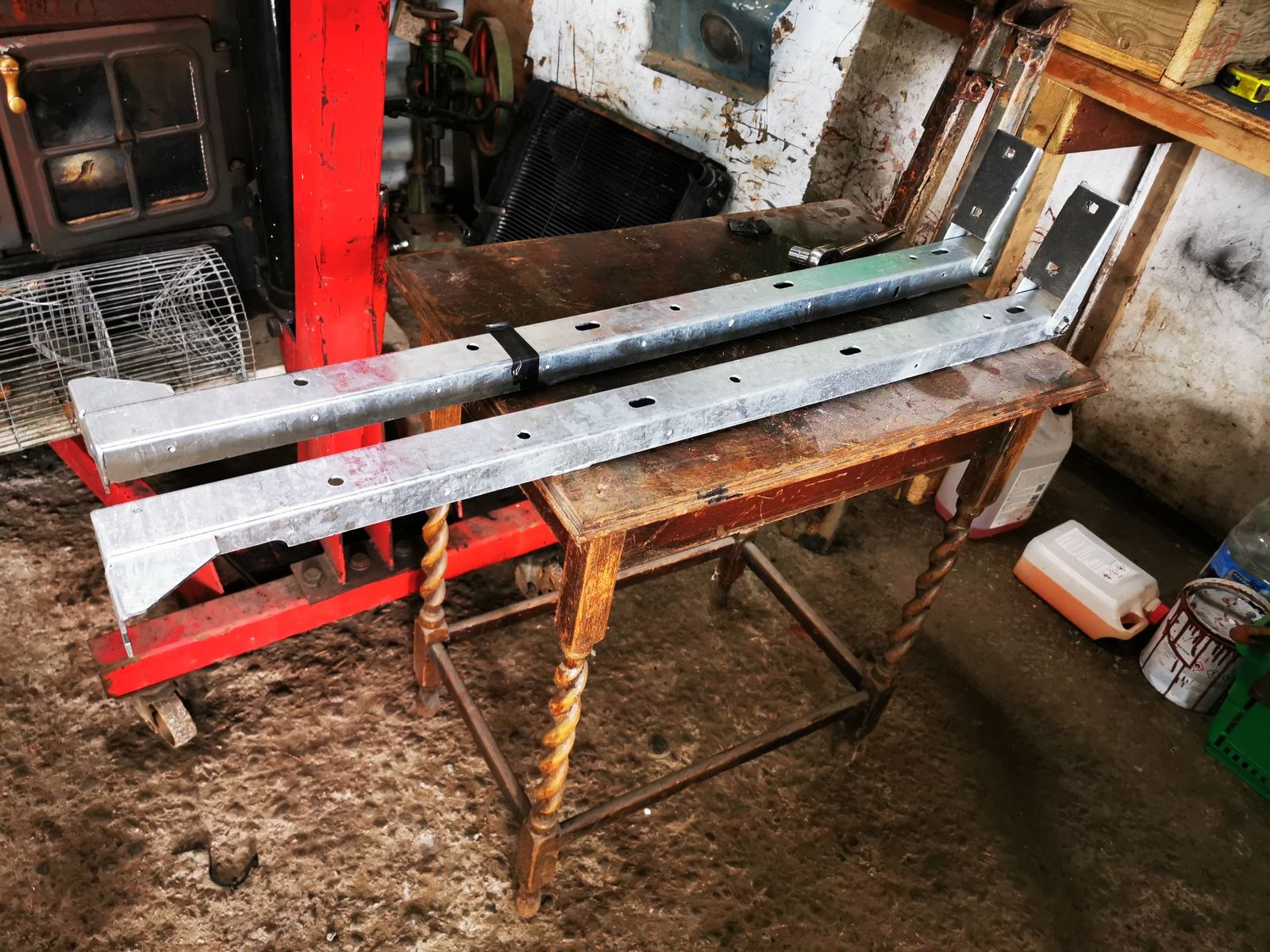

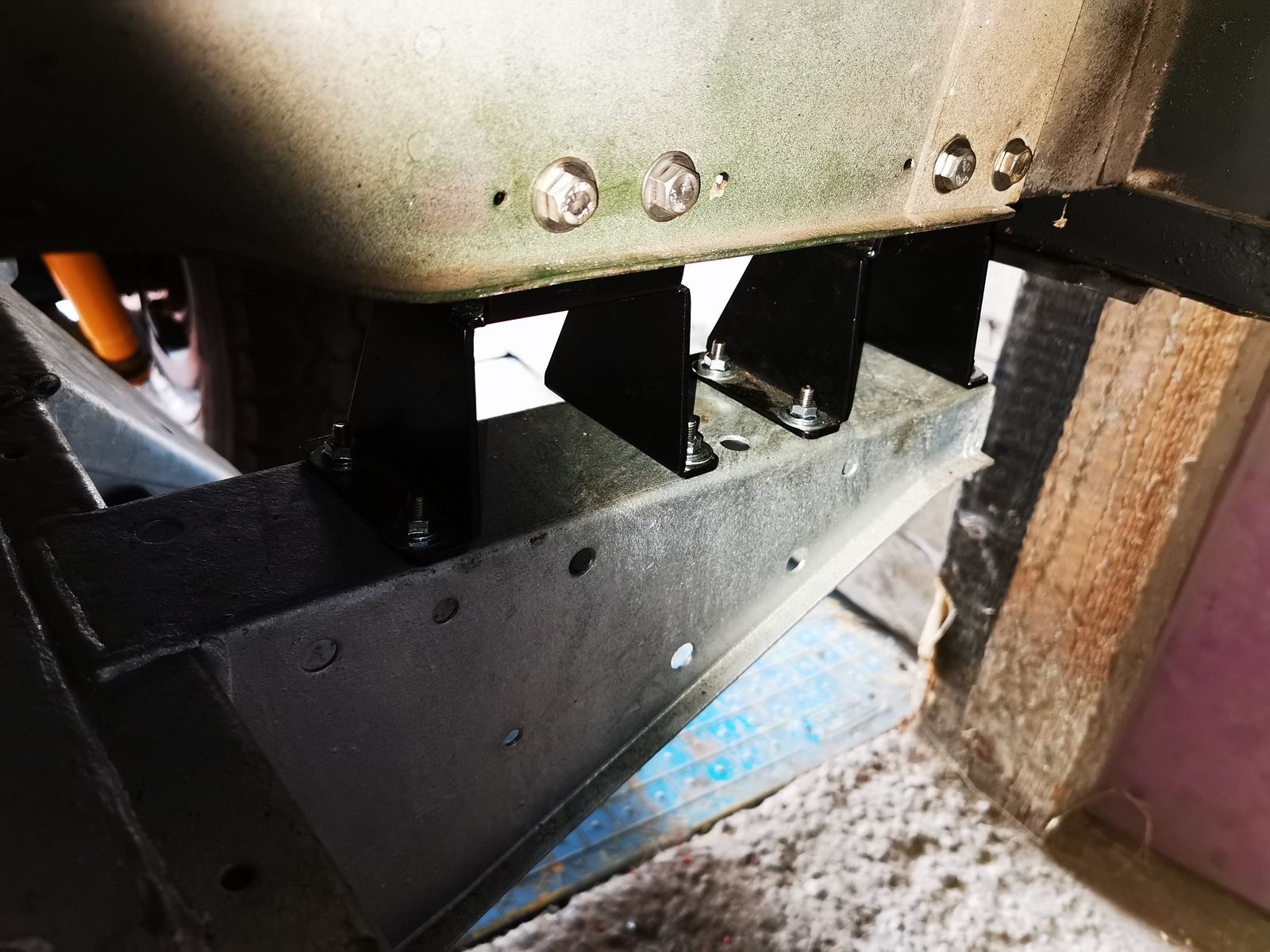

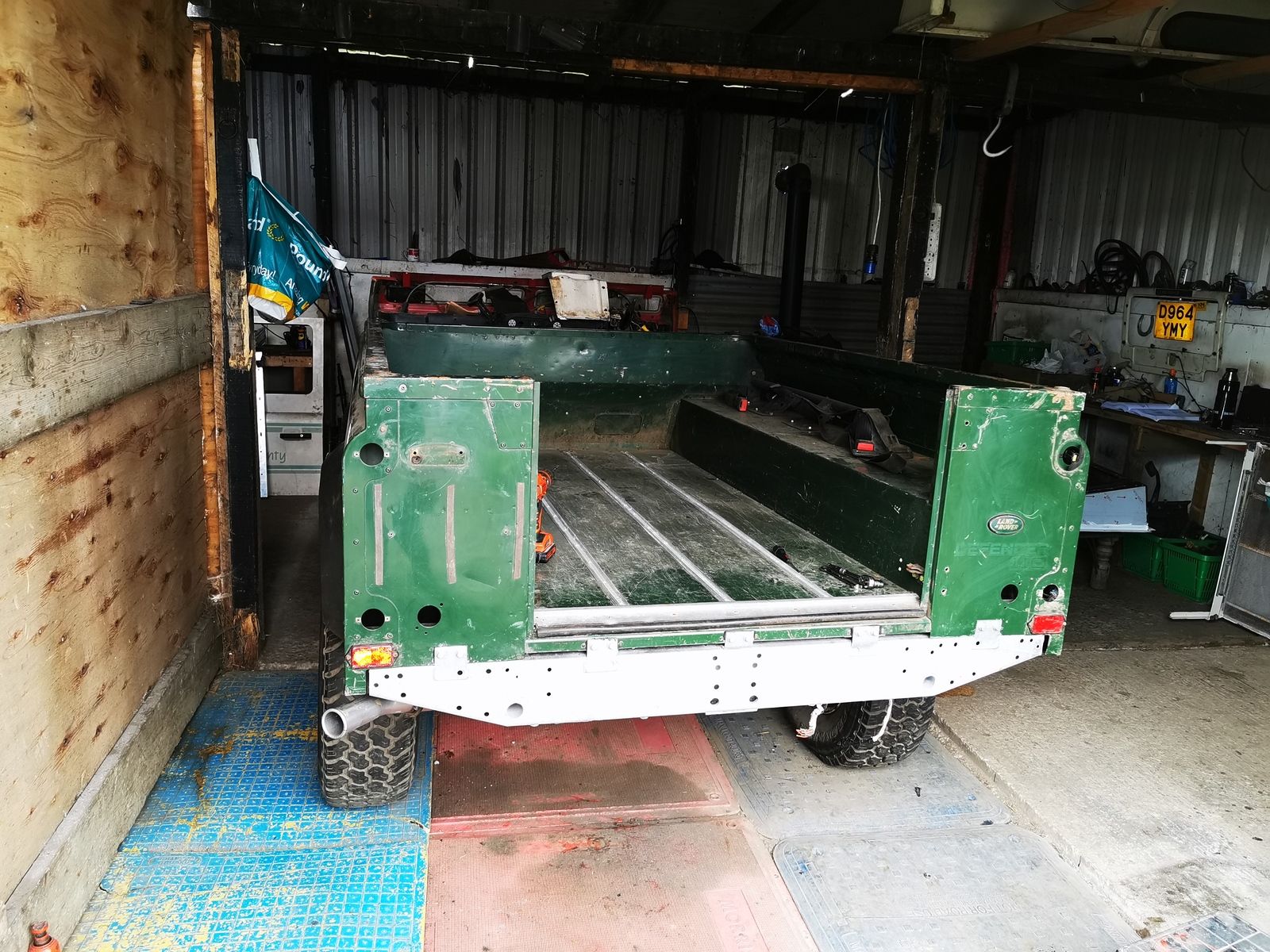

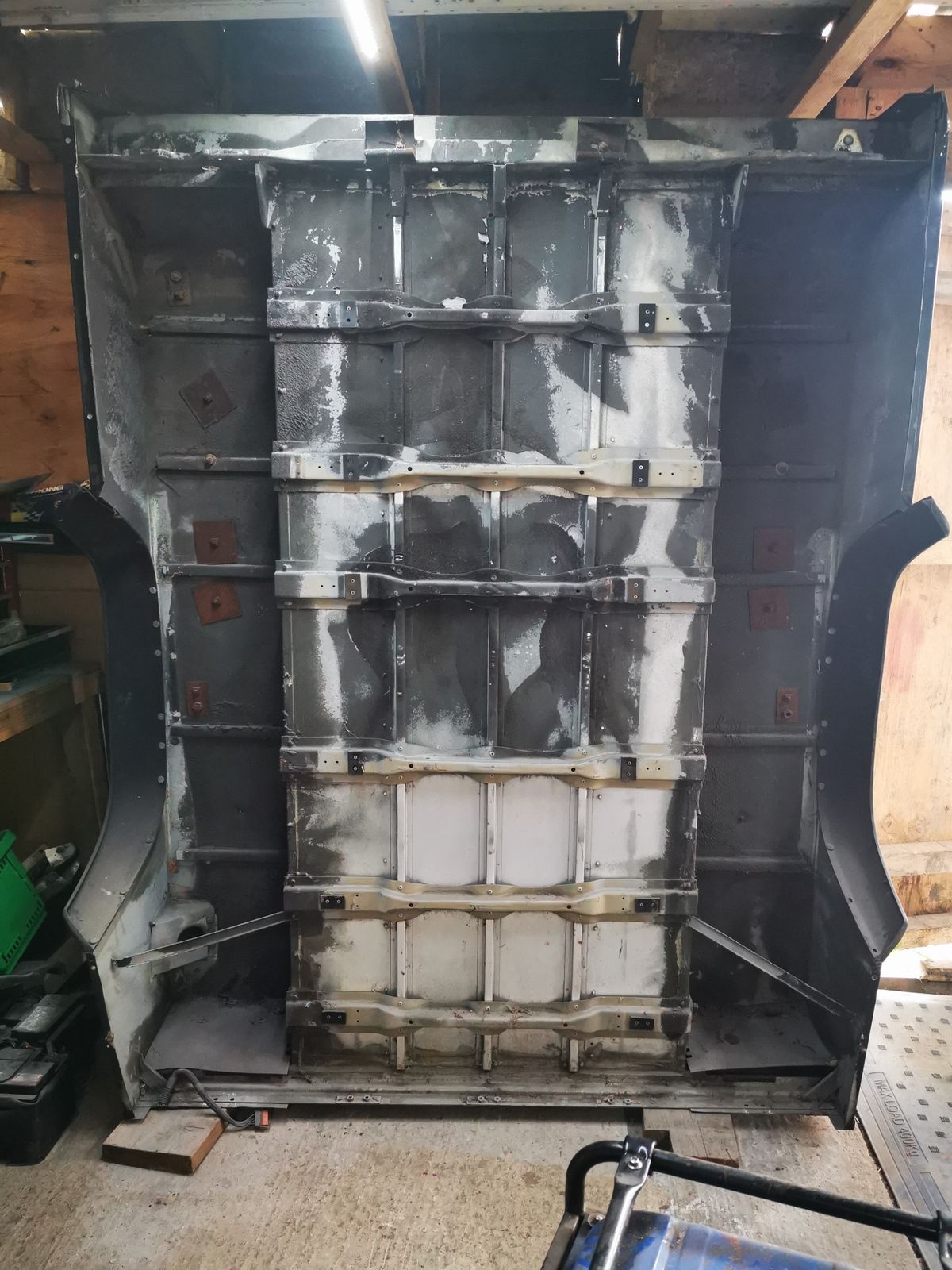

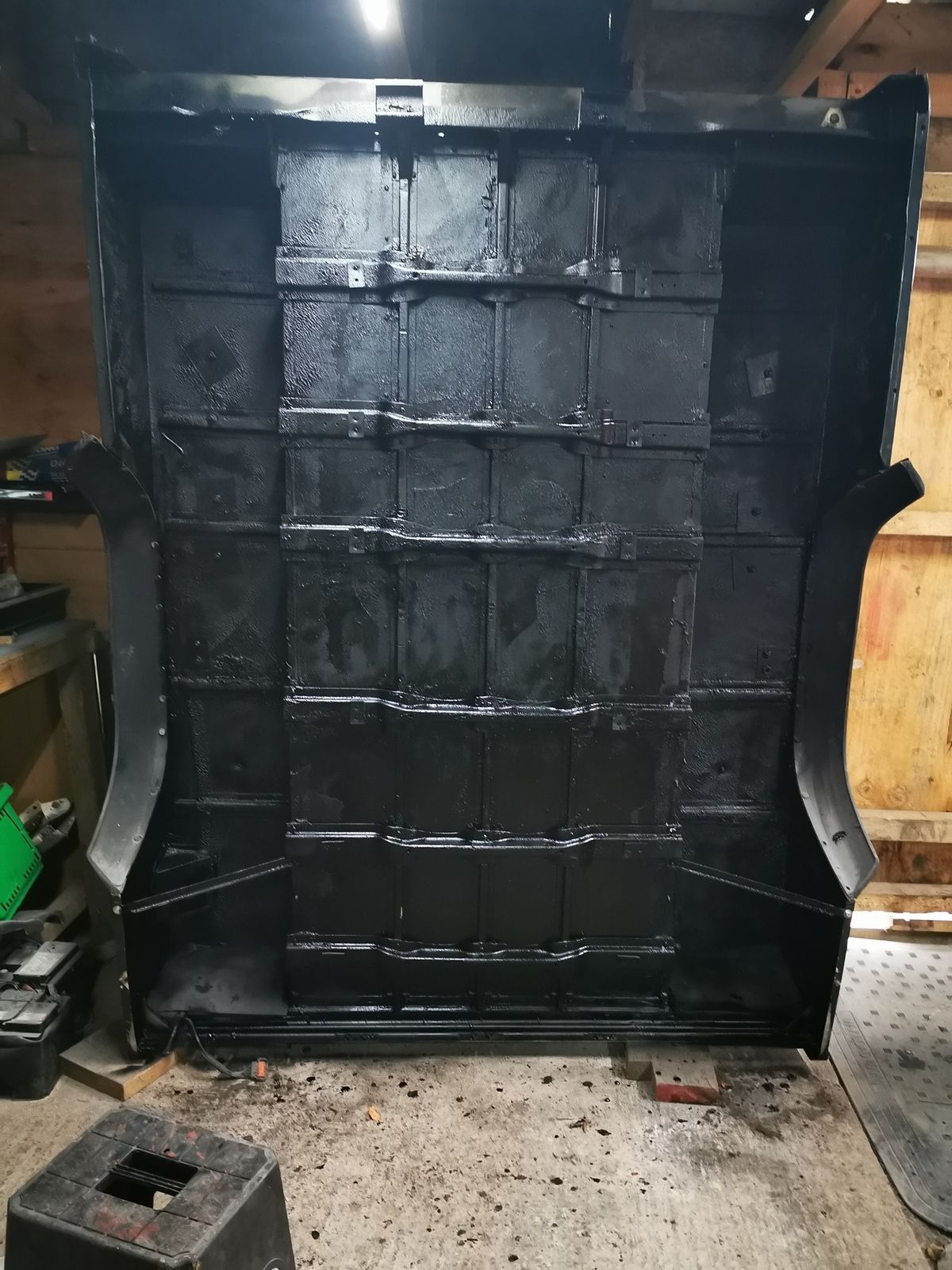

Just about ready to start fitting Body back together, Tub, Seat box and Floor Pans waxoiled, Front brakes done, new Sills ready to fit. Still a long way to go but Getting there slowly.
Attachments
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
I finally got one side Free, by tweaking here and there, the other was only catching by about 2 mil at the most so just shaved a little off all round,

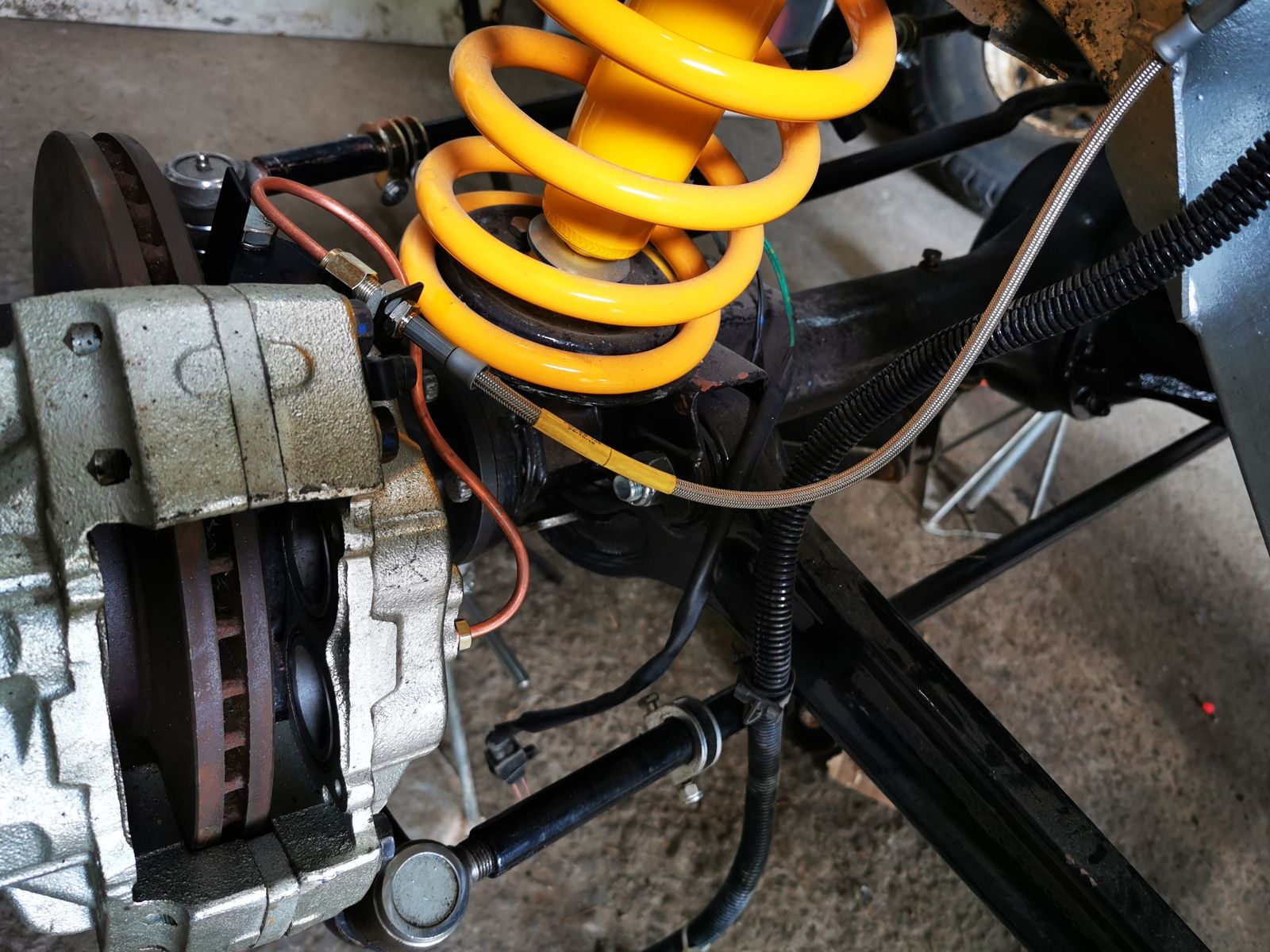

Check them copper brake pipes. It looks as though they could be close/catching the front springs. They are supposed to be routed almost touching the calliper. Make sure the drain holes in the rear tub floor supports are clear of wax oil. Other than that, it looks good!
Last edited:
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK

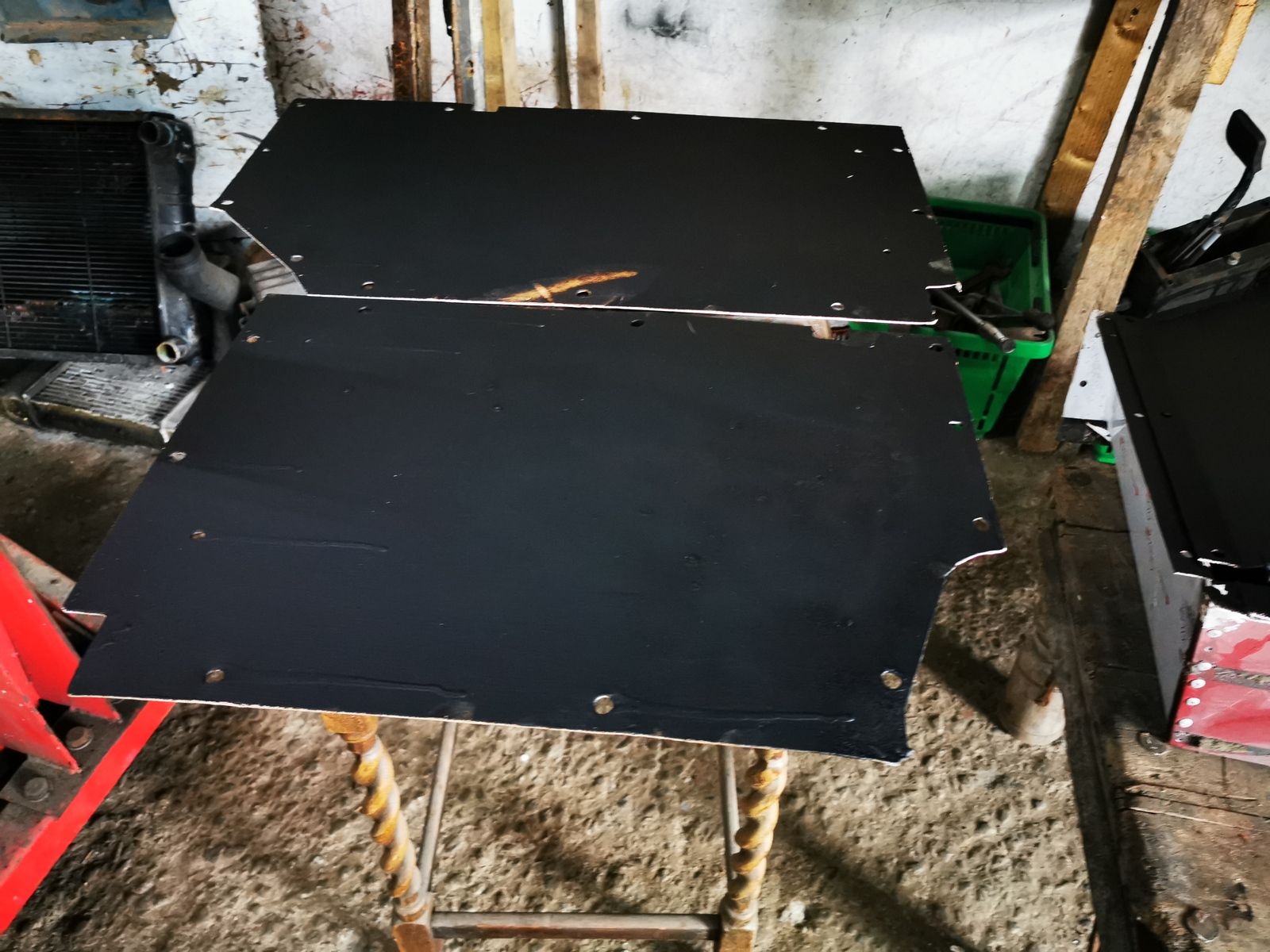

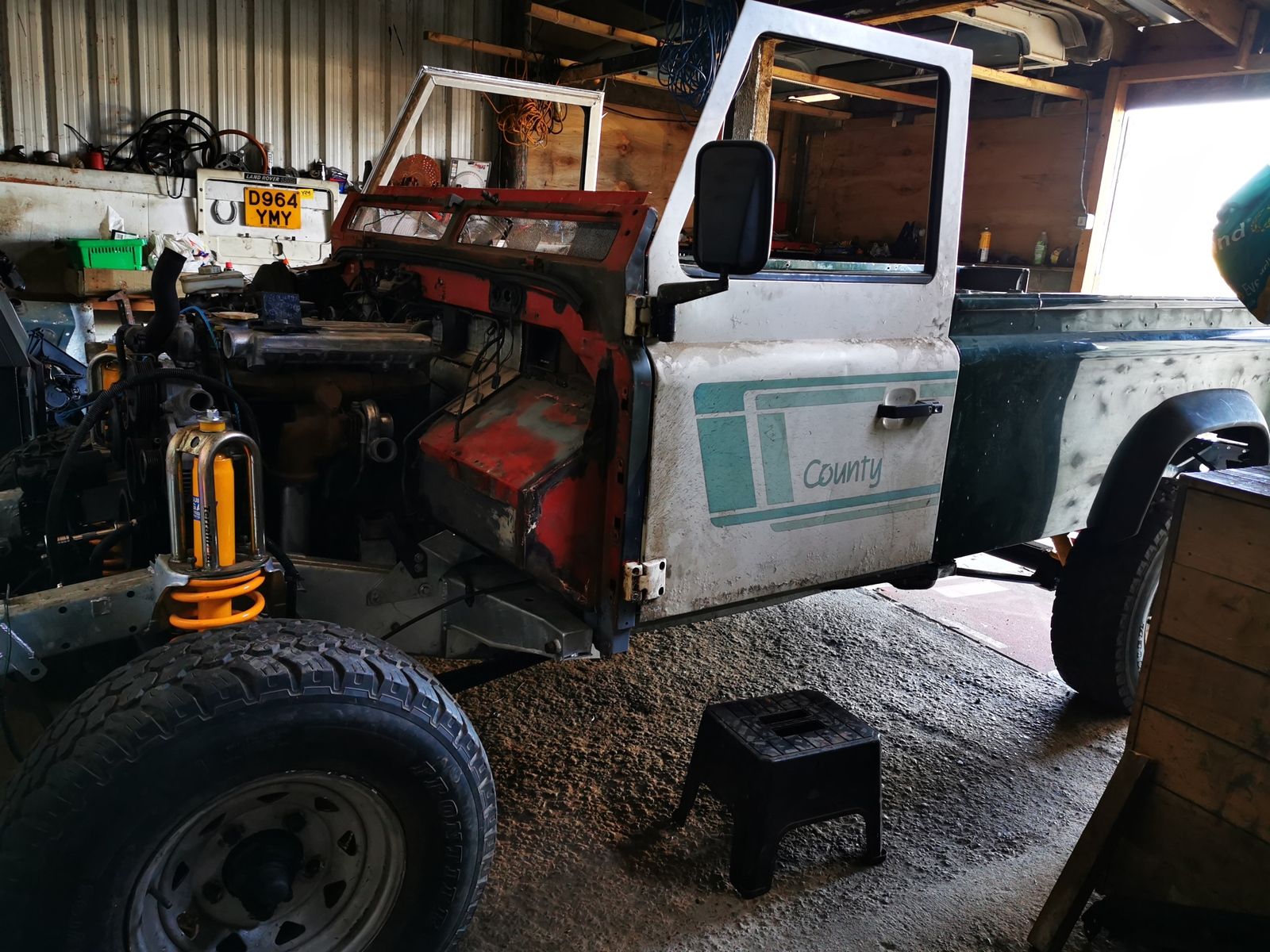

Yes they were just slightly give then a little more bend and there OK now. Wished Id thought about drain holes before I fitted Tub, got seat box, floors and tunnels in too, Tried Doors for size and there is a gap but should be able to close it up, That's my next question,. Will post photos later
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK

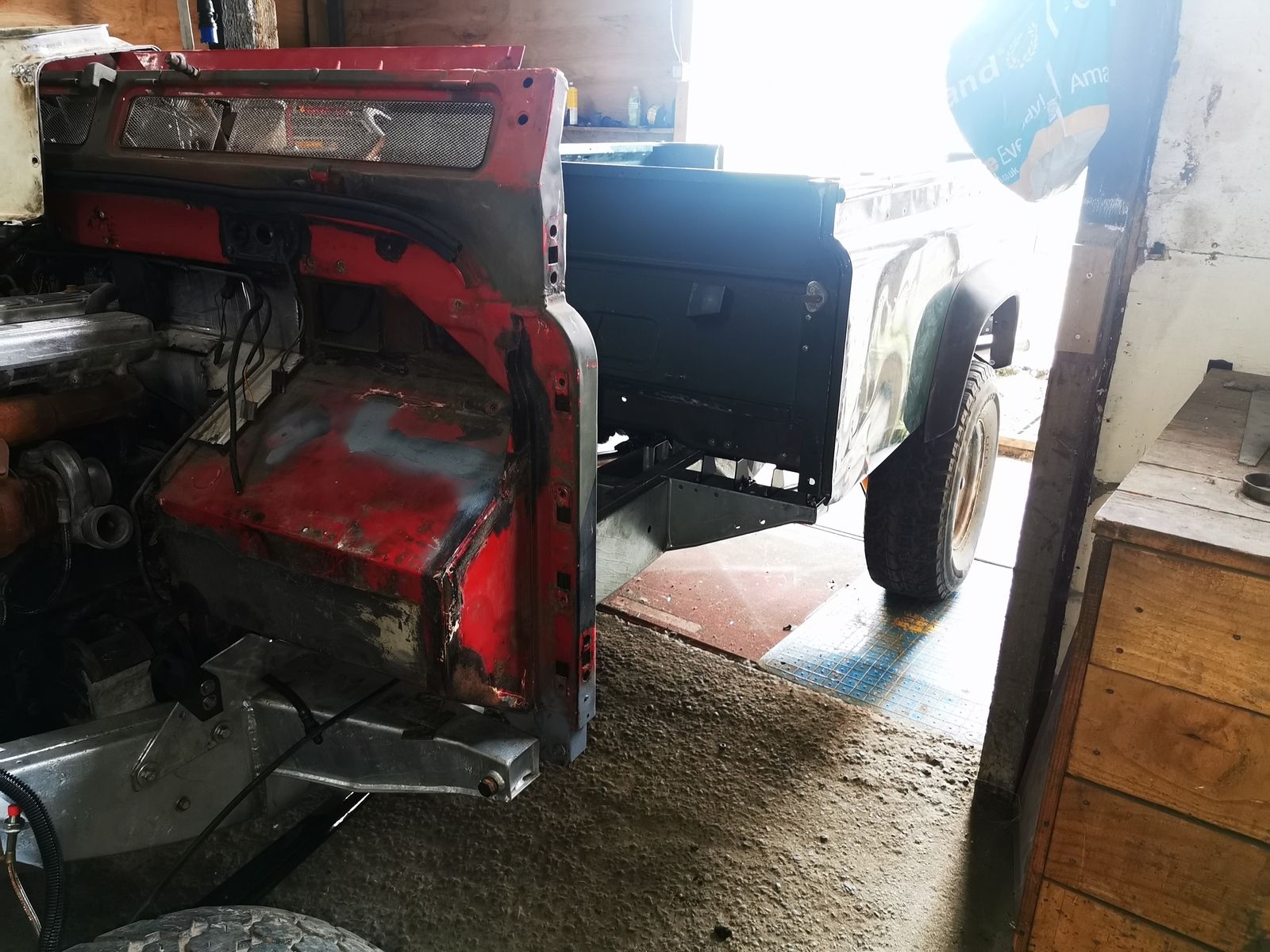

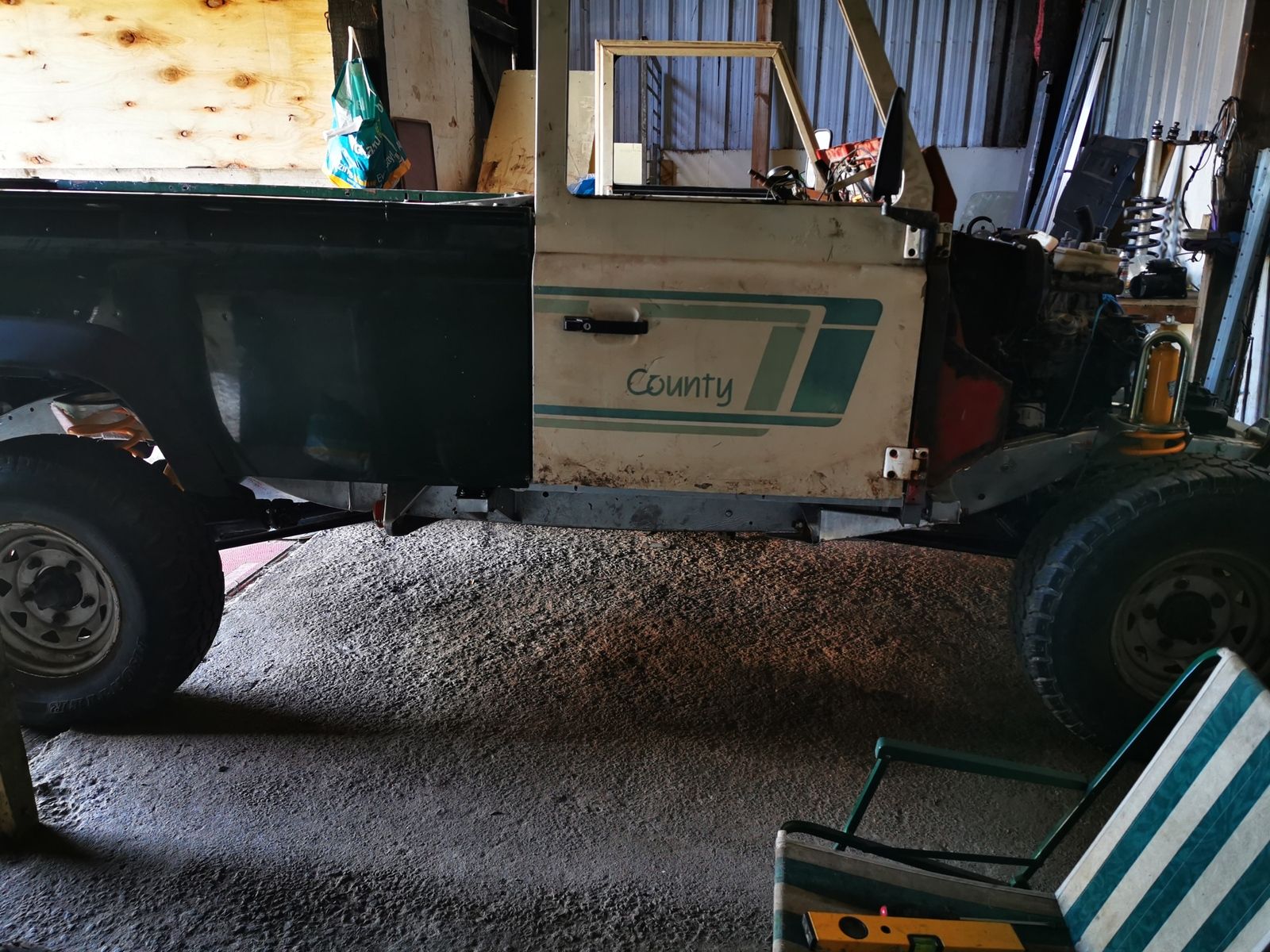

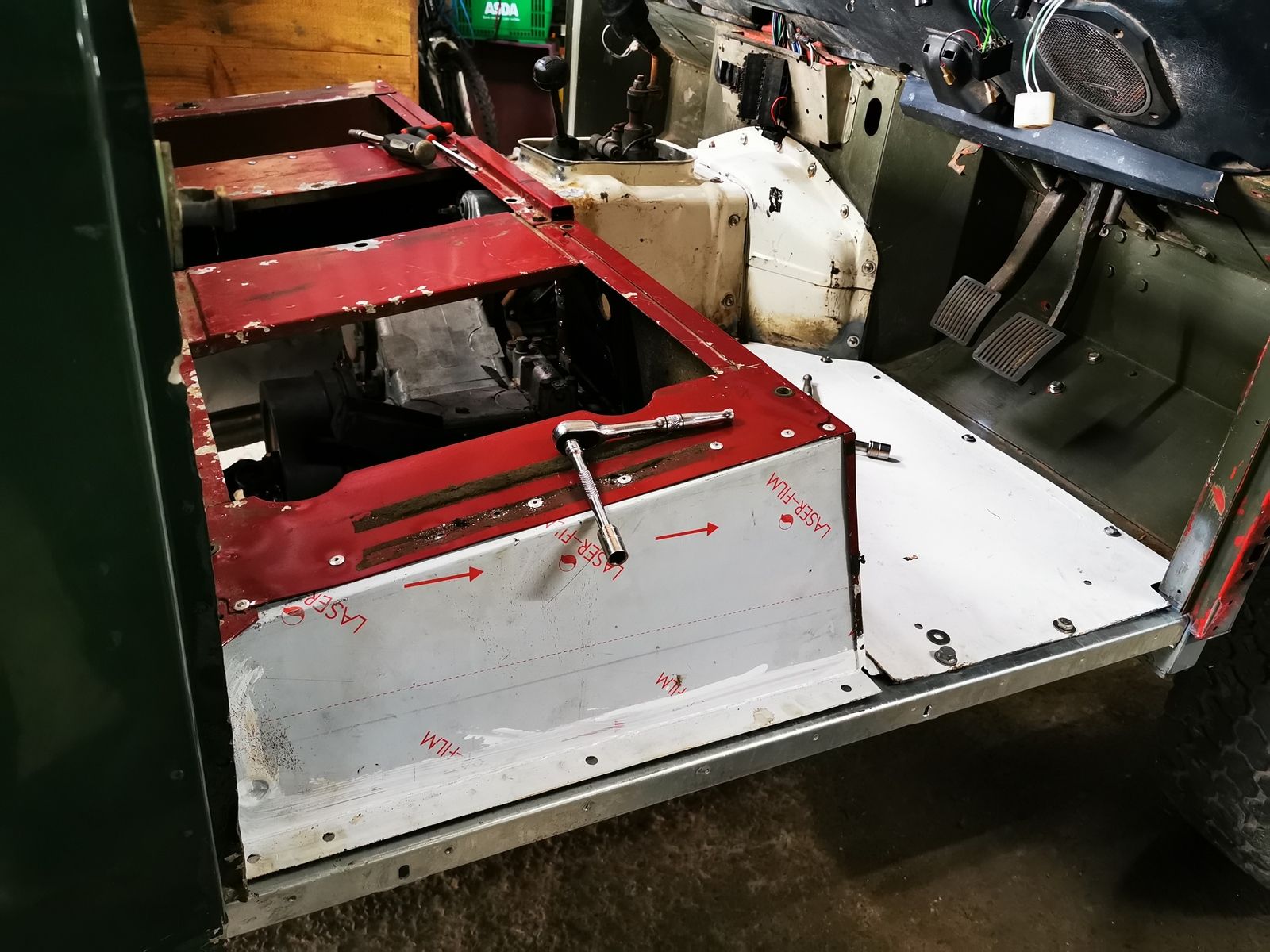

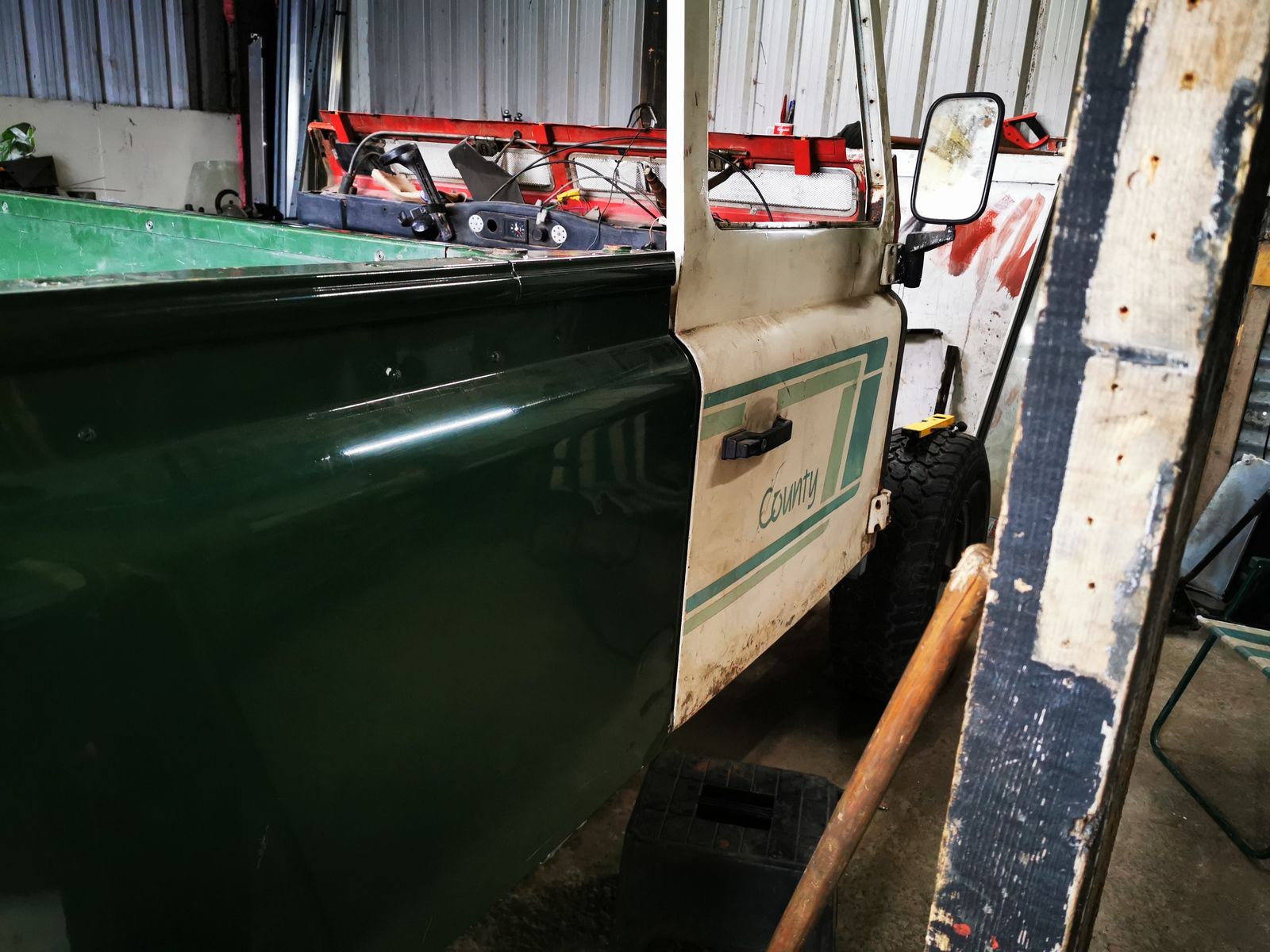

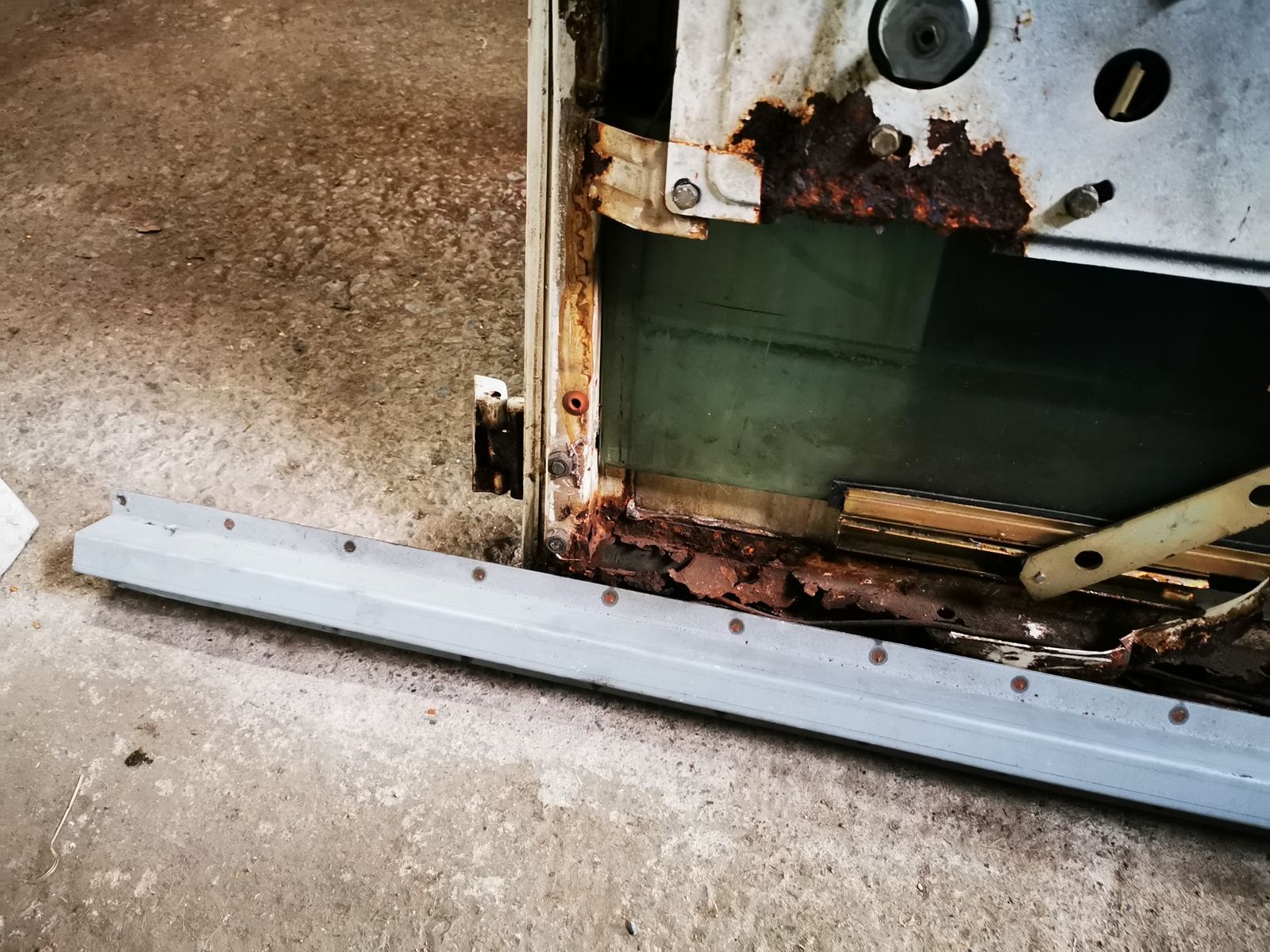

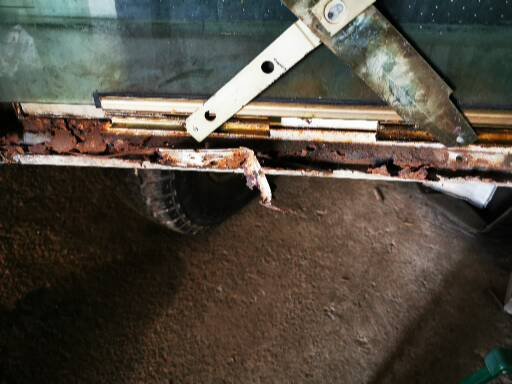

Starting to come together, floor and tunnels lined up spot on, there is a slight gap in doors but they are getting new bottoms welded in so will try them again when they come back.
Bought a pair of sides off ebay, hopefully coming Friday so I can get cracking with the rest.
Bought a pair of sides off ebay, hopefully coming Friday so I can get cracking with the rest.
Attachments
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
mick the builder
Well-Known Member
- Posts
- 5,901
- Location
- Sligo,Wild West of Ireland.

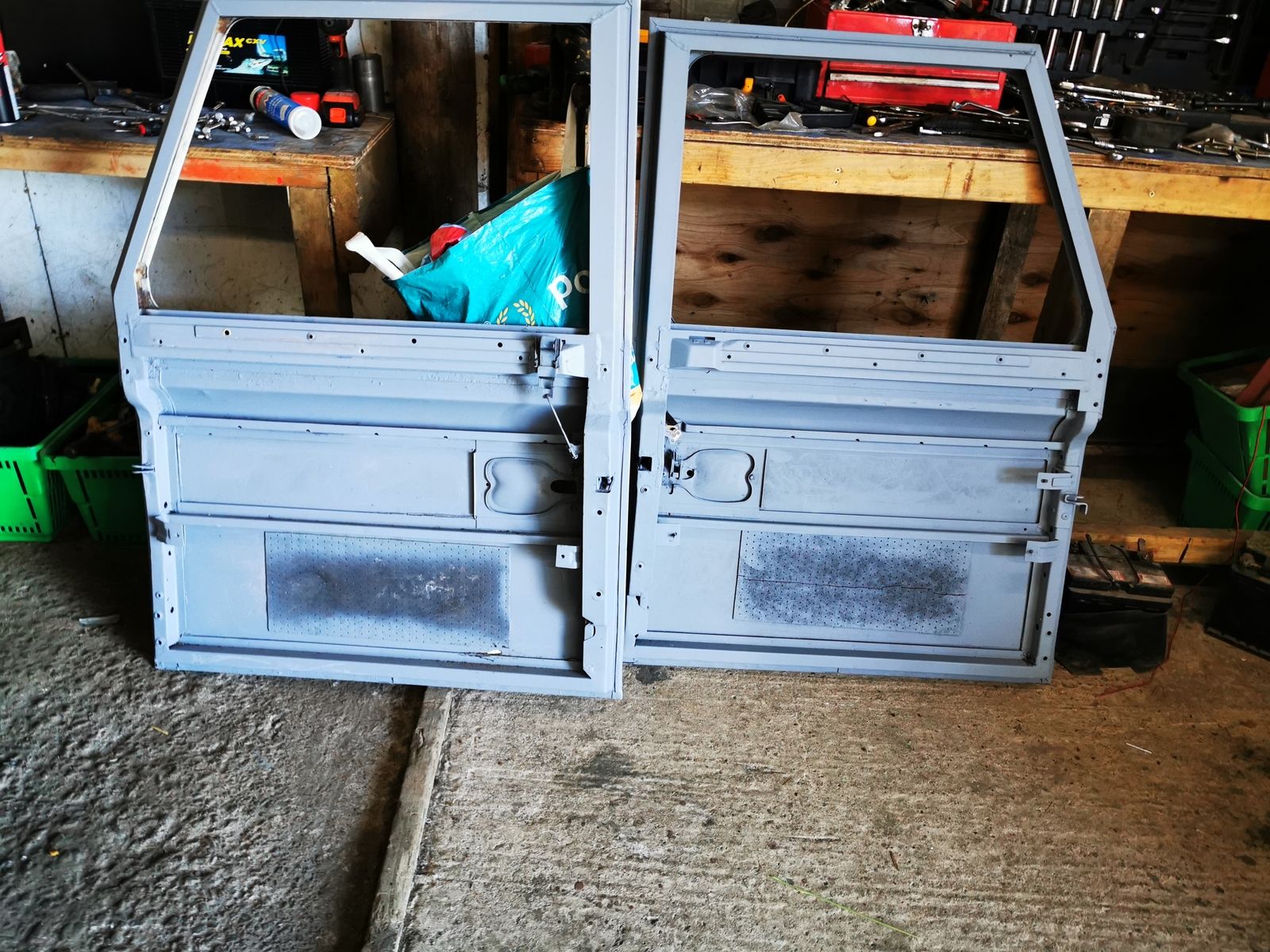

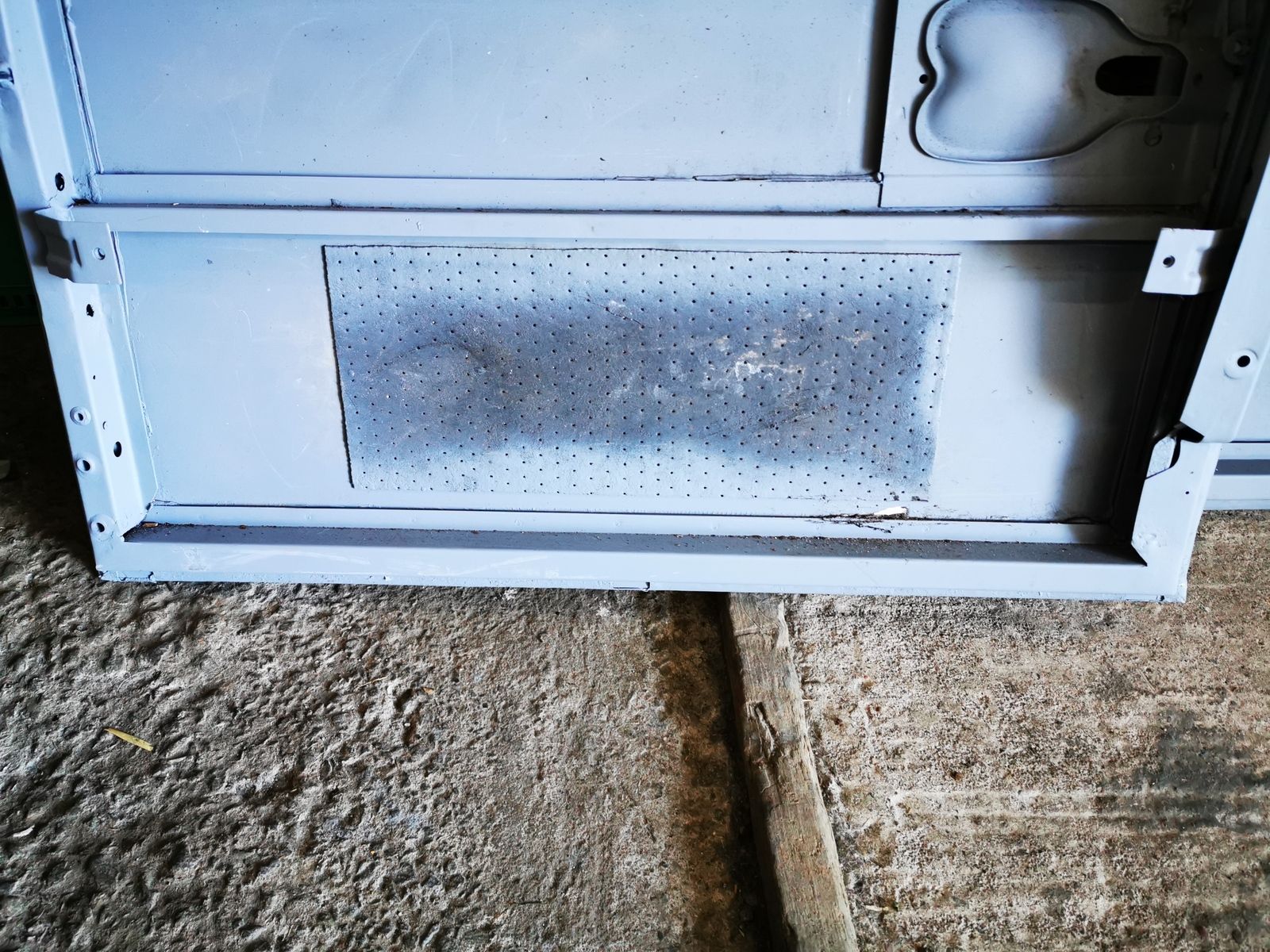

They look good. Not trying to tell you what to do but make sure the drain holes in the bottom rail are not covered by the door skin. Then after paint, fill every crevice with Dinitrol/ waxoil.
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
Thanks Matr, something I would have never thought of, must remember when the time comes.

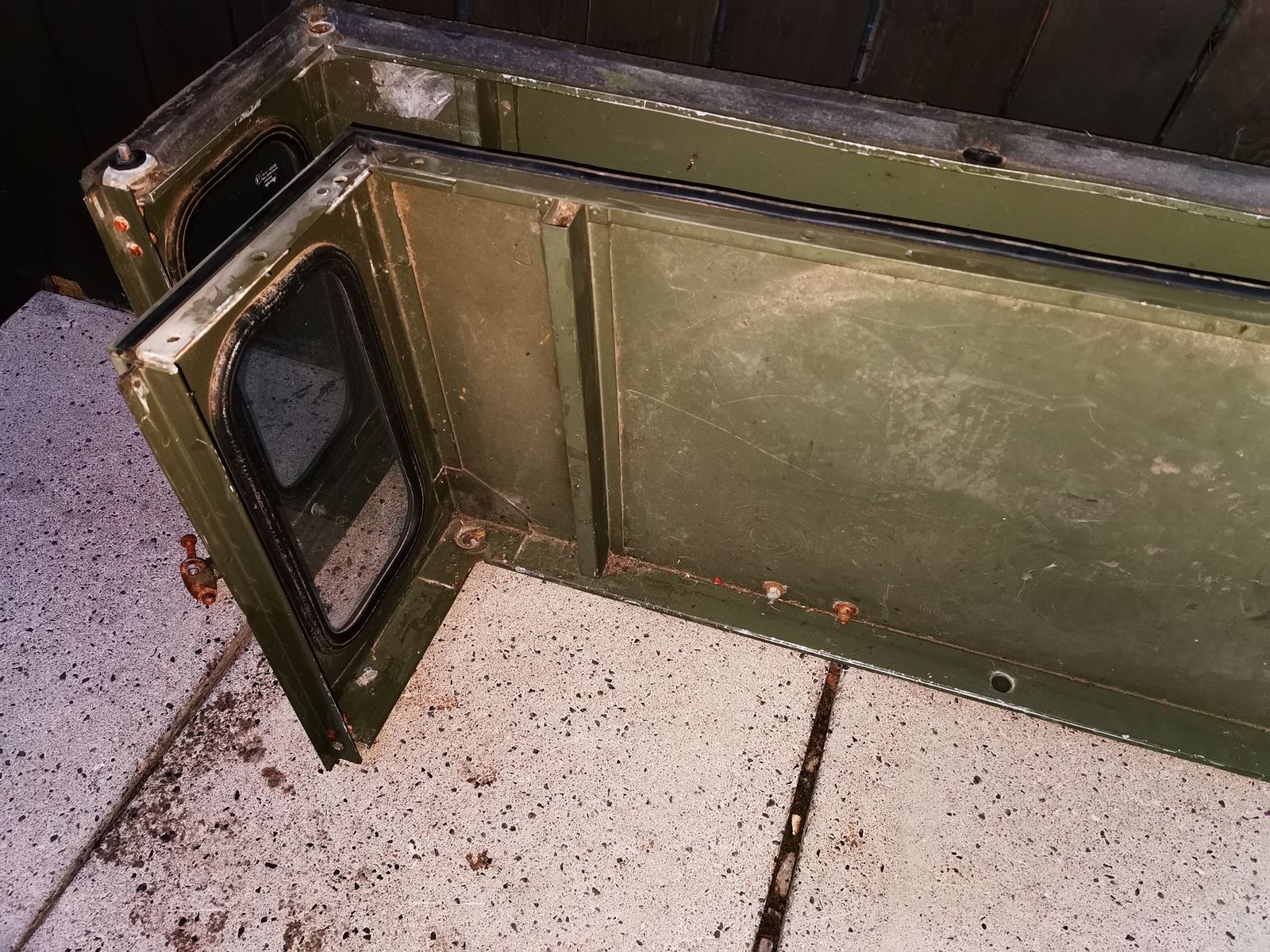

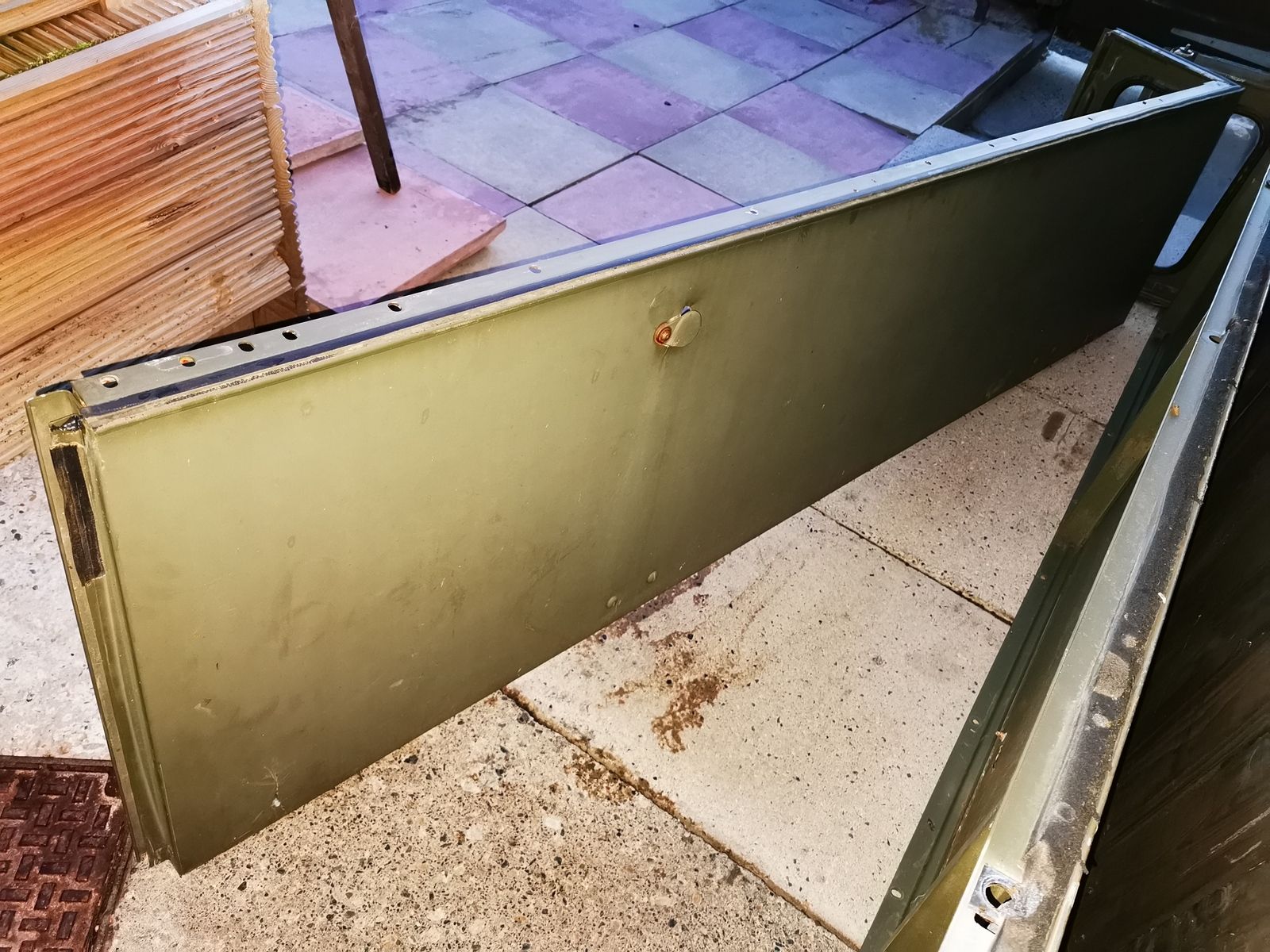

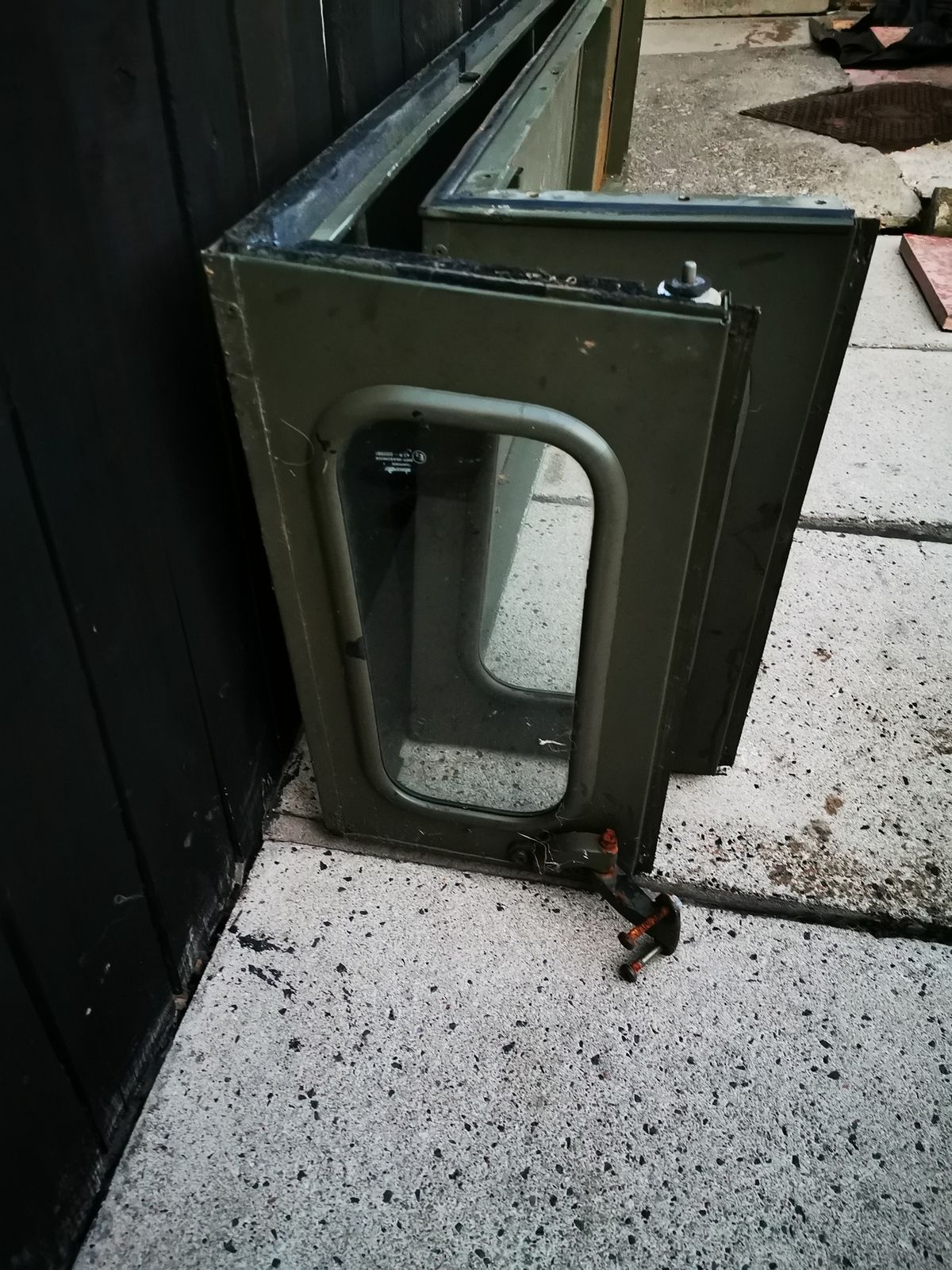

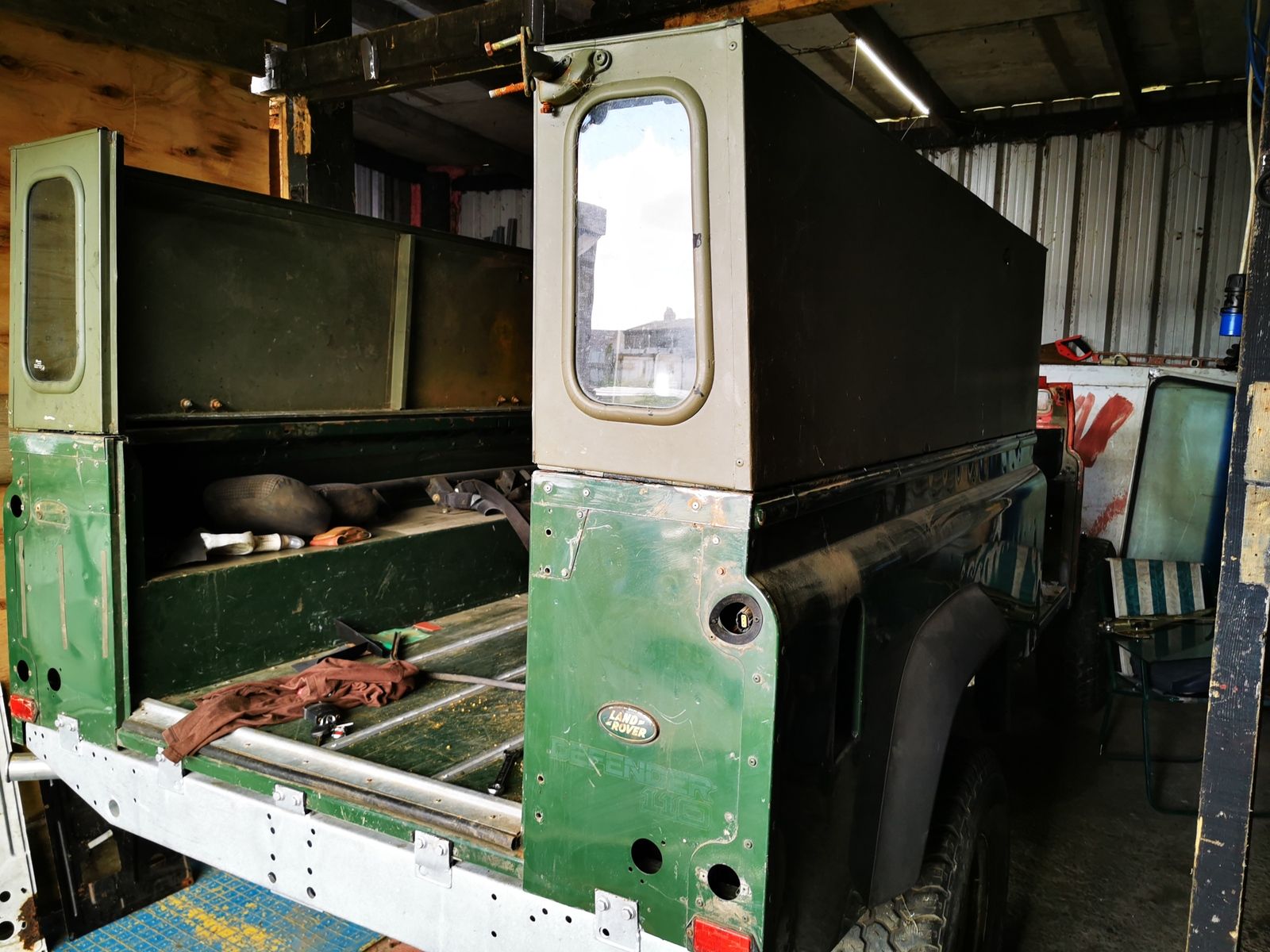

Sides came today and, very happy with them, no rust or rot anywhere, don't know what the little spy holes are there for, never seen them before, theres one on each side with bit that slides over to cover them.
just need to get the right bolts and fixings for them now.
Attachments
- Posts
- 11,023
- Location
- North of the Wall
The hole doesn't look very neat. Bullet hole?
If they are Ex-MOD, then I would imagine the holes are for antenna cables to pass through. We never really used hard tops for radio vehicles, but who knows what they are using now?
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK
What ever they are think I might just rivet a plate over or somthing , was thinking about putting windows in at a later date.
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK

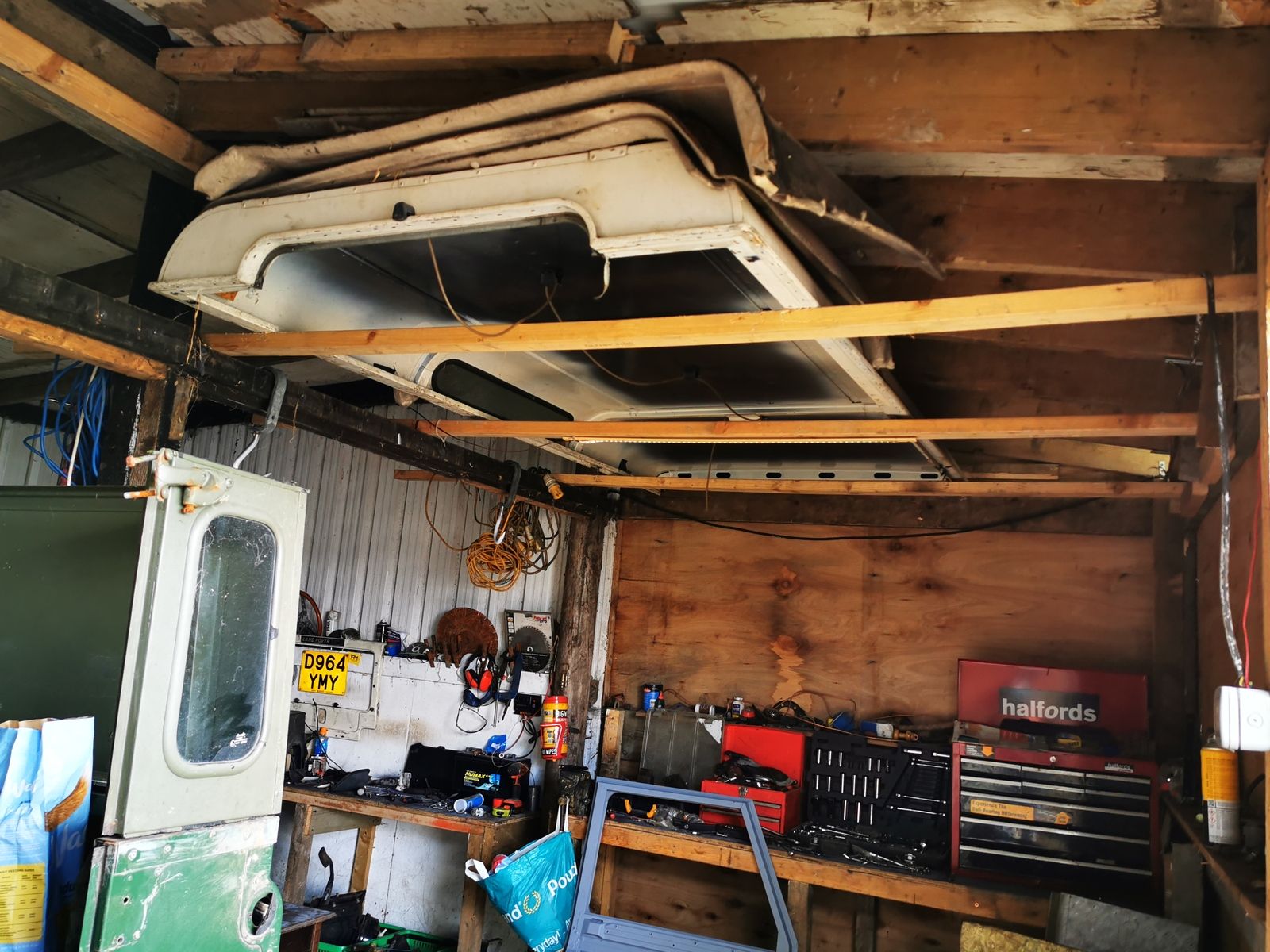

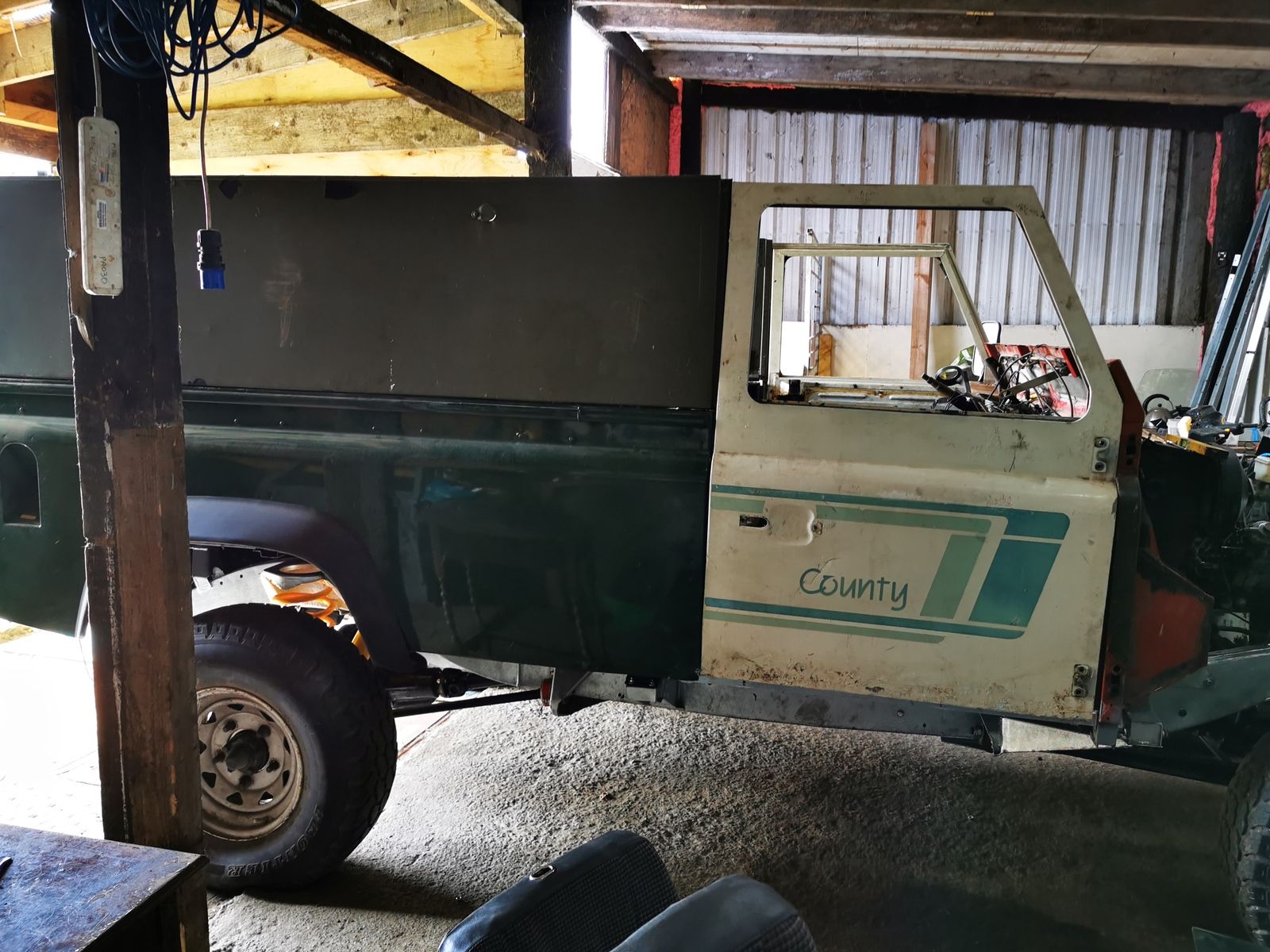

Sides fit perfect , just need to get the right fixings before I bolt it in place. Soon be time to get the Roof down, its been up there over a year now

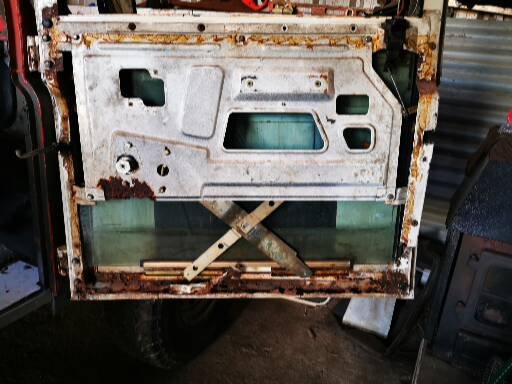

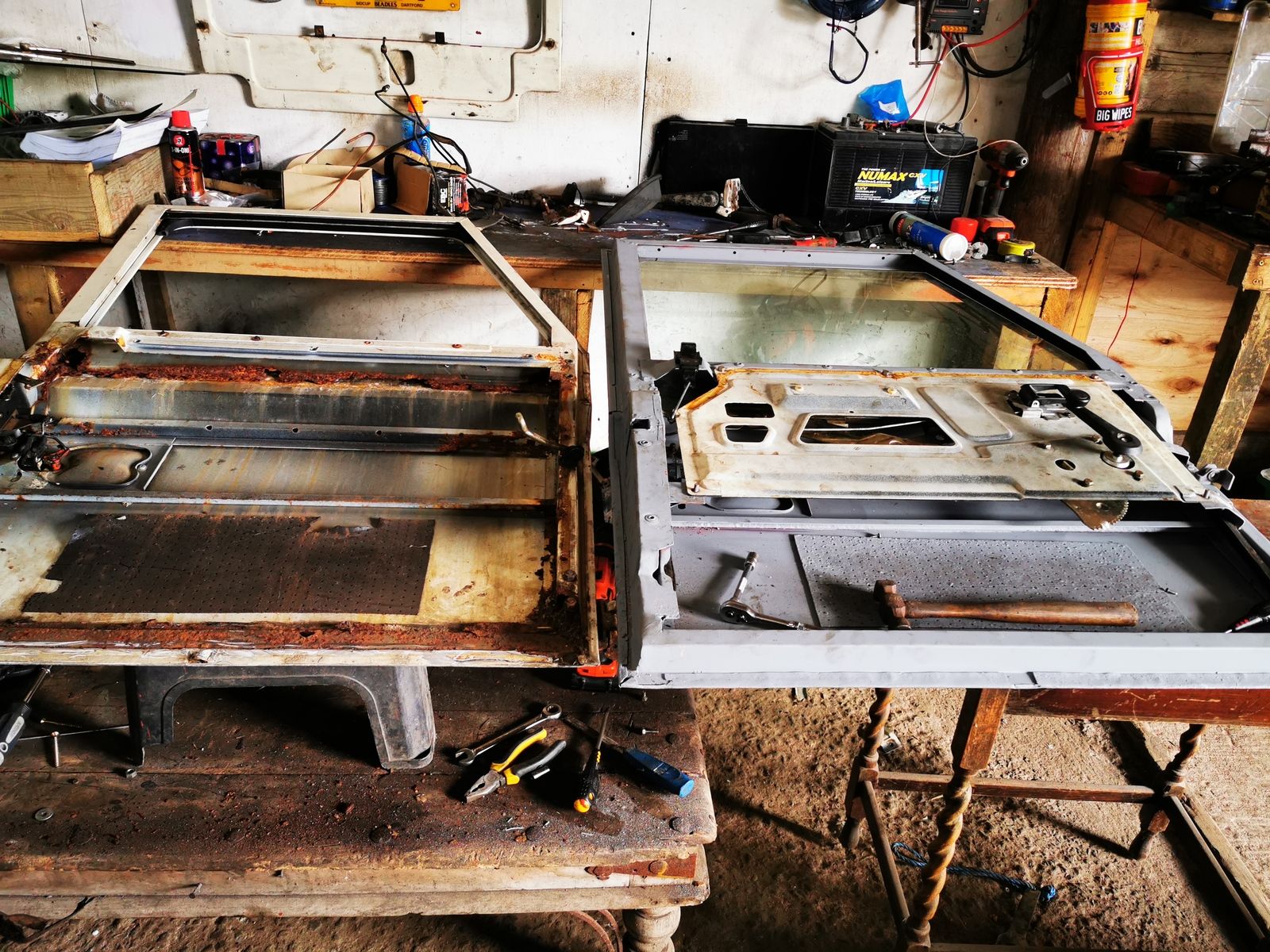

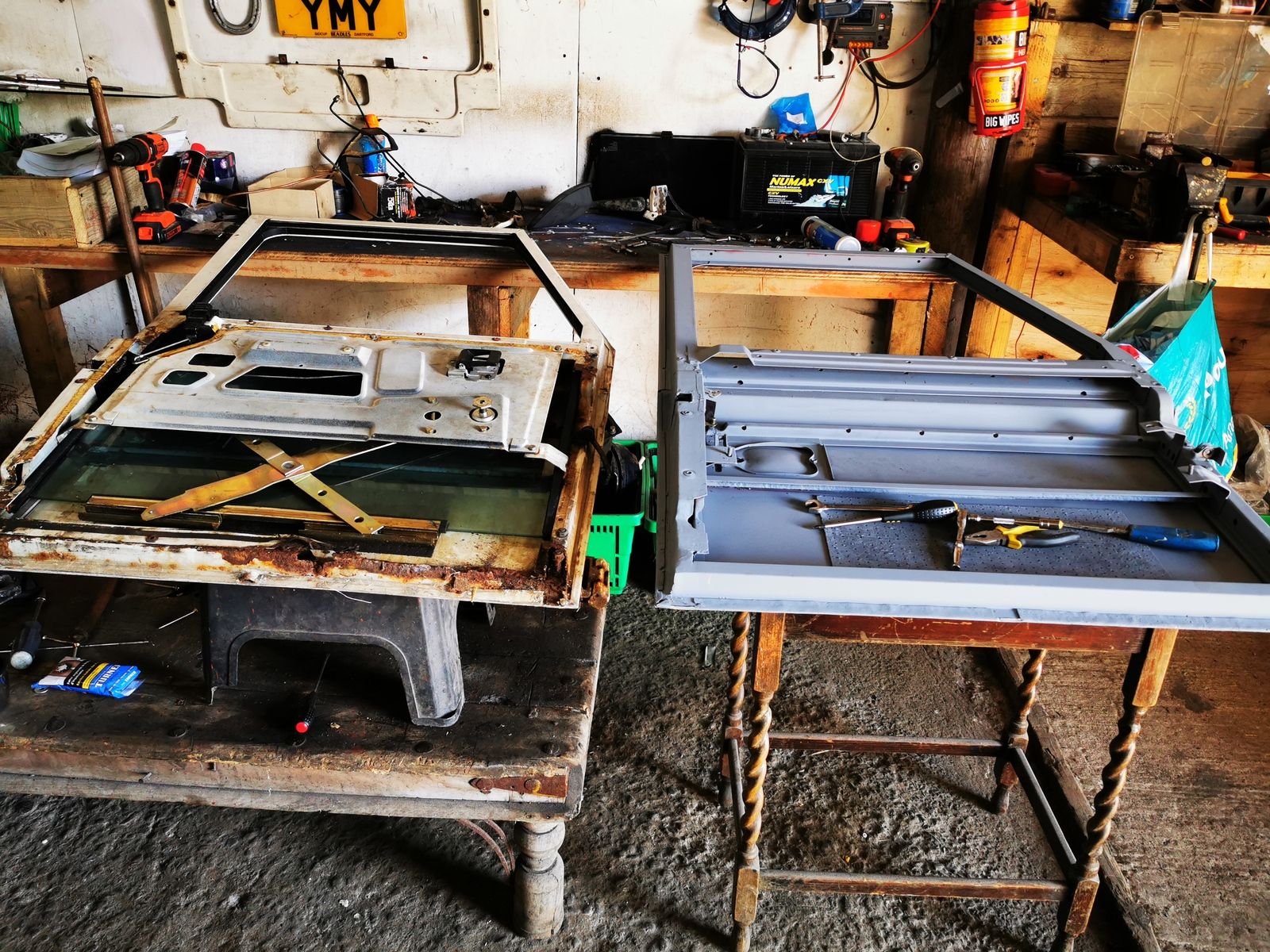

Swapped door mechanisms over , what a nightmare that was, think I've got it right.

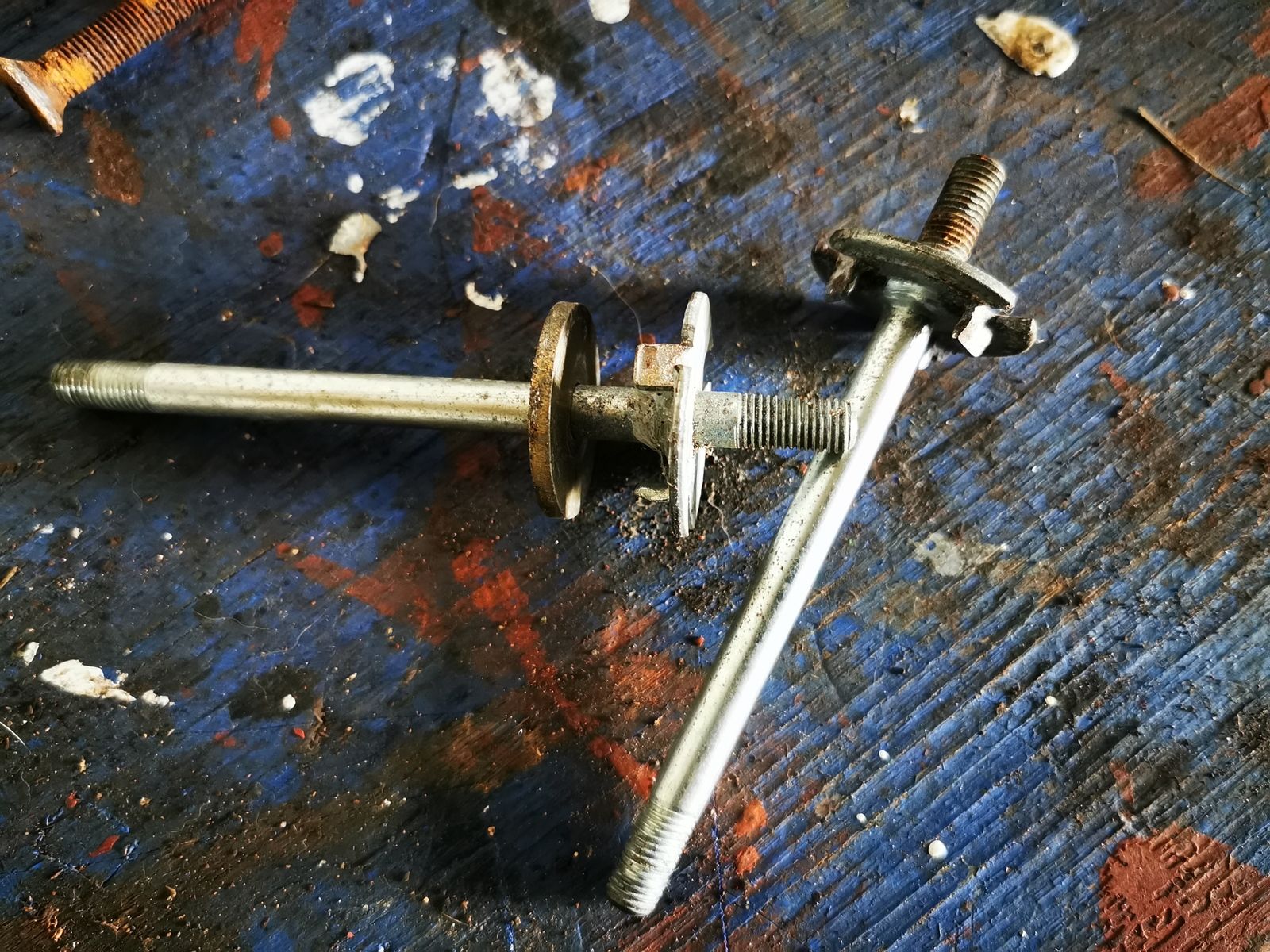

Need another couple of these only had 2 anyone got any spare, will have to have a look at parts book think there is other brackets that are needed too.
Swapped door mechanisms over , what a nightmare that was, think I've got it right.
Need another couple of these only had 2 anyone got any spare, will have to have a look at parts book think there is other brackets that are needed too.
Attachments
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK

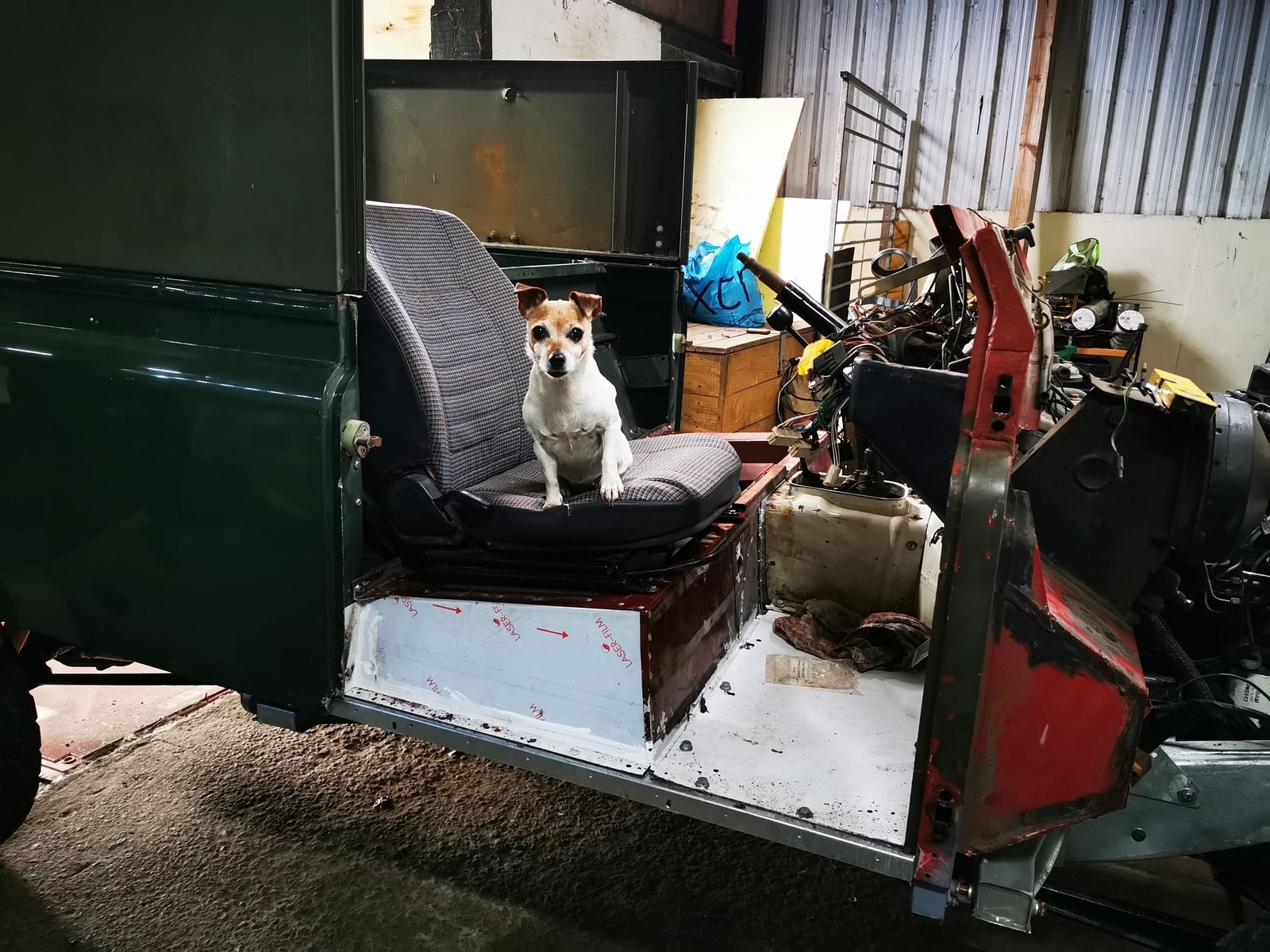

Fitted front seat not the best but they will do for now. No sooner turned my back to put tools away before I was going to jump in and try it, and Look who's there, Even growled at me when I told her to get out.
She can have the cubby box when I get one.
She can have the cubby box when I get one.
Attachments
- Posts
- 11,023
- Location
- North of the Wall
Ha ha, looks like a proper character in that first picture. Gorgeous, but not to be messed with. When your finished I wonder who will get to do the first test drive
border
Well-Known Member
- Posts
- 3,517
- Location
- North East. UK

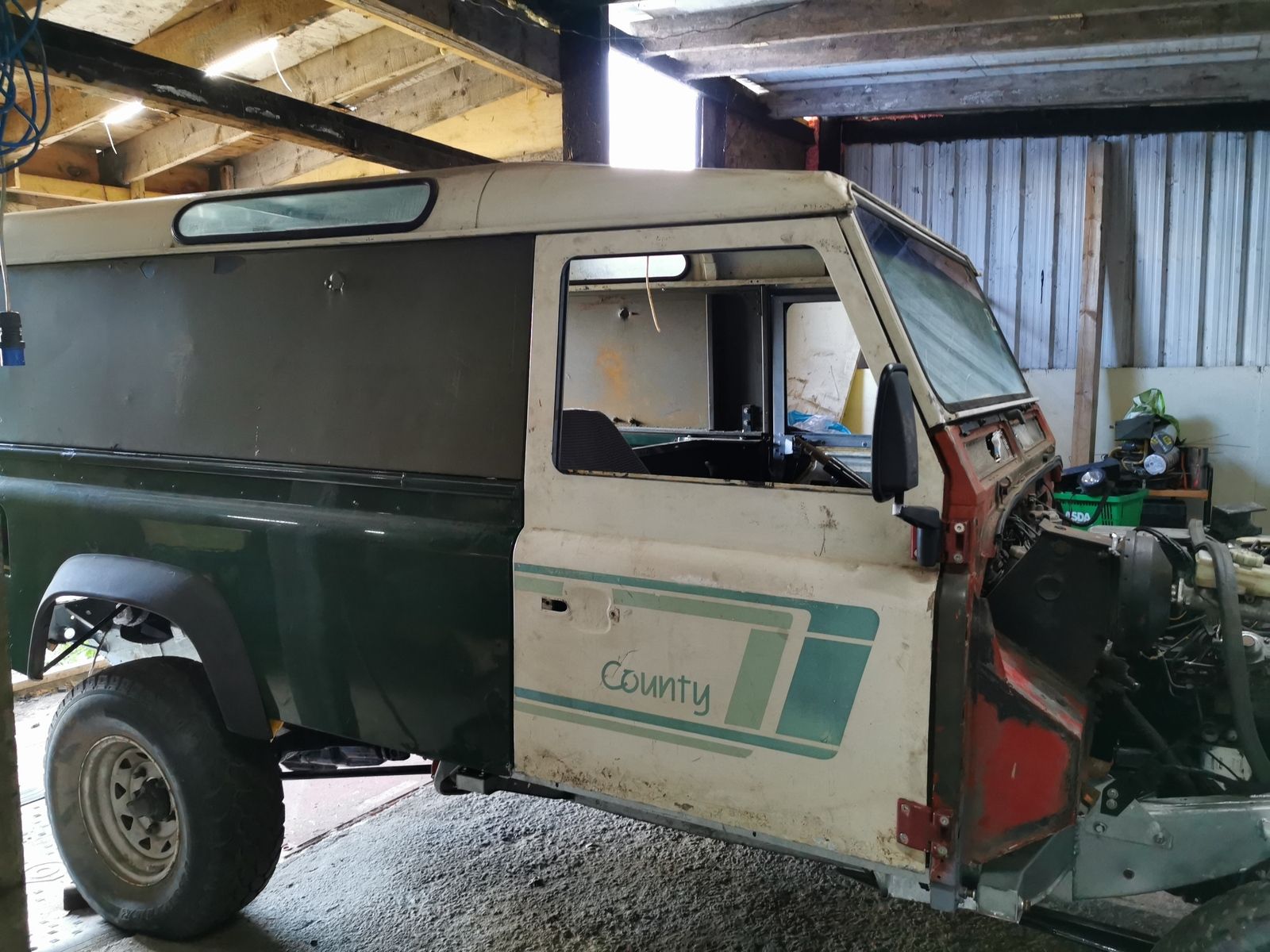

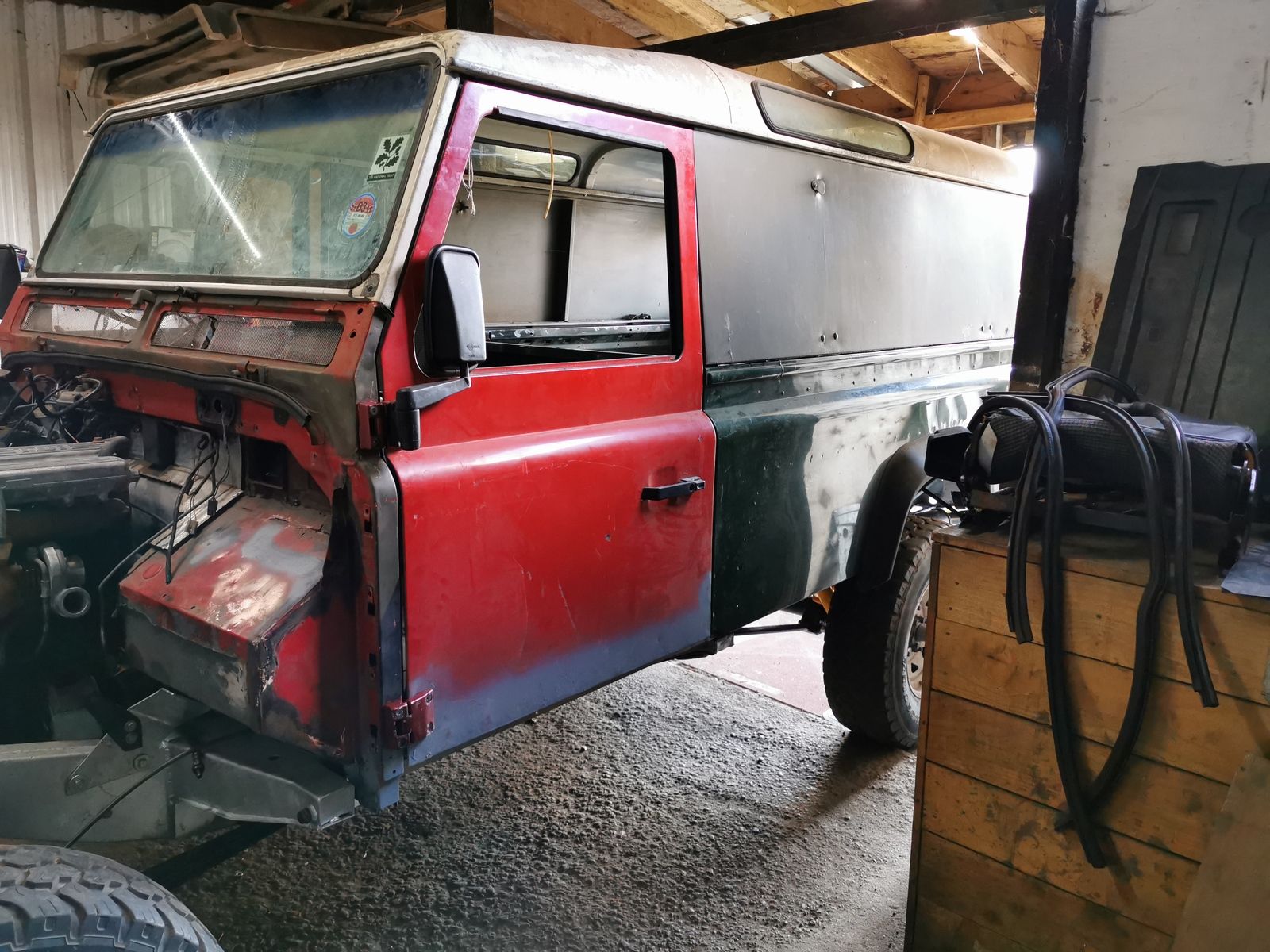

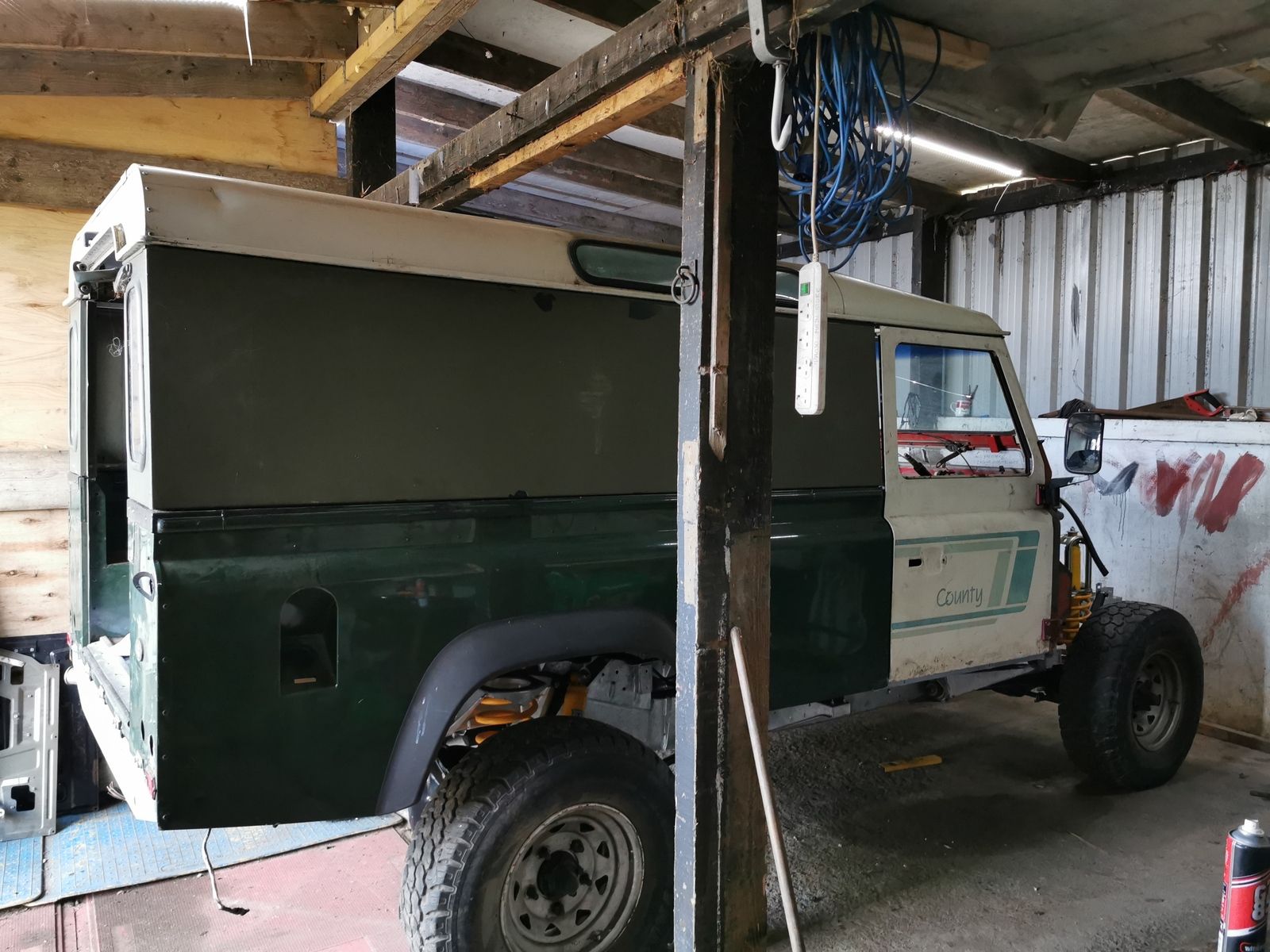

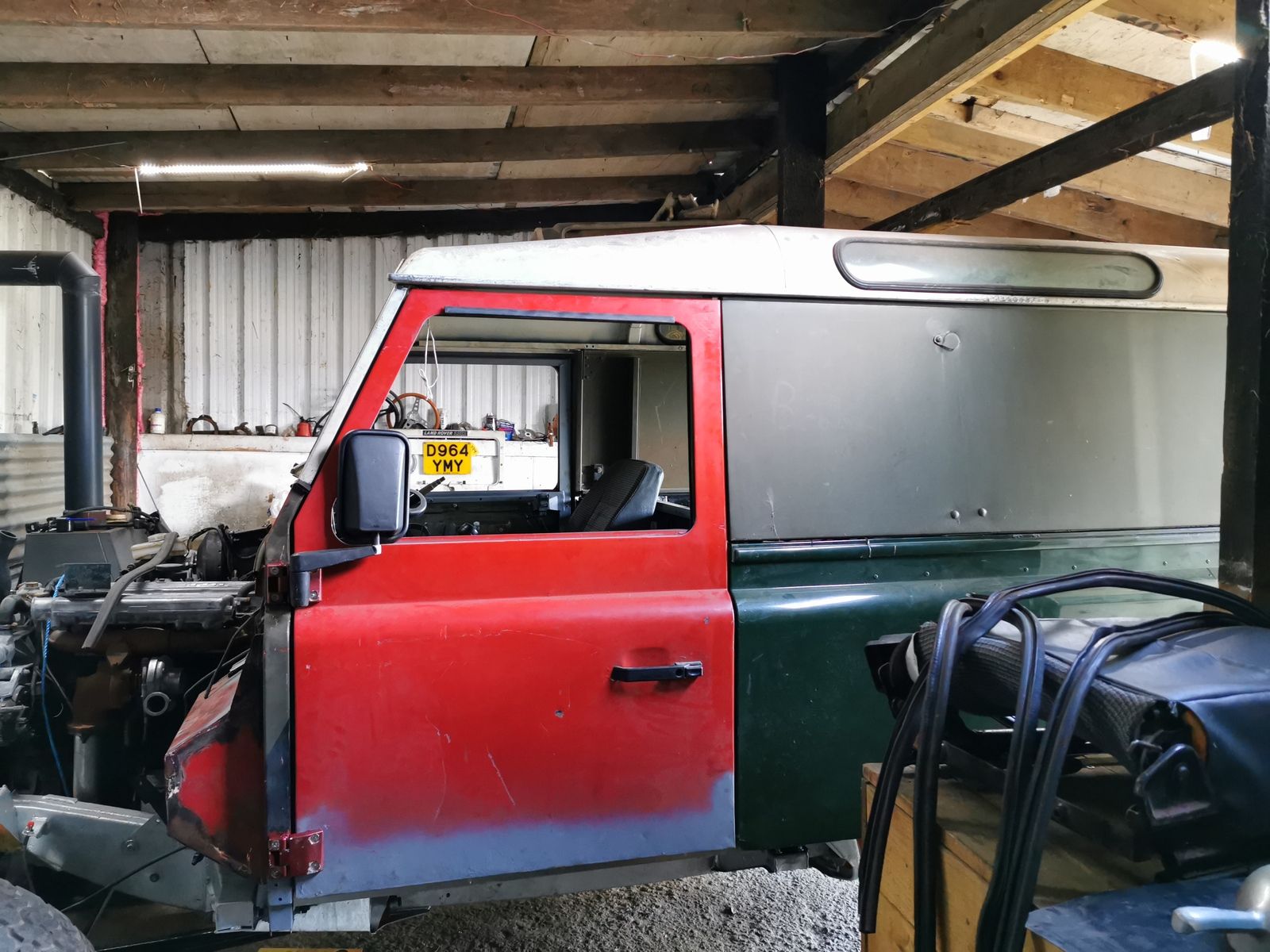

Well Tub , Roof , Windscreen and Doors Tried on for size , just loosely bolted up with a few bolts but looks good to me, apart from drivers door needs a little straightening in top corner. Think I can get Bulkhead fastened down in position now and get all the bolts tightened up.
Hope no one asks for a lend of my parts book.
Hope no one asks for a lend of my parts book.
