Hi,

Does anyone know/ has anyone had any experience towing a Defender with one of those A-Frame style towing bars? Can they be used on a Defender?

Cheers

Yes they can.

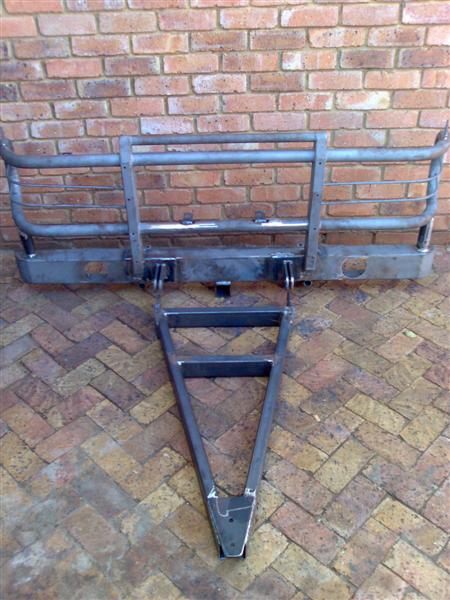

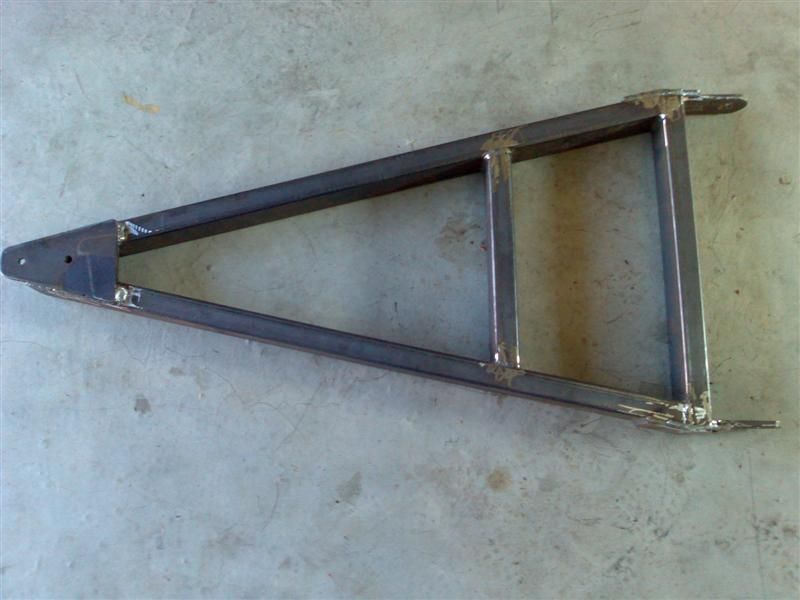

And for those who want to argue, attack me and tell me that it can't be done; Here's the A frame / bumper / bull bar that I made for my Defender 110.


Attachments

  • Image101.jpg
    48.8 KB · Views: 1,330
  • Image108.jpg
    53.2 KB · Views: 1,553
I thought C18rch was on about they A frames where the front wheels sit on the frame which is attached to the towing vehicule.
In which case no.

I was meaning the ones that attach to the axles and steer the front wheels. Any one know?

The problem is I past my test after 97 and cannot tow my trials landy on a trailer without a C+E license, but a wit h a towing frame I can. The trials vehicle is road legal but I have no desire to tax or insure it hence why I want to tow it.

Cheers

C18RCH

Hi,

Does anyone know/ has anyone had any experience towing a Defender with one of those A-Frame style towing bars? Can they be used on a Defender?

Cheers
Ah towed a def 110 the other week there with one of the A frames that fix over the bumper



it was a bit hairy drivin' and couldn't go over 20mph!!!! Ah was told it should've bin runnin' or summit taken off underneath as it felt like it was fighting where ah wanted it tae go!!

I was meaning the ones that attach to the axles and steer the front wheels. Any one know?

The problem is I past my test after 97 and cannot tow my trials landy on a trailer without a C+E license, but a wit h a towing frame I can. The trials vehicle is road legal but I have no desire to tax or insure it hence why I want to tow it.

Cheers

C18RCH


Tricky one that. I would double check that you don't need to tax and insure the vehicle if you are going to tow it with all four wheels still on the road.
In theory it is on and is using the road, or is it then classed as a trailer because it is being towed with a solid bar.
In which case your licence says that you can't tow it anyway.:confused:

I can tow trailers but only upto a certain weight. The landy towed with a towing frame would be under weight but the landy on a trailer would be over the weight. Once the trailer plus load reaches a certain weight it is at this point that you require the C+E.

Also I do believe the landy would be classed as a trailer when being towed. This is the same for vehicles being recovered.

Yes they can.

And for those who want to argue, attack me and tell me that it can't be done; Here's the A frame / bumper / bull bar that I made for my Defender 110.

It's illegal to tow any car with an Aframe or dolly with the exception of an (Axiom micro car.) unless it is an emergency recovery and the vehicle is been moved to a place of safety.

Mainly because all trailers in excess of 750kg are required by law to be fitteed with either 'overrun brakes' (upto 3500kg) or close coupled brakes (Airbrakes), there is no Aframe or dolly which would meet the C&U regulations for trailers. Therefore no you can't. Having said this you can't sell heroin, or kill someone in a road rage incident but people still do it.

Futher more the law states that if a vehicle is designed for use on a public road then it is a motor vehicle attaching an Aframe does not change this.. If it's a motor vehicle then it must be taxed and mot'd if it is used or parked on a public highway.

It's illegal to tow any car with an Aframe or dolly with the exception of an (Axiom micro car. unless it is an emergency recovery and the vehicle is been moved to a place of safety.



Futher more the law states that if a vehicle is designed for use on a public road then it is a motor vehicle attaching an Aframe does not change this.. If it's a motor vehicle then it must be taxed and mot'd if it is used or parked on a public highway.


That was pretty much the impression I was under.

I think you're only allowed to tow 750 Kg on the new liscense anyway so what ever you do you're screwed. I have to say its a crazy rule when you can't tow a trailer but can tow a 20 foot tri-axle caravan. I have looked into the trailer test for one of my employees, its quite expensive.

Caravans are classed as trailers for the purposes of B + E licence requirements. and have to be within the rules regarding the MAM of not exceeding the unladen weight of the vehicle (unlikely with a landrover)

Category B: Vehicles up to 3.5 tonnes MAM and with up to eight passenger seats
Category B vehicles may be coupled with a trailer up to 750kgs MAM (allowing a combined weight up to 4.25 tonnes MAM) or a trailer over 750kgs MAM provided the MAM of the trailer does not exceed the unladen weight of the towing vehicle, and the combination does not exceed 3.5 tonnes MAM.

For example:

a vehicle with an unladen weight of 1.25 tonnes and a MAM of 2 tonnes coupled with a trailer with a MAM of 1.25 tonnes could be driven by the holder of a category B entitlement. This is because the MAM of the combination does not exceed 3.5 tonnes and also the MAM of the trailer does not exceed the unladen weight of the drawing vehicle
Whereas

the same vehicle with an unladen weight of 1.25 tonnes and a MAM of 2 tonnes when coupled with a trailer with a MAM of 1.5 tonnes would fall within category B+E. This is because although the combined weight of the vehicle and trailer is within the 3.5 tonnes MAM limit, the MAM of the trailer is more than the unladen weight of the drawing vehicle
Vehicle manufacturers normally recommend a maximum weight of trailer appropriate to their vehicle. Details can usually be found in the vehicle's handbook or obtained from car dealerships. The size of the trailer recommended for an average family car with an unladen weight of around 1 tonne would be well within the new category B threshold.
Towing caravans
As for towing caravans, existing general guidance recommends that the laden weight of the caravan does not exceed 85% of the unladen weight of the car. In the majority of cases, caravans and small trailers towed by cars should be within the new category B threshold.

I've looked at the above and it looks a bit confusing so I did a bit of research and this is what I came up with. on a B entitlement licence

A 90 has a MAM (also known as GVW) off 2400kg this means the trailers maximum authorised MAM is 1100kg

A 110 has a MAM of 3050 so it's maximum trailer MAM is 750kg.

it costs £89 for the B+E test, i paid 200 notes for 3 1/2 days intensive training on top of that. if you already know how to tow/reverse/fit a trailer/check you mirrors there's not much else to the training other than lots of driving! if you contact your local LGV driving center they will probably hook you up with some instructors.

don't know if training + buying trailer would be cheaper that taxing and insuring your trialer though.
