top oil filter td5

Steve171054 · Jan 9, 2014

Evening all, just a quicky if I may. Does the top oil filter scew straight off , is there enough room with the pipe running directly beneath it ?. Thank you.

JordanTD5 · Jan 9, 2014

Yes it does screw straight off. Be prepared to spill some oil getting it out though as you have to tip it sideways slightly to get it through the gap.

truckerkev65 · Jan 9, 2014

Put in poly bag b4 you turn to get it out

Steve171054 · Jan 9, 2014

Thank you gents as usual always a brilliant responce.

HenryD · Jan 9, 2014

Don't have the engine too hot or you'll burn yer pinkies trying to get your hand in there !!!

iansoady · Jan 10, 2014

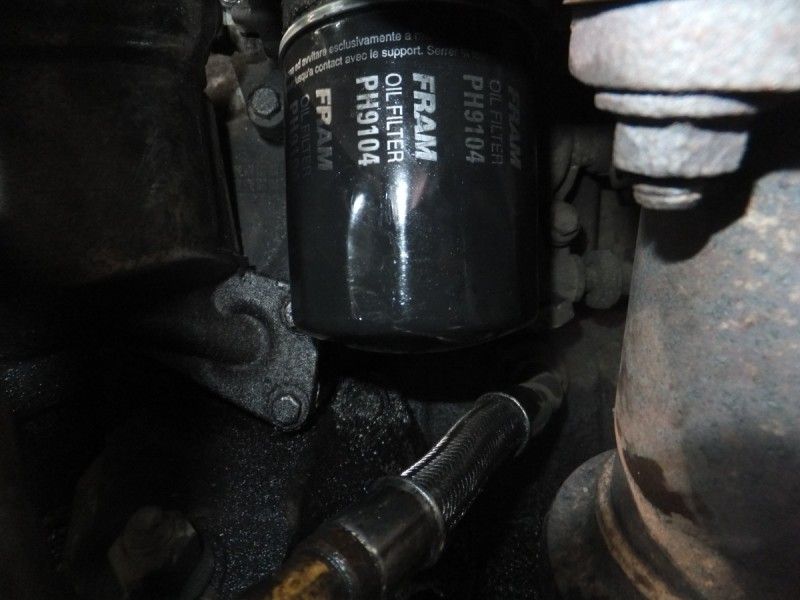

I put a shorter one on mine (Fram PH9104) that gives an extra 10mm or so clearance.

DIFFLOCK66 · Jan 11, 2014

There's a rather good filter removal tool for the TD5 (a large spanner type tool) - cost me about 6 quid - does exactly what you need it to do in case a strap or chain won't get in there

Maaarrghk · Jan 25, 2014

I tried to get one of those tools off Paddock with a full set of filters I got. They told me not to bother as it only fitted genuine LR filters.

My chain wrench just about got in there - it is a very narrow chain but still needed a bit of a push with a screwdriver.

jamesmartin · Jan 25, 2014

you want one of these ,
http://www.google.co.uk/aclk?sa=l&a...nellock-chl209-oil-filter-pliers-9-229mm.html

thought it was mine! · Jan 25, 2014

got wife to do mine as i could not get my sausage fingers in there

haighy2 · Jan 25, 2014

i was under the impression that the "top" oil filter "centrifugal" was the one under the cover held on by the 8mm bolts?
