At the risk of playing devils advocat....
Are you trying to turn it the right way ??
Tips on How to remove the Viscous fan
- Thread starter jt_armstrong
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
At the risk of playing devils advocat....
Are you trying to turn it the right way ??
- Posts
- 83,282
- Location
- Embasinga stocæ
have a word with som,e of the local peeps - iannotts? - see if they can help.
jt_armstrong
Well-Known Member
- Posts
- 1,824
- Location
- Lake Forest, California
At the risk of playing devils advocat....
Are you trying to turn it the right way ??
I hope so. I am trying to turn it counter clockwise (it's a petrol).
Bromsgrove Defender
Well-Known Member
- Posts
- 5,759
- Location
- Out to lunch
Can only echo what MHM says see if someone close to you'll have a look.
jt_armstrong
Well-Known Member
- Posts
- 1,824
- Location
- Lake Forest, California
At last I got it. Had to resort to a good size chisel but a couple of cracks with that did the job.

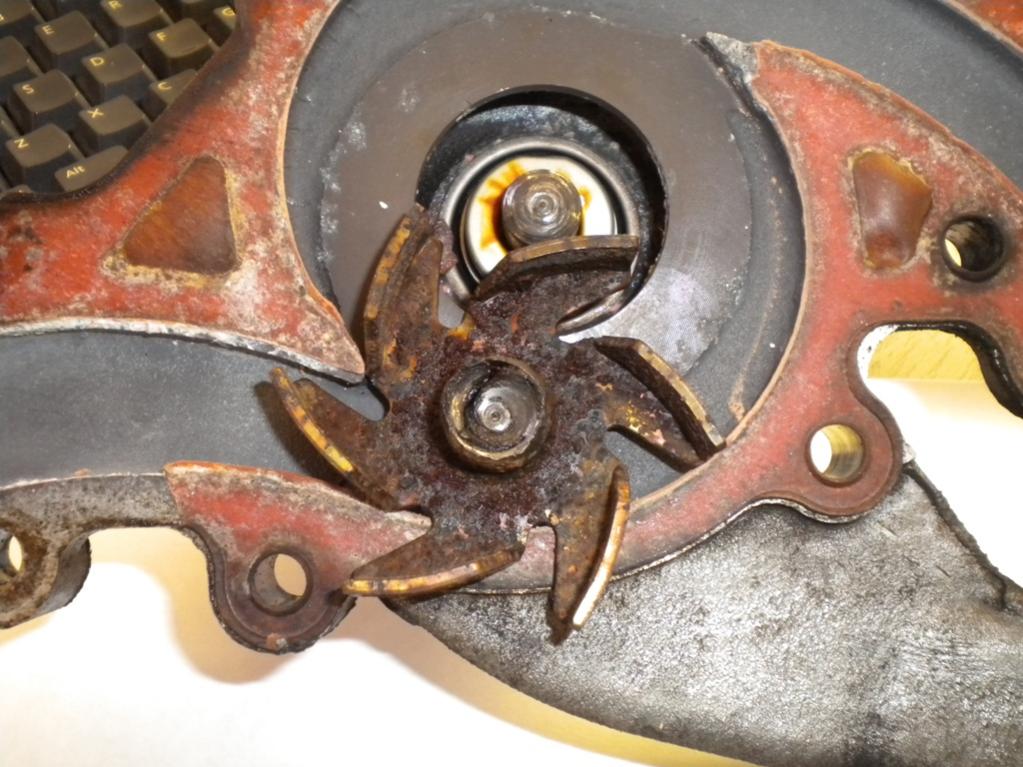

Got the pump off and holy sh1t - the impeller is completely torn from the shaft. Check out the pictures. New one just been ordered so fingers crossed we will be back on the road by the weekend.
Thanks for all the advice.
Got the pump off and holy sh1t - the impeller is completely torn from the shaft. Check out the pictures. New one just been ordered so fingers crossed we will be back on the road by the weekend.
Thanks for all the advice.
Attachments
- Posts
- 58,170
- Location
- Preston Lancs.
Datatek
Well-Known Member
- Posts
- 44,887
- Location
- Near Poitiers SW France
Check your anti freeze, that looks from the photo's as though it's sheared off due to being frozen solid
- Posts
- 58,170
- Location
- Preston Lancs.
Check your anti freeze, that looks from the photo's as though it's sheared off due to being frozen solid
Certainly looks that way.
jt_armstrong
Well-Known Member
- Posts
- 1,824
- Location
- Lake Forest, California
Check your anti freeze, that looks from the photo's as though it's sheared off due to being frozen solid
I tend to agree. I know we had some real cold evenings here recently including one of -14c. Hope nothing else is damaged.
Datatek
Well-Known Member
- Posts
- 44,887
- Location
- Near Poitiers SW France
It may have escaped your notice, but TD5 and P38 are different cars. Some P38's have LH thread fans and some RH thread
- Posts
- 58,170
- Location
- Preston Lancs.
Irrespective of what vehicle you have, viscous fans ALWAYS undo in the direction the fan rotates.
blue beasty
Leaks an prone to bits dropping off
- Posts
- 63,106
- Location
- Gloucestercotshirewolds
Irrespective of what vehicle you have, viscous fans ALWAYS undo in the direction the fan rotates.
Brilliant!........this is soooo obviously true......once you have heard it
P38_Ireland
Well-Known Member
- Posts
- 1,392
- Location
- Co Wexford, Ireland
the sky is blue........
well thats my piece of useless info thought id add mine since you added yours! lol
- Posts
- 58,170
- Location
- Preston Lancs.
Brilliant!........this is soooo obviously true......once you have heard it
Yes correct, i have said it enough bloody times, why do people not listen. Then ask the same question over and over again?
ssmn1234
Active Member
- Posts
- 691
- Location
- Cairns, Australia.
Check your anti freeze, that looks from the photo's as though it's sheared off due to being frozen solid
may also suggest to use some inhibiter by the look of the impeller
Maxclinder
New Member
- Posts
- 3
Having read all the various ways and failed, this is how I did it.
P38 2.5 DSE
Remove the plastic cover (front piece only, 3 socket screws)
Undo the cable carrier underneath, 10mm and 13mm, and clip back. You can now see the rabbit
32mm spanner or adjustable will now fit.
Try to undo as described elswhere. LH thread, i.e. move the top of the spanner to the right.
If it comes undone go to the last bit, if not...
Make the special tool.
1/8" plate, 4X12mm holes and a slot to go over the spindle and weld to a piece of 1/8"X1" ribbon.
TO SAVE YOU TIME, THE CENTRES ARE 45MM AND 35MM APART (NOT A SQUARE)
Undo as normal, easy no hammers, no blood.
Lastly prize off the two clips holding the rad cowl in place and remove fan through the gap.
Hope this night help some one.
P38 2.5 DSE
Remove the plastic cover (front piece only, 3 socket screws)
Undo the cable carrier underneath, 10mm and 13mm, and clip back. You can now see the rabbit
32mm spanner or adjustable will now fit.
Try to undo as described elswhere. LH thread, i.e. move the top of the spanner to the right.
If it comes undone go to the last bit, if not...
Make the special tool.
1/8" plate, 4X12mm holes and a slot to go over the spindle and weld to a piece of 1/8"X1" ribbon.
TO SAVE YOU TIME, THE CENTRES ARE 45MM AND 35MM APART (NOT A SQUARE)
Undo as normal, easy no hammers, no blood.
Lastly prize off the two clips holding the rad cowl in place and remove fan through the gap.
Hope this night help some one.
DiscoPol
Well-Known Member
- Posts
- 6,376
- Location
- The Land of Po
Having read all the various ways and failed, this is how I did it.
P38 2.5 DSE
Remove the plastic cover (front piece only, 3 socket screws)
Undo the cable carrier underneath, 10mm and 13mm, and clip back. You can now see the rabbit
32mm spanner or adjustable will now fit.
Try to undo as described elswhere. LH thread, i.e. move the top of the spanner to the right.
If it comes undone go to the last bit, if not...
Make the special tool.
1/8" plate, 4X12mm holes and a slot to go over the spindle and weld to a piece of 1/8"X1" ribbon.
TO SAVE YOU TIME, THE CENTRES ARE 45MM AND 35MM APART (NOT A SQUARE)
Undo as normal, easy no hammers, no blood.
Lastly prize off the two clips holding the rad cowl in place and remove fan through the gap.
Hope this night help some one.
Damn fine necromancy there sir!
