Timing chain

Big Mat · May 15, 2013

I havent taken it off so it presume it is.

Here a though, i had the pully on the tensioner off, could that be on the wrong way round?

jamesmartin · May 15, 2013

no its flat both sides

Big Mat · May 15, 2013

Ok that rules that out. Everything is back on how it was.

Could the chain not be tight enough?

jamesmartin · May 15, 2013

even so it should stay on if turning clockwise ,weres it ride off

Big Mat · May 15, 2013

Crank, just as the chain goes onto the flat strip on the right hand side.

jamesmartin · May 15, 2013

comes of the guide onto crank you mean ?,guide is set so that it nearly touches chain

Big Mat · May 15, 2013

Yeah thats the one.

The chain is sitting on the guide, could it be catching somehow or upsetting the feed onto chain? I presume i just undo the two bolts and move it

jamesmartin · May 15, 2013

worth a try they get grooved ,but grooves should be in line with sprockets

Big Mat · May 15, 2013

No luck with that.

Tried moving cam sprocket to a different keyway to get chain tighter but i had it on best one. Still slipping off the crank.

I can't really see it being work sprockets?

jamesmartin · May 15, 2013

it should be tight that side anyhow especially when fitting and allways during use ,something must be out of line or chain buggered unless its skipping over with no weight on the cam and tensioner not working it has got the spring in the tensioner plunger ?

Big Mat · May 15, 2013

The tensioner has one spring in it.

I've looked at it side on and it all looks in like. It skips when its all built up with tensioner on.

jamesmartin · May 15, 2013

are any of the teeth hooked over

Big Mat · May 15, 2013

Don't appear to be, a few of them might be slightley worn.

Big Mat · May 15, 2013

Do i take the risk and but new sprockets and chain and the rest of the bits and hope it does the job?

Big Mat · May 17, 2013

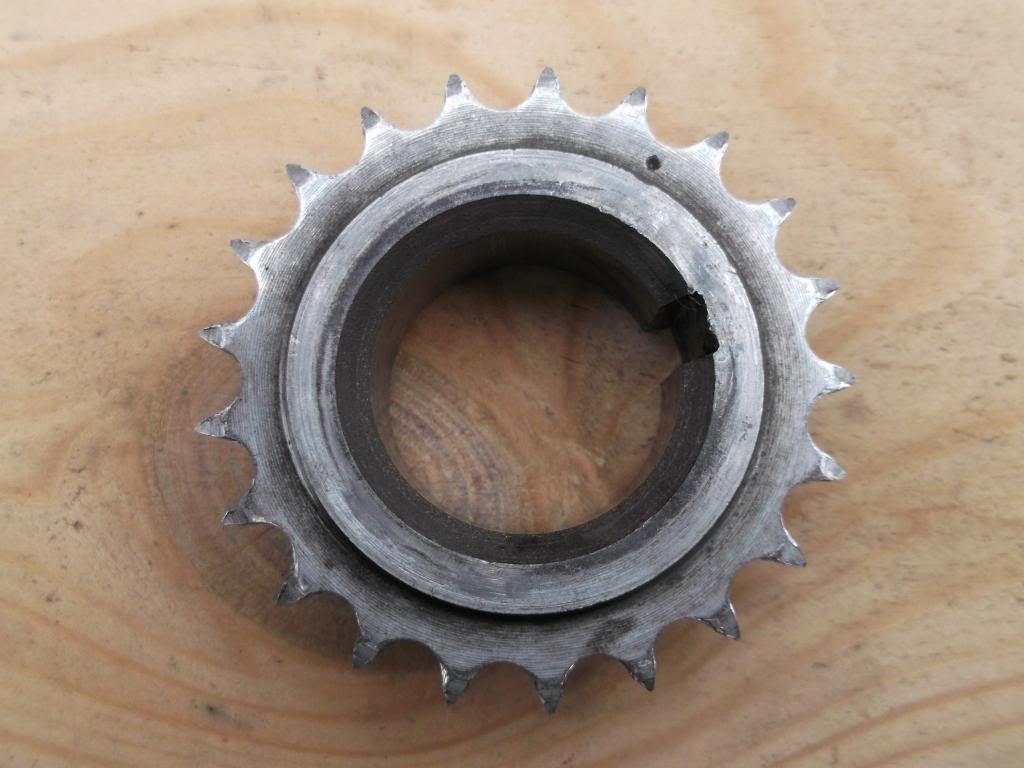

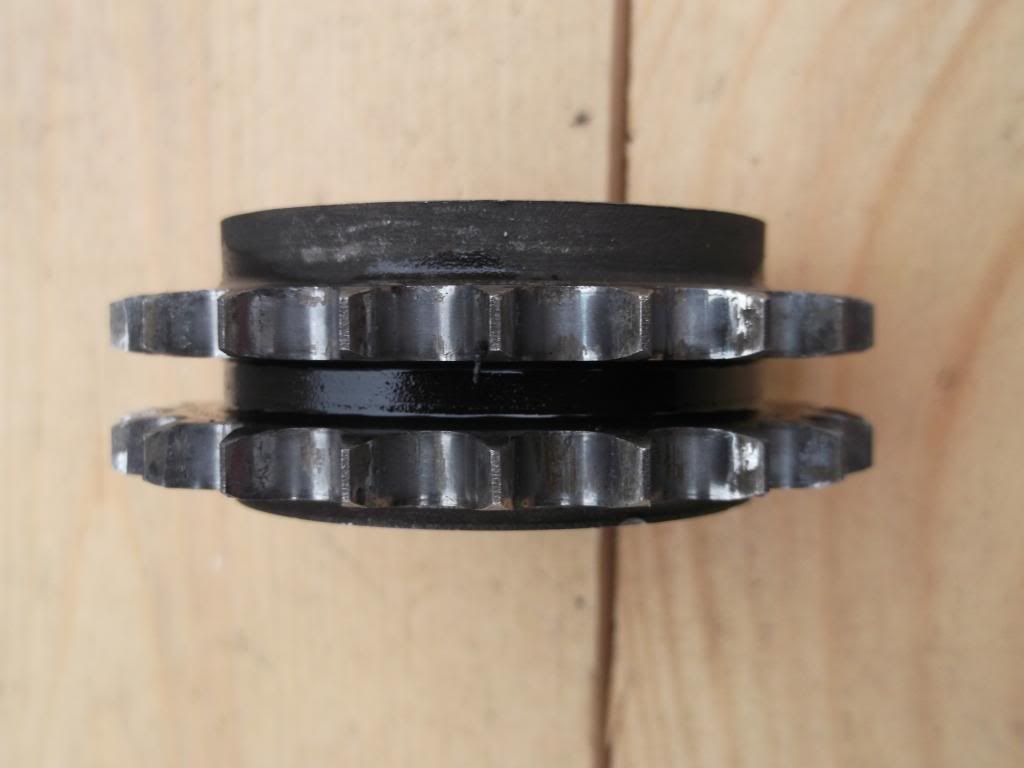

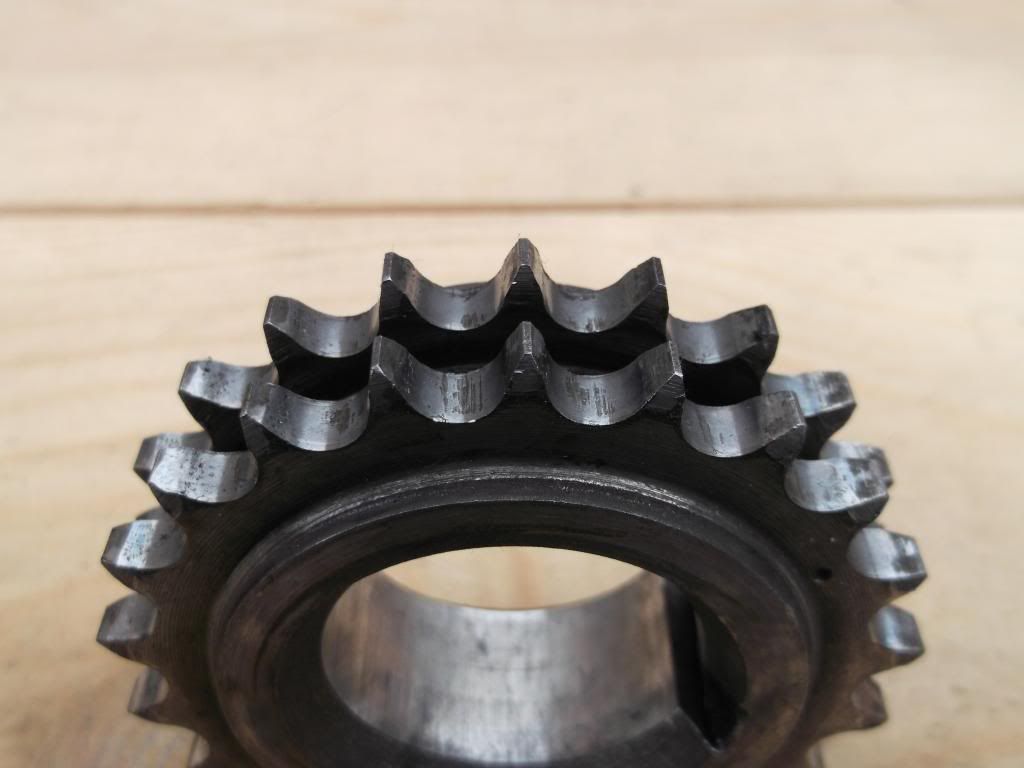

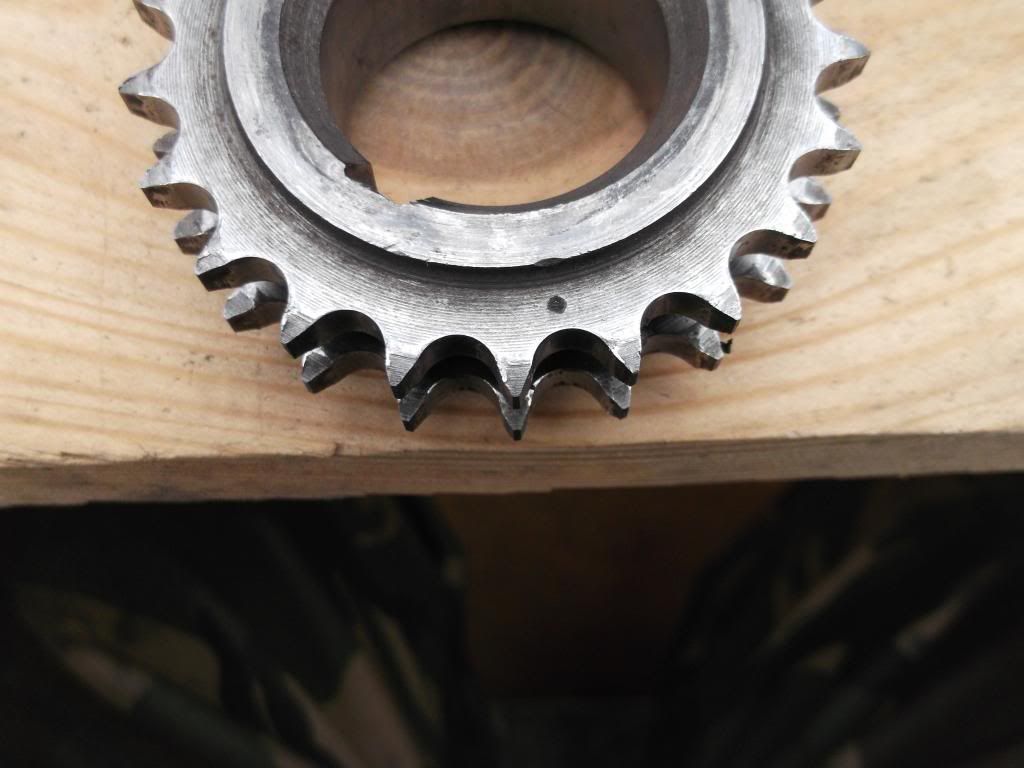

Here are some pictures of the crank sprocket.

Any more knowledgeable members think it needs replacing? I cannot really see anything else that would cause it to slip of apart from this being broken.

jamesmartin · May 17, 2013

doesnt look like the issue

Big Mat · May 17, 2013

I'm puzzled as to what else it could be then?

I could just replaced the whole lot of timing bits, i presume its got to be one of those bits that is causing it?

jamesmartin · May 17, 2013

is it all in line ?pic of tensioner teeth ,cam got end end float

Big Mat · May 17, 2013

It looks to be all in line. I'll go get a pic of the tensioner.

What do you mean by cam end float?

jamesmartin · May 17, 2013

does it move in /out
