Think the roof is original?

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Out of interest where did you get the centre section headlining without cut outs for alpine glass

very nice build by the way

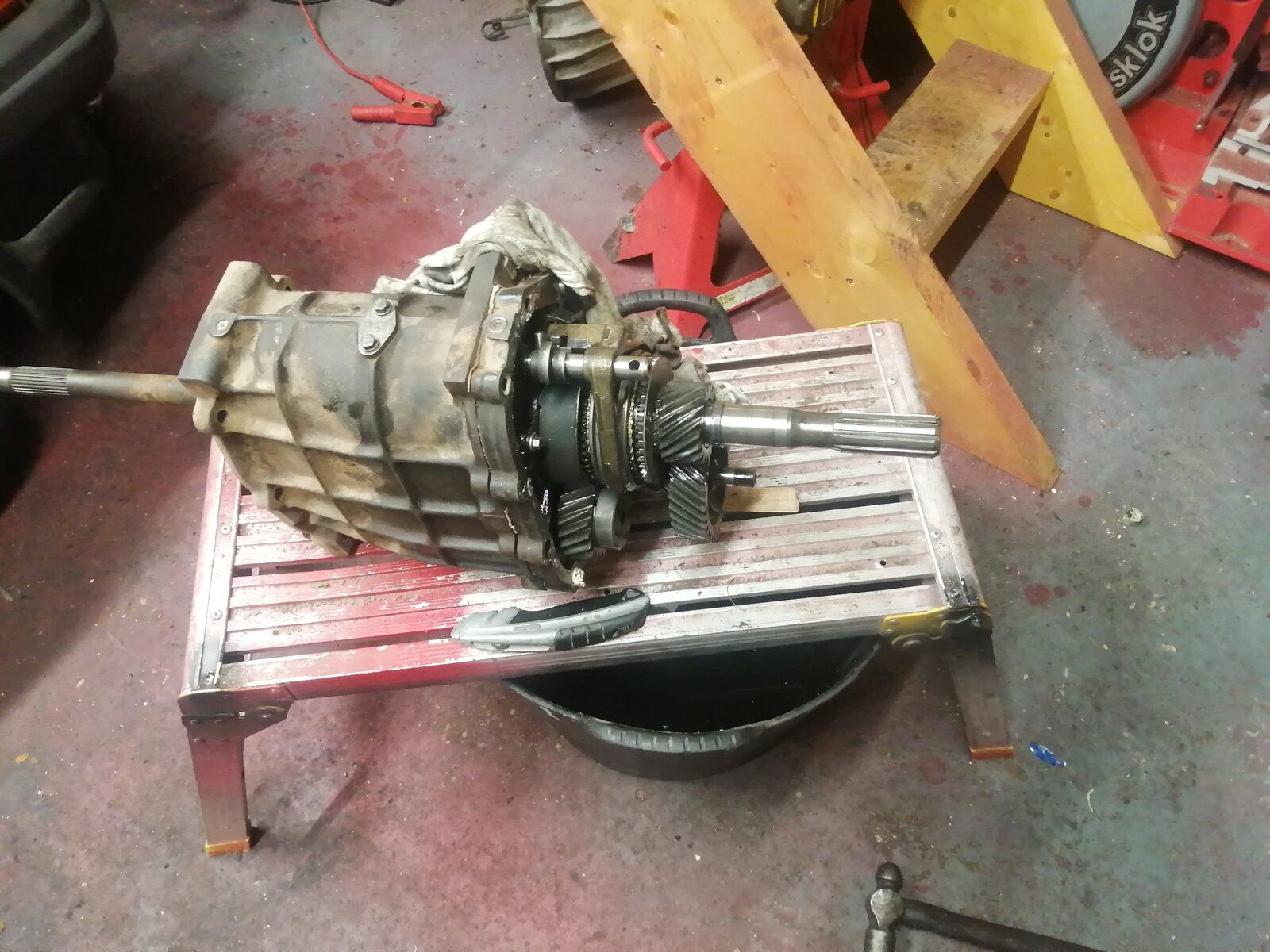

well we're in pieces now! Opened up as the input bearing don't feel great.

Doesn't look too Complexo_O

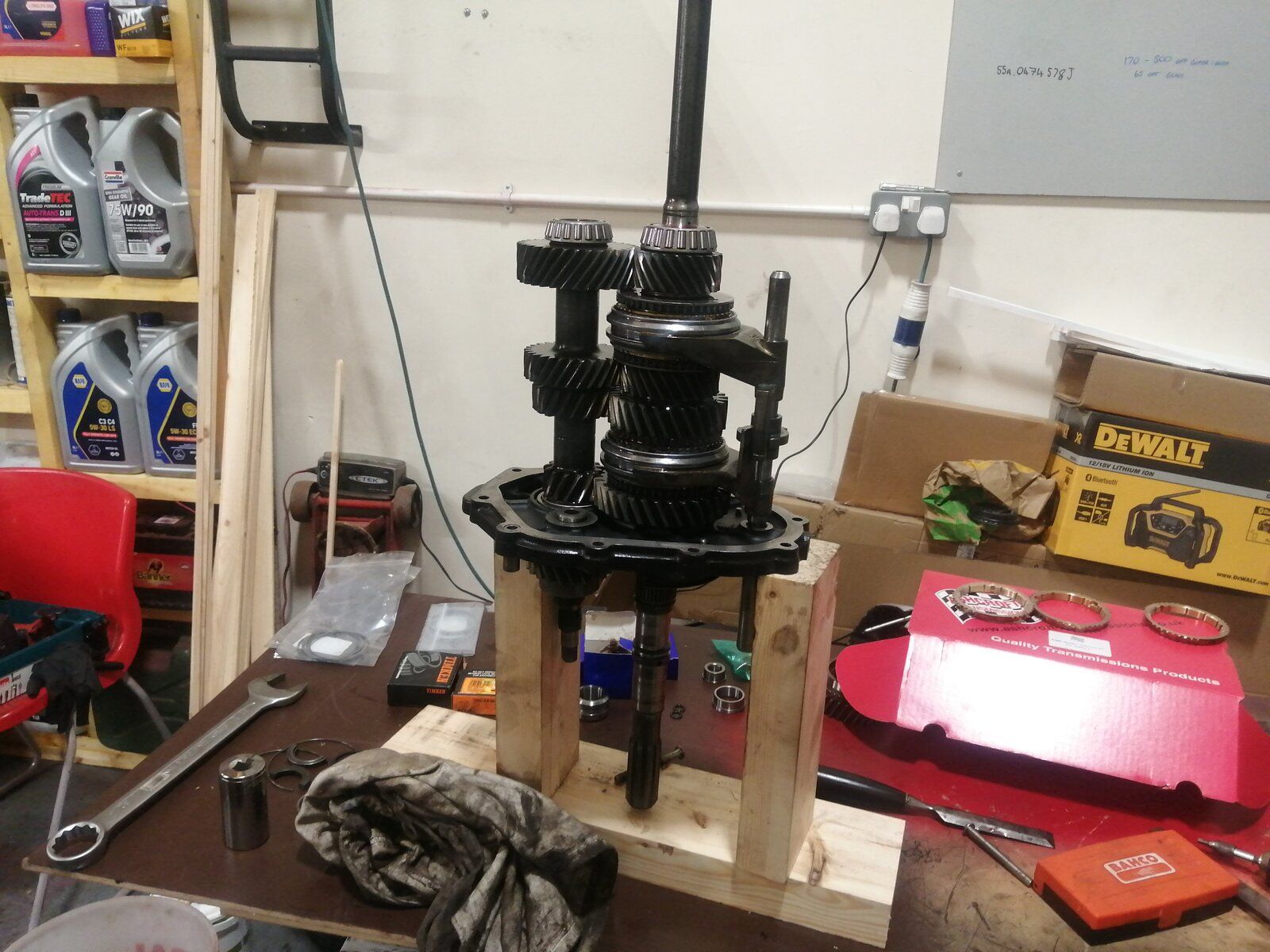

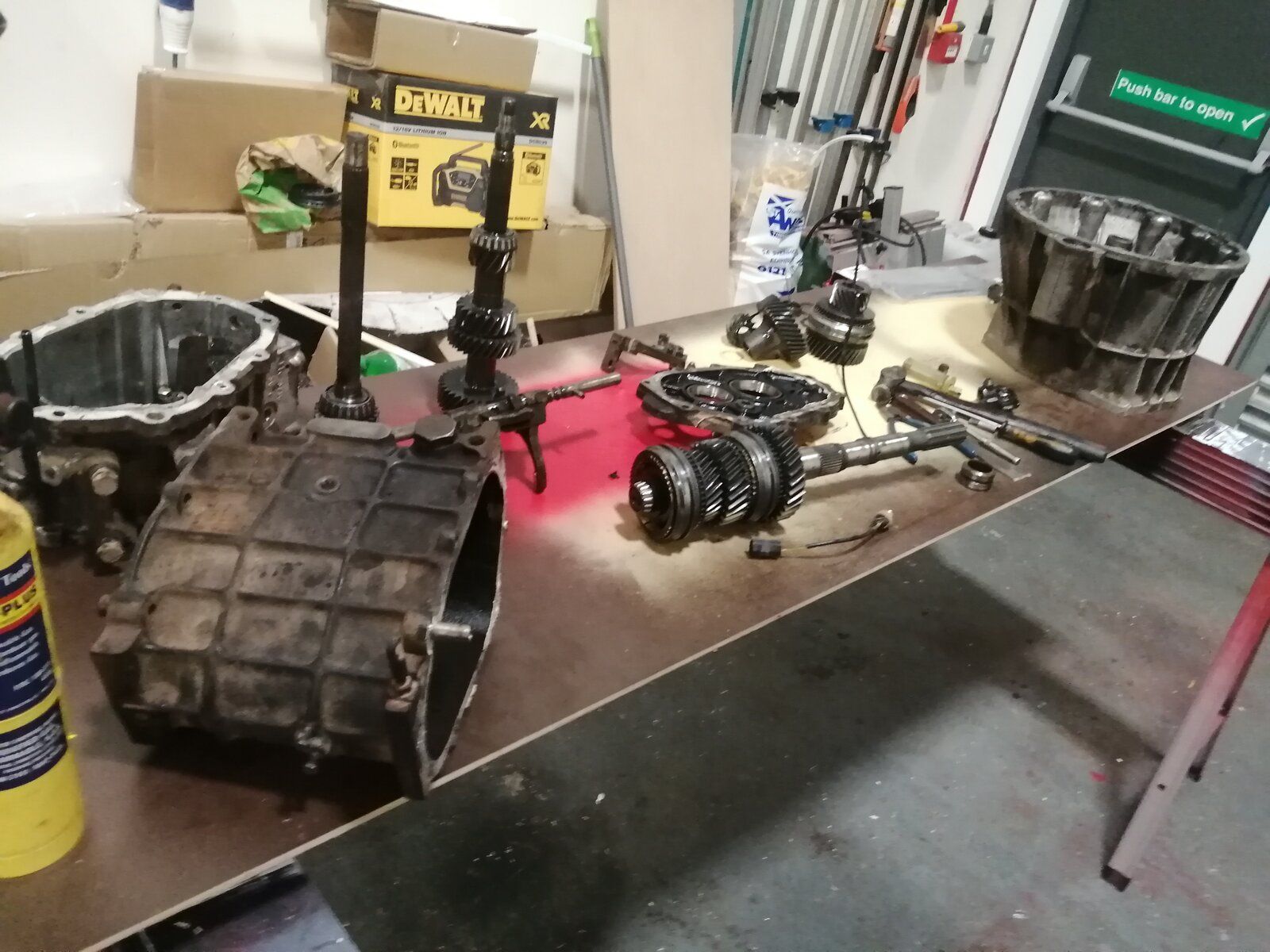

Well, Its in bits now,
Diagnoses was........

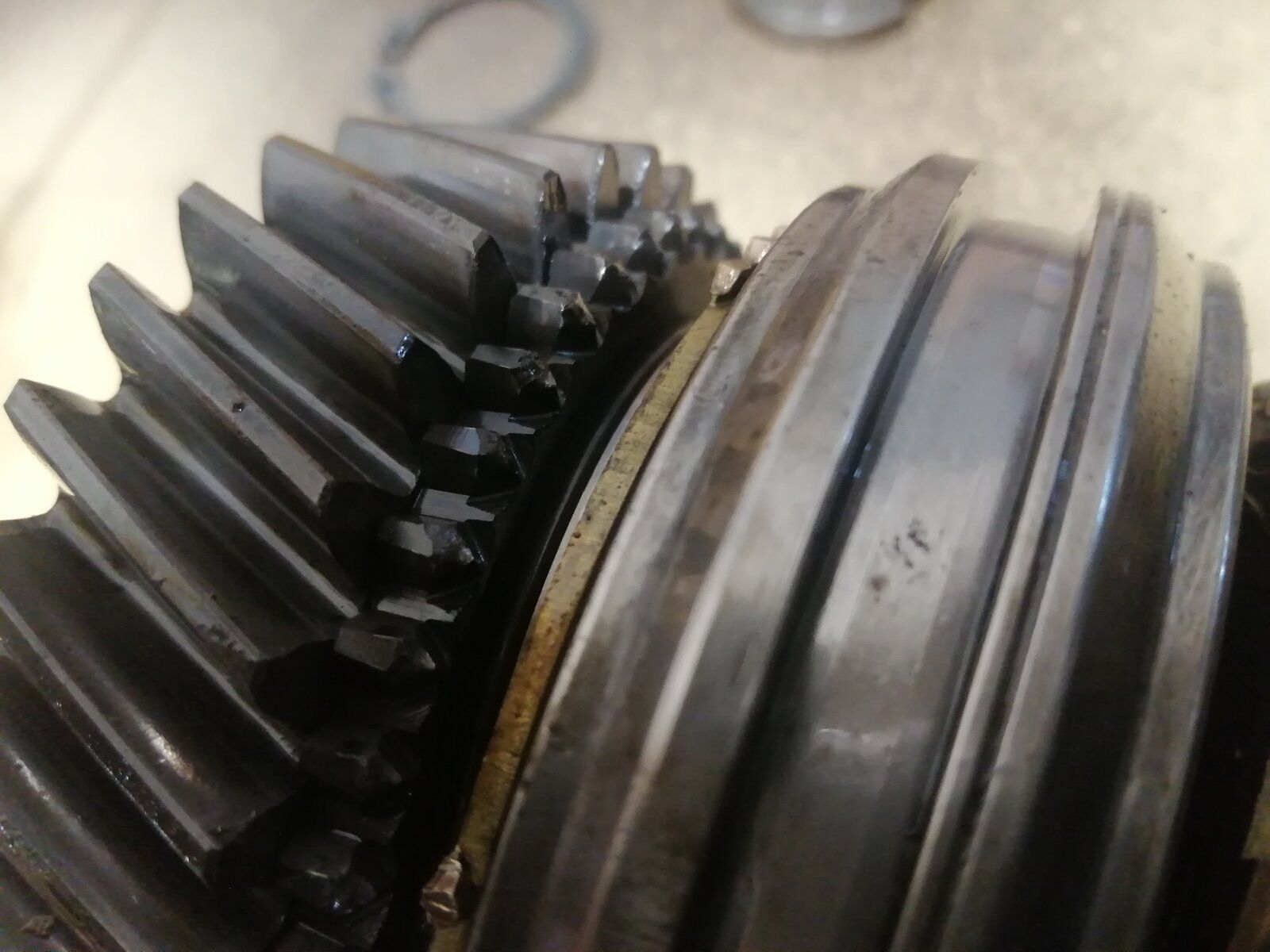

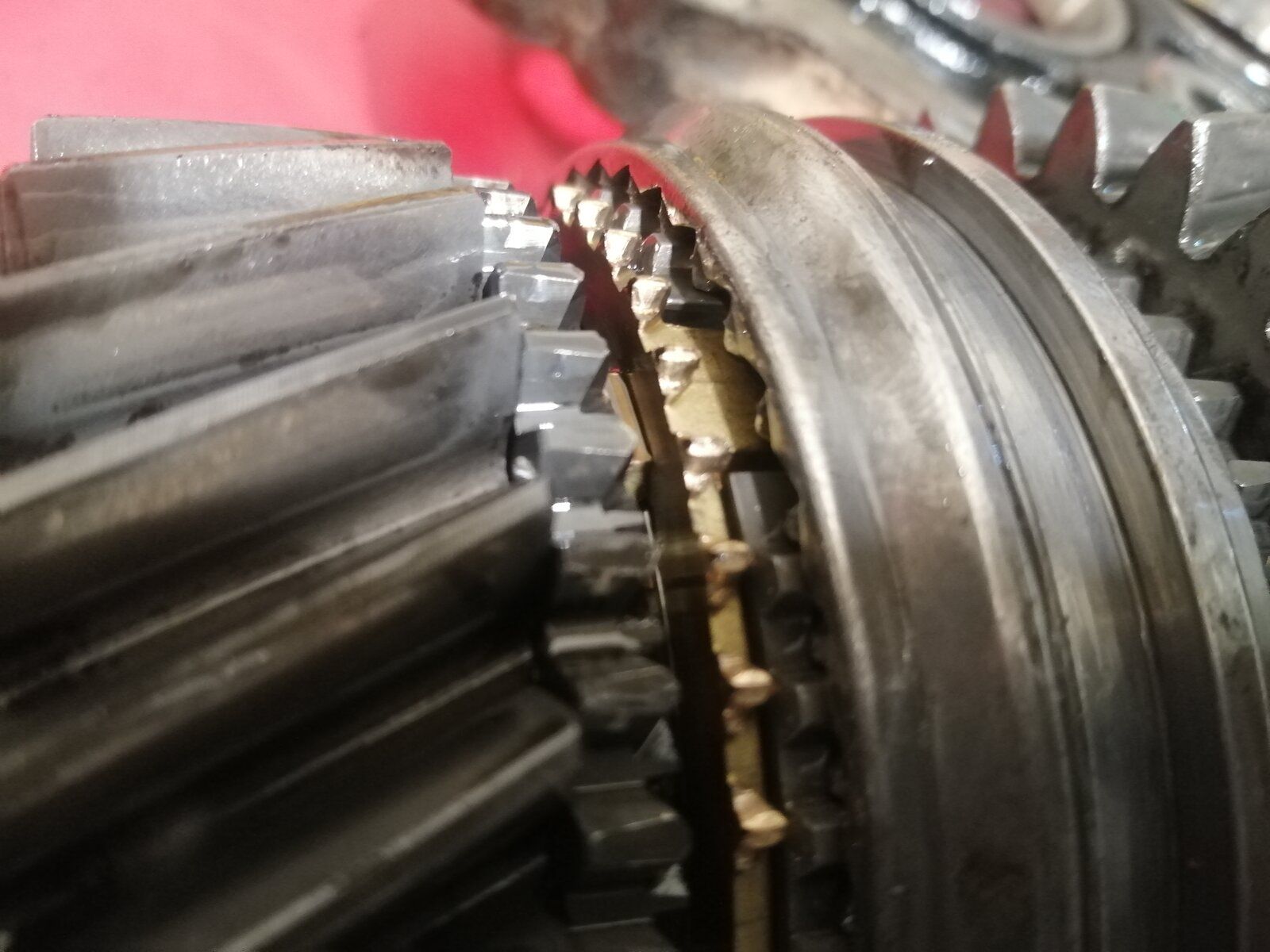

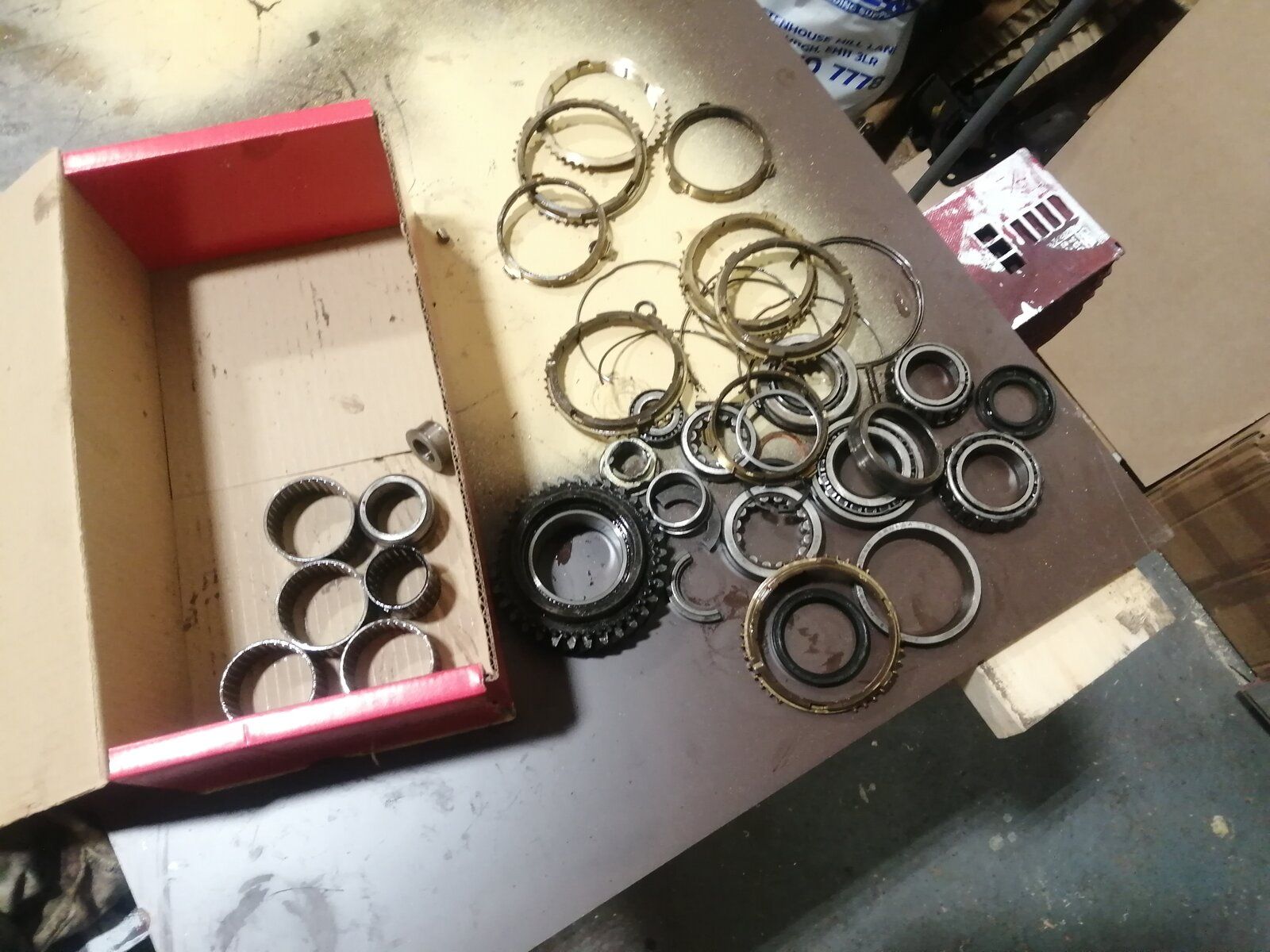

Reverse gear chewed up, couple of synchro rings worn, rear needle roller damaged and the filter was all blocked with sealant snotters!
parts ordered up and hope I remember how to put it back together:confused:

been a bit busy of late, works picked up and been waiting on parts, got the a/c compressor mounted.

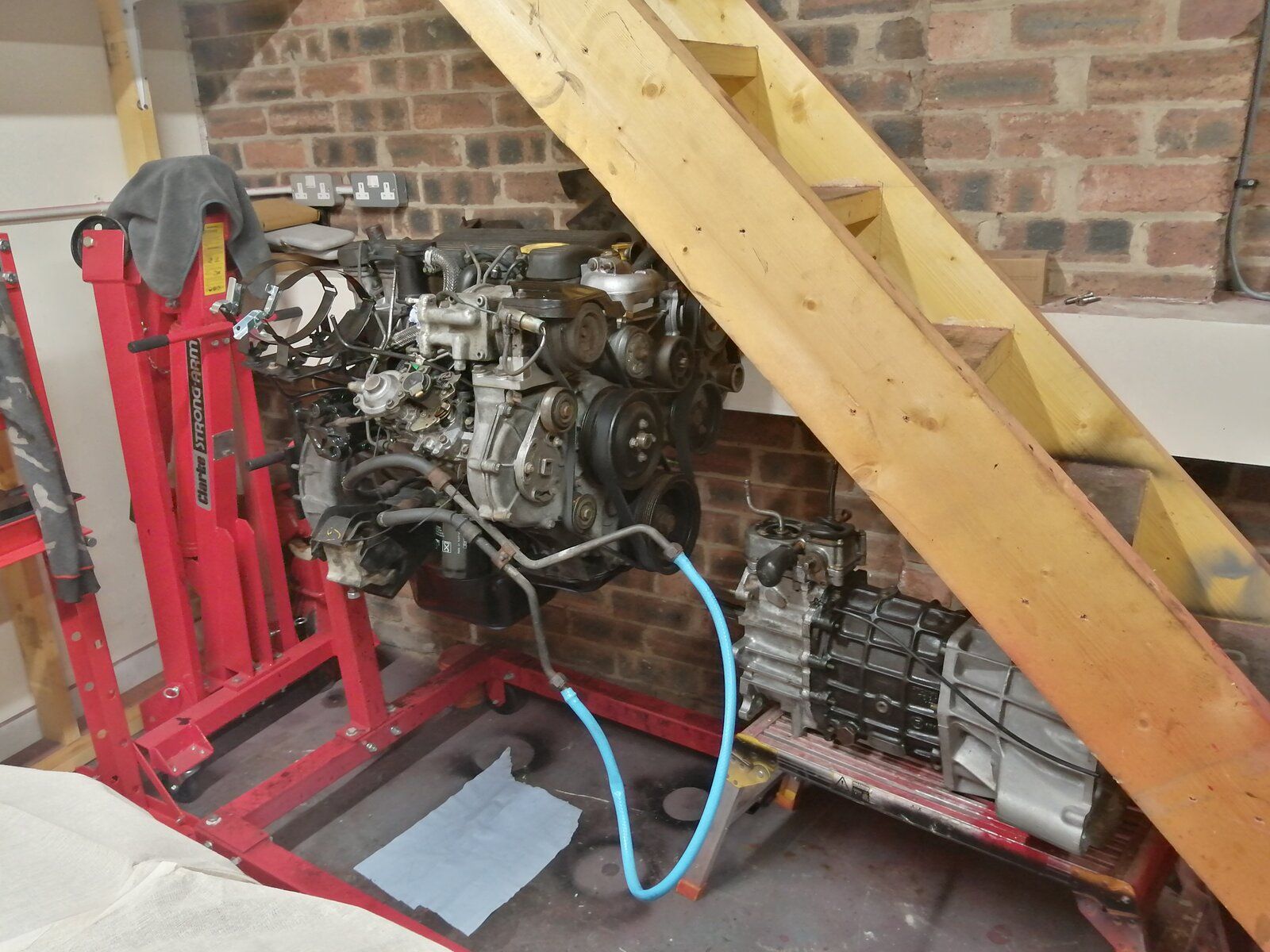

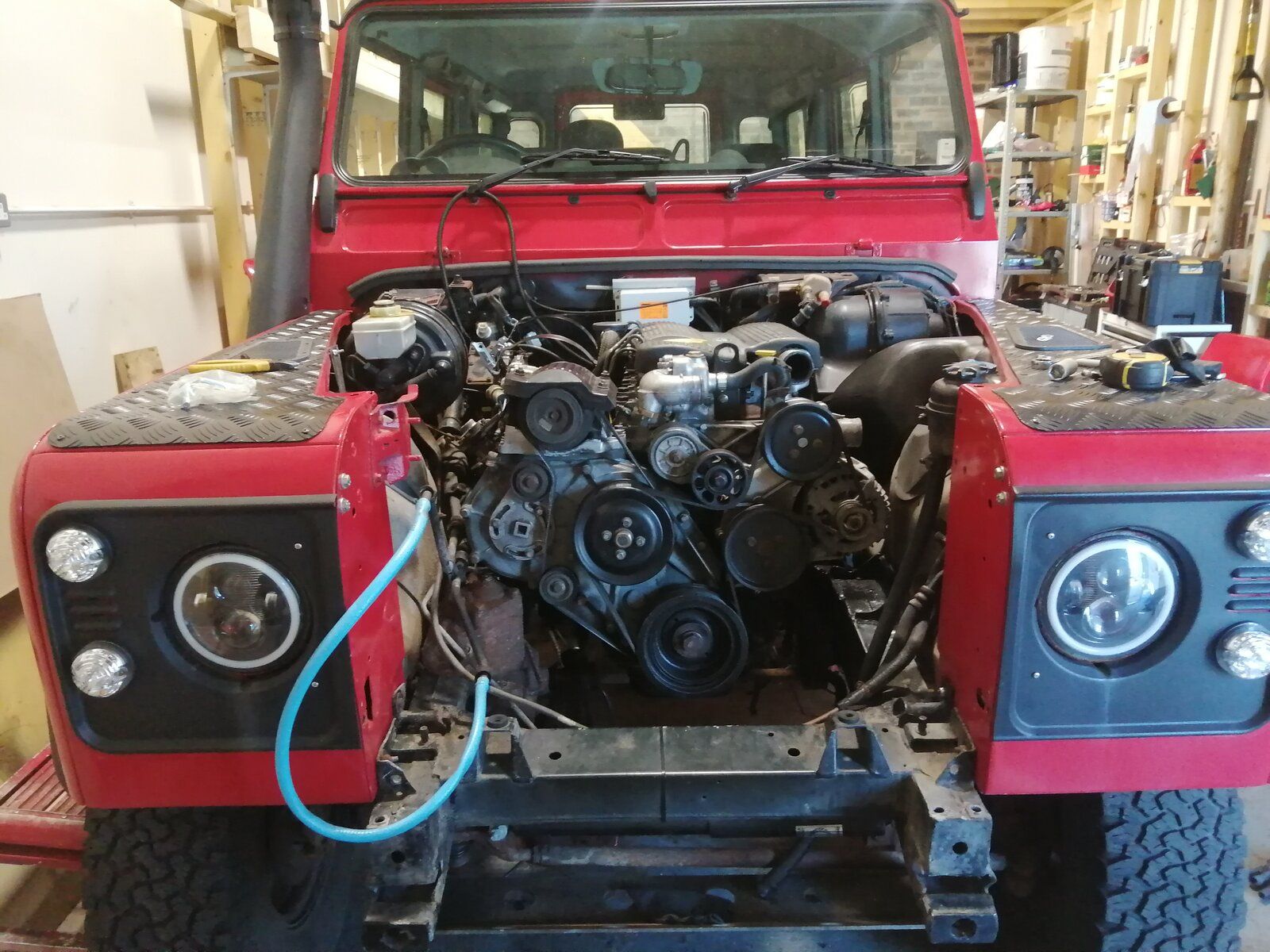

Pretty much ready to start the swap over, just waiting on a few bits and pieces for the clutch lever. New mounts arrived for the engine.

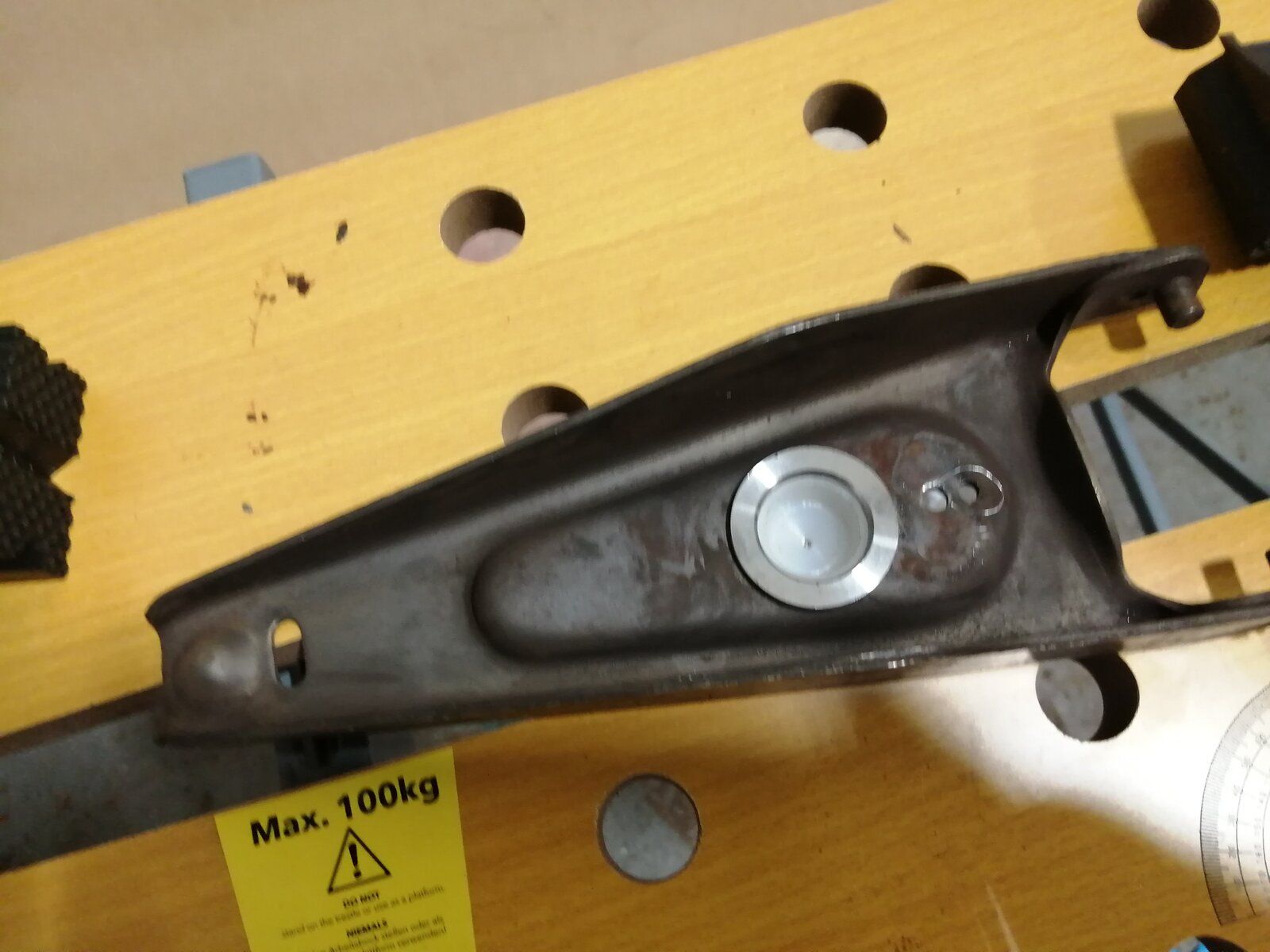

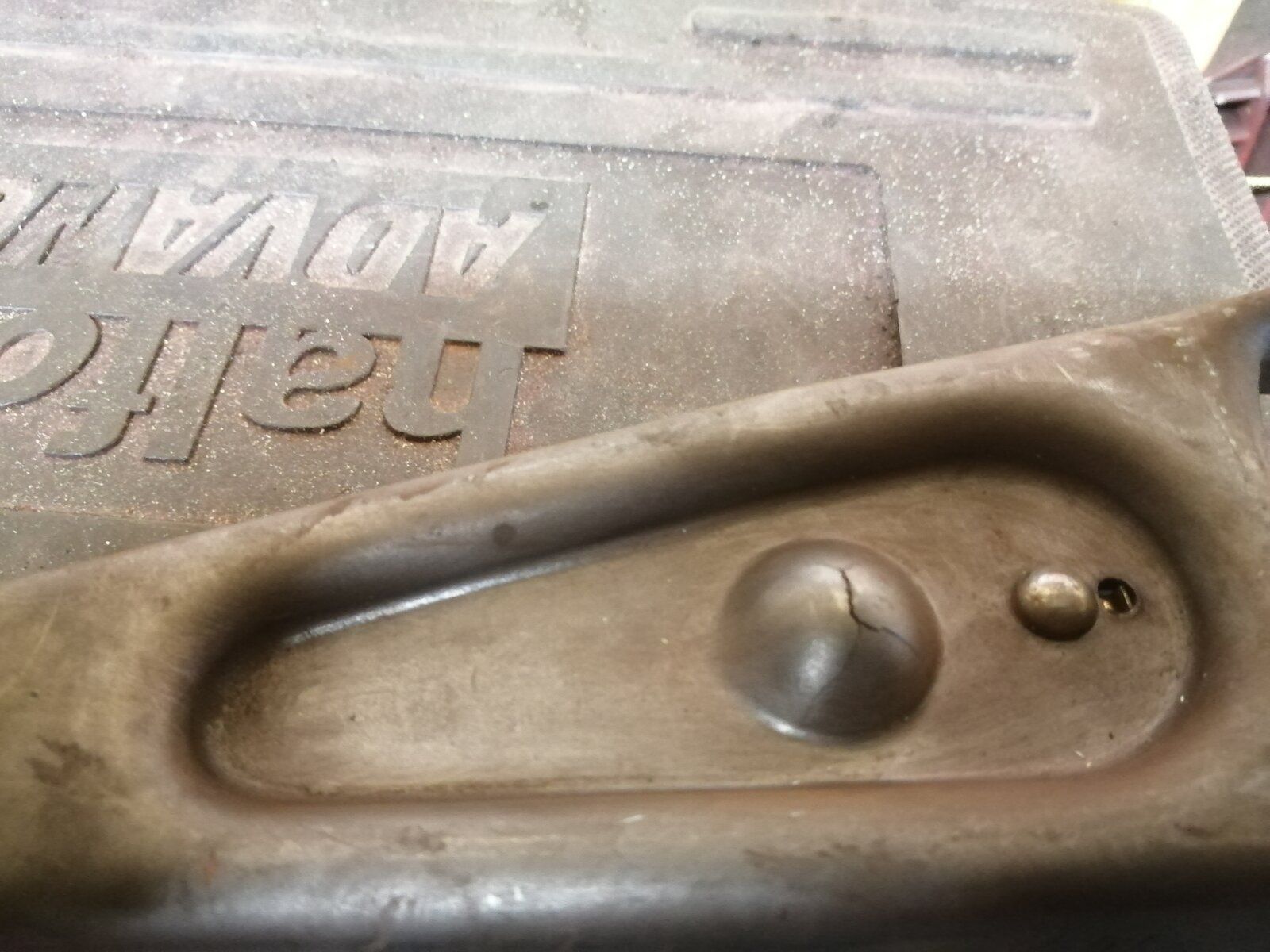

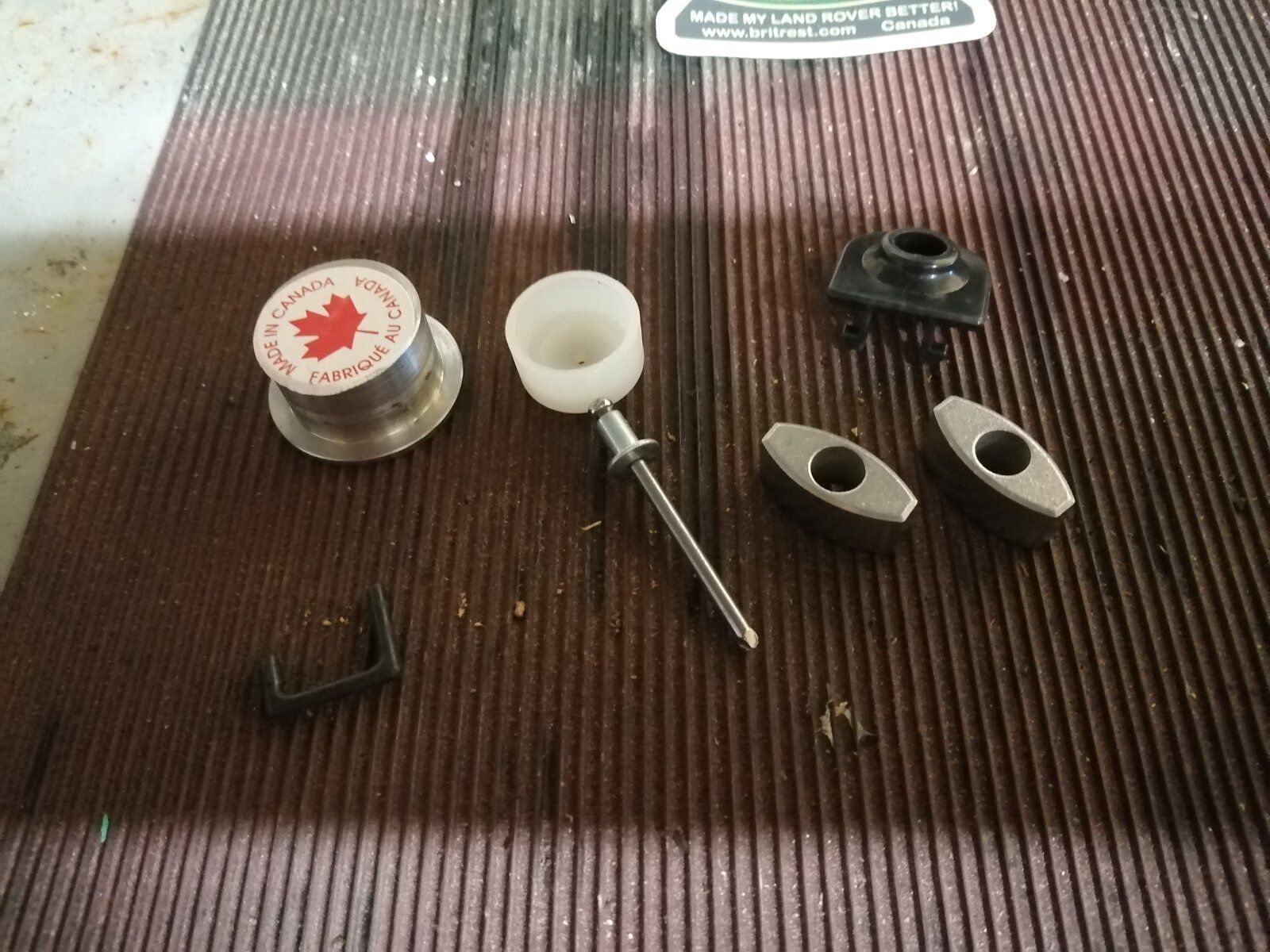

So the usual cracked clutch fork, just about ready to pop through, looked at a few different replacements and decide to go for drilling it out and using the inserting the cup and nylon Bush, should make it nicer to operate and prevent it from drying out in future.

auld duffer said:
looks like a good project . guessing your in Scotland, ( deep fried Pizza land )
Click to expand...
Deep fried pizza? Is that really a thing? I actually tried deep fried Mars bar, mainly just to say i had. Can't say i was too impressed.
Deep fried... good.
Mats bar... good.
Deep fried Mars bar... not so good.
I can't help thinking that deep fried pizza would just be a waste of good pizza!
I tried deep fried haggis too. I don't want to talk about that...

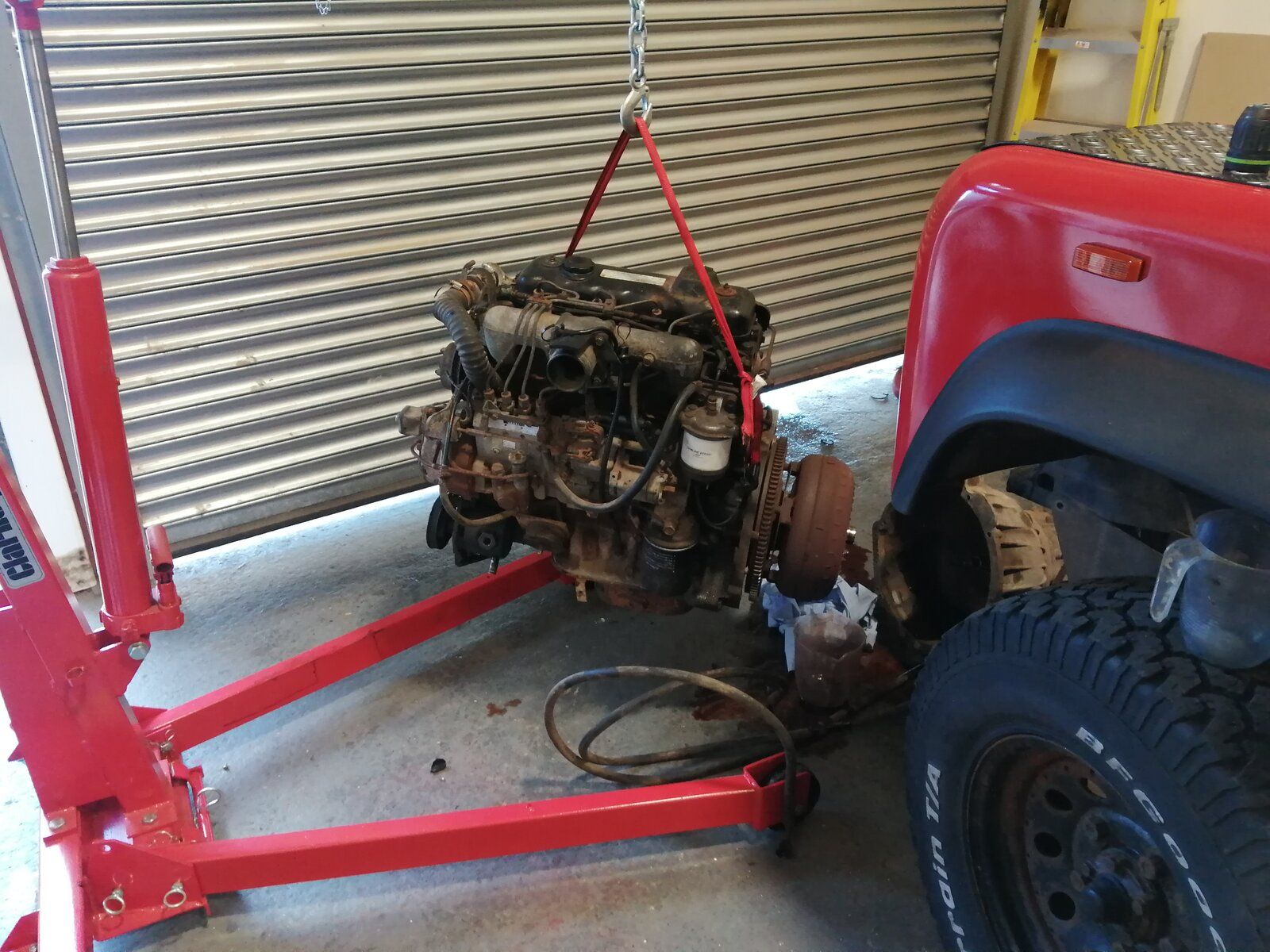

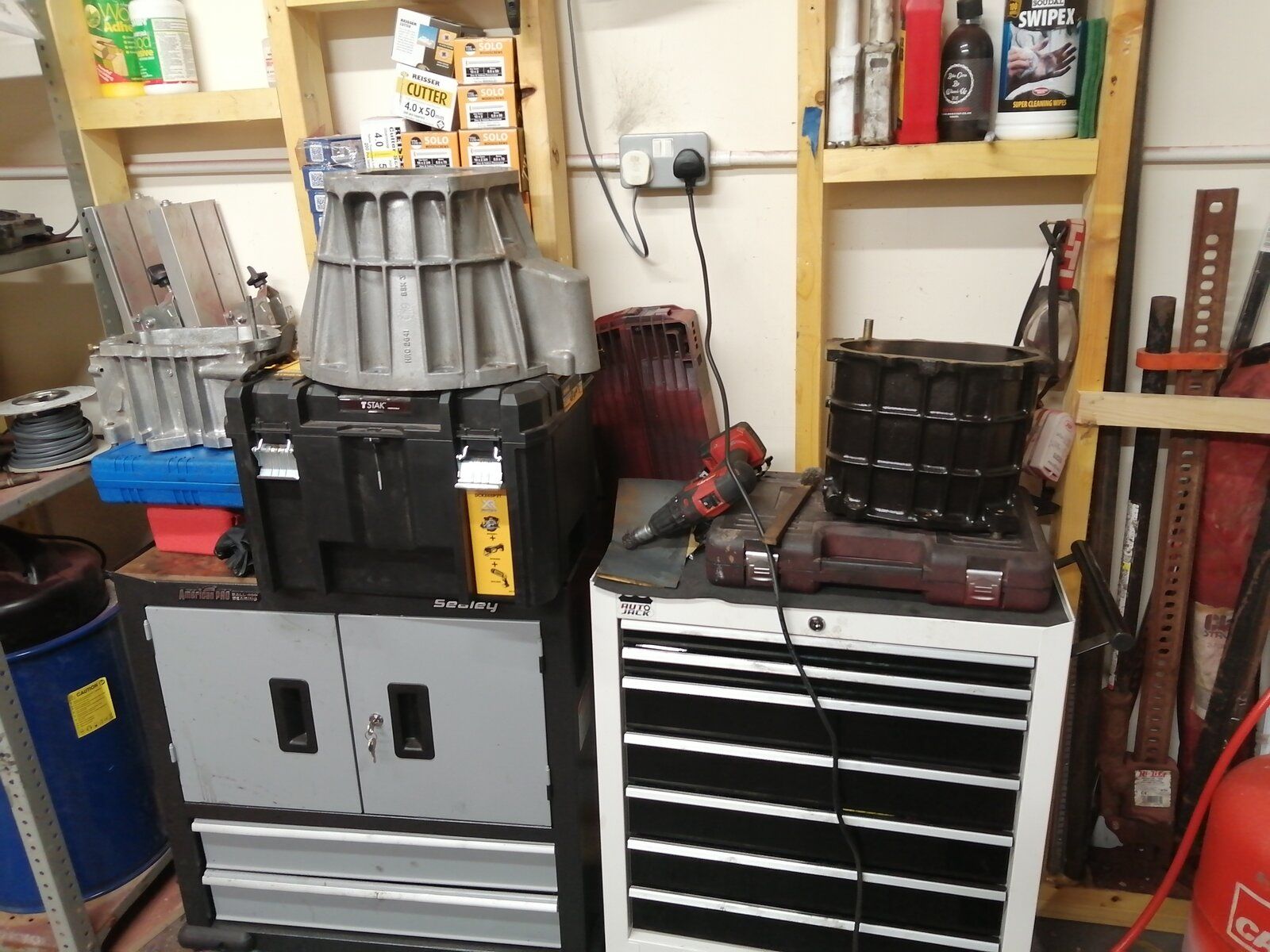

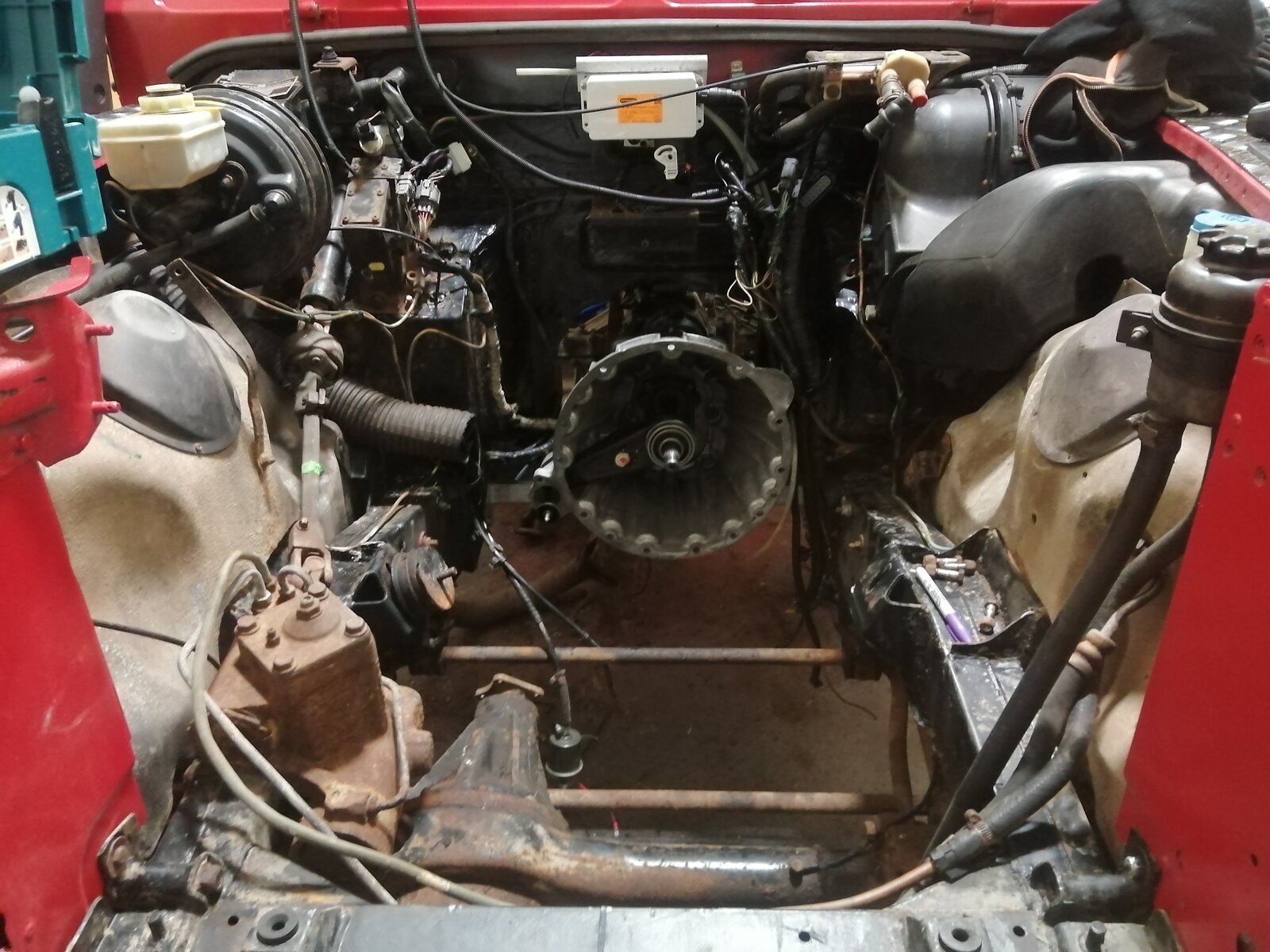

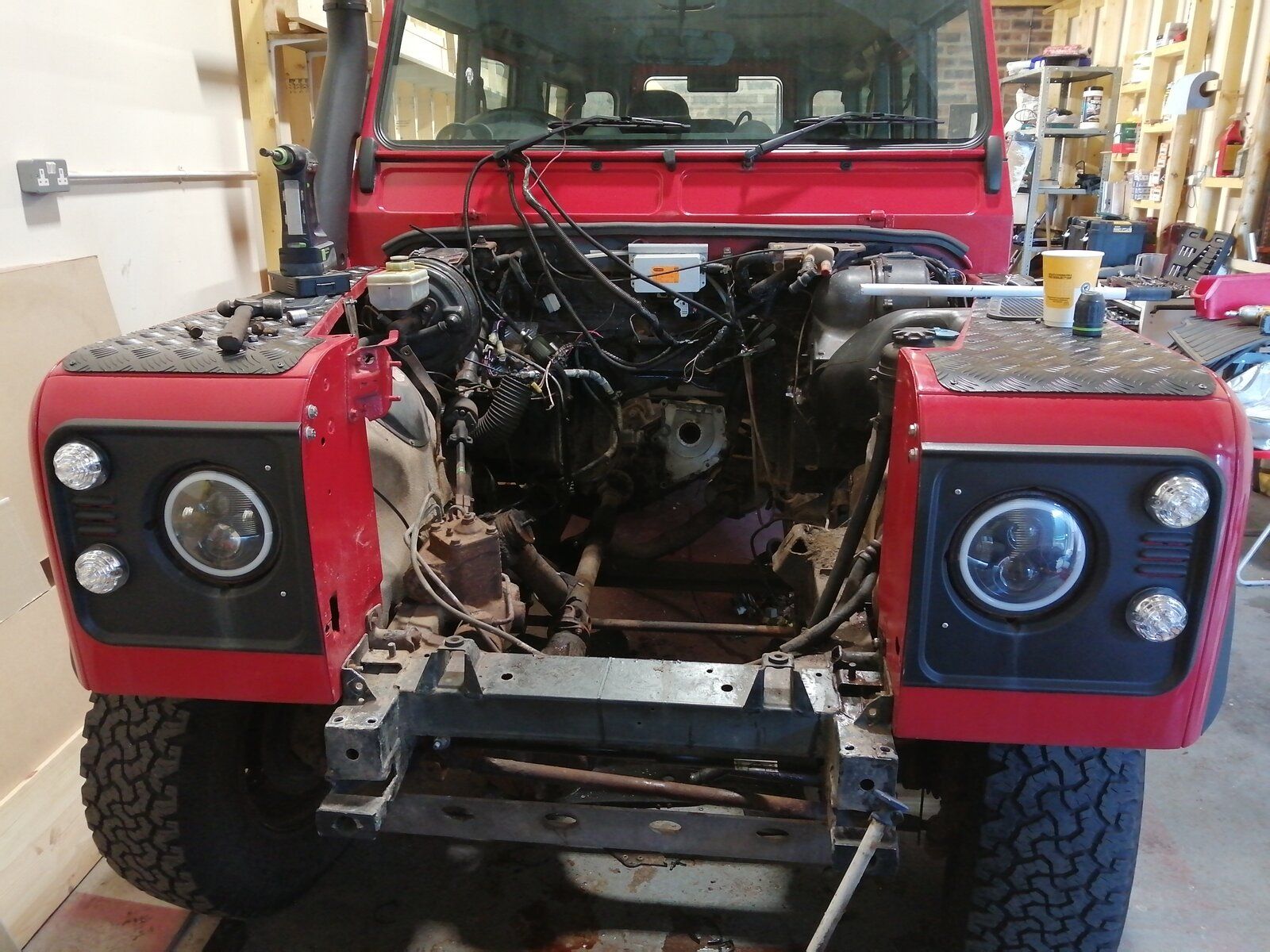

Wee bit of progress, old slt out and the auto box too, output shaft on the auto box was so worn, that it must have been a bawhair away from completely striping!
No wonder there was a heavy clunk when going forward to reverse.


Both props are also needing the uj's replaced too and the input gear on the transfer box is scrap too as are the diff gears I think due to the black treacle in the transfer.

Got a bit of rebuilding to do and then get started putting back together.

Never heard of it reckon it would be good after few beers tho my fave is chicken meat n chips and garlic sauce with a pita

ps the Landy looks good too

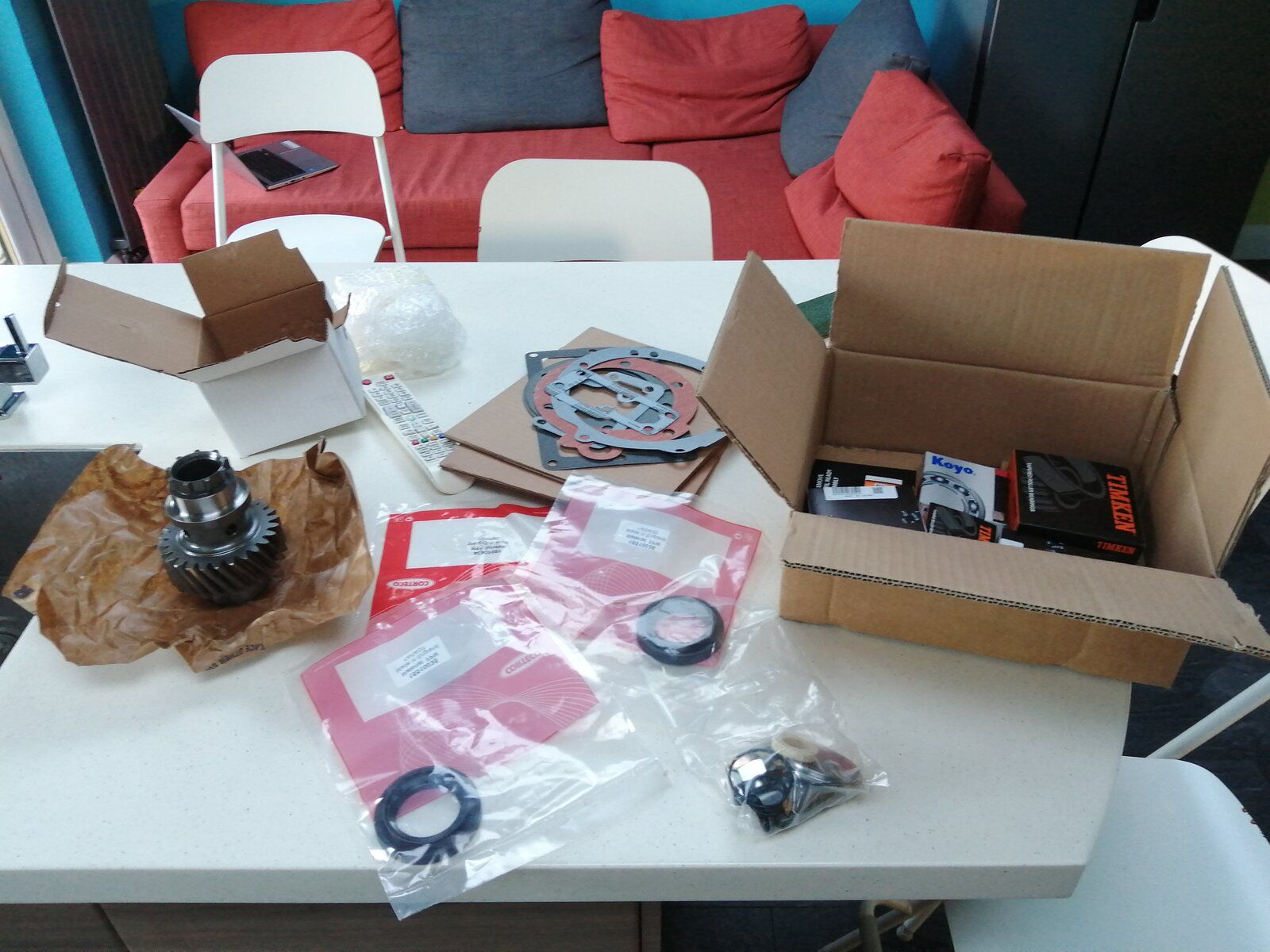

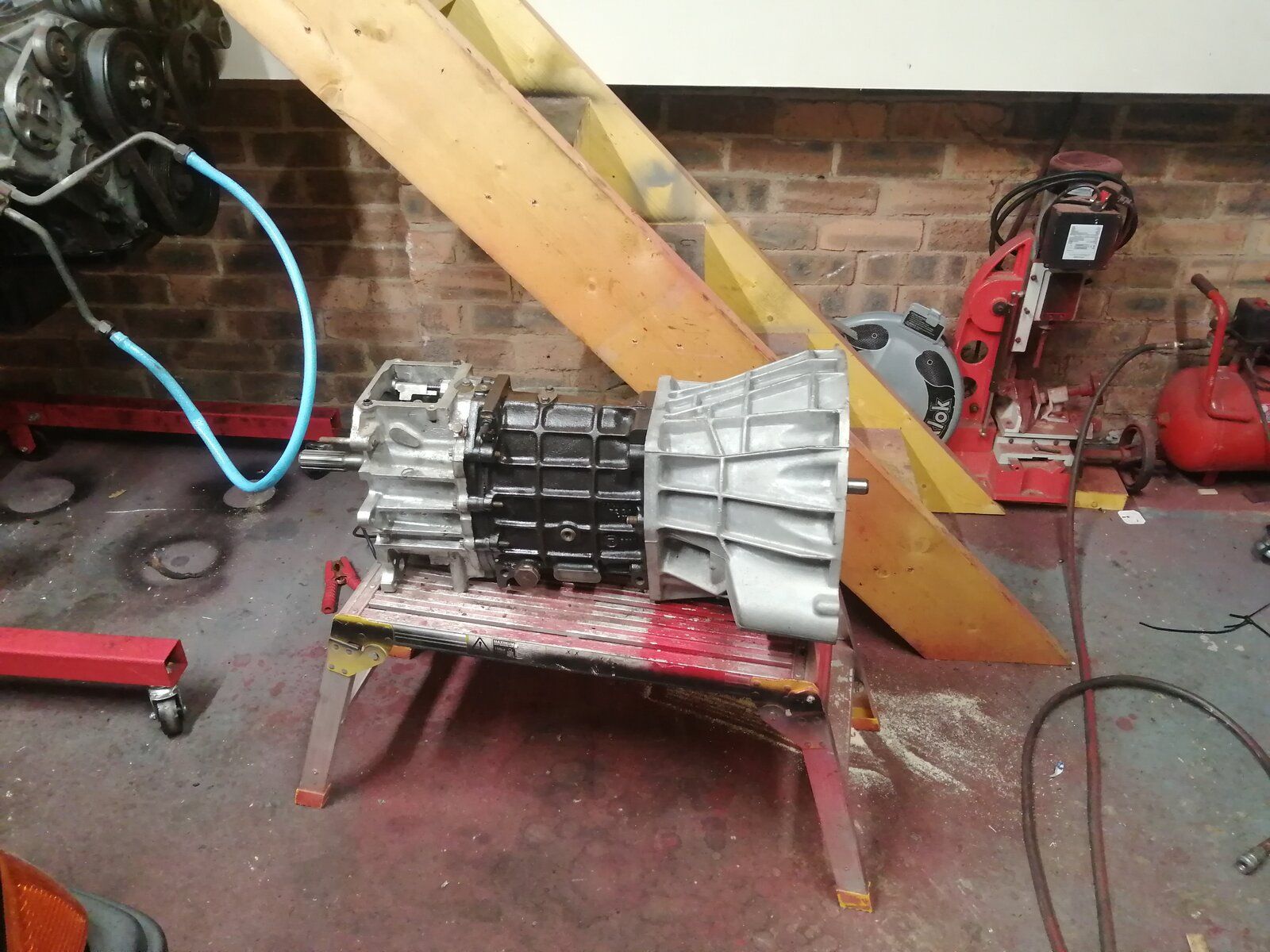

Got my box from ashcroft today, lt230 gaskets and bearings, new input gear.
Might get a chance to strip the box this weekend, still hoping the diff gears will be OK, but we'll soon see??

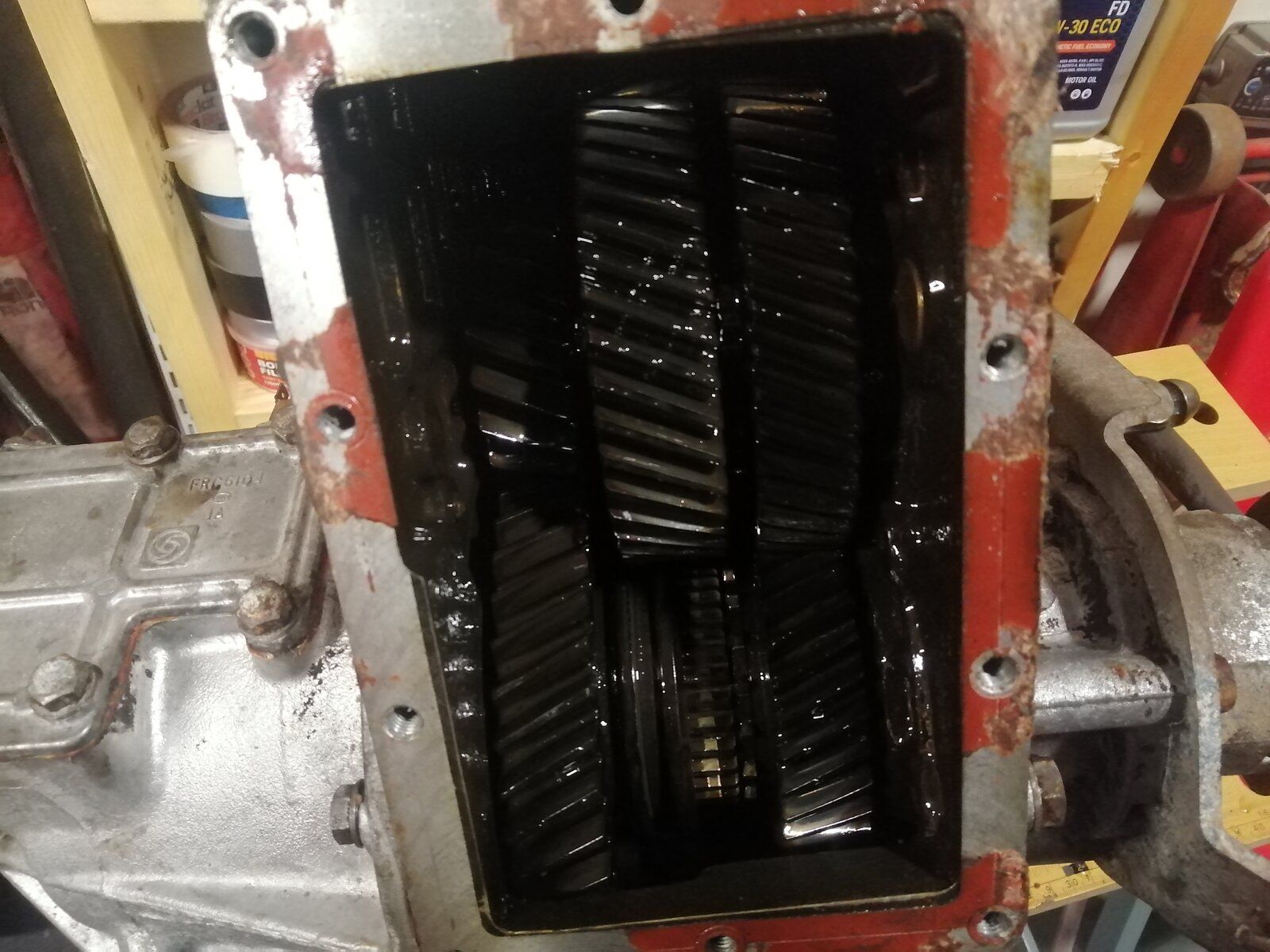

Well the tb was fooked!
Ended up buying a good used one, will rebuild th old one later and keep as a spare.

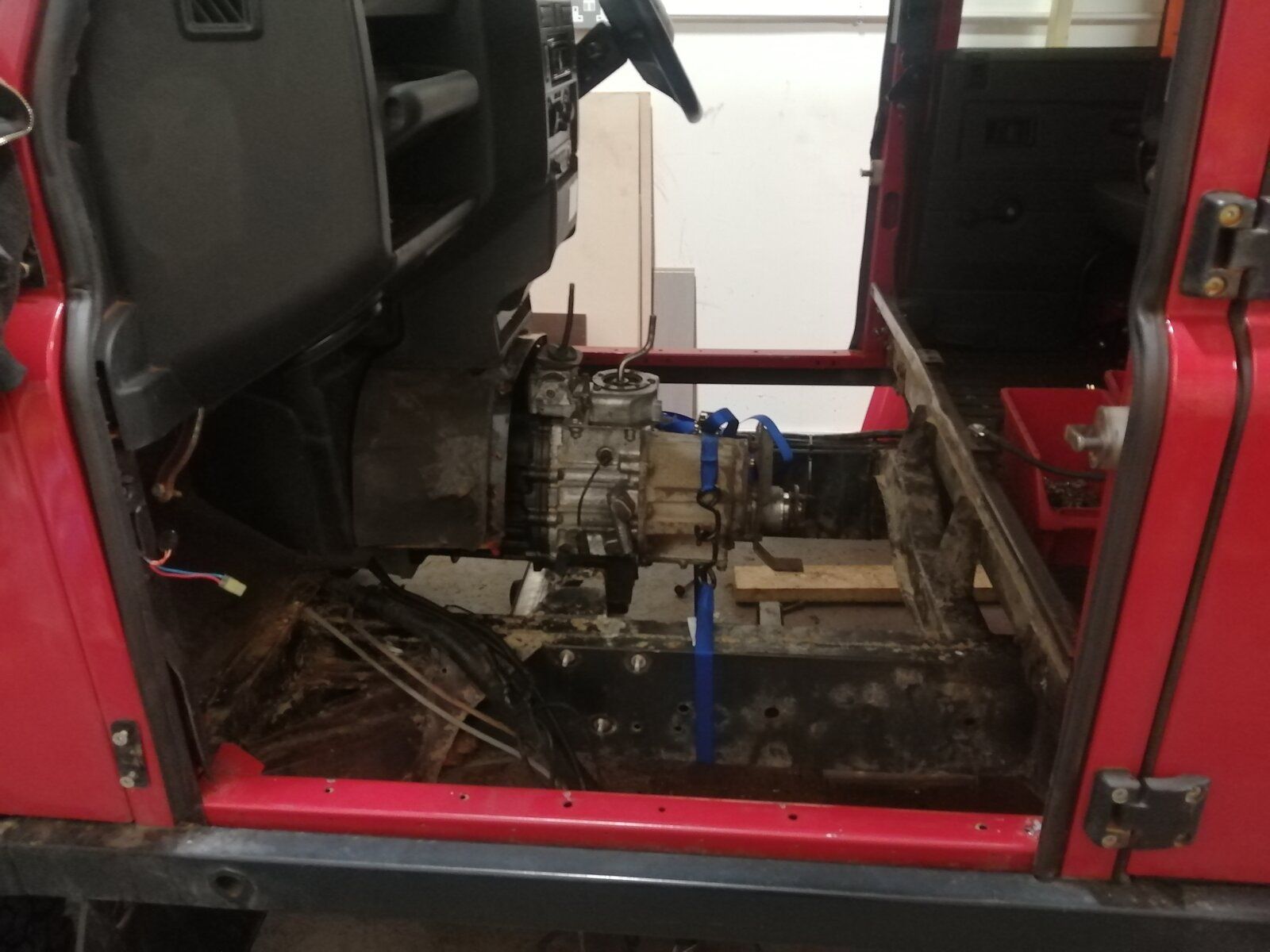

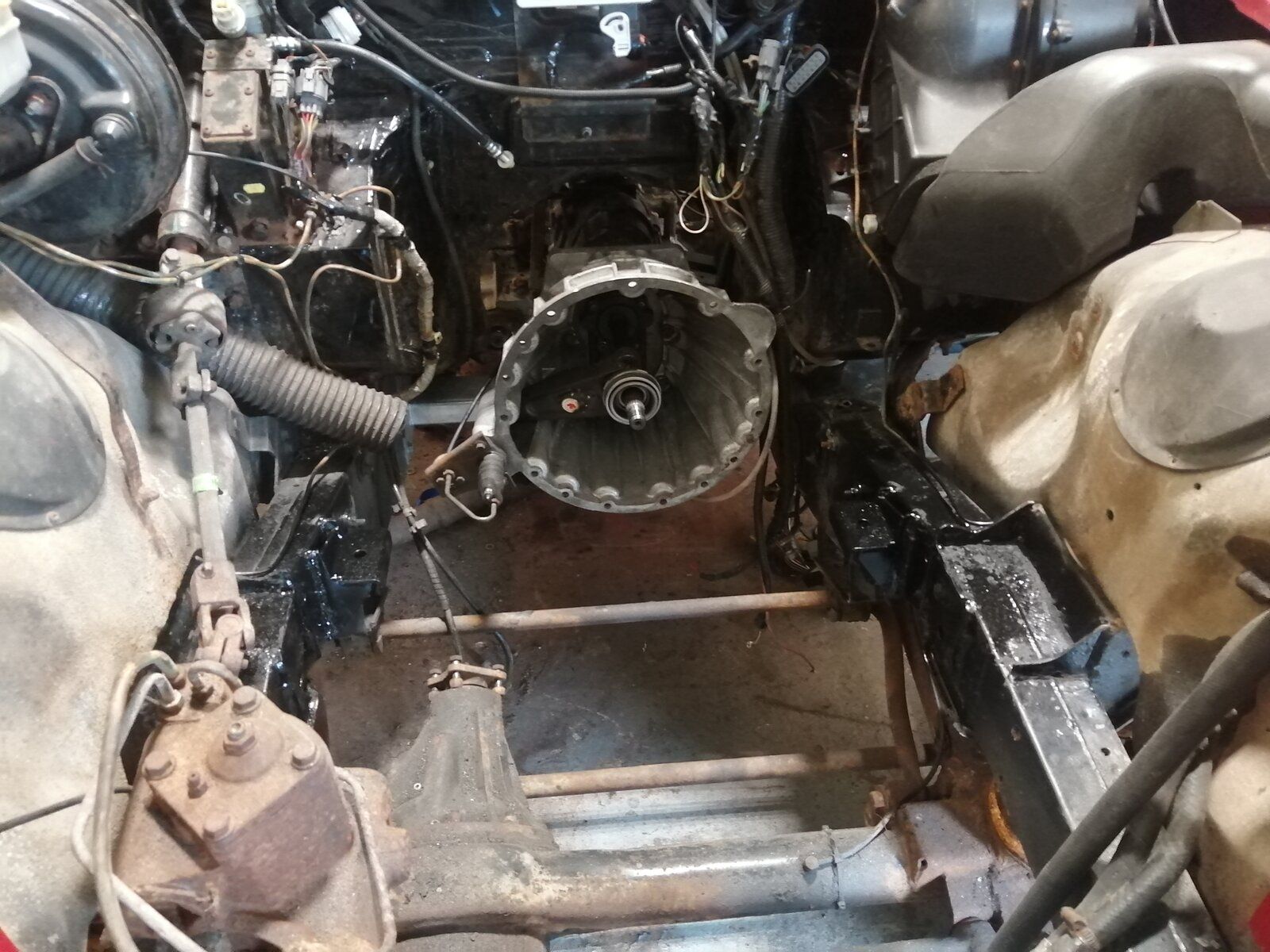

Anyway gearbox and tb mounted on my new yrm xmember.
the disco selectors are in pretty good positions, and should work well with the dash, next up, get those new engine mounts in!
