Freelander 1 TD4 Refurbishment - Finished
- Thread starter andyfreelandy
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Jayridium
Well-Known Member
- Posts
- 1,416
- Location
- Pedronapper (Peterhead)
Happy days, I'll bookmark that since it meet the spec. I bought jatco specific stuff from Ravenol's website a while back when fitting my reconned box, was a frickin pretty penny I don't mind telling you.
I use Carlube ATF-U in the Jatco box, which far exceeds the spec of N402, and D3 for that matter!
The Jatco isn't as fussy as LR would have you believe, D2 or D3 being perfectly acceptable. What kills the box (and any other) is the silly extended fluid changes.
If you're doing annually or even bi-annually changes, then pretty much any D2 or D3 will work just fine.
I actually used D2 as an intermediate flushing fluid, as it's cheap enough to used for a month or so, before refilling with something better, which is my preferred ATF-U.
andyfreelandy
Well-Known Member
- Posts
- 5,563
- Location
- Devon
This afternoon popped the new tank cradle and subframe on then built up both sides with arms, hubs, driveshafts etc.
Photos tomorrow but pleased with the way it is going.
Just the refurbed vcu and prop and handbrake cables to fit.
Must remember to put oil in the diff!!!
Photos tomorrow but pleased with the way it is going.
Just the refurbed vcu and prop and handbrake cables to fit.
Must remember to put oil in the diff!!!
andyfreelandy
Well-Known Member
- Posts
- 5,563
- Location
- Devon
Some photos for your entertainment and delight !

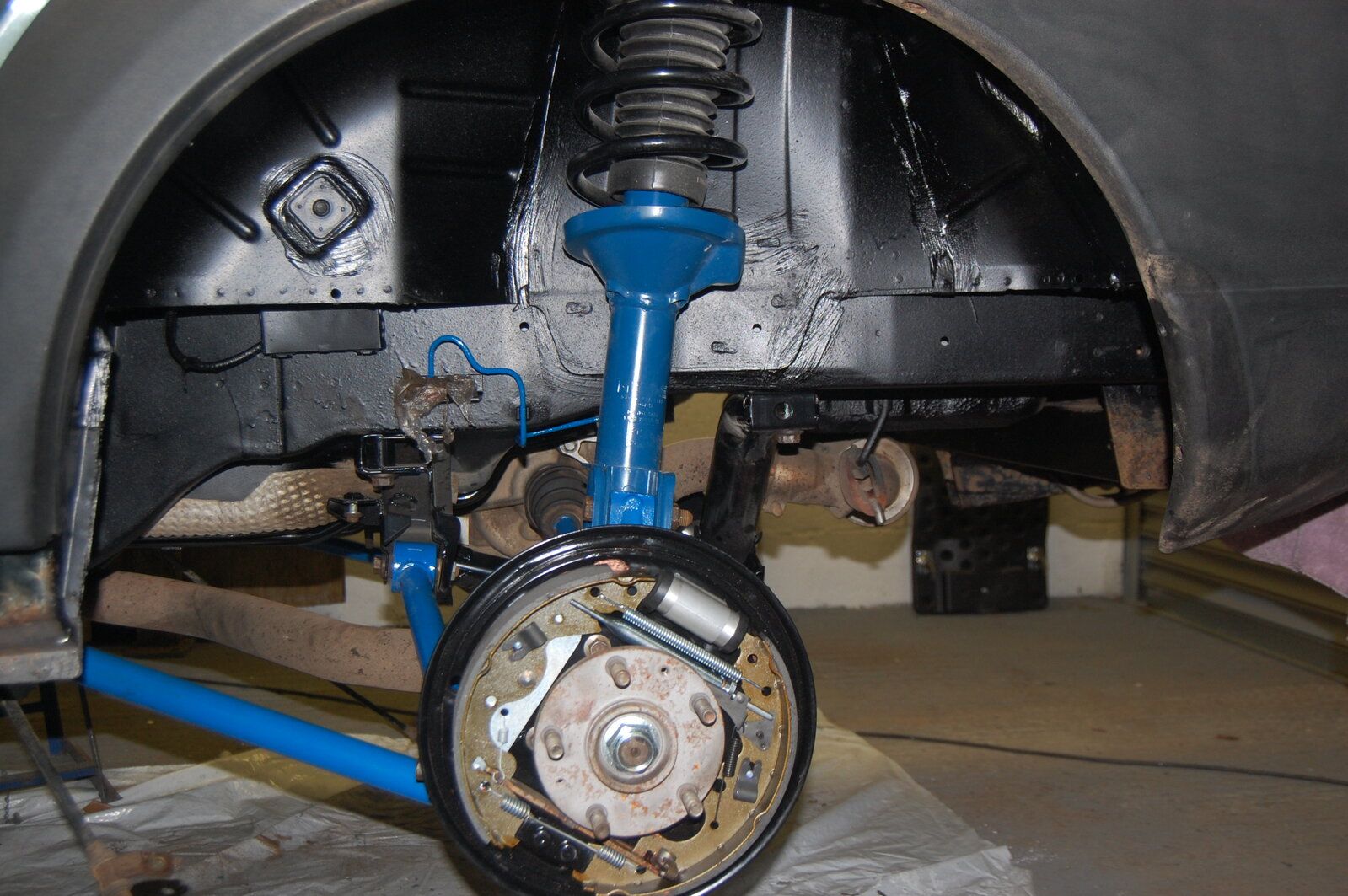

Left wheel arch undersealed and new components fitted.

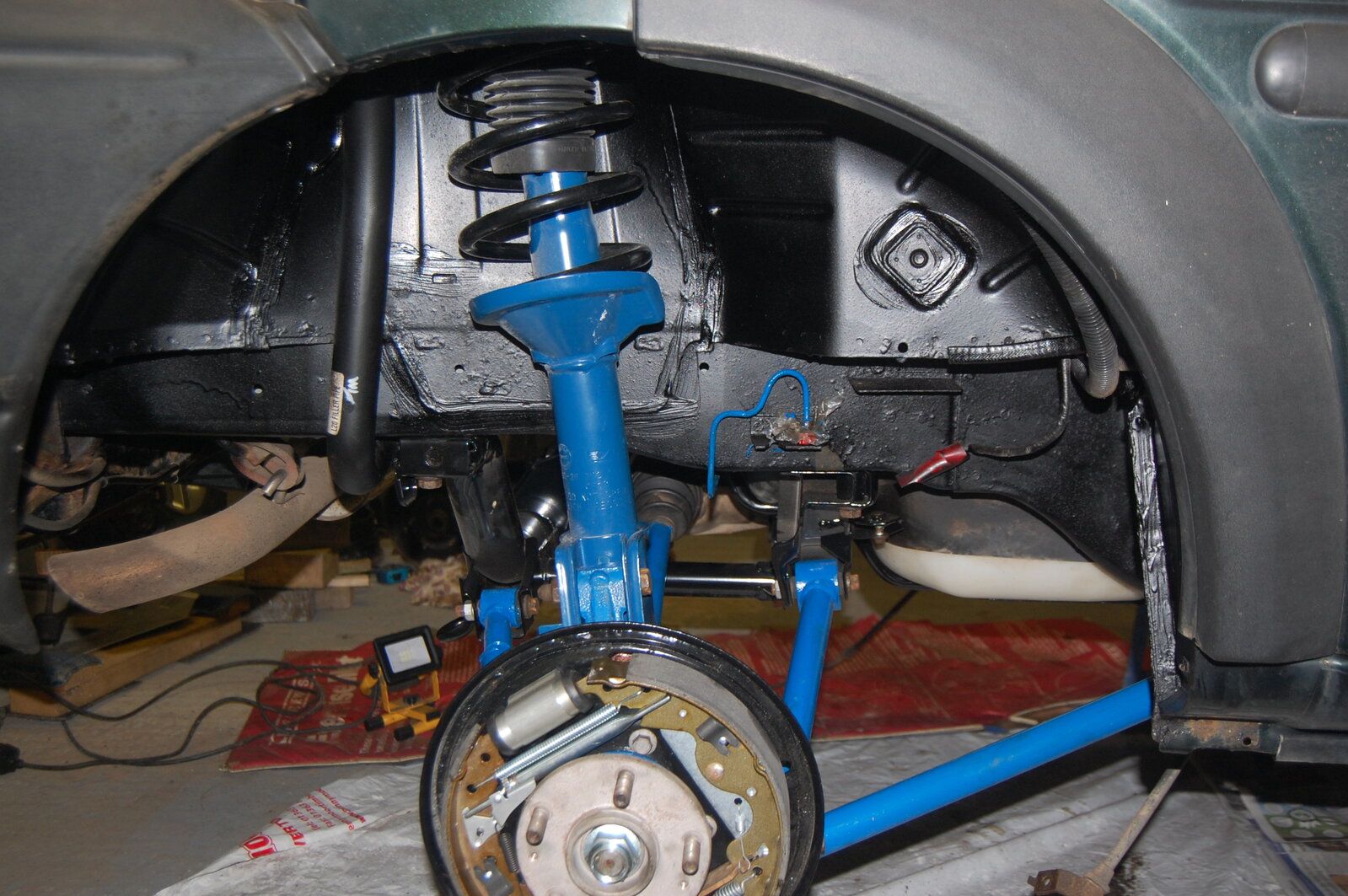

Right wheel arch undersealed and new components fitted.

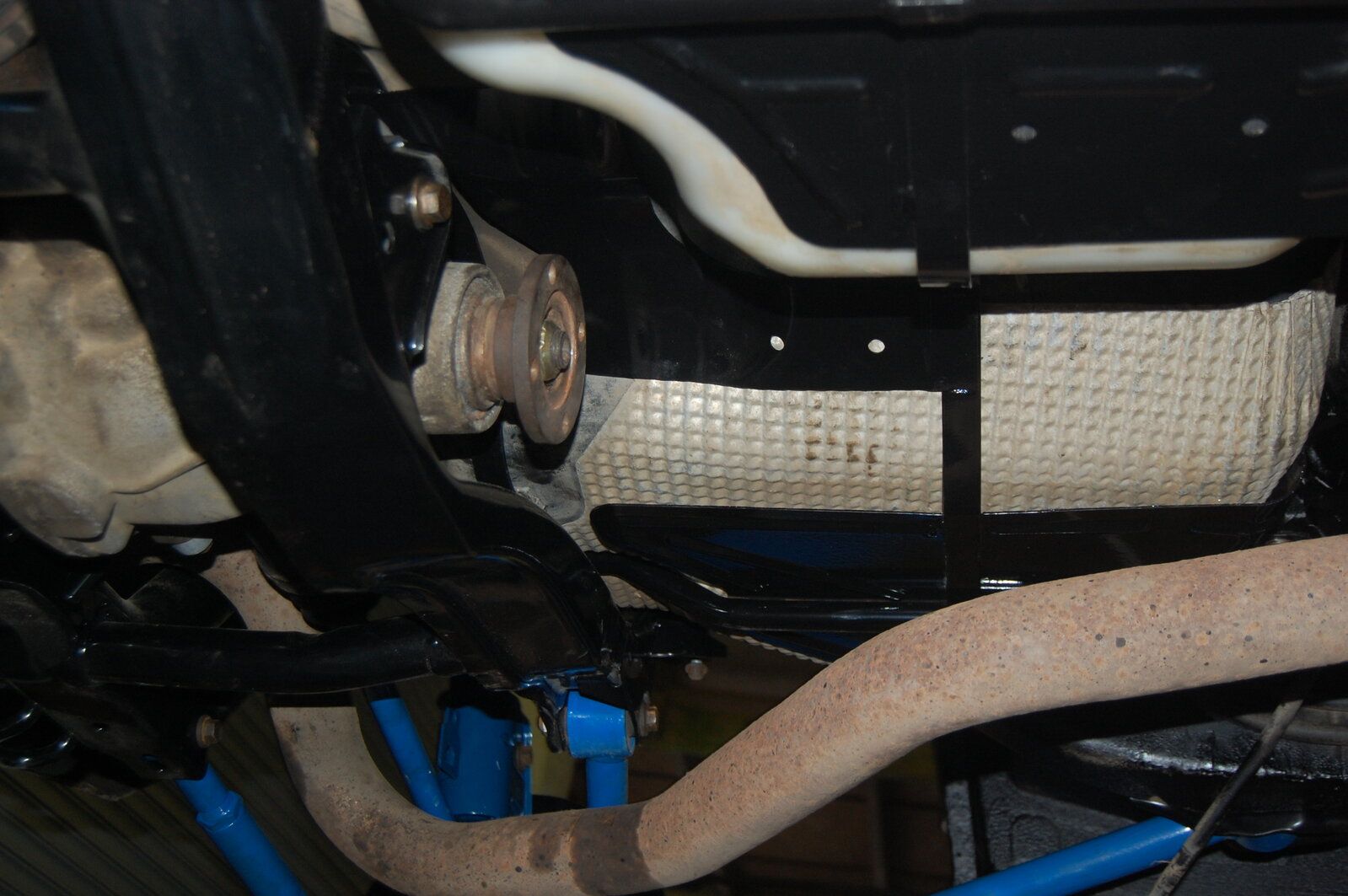

New tank cradle and refurbished subframe.
Just made up new short brake pipes and these with new flexis will be attached and brakes bled.
Handbrake cables will be fitted with new split collars - will photograph as it looks like it might be a good solution to rotting cable clips used by LR.
Then, VCU and prop on, liners in wheel arches, wheels on, drop to ground and torque up.
Need to get it off the ramp to allow the TD4 sport to come in to see how many jelly babies there are hiding in the gear change and to find out why you have to crush the pile of the carpet to get the clutch to disengage !!
I think a clutch mod to master cylinder (prototyped earlier) is in order if the slave is good. But maybe another thread for the silver blue Sport.
Left wheel arch undersealed and new components fitted.
Right wheel arch undersealed and new components fitted.
New tank cradle and refurbished subframe.
Just made up new short brake pipes and these with new flexis will be attached and brakes bled.
Handbrake cables will be fitted with new split collars - will photograph as it looks like it might be a good solution to rotting cable clips used by LR.
Then, VCU and prop on, liners in wheel arches, wheels on, drop to ground and torque up.
Need to get it off the ramp to allow the TD4 sport to come in to see how many jelly babies there are hiding in the gear change and to find out why you have to crush the pile of the carpet to get the clutch to disengage !!
I think a clutch mod to master cylinder (prototyped earlier) is in order if the slave is good. But maybe another thread for the silver blue Sport.
andyfreelandy
Well-Known Member
- Posts
- 5,563
- Location
- Devon
Looking at the photos it deserves a stainless exhaust at some point - it has the sport stainless rear box but it looks SOOO rusty now!!!
andyfreelandy
Well-Known Member
- Posts
- 5,563
- Location
- Devon
Nearly there with the TD4.
Today fitted replacement brake pipes, hoses, dropped it to the ground, short run around, onto ground based ramps and torqued everything up.
While it is nice and dry I am going to treat it to my special waxoyl recipe while int he workshop. Waxoyl, white spirit and clean engine oil mix!! Yum.
Should be finished later today.
Today fitted replacement brake pipes, hoses, dropped it to the ground, short run around, onto ground based ramps and torqued everything up.
While it is nice and dry I am going to treat it to my special waxoyl recipe while int he workshop. Waxoyl, white spirit and clean engine oil mix!! Yum.
Should be finished later today.
andyfreelandy
Well-Known Member
- Posts
- 5,563
- Location
- Devon

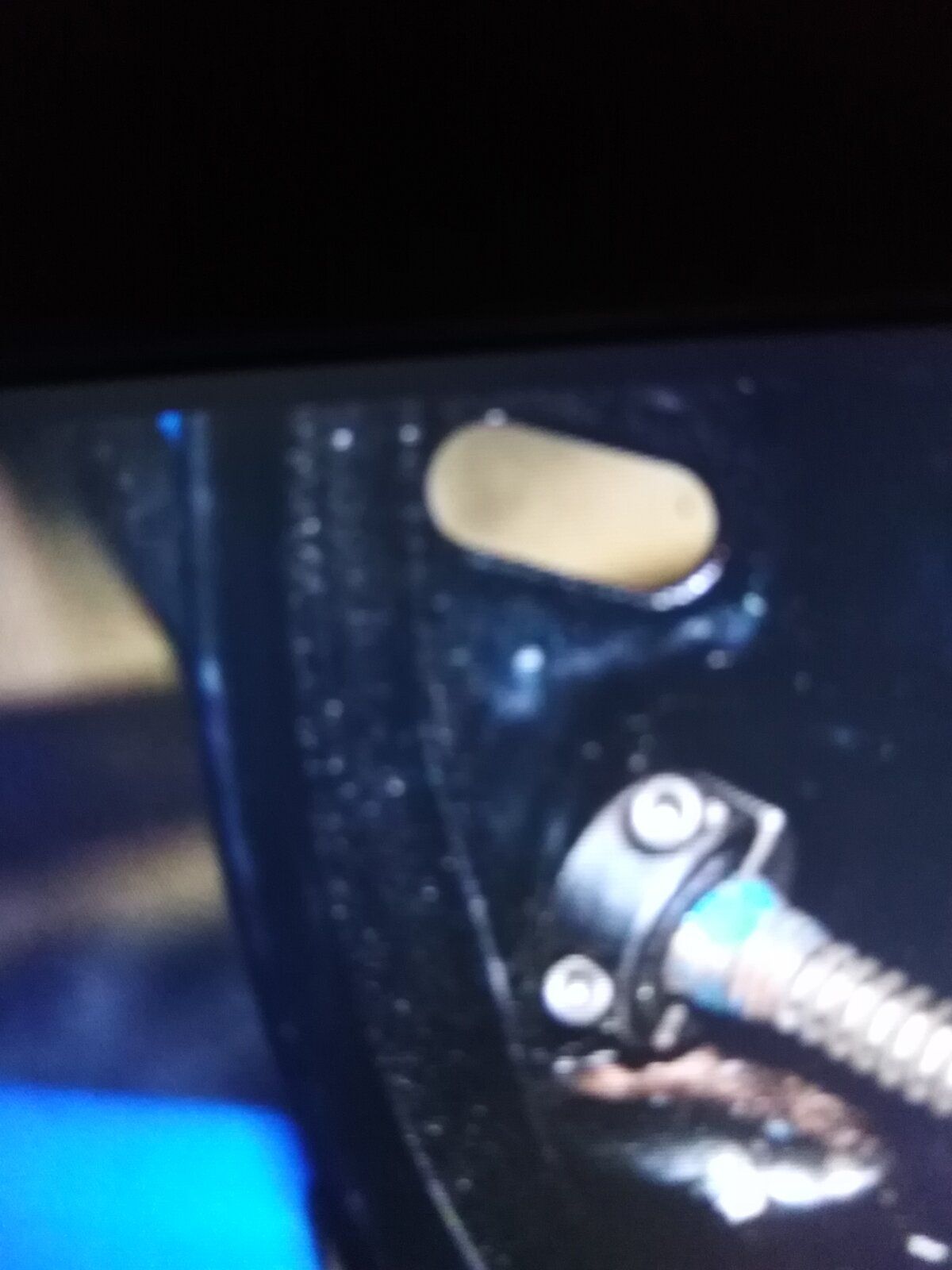

The split collar handbrake back plate cable retainer mod worked a treat!
