Sunroof U/s

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

MARK II

Member
Posts
97
Location
ELSENHAM ESSEX
Hello again

I have the sunroof fixed last year as it started to make a lovely grinding noise then died ,the chap how can to fix it said it was a common problem and replaced both side rails ,but also said there was a steel bracket that the cables attach to at the back of the sunroof that can bend and put the cables out of sinc so it won't let the roof close on both side exactly together therefore putting a strain on the gearing ,well the roof is starting to go again so before it goes completely I want to have a look and see if I can sort it out myself and not get ripped off again as it cost £350 last time. does anyone have some pictures of how to do it/strip down the roof.

thanks

.


Attachments

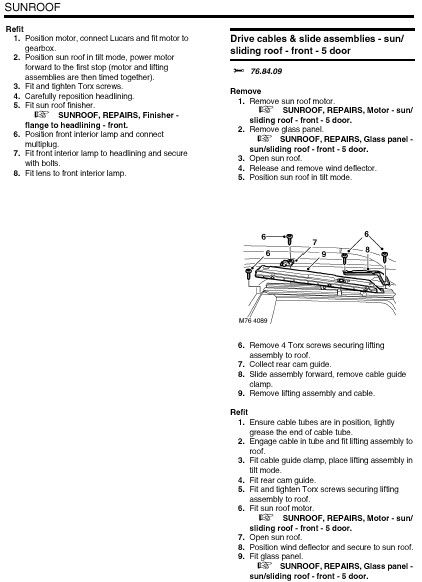

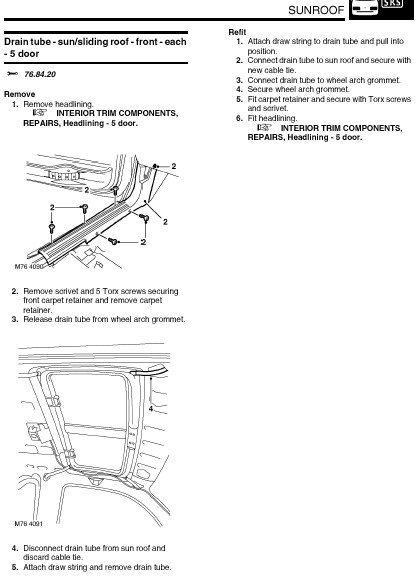

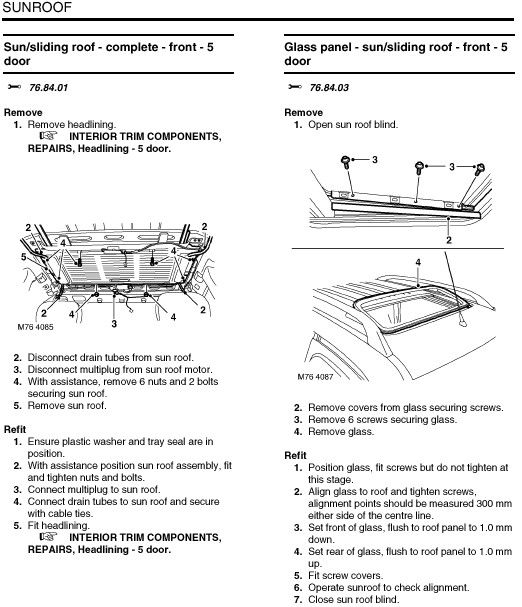

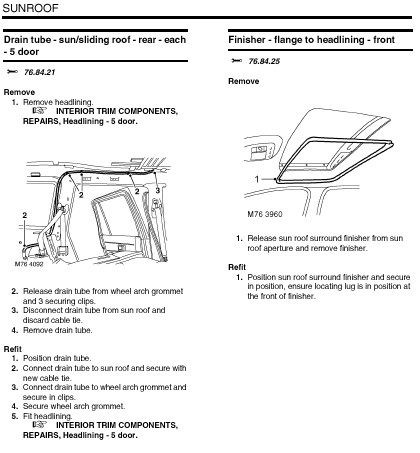

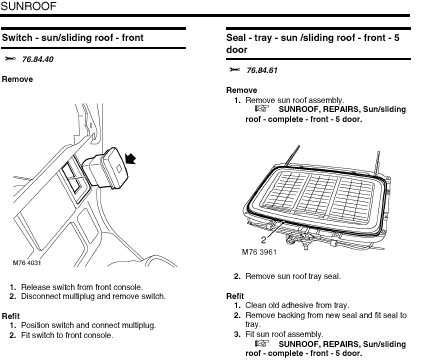

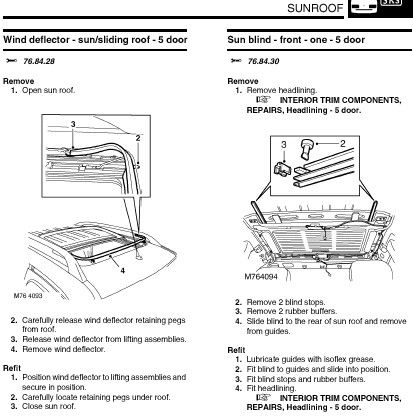

  • sr2.jpg
    66.1 KB · Views: 214
  • sr3.jpg
    44.2 KB · Views: 187
  • sr4.jpg
    46.9 KB · Views: 183
  • sr5.jpg
    46.5 KB · Views: 211
  • sr6.jpg
    38.5 KB · Views: 184
  • sr7.jpg
    41.3 KB · Views: 162
