Sting Ray's '89 90 - Complete Restoration
- Thread starter Sting Ray
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Sting Ray
Well-Known Member
- Posts
- 297
- Location
- Nova Scotia
payydg
Well-Known Member
- Posts
- 3,907
- Location
- Aberdeenshire
Love a rebuild thread - keep the pictures going and good effort!
Sting Ray
Well-Known Member
- Posts
- 297
- Location
- Nova Scotia
So folks, I've been in Canada for 18 months or so now, and have almost gotten through all of the second winter. It was frickin cold last winter - getting into a car when it's -28C isn't much fun!!
Anyhow, the front end is being painted by a local who is also a nurse so rather busy with the whole COVID shenanigans.
Getting parts here is a bit of pain because I've got to order from the UK. Fortunately Britcar and Bearmach have been very good.
Two windscreens from Paddocks broke in their way here (not packed tremendously well, but hey ho) so I'll have to go there for that when the US border opens again. They're in a shambolic state of course so it could be a while.

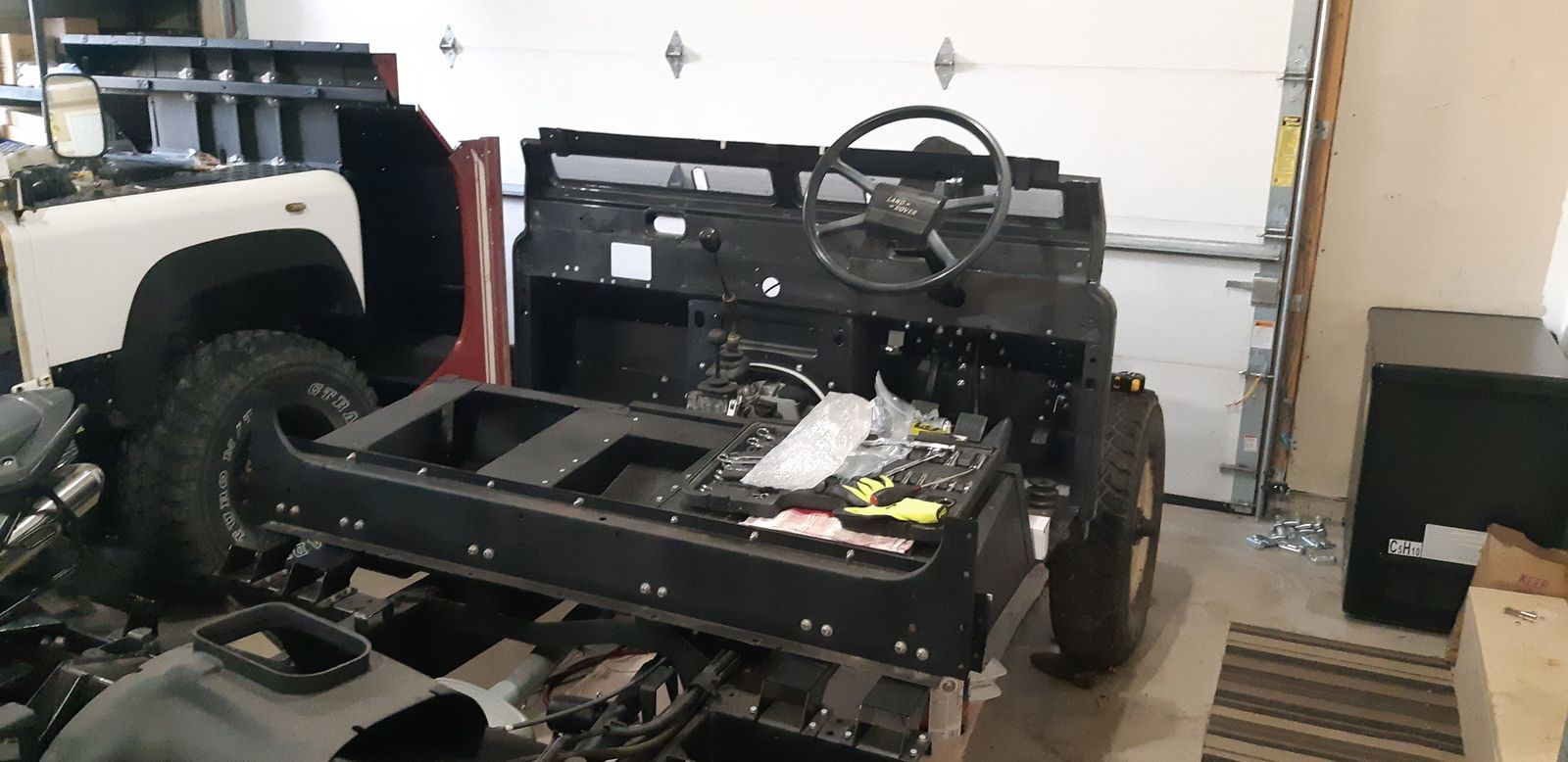

I'm going to post some more photos in die course, but have a question about the seatbox. Is the very front end of it (where it connects to the tunnel) supposed to rest on the gearbox? I suspect not, but would like to be certain.
Anyhow, the front end is being painted by a local who is also a nurse so rather busy with the whole COVID shenanigans.
Getting parts here is a bit of pain because I've got to order from the UK. Fortunately Britcar and Bearmach have been very good.
Two windscreens from Paddocks broke in their way here (not packed tremendously well, but hey ho) so I'll have to go there for that when the US border opens again. They're in a shambolic state of course so it could be a while.
I'm going to post some more photos in die course, but have a question about the seatbox. Is the very front end of it (where it connects to the tunnel) supposed to rest on the gearbox? I suspect not, but would like to be certain.
- Posts
- 6,395
- Location
- North Perthshire
Has that been 18 months already? Sheesh...time flies....I must be getting old
Welcome back
Welcome back
Sting Ray
Well-Known Member
- Posts
- 297
- Location
- Nova Scotia
I know! Terribly lax of me!
I bought these a long time ago - I know where they go, but what is the point?
https://yrmit.co.uk/product/316-ss-nut-plate-for-bulkhead-to-chassis-bracket-footwell-lr-defender/
I bought these a long time ago - I know where they go, but what is the point?
https://yrmit.co.uk/product/316-ss-nut-plate-for-bulkhead-to-chassis-bracket-footwell-lr-defender/
- Posts
- 11,023
- Location
- North of the Wall
No, it's not. Are you using the original engine and gearbox, engine mounts and gearbox cross-member?
- Posts
- 11,023
- Location
- North of the Wall
Just spread the pressure on the footwell I suppose. Compared to the original two bolt heads.
Sting Ray
Well-Known Member
- Posts
- 297
- Location
- Nova Scotia
My 110 is like Trigger's Broom
I can't even remember where the seatbox is from, although it's not original because it's for an R380, and there was originally an LT77 in the vehicle. What sort of clearance do those with an R380 have? The brackets on the chassis to support the front of the seatbox may be a little low, or the box/engine is a bit high.FYI, and I'm not sure if this is common knowledge as I've been off the scene for a while, but Shielder weren't fitting/don't fit anti-crush tubes at key points in their chassis'. I've installed steel tubes into the chassis for the rear shock mounts, gearbox cross member, power steering pump and bulkhead brackets.
Sting Ray
Well-Known Member
- Posts
- 297
- Location
- Nova Scotia
That's what I was thinking, but then I discovered they fit onto to the chassis, using the bolts that run through the chassis for the bulkhead support bracket.
Sting Ray
Well-Known Member
- Posts
- 297
- Location
- Nova Scotia
Sting Ray
Well-Known Member
- Posts
- 297
- Location
- Nova Scotia
Sting Ray
Well-Known Member
- Posts
- 297
- Location
- Nova Scotia

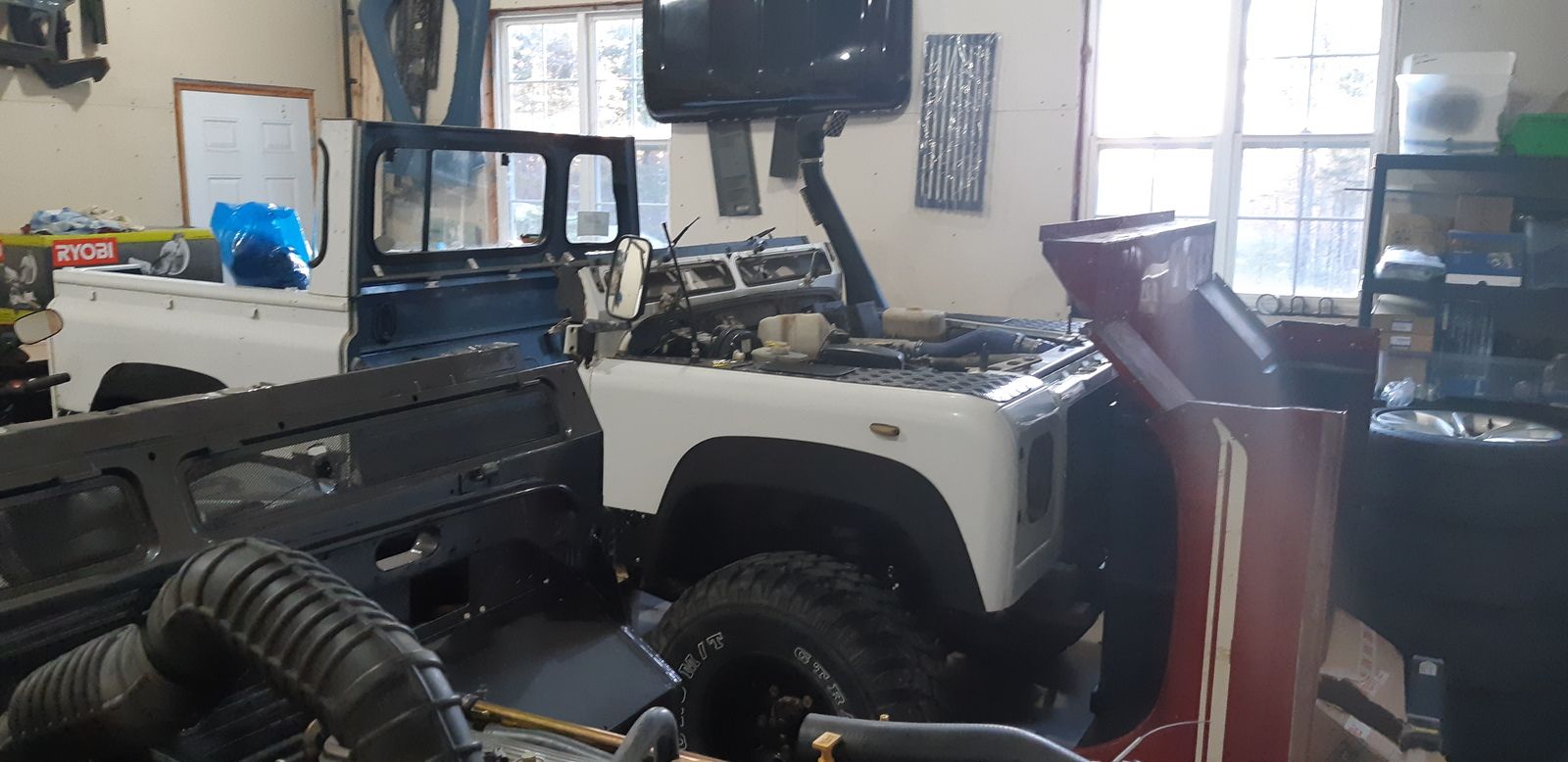

Here's the 90, which is next. It needs too much work to go straight for an MVI (MOT) so will need similar attention. May just clean up the engine and transmission rather than rebuilding though.
- Posts
- 11,023
- Location
- North of the Wall
The rebuild is looking great.
Mine is a 90 so not sure if the seat box height will be slightly different.

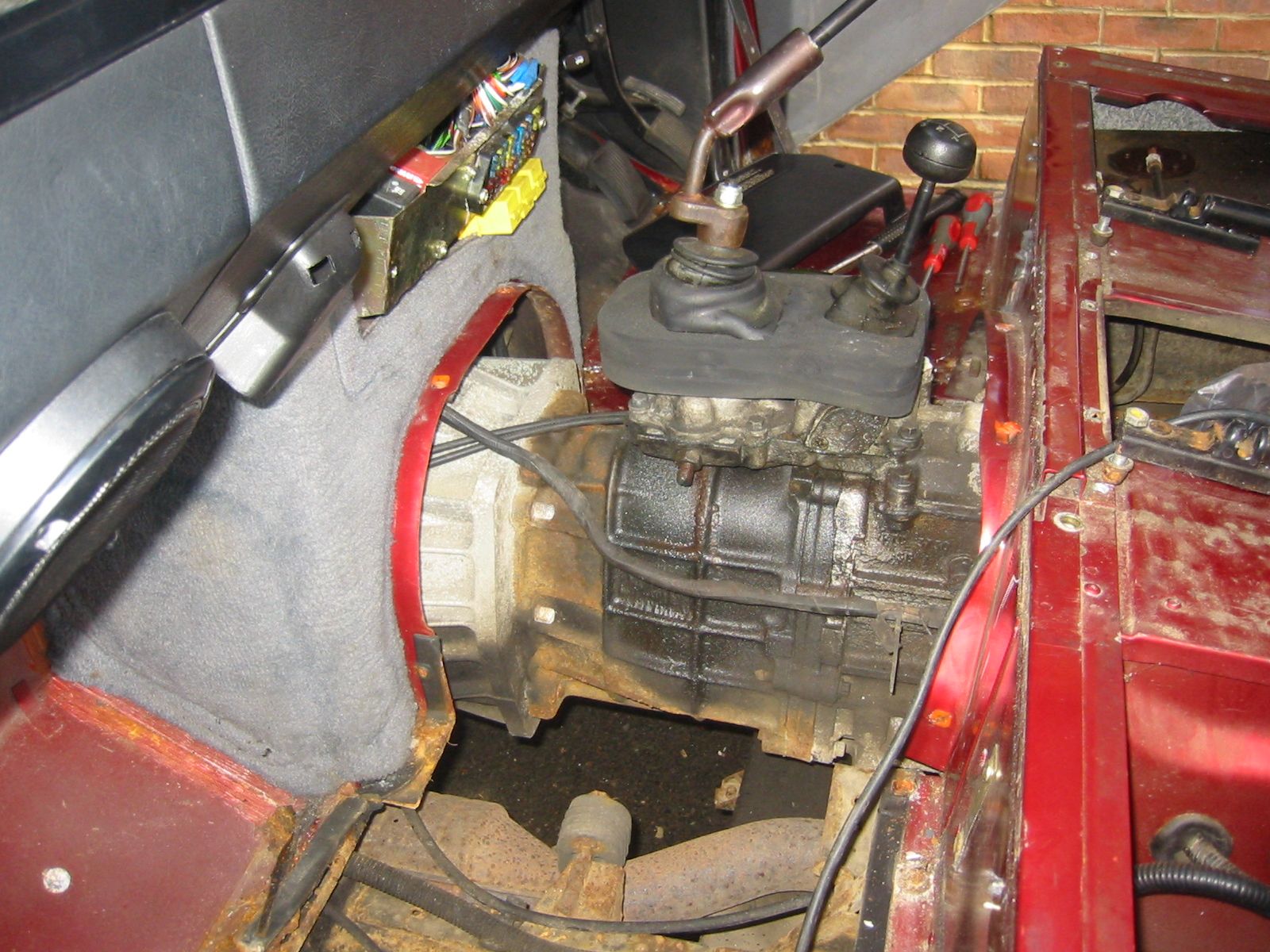

This shows the bulkhead side better than the seat box side. I think the clearance was similar on both sides. Mine's a 300Tdi with a R380 box.
Mine is a 90 so not sure if the seat box height will be slightly different.
This shows the bulkhead side better than the seat box side. I think the clearance was similar on both sides. Mine's a 300Tdi with a R380 box.
Sting Ray
Well-Known Member
- Posts
- 297
- Location
- Nova Scotia
Thanks - would you say there's an inch or so clearance?
- Posts
- 11,023
- Location
- North of the Wall
Yes.
However, I'll go and get under mine and have a look!
Sting Ray
Well-Known Member
- Posts
- 297
- Location
- Nova Scotia
Grazie!
- Posts
- 11,023
- Location
- North of the Wall
Ok, very hard to tell from lying on your back looking up to judge the gap. Obviously, it would be perfect if you could look straight on at it However, I'd say on average about an inch is a fair estimate of the gap. Certainly not touching.
What do you think is causing the problem on your set up?
However, I'd say on average about an inch is a fair estimate of the gap. Certainly not touching.What do you think is causing the problem on your set up?
