its not bad tho - just short term cough.
Steep learning curve
- Thread starter resto_d1
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
dont you grind galv off firstProps, gotta find work arounds for getting decent propping for your arms, it really helps to steady the torch.
I do the dry run with the torch tooBiggest prob I've had is the tip gumming up with spatter from welding the galv and residue from the rust preserver.
- Posts
- 9,105
- Location
- Roaming the UK on assignments
It's only thin plate, by the time you grind the hot dip galv off it makes the panel too thin for my liking so I wouldn't bother, if I was welding 1/8th an over I might with MIG but wouldn't bother with stick as the arc munches right through it.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
thin sheet cleans off with a flap wheel saves breathing the fumes too
- Posts
- 83,281
- Location
- Embasinga stocæ
Seems a bit daft to me to remove the zinc in the very places you need it most.
Breathing zinc fumes are not bad for your health, although best to be avoided as they can give you a headache.
Use a mask if you wish. If puddle welding, the amount of zinc is negligible.
Breathing zinc fumes are not bad for your health, although best to be avoided as they can give you a headache.
Use a mask if you wish. If puddle welding, the amount of zinc is negligible.
Got in some good graft this weekend.
As above, I had to slit back my overplate to make flush and weld. I used a sacrificial 3mm backing plate to stop my wire poking through and ruining my weld. First weld was dogs muck. I ground back, and found my line again. I then went wide with the puddle and got a good result. I flap wheeled back enough for spring perch to sit well. Had bits of swarf, metal dust and grease stuck all over the chassis so once i completed me days welding I gave it all red.
As above, I had to slit back my overplate to make flush and weld. I used a sacrificial 3mm backing plate to stop my wire poking through and ruining my weld. First weld was dogs muck. I ground back, and found my line again. I then went wide with the puddle and got a good result. I flap wheeled back enough for spring perch to sit well. Had bits of swarf, metal dust and grease stuck all over the chassis so once i completed me days welding I gave it all red.
A view of death. The rust ends near the trailing arm bracket.

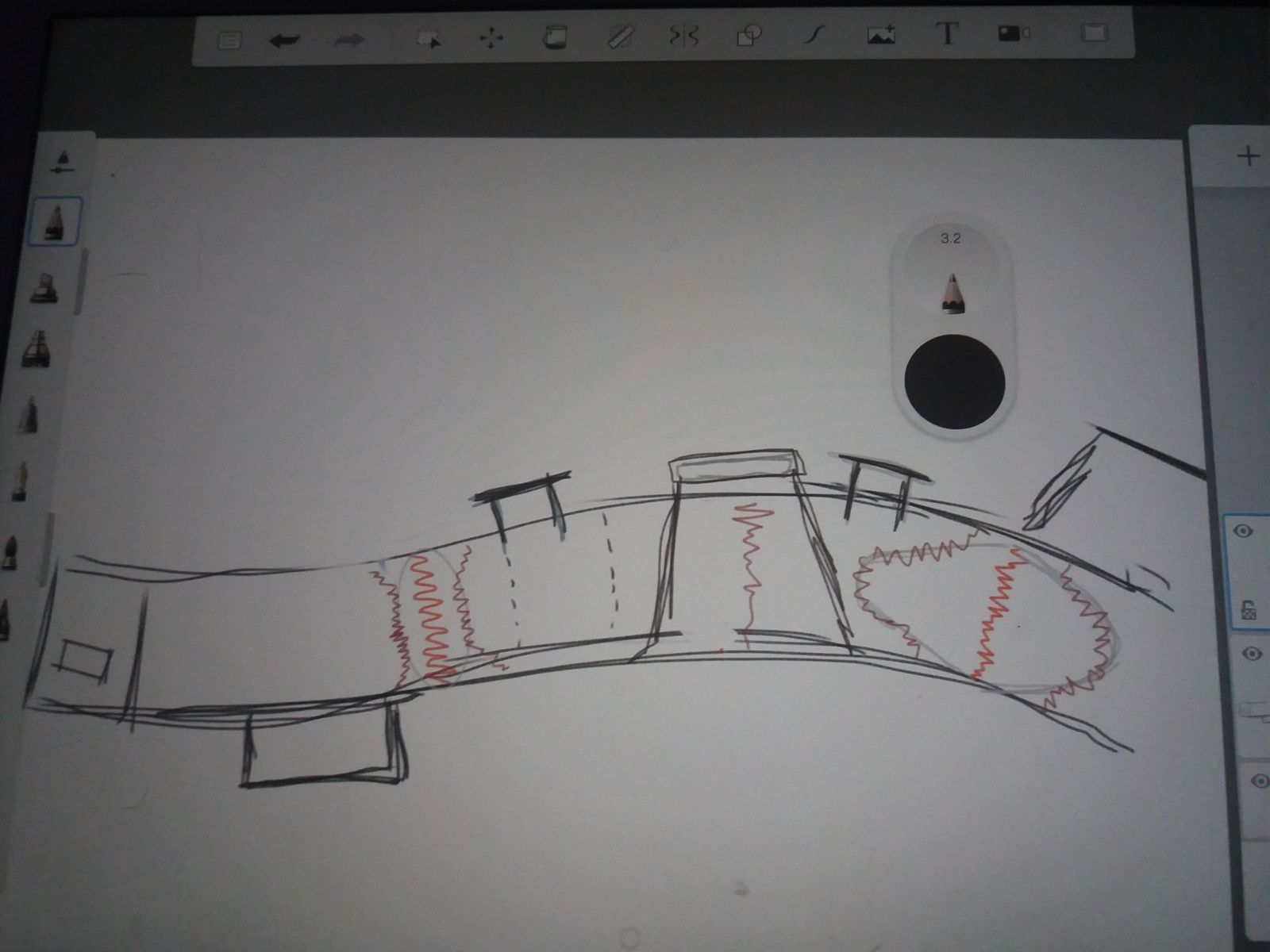

I can follow my last method from here. Spot weld a backing plate in on the lhs of the picture and seam on the right. Csn then dig in with an inner fillet all the way down. Will fish plate the outside of the verticals and probably add a landy style right angle inside for strength. Need to flatten and clean up crush tubes and get those in too. I'm going to drill the holes First, bolt through then tack in place.
I can follow my last method from here. Spot weld a backing plate in on the lhs of the picture and seam on the right. Csn then dig in with an inner fillet all the way down. Will fish plate the outside of the verticals and probably add a landy style right angle inside for strength. Need to flatten and clean up crush tubes and get those in too. I'm going to drill the holes First, bolt through then tack in place.
- Posts
- 83,281
- Location
- Embasinga stocæ
coming on well. i have seen a lot worse welds than that. good job .
another peep that judiciously uses the grinder
.another peep that judiciously uses the grinder
coming on well. i have seen a lot worse welds than that. good job
another peep that judiciously uses the grinder
Thank you. I don't care if it's ugly I just care that it's strong. The new clamp helps. It's proud as the inch runs are overlapping on the ends. It's good for me to flap them down to an extent as it ensures no pin holes. This bonda paint seems good doesn't it.
I feel I'm making decent progress now. I need to finish that plating off and stick s lid on the section before I can do spring seat and boot supports. The outrigger is annoying. I wonder if a fender one could fit with modification.
- Posts
- 83,281
- Location
- Embasinga stocæ
get a copper bus bar to put behind thin welds to reduce flare thru. (not applicable on chassis)
- Posts
- 83,281
- Location
- Embasinga stocæ
also good when filling holes
Chrisw8
Well-Known Member
- Posts
- 1,980
- Location
- Top of the Hill
Coming along nicely
- Posts
- 9,105
- Location
- Roaming the UK on assignments
What thickness of plate you using?
Ovals are always good
2mm fish plates over 2mm chassis plate. As you know the round shapes are far better than sharp edges.
The tail offs direct any stresses on the plate away from the vertical weld
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
its going to vaporise and melt off beside the weld anyhow and your making life hard for yourself and producing a poorer weld,it doesnt take much to do the job properly
