Evan farmer
Active Member
- Posts
- 782
Spotlights
- Thread starter Evan farmer
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Colthebrummie
Well-Known Member
- Posts
- 9,870
- Location
- Thatcham

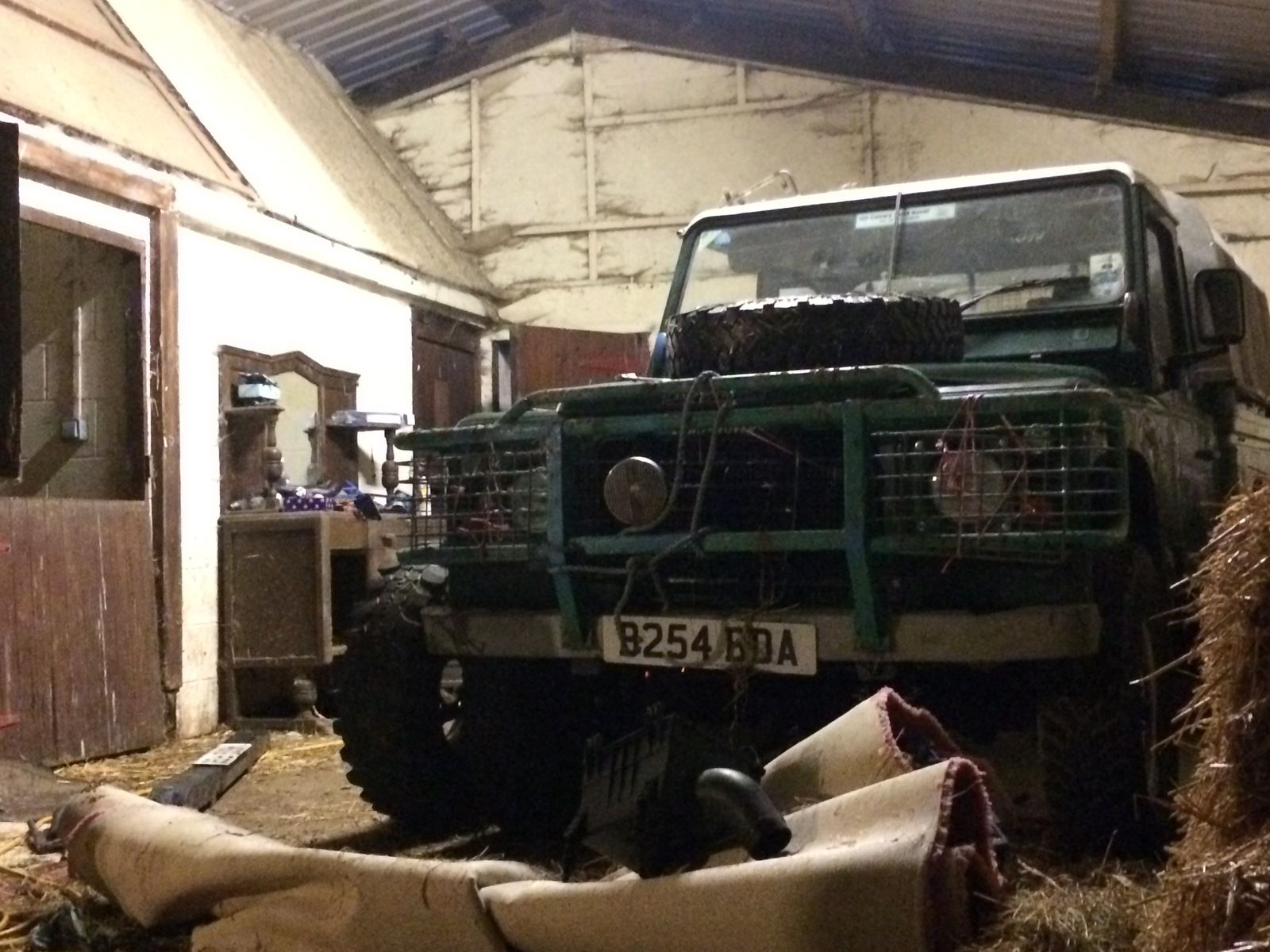

I think you have a way to go before you need to worry about spotlights if that picture is anything to go by but as a general rule in Birmingham, bigger is better. As for road legal, spotlights should be a certain distance apart, you'll not achieve that if you fit them to a bull bar.
Col
Col
bluedog333
Well-Known Member
- Posts
- 5,569
- Location
- Henley on Thames, Oxfordshire
Just thought they needed to be in pairs and an equal distance apart. What distance do you think it should be? Just curious as I’ve got bull bar mounted spots too.
Colthebrummie
Well-Known Member
- Posts
- 9,870
- Location
- Thatcham
I think it comes under the construction of vehicles regs (not sure) it gives a distance from the edge of the body to the centre of the lamp so spotlights that are close together are technically illegal. Having said that, I've seen plenty mounted on bull bars that don't conform so I don't think the police or average mot tester take much notice.
Col
Col
neilly
Well-Known Member
- Posts
- 20,000
- Location
- Oxfordshireness
So you going to find the info then??..............
.....LOL.I always thought the get out was, just to state "off road use only".
Cheers
Evan farmer
Active Member
- Posts
- 782
My 90 1984 had spotlights as seen in the picture came out of the factory like that can’t remember what they were wired up to though
Evan farmer
Active Member
- Posts
- 782
Nah the look is staying as it is but the bullbar mesh and light guards are going to hide a lot of light
neilly
Well-Known Member
- Posts
- 20,000
- Location
- Oxfordshireness

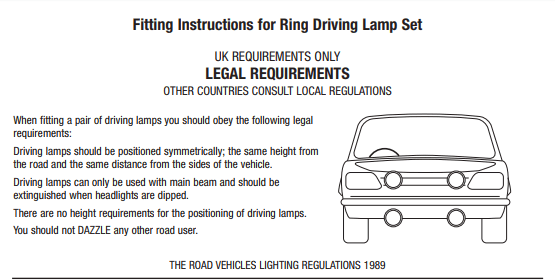

May have been superceded by now. This as stated is from 1989.
Cheers
Cheers
neilly
Well-Known Member
- Posts
- 20,000
- Location
- Oxfordshireness
Ring do a set of "classic" rally lights, that should fit in with the look.
Cheers
Cheers
blue beasty
Leaks an prone to bits dropping off
- Posts
- 64,048
- Location
- Gloucestercotshirewolds
So you going to find the info then??..............
I always thought the get out was, just to state "off road use only".
Cheers
The get out is wiring spots to come on with main beam only then under 'additional headlight' regs they can be anything you like, no distance, height or wattage regs.
Pairs matched from the centre is the only requirement.
If you want them as DRLs other regs apply.
Evan farmer
Active Member
- Posts
- 782
The original ones are ring.
neilly
Well-Known Member
- Posts
- 20,000
- Location
- Oxfordshireness
blue beasty
Leaks an prone to bits dropping off
- Posts
- 64,048
- Location
- Gloucestercotshirewolds
To achieve the genuine factory fitted optional extra look you'll need to half fill one with water and fit a bump relay so the other only comes on for 30 seconds when you thump it.
To be truly authentic you might want to consider a noxious smoke release mechanism fitted behind the dash
To be truly authentic you might want to consider a noxious smoke release mechanism fitted behind the dash
Last edited:
neilly
Well-Known Member
- Posts
- 20,000
- Location
- Oxfordshireness
I also believe it was specified, one had to be pointing upwards at all times like a WWII searchlight and the other had too have loose mounting bolts, so it crazily rotated around like a badly times 70's Disco light.
Cheers
Cheers
Evan farmer
Active Member
- Posts
- 782
I’m keeping it loose so I can unbolt it easy and use them as an engine bay lightI also believe it was specified, one had to be pointing upwards at all times like a WWII searchlight and the other had too have loose mounting bolts, so it crazily rotated around like a badly times 70's Disco light.
Cheers
Should come in handy for that.
