A bit more help if I may....

Does the Low Fuel Light in this diagram;

Literally just connect to No.3 on this pin

Many thanks



mick 1986

Well-Known Member

Posts

2,537

Location

Lost

• Apr 19, 2019

• #24

t0m1980 said:

A bit more help if I may....

Does the Low Fuel Light in this diagram;

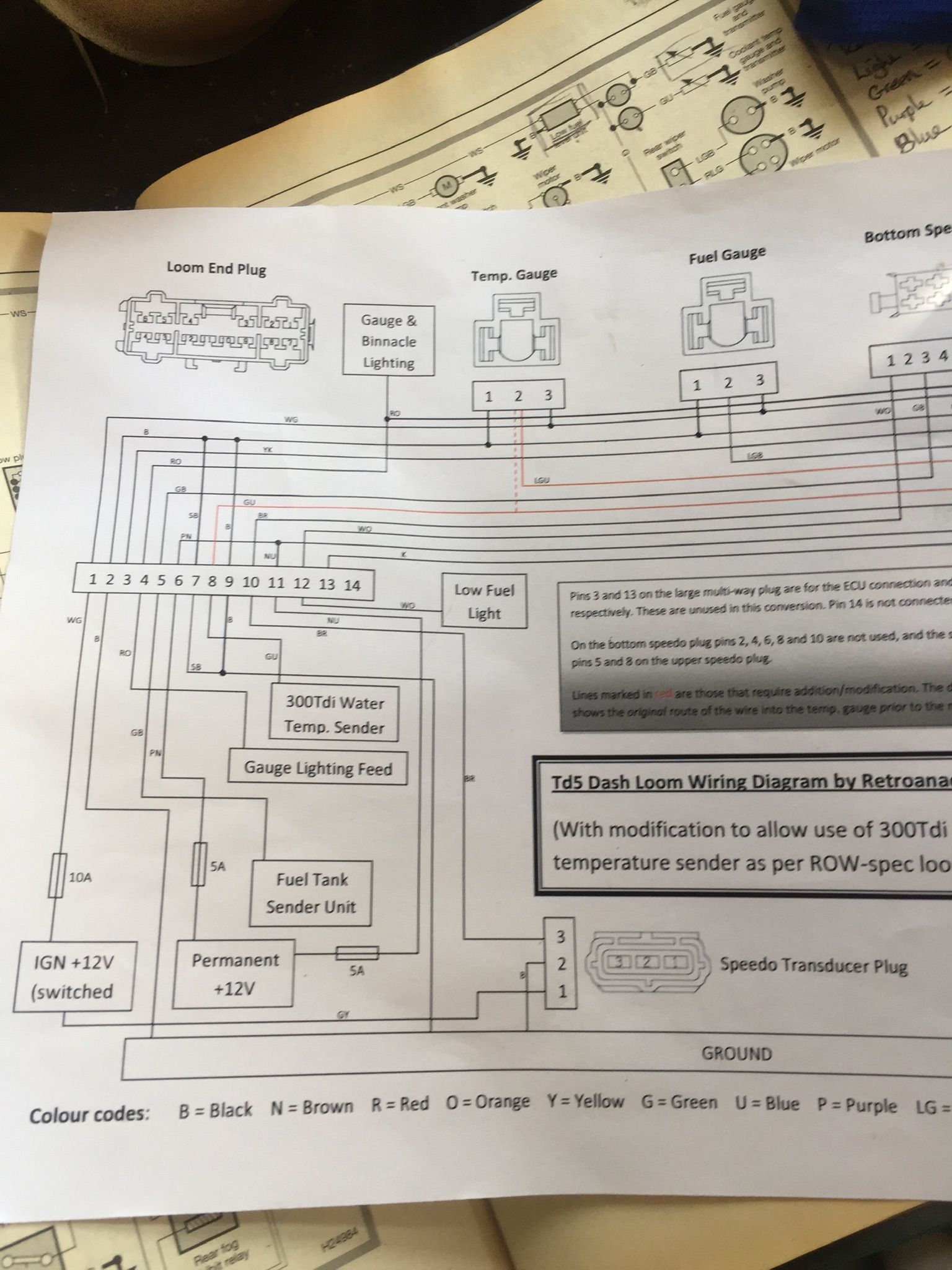

View attachment 175742

Literally just connect to No.3 on this pin

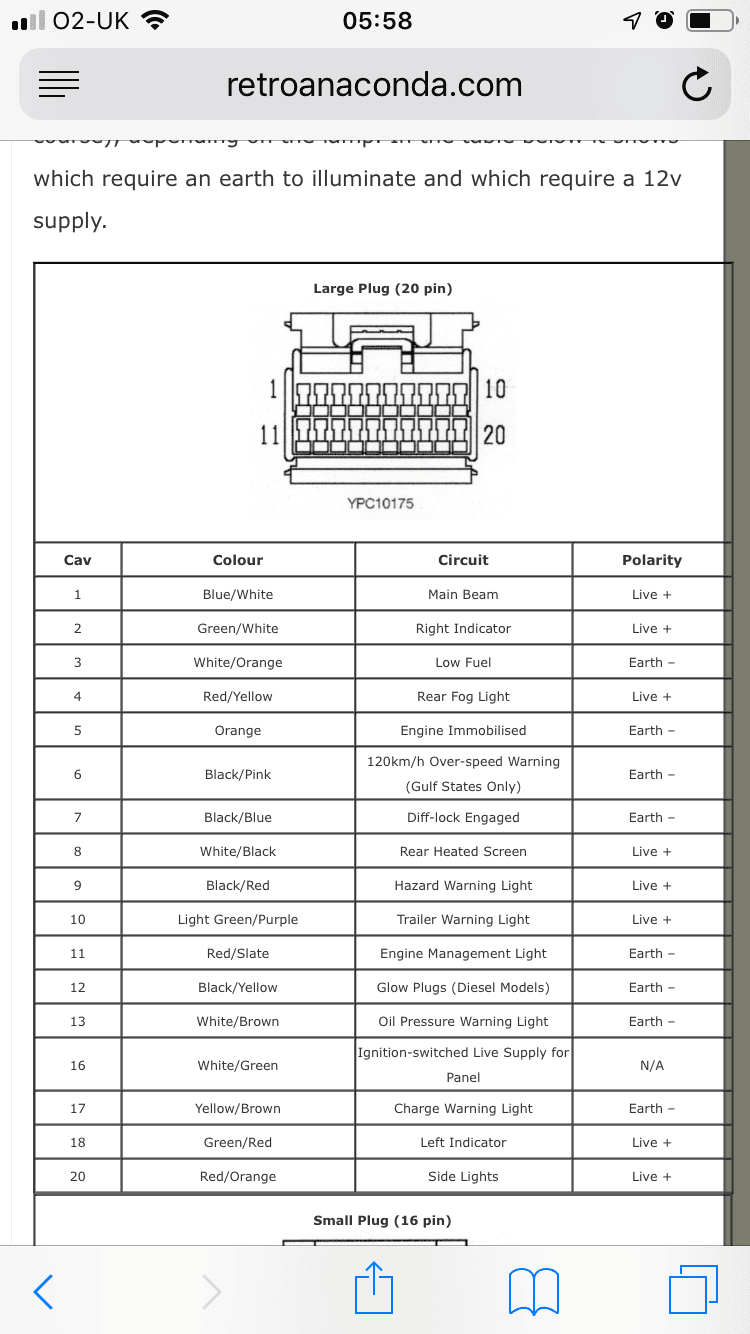

View attachment 175743

Many thanks

Click to expand...

Yes pin 12 from the instruments connects to pin 3, of the 20 pin connector, provided you are using TD5 speedo and Fuel Gauge.
