Snapped bolt

H

hawke113a

Member

Posts

89

• Jan 3, 2022

• #1

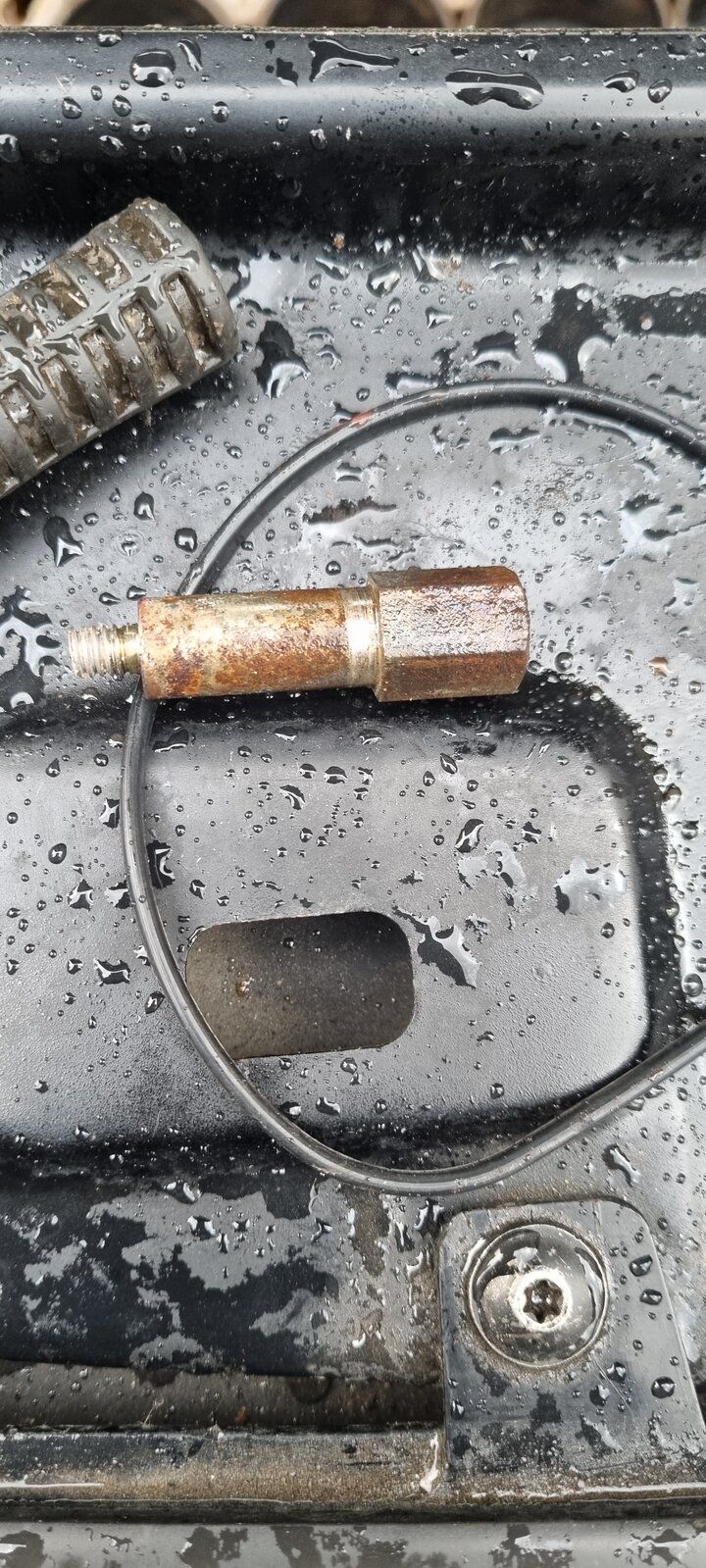

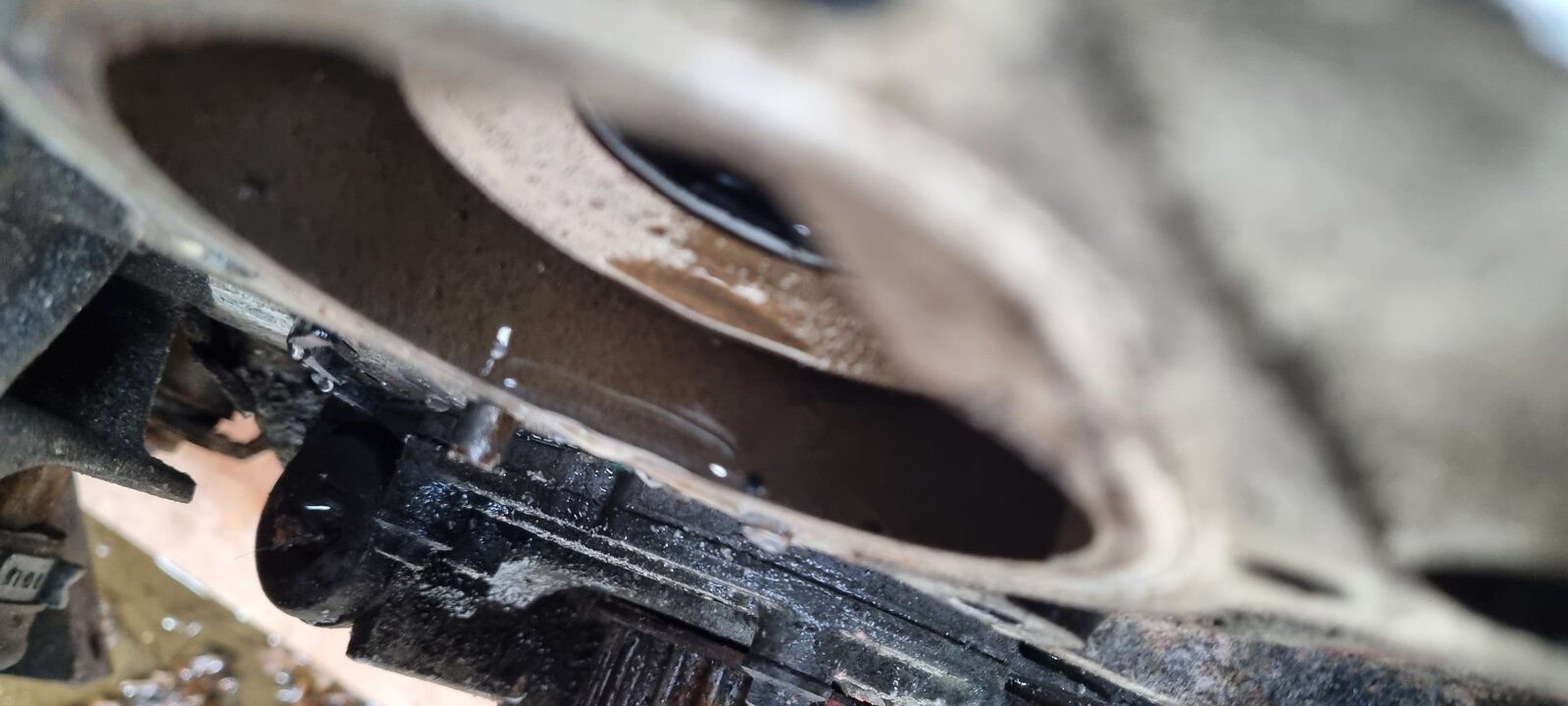

Happy New year guys and gals...I have a slight problem...while changing the water pump,I have snapped the 13mm bolt that holds the tensioner. There is about 7/8 mm protruding from the block. Any ideas on how to remove this please. See the images below...thanks people



Dippypud

Never Knowingly Understood

Full Member

Posts

68,161

Location

The Wooly Witch

• Jan 3, 2022

• #2

hawke113a said:

Happy New year guys and gals...I have a slight problem...while changing the water pump,I have snapped the 13mm bolt that holds the tensioner. There is about 7/8 mm protruding from the block. Any ideas on how to remove this please. See the images below...thanks people View attachment 255859 View attachment 255860

Click to expand...

@Nodge68



Nodge68

Well-Known Member

Posts

32,750

Location

Cornwall

• Jan 3, 2022

• #3

As it's seized in the block, removing it isn't going to be easy. Maybe you can weld a nut to the broken section, which will heat it up, and give you something to turn.



Stv123

Active Member

Posts

483

Location

derbyshire

• Jan 3, 2022

• #4

That’s exactly what I was about to suggest. The heat from the welder normally frees it off completely and it unscrews effortlessly.
Make sure you don’t get weld splatter inside the engine though.



H

hawke113a

Member

Posts

89

• Jan 5, 2022

• #5

Ok guys..i feel such a bellend...after three hours of passing about trying various ways...I decided to welly an old socket onto the stud..and it started to spin...yeah I thought...then it dawned on me...I've only been trying to remove the locater stud for the water pump..not the broken bolt...DOH!!!! So I used my new discovered knowledge and did the same to the real broken bolt...and hey presto it practically fell out....
