tomcat59alan
Well-Known Member
- Posts
- 18,611
- Location
- wirral and triquivijate
P38A Shunty shunty!
- Thread starter Mark Piercy
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 12,660
- Location
- Sud ouest France !

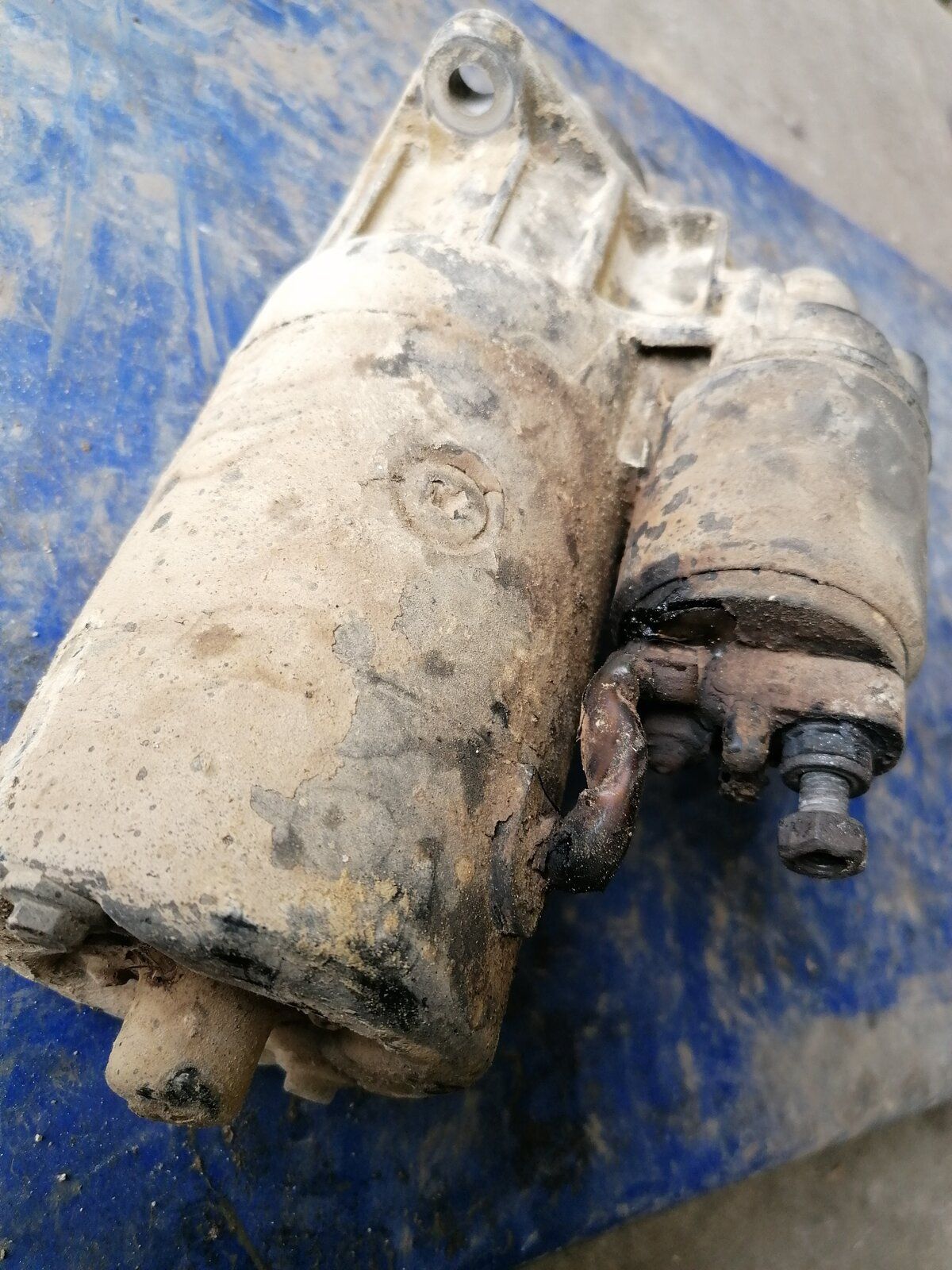

That's what started to burn.. The wire is only charred at the starter end so that's a bonus but the starter is poo...
tomcat59alan
Well-Known Member
- Posts
- 18,611
- Location
- wirral and triquivijate
You got a spare ot is @ risforracing missing his?
Datatek
Well-Known Member
- Posts
- 45,024
- Location
- Near Poitiers SW France
I'm sure Mark has a spare on his scrapper, at least I hope that is the case. If he's stuck I have a spare but 2 hours away from him.
- Posts
- 12,660
- Location
- Sud ouest France !
No spares, the one out of the omega is different configuration...
240€ for a rebuilt Valeo unit. Not bad but I need to verify the BeCM today.
The bus ain't going to England this time...
240€ for a rebuilt Valeo unit. Not bad but I need to verify the BeCM today.
The bus ain't going to England this time...
- Posts
- 12,660
- Location
- Sud ouest France !
I'm getting fed up with the rain, the border patrol, pass sanitaires and electrics.. Plus the guilt of ruining my own landrover....
I might start drinking earlier today.
I might start drinking earlier today.
Datatek
Well-Known Member
- Posts
- 45,024
- Location
- Near Poitiers SW France
I have spare starter motor if you need it Mark. What are you using for transport to the UK?
- Posts
- 12,660
- Location
- Sud ouest France !
Thanks Keith, she's being put to one side for the moment as much as it upsets me to do so. Thanks for your support landyzoners.
Datatek
Well-Known Member
- Posts
- 45,024
- Location
- Near Poitiers SW France
Best option, muddy water may have got into connectors to cause you grief en-route.Thanks Keith, she's being put to one side for the moment as much as it upsets me to do so. Thanks for your support landyzoners.
- Posts
- 12,660
- Location
- Sud ouest France !
Yep. Very good reasoning..
- Posts
- 19,309
- Location
- Buckinghamshire, UK. ('95 DT)
Shorted?
- Posts
- 19,309
- Location
- Buckinghamshire, UK. ('95 DT)
They're cheap in the UK. All the diesels are the same. The v8 is Lucas instead of Bosch and I think it fits the auto (although it doesn't line up quite as well) but it won't fit the manual diesel as there's a bracket in the way. Classic Rides North Wales might have one at a reasonable price but insist on the Bosch right at the start.
brianp38dse
Well-Known Member
- Posts
- 20,094
- Location
- heathrow
Will one out of a bmw with the same engine do, i am sure @RangeRoller dt fitted one to his. and should be easy to get.
Jon Dor
Well-Known Member
- Posts
- 1,672
- Location
- Beverley, East Riding of Yorkshire
Contact William in Lincoln. He's my go-to guy for all things P38.
Nationwide & International delivery.
I'm certain he'll have a tested one in stock.
Get him on: +447903-167575 Tell him Mike King has recommended him to you.
I'm NOT on commision, just like to see a good guy succeed.
- Posts
- 12,660
- Location
- Sud ouest France !
I've got a Hella rebuilt unit lined up, the real test is the BeCM first. She's been left to sulk for 10days while we come to blighty. Thank you for the ideas guys
RangeRoller dt
Well-Sprung Member
- Posts
- 14,413
- Location
- Trapped inside my head @ LZ asylum
starter motor? Yes I had one from a 525 bmw and it did a good job. That’s the one I sprayed blue. Be easier to source and cheaper than the ones in a JLR box. Grrr has the bimmer alternator so that’s same too.
Decided before ordering a new starter motor to investigate the one already on the vehicle first.

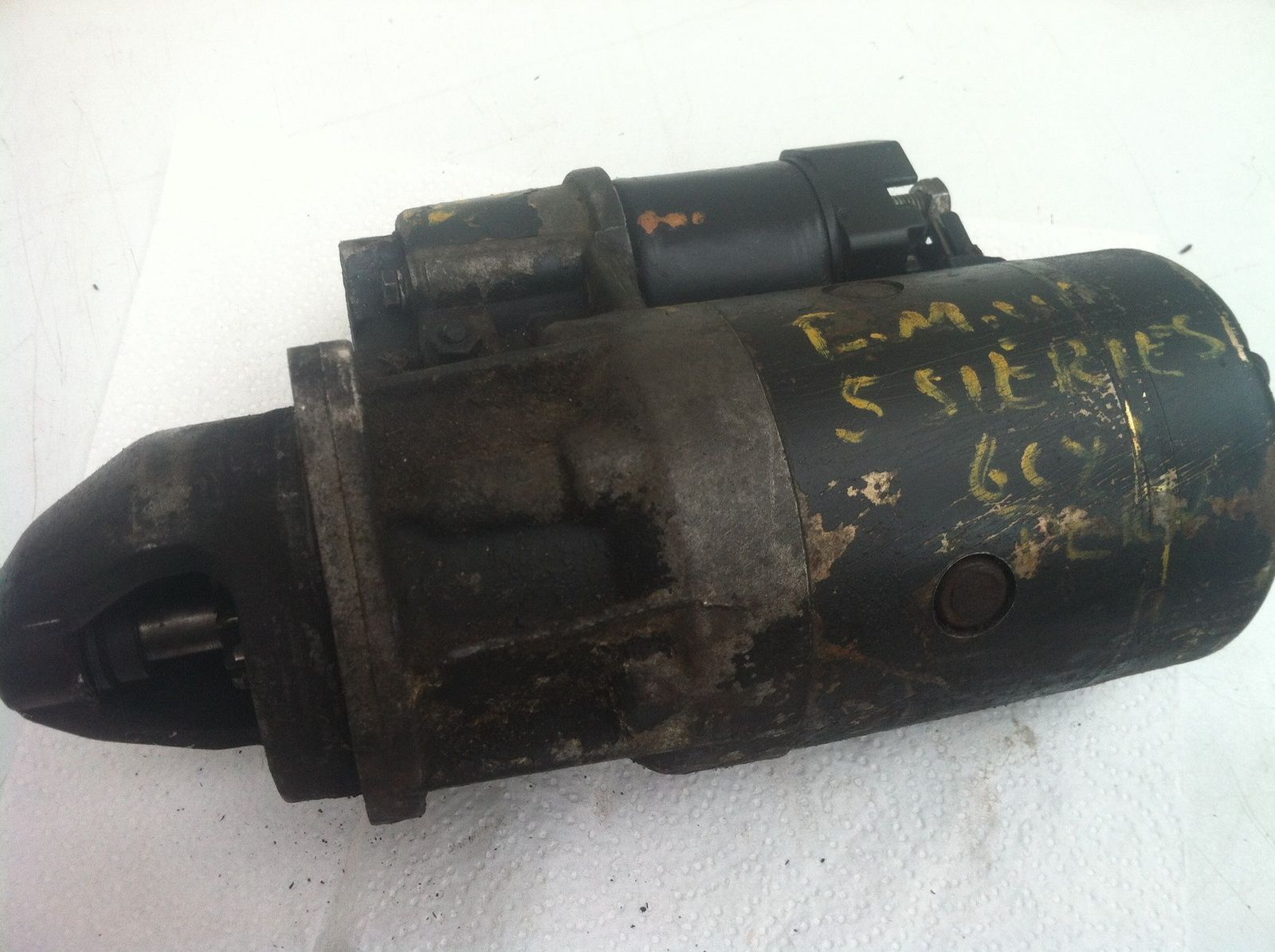

View attachment 172195
Its a BMW 5 series scrappy job
Stripped it down completely and it was in hell of a state but all there. All I needed was a 10mm + 12mm spanner, flat head screwdriver wire brush and few rags. Use contact cleaner if you have it.
Had 1/4 bucket crap out of there and some parts of the commutator were broke.
Brushes were worn unevenly so rearranged and glued broken plastic retainers, cleaned it all up including external contacts, reassembled gearing with fresh grease in gears, shafts and solenoid arm.

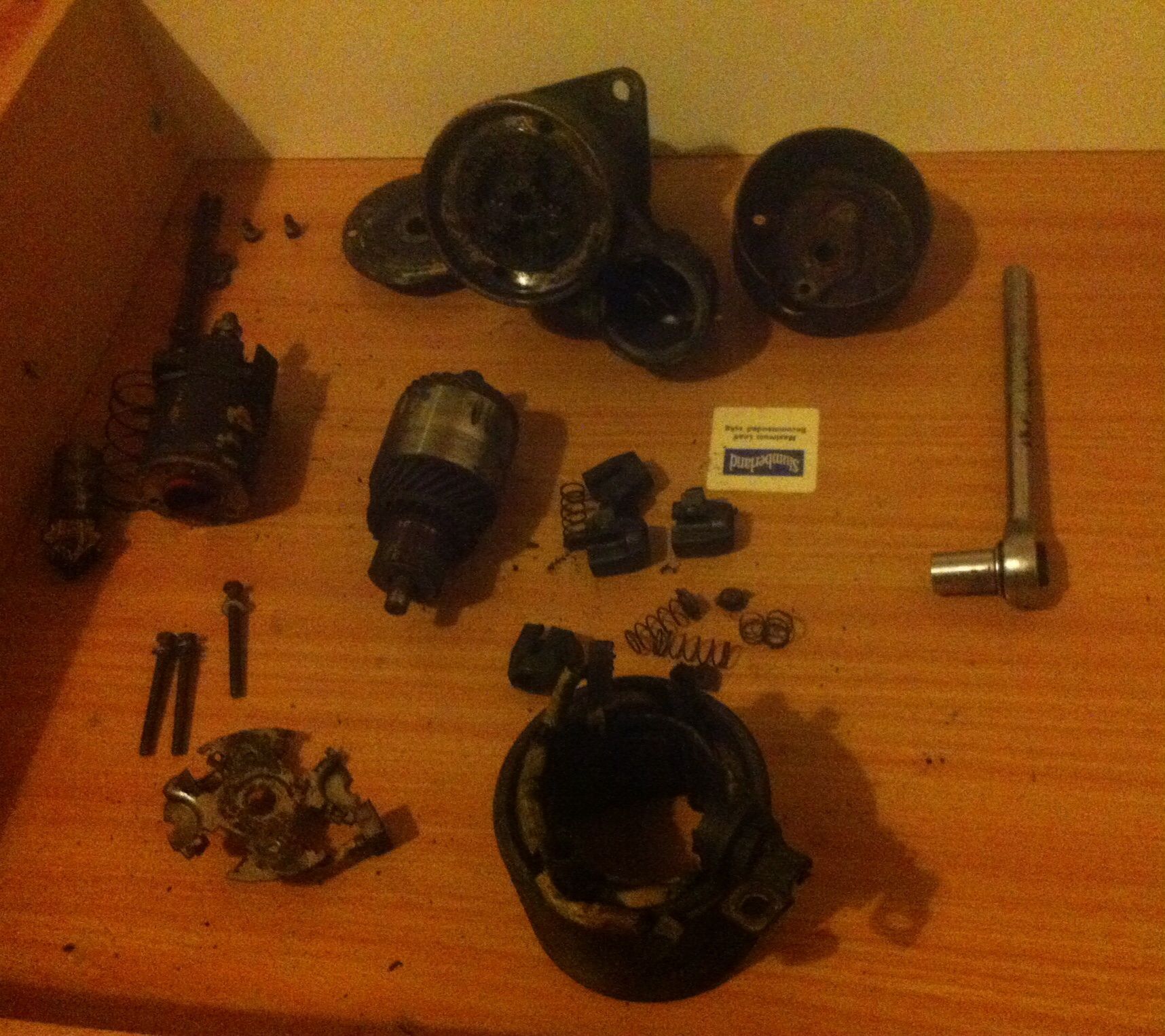

This is it mostly disassembled with most of the crap off but still black and rusty.
View attachment 172196
It went together bit worn but clean & shiny. I didn't have contact cleaner so substituted little brake/clutch cleaner. now starts better than ever, really has some go in it
I'm not a mechanic, engineer or horologist, haven't done this before and don't even own a complete socket or spanner set, just odd ones
I would advise to atleast try this before buying new unit ; if you c*ck it up or it's past repair you will just buy a new unit anyway. This saved me best part of £100 and got my vehicle running next day. It really was alot easier than I anticipated.
tomcat59alan
Well-Known Member
- Posts
- 18,611
- Location
- wirral and triquivijate
RangeRoller dt
Well-Sprung Member
- Posts
- 14,413
- Location
- Trapped inside my head @ LZ asylum
- Posts
- 4,668
- Location
- Rotherham
eeee them were day, I remembered it every time I see sand in the car, got a new gearbox out of it, the sand ground it down after a few weeks, only THEN did someone tell me about the PLUG!!! (Or lack of)Lucas fix caused me some problems a year or two ago so the box was drained and refilled a few times to clear it out. Anyhow.....
That's the least of my worries... @Dopey... View attachment 258999 View attachment 259000
It almost caught fire as everything was running, opening shutting and over heating... I had to go in and pull the battery lead... Thanks landrover the feeble battery connections... A stupid move of not checking the water...
I'm not fûcking angry at myself... Honestly
