Series 2 won’t start! Please help xx

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
O

Out of her depth !

New Member
Posts
5
Hello everyone,

I’ve joined this forum hoping that people are a bit kinder than than the Facebook landy forums…! So I don’t know the technical terms for anything so please bear with me 🙏

Hoping for some help with a 1974 series two that won’t start…. It turns over but doesn’t spring into action. I’ve put some fuel in today and will charge the battery but can anyone offer any other help please!

Thank you !

Don’t worry we’re all lovely here 😇, is it the petrol or diesel original engine
When did it last run, have you done anything recent to it
What checks have you done so far

Are you sure it is a series 2? I ask as I thought s3 production started in early 70s?

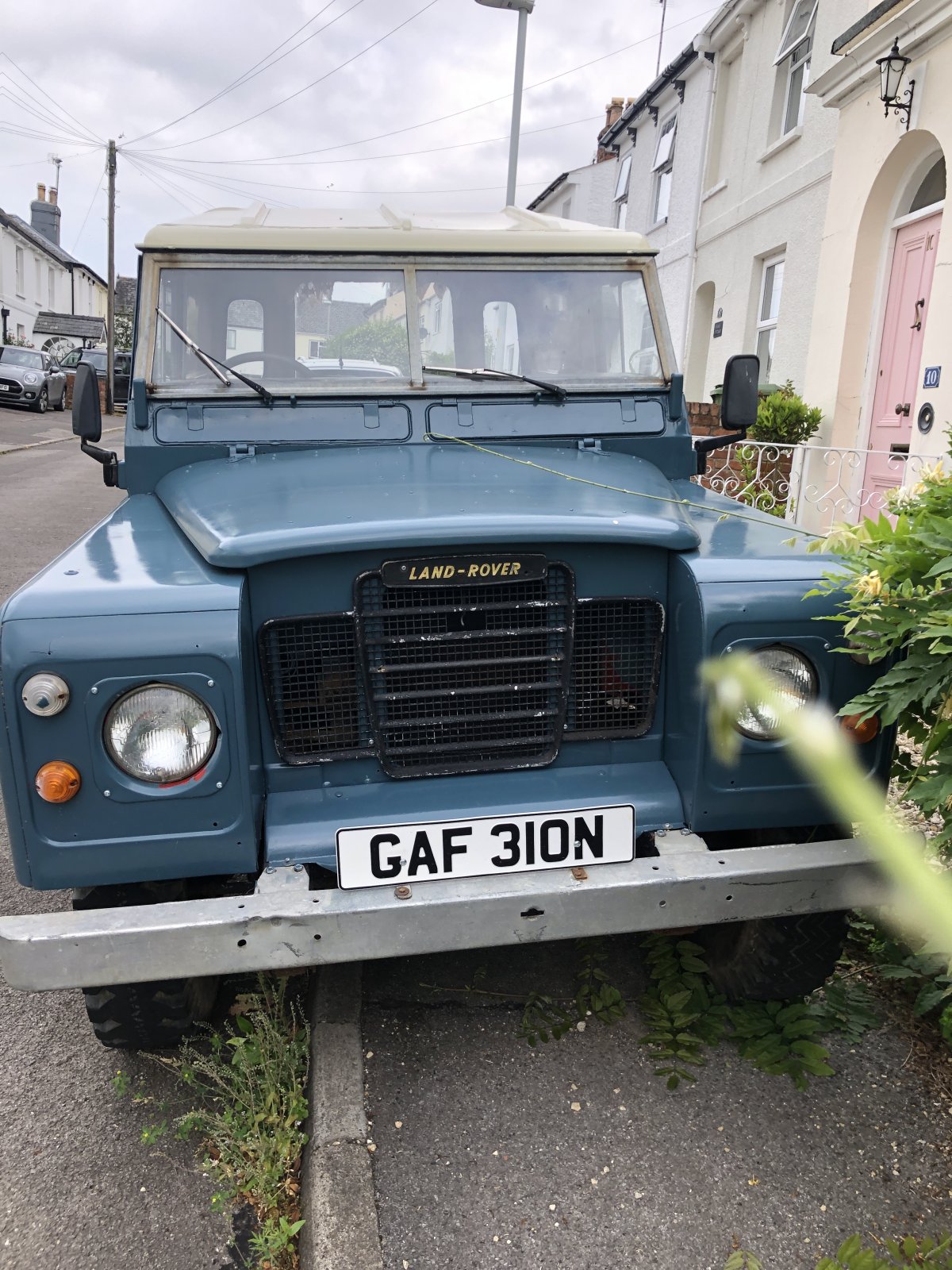

Picture might help.

If it is a petrol is it sparking?

If it is a diesel is the stop cable pushed in?

Out of her depth ! said:
Hello everyone,

I’ve joined this forum hoping that people are a bit kinder than than the Facebook landy forums…! So I don’t know the technical terms for anything so please bear with me 🙏

Hoping for some help with a 1974 series two that won’t start…. It turns over but doesn’t spring into action. I’ve put some fuel in today and will charge the battery but can anyone offer any other help please!

Thank you !
Click to expand...
Forums are always better than stalkerbook
Welcome to the asylum


It’s a petrol.
It’s been in the garage for 8 months 😩😳
There was some gunk in what looked like a glass shot glass which I cleaned out , undid the fuel pipe to see if when I started it up the fuel would come out but it doesn’t ..

I’m so sorry for my ignorance. Ive always wanted to do up a Land Rover but it really is a starting / learning from complete scratch

Out of her depth ! said:
It’s a petrol.
It’s been in the garage for 8 months 😩😳
There was some gunk in what looked like a glass shot glass which I cleaned out , undid the fuel pipe to see if when I started it up the fuel would come out but it doesn’t ..

I’m so sorry for my ignorance. Ive always wanted to do up a Land Rover but it really is a starting / learning from complete scratch
Click to expand...
That's the fuel lift pump, if you disconnect the outlet side when the engine is turning over fuel should them squirt out.
It's possible it's knackered or the fuel line in and from the tank is blocked.
You could use a fuel can as a temp petrol tank, run a pipe from can to the lift pump and operate the lift pump lever to see if it pumps fuel through.
Be careful not to burn your landy to the ground!

Have a look for the series 3 workshop manual

Land Rover Manuals

smithies.co.nz smithies.co.nz

Could be a pipe blockage too in tank so remove pipe from top of tank to see if end gauze is blocked
If lever does not work properly and pump the fuel through you may need to rotate engine 1/2 a turn
