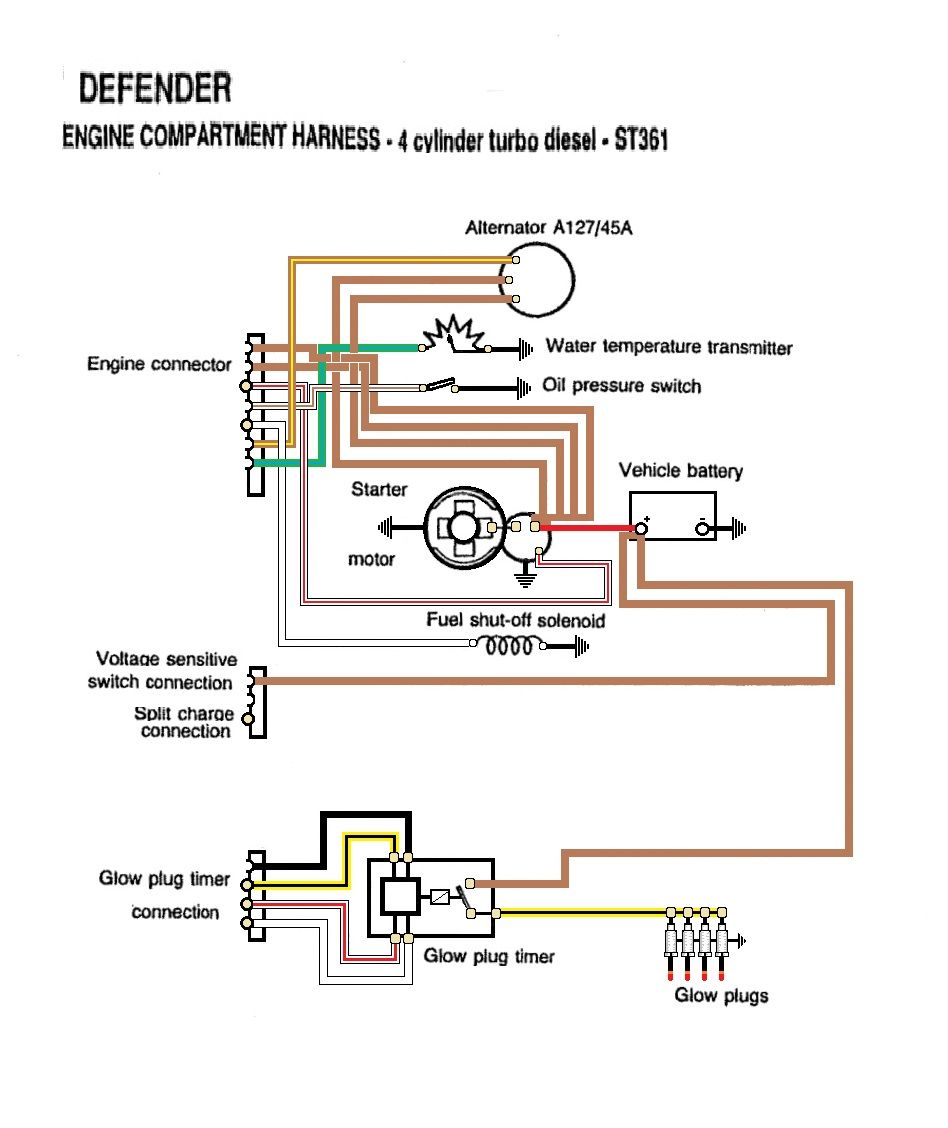

Cheers Mate, My alternator is Knackered waiting for another one but will get pics of it later.So all of N2(both ring conectiers)goes on the starter with a main live feed from the battery
Yes both can be connected from N3. The small cable is the exciter cable.

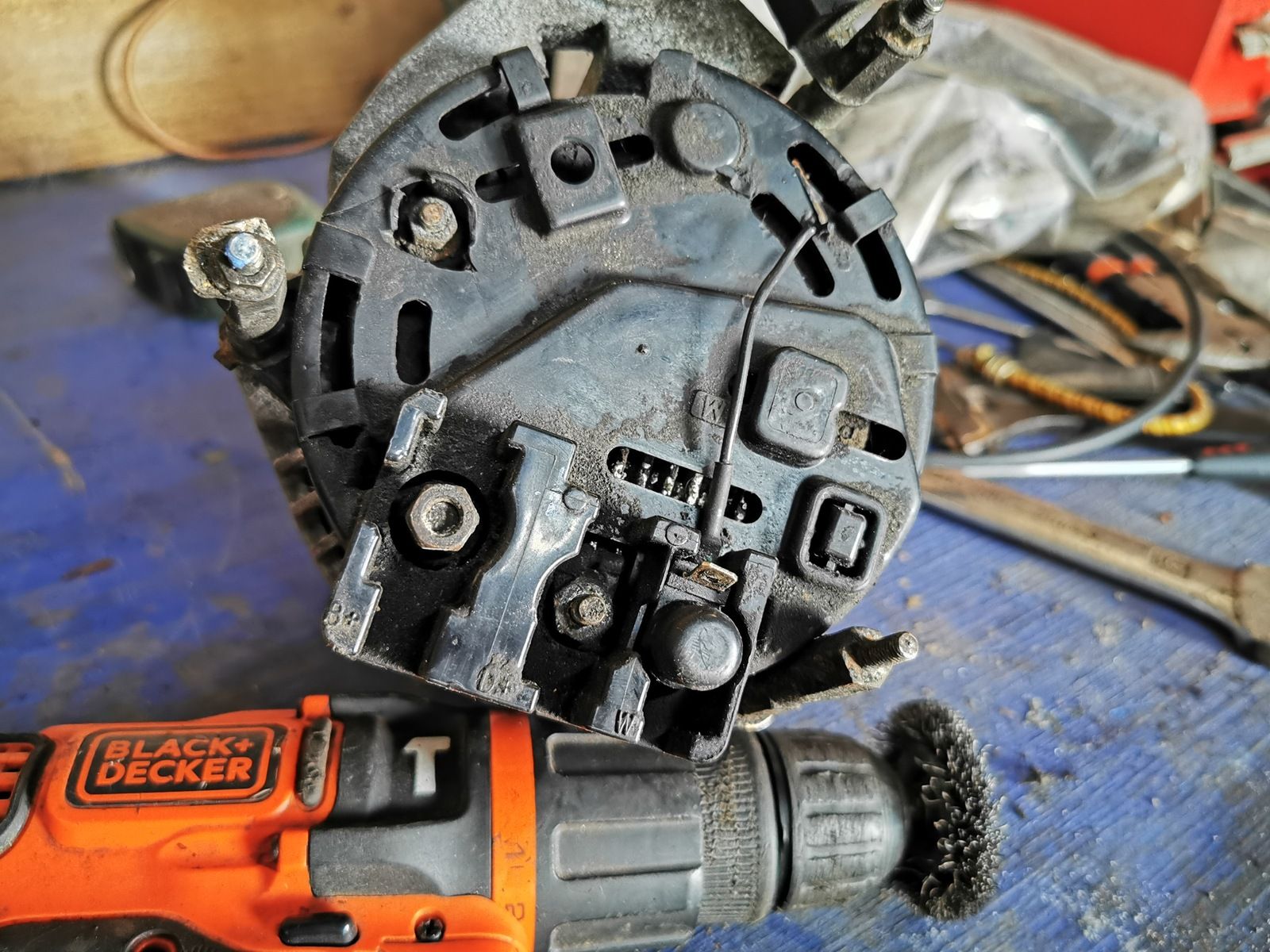

What does the rear of the alternator look like?
Photo may help with my brain remembering where they go

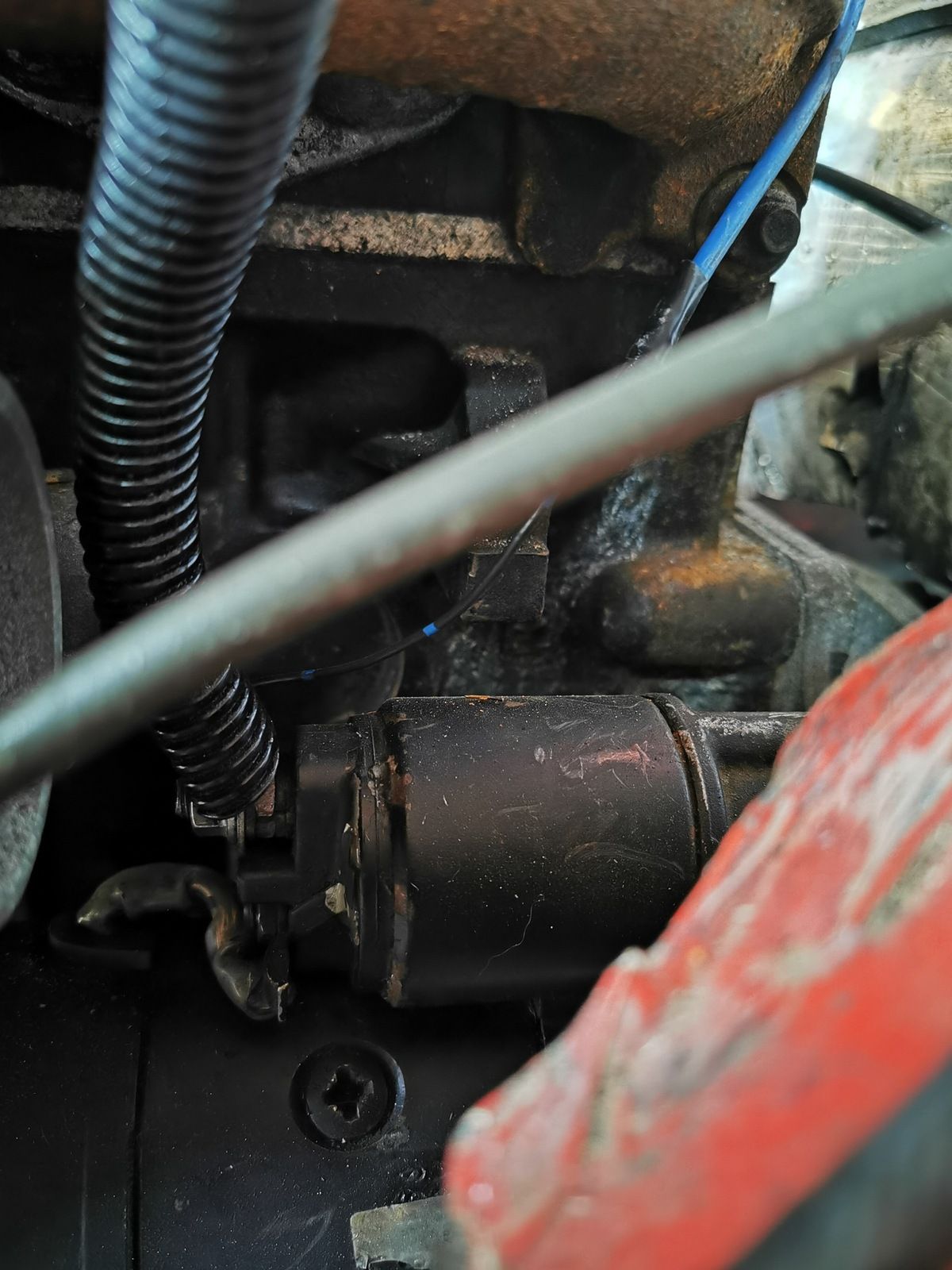

Also while you can get to the starter bolts out an earth there

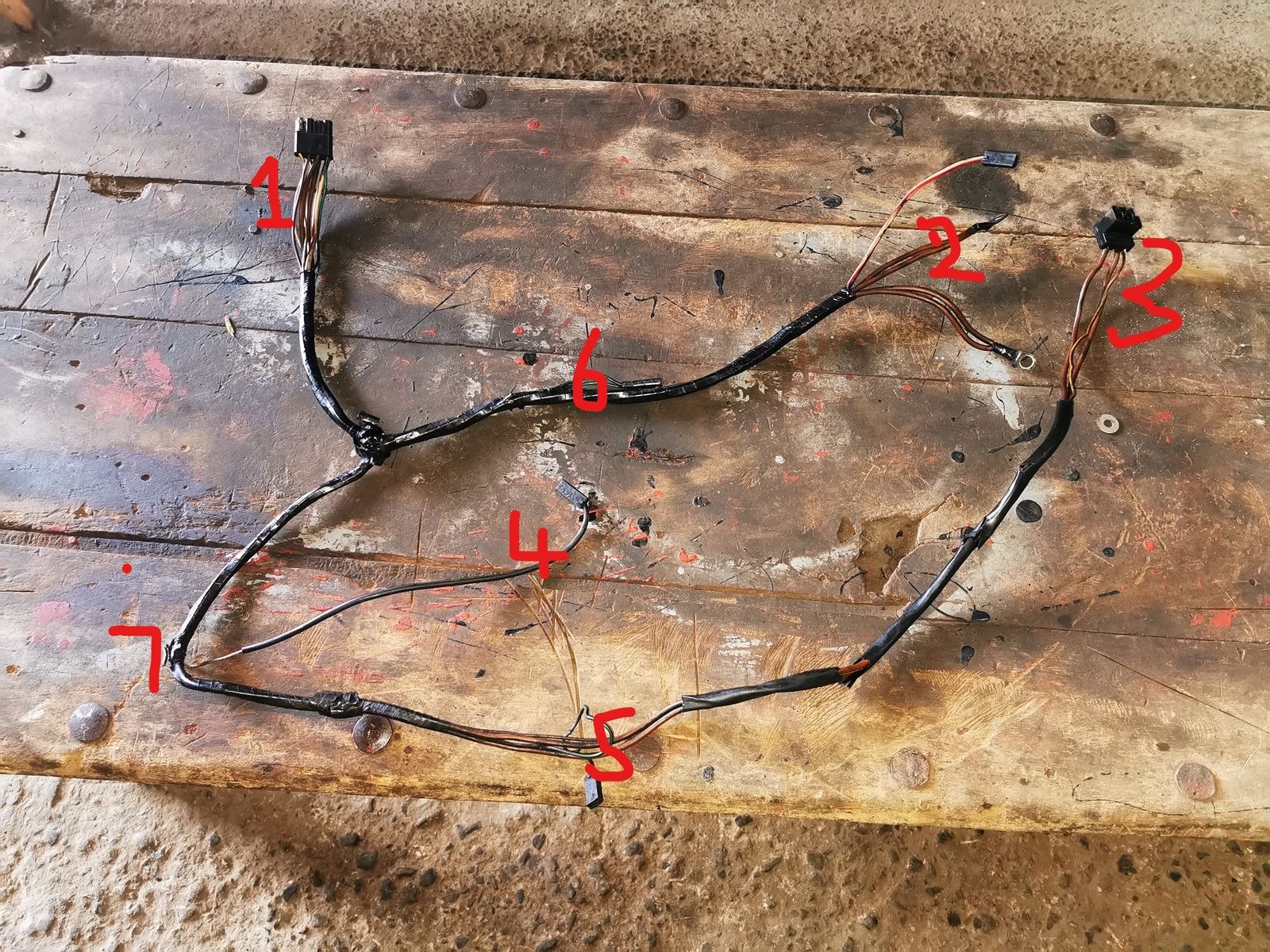

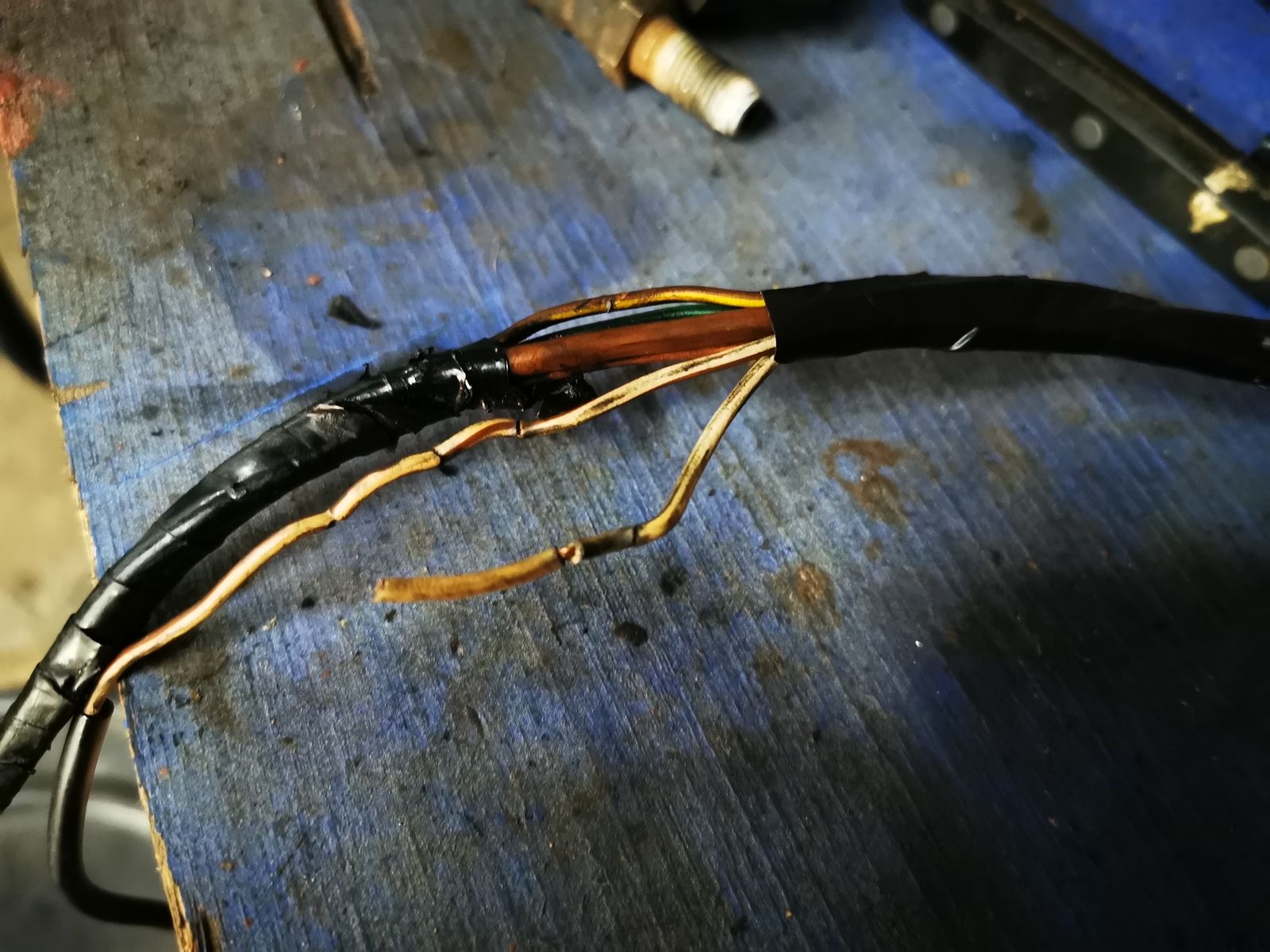

So both ring terminals with 2 brown wires on each to main terminal on Starter in pic. Pic of knackered Alt waiting for better one, I have already got good thick earth from starter bolt to Chassis.So all of N2(both ring conectiers)goes on the starter with a main live feed from the battery
Yes both can be connected from N3. The small cable is the exciter cable.
What does the rear of the alternator look like?
Photo may help with my brain remembering where they go
Also while you can get to the starter bolts out an earth there

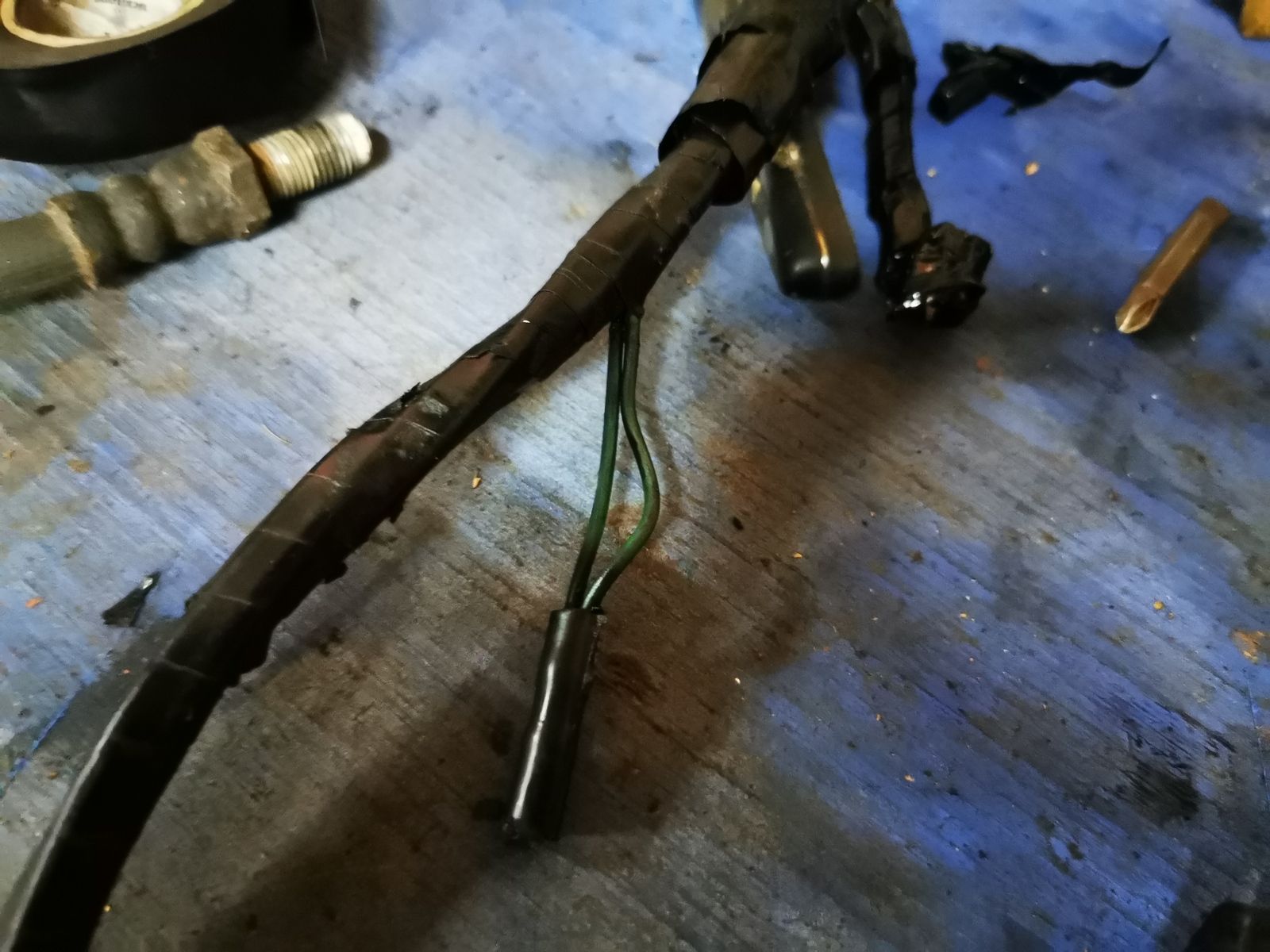

There is a

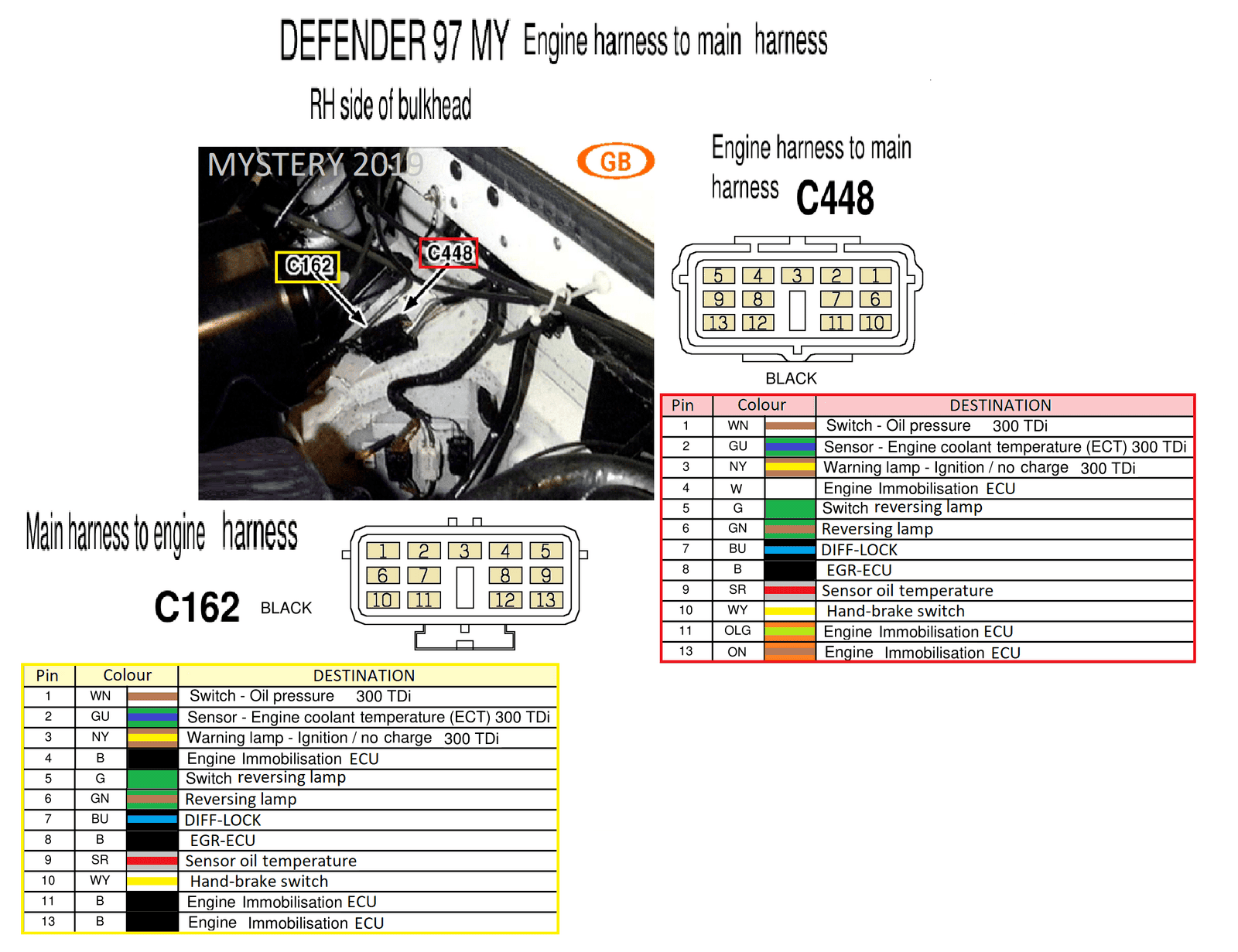

Only Connectors I can find on that side is The one on Injection Pump and one on Oil Filter Housing, both Spade
