Refitting fuel tank
- Thread starter bluehaze
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Pikey
Dummy Ejection Facilitator..
- Posts
- 47,185
- Location
- in Baron Wet Bum's Slave pit..
Is there a special way to fix the two rear mounting bolts?
Was considering putting another nut on whilst I can get at them with the tank off.
What on??
Pikey
Dummy Ejection Facilitator..
- Posts
- 47,185
- Location
- in Baron Wet Bum's Slave pit..
So presuming a 110 then. if ya dunt state model no one know which tank as they're all different. I suppose you could drop the bolts down thru the craossmember and weld them in place. then lift tank up to meet them.
Pikey
Dummy Ejection Facilitator..
- Posts
- 47,185
- Location
- in Baron Wet Bum's Slave pit..
Aye 90 tank is under drivers seat.
On the 110 & 130'a theres 2 studs on the tank and a bracket with a single bolt thru it.one 1 side and 2 bolts with a square plate attached that pass thru the tank on the other
On the 110 & 130'a theres 2 studs on the tank and a bracket with a single bolt thru it.one 1 side and 2 bolts with a square plate attached that pass thru the tank on the other
bustersbus
Well-Known Member
- Posts
- 13,755
- Location
- Near Dumfries, Scotland

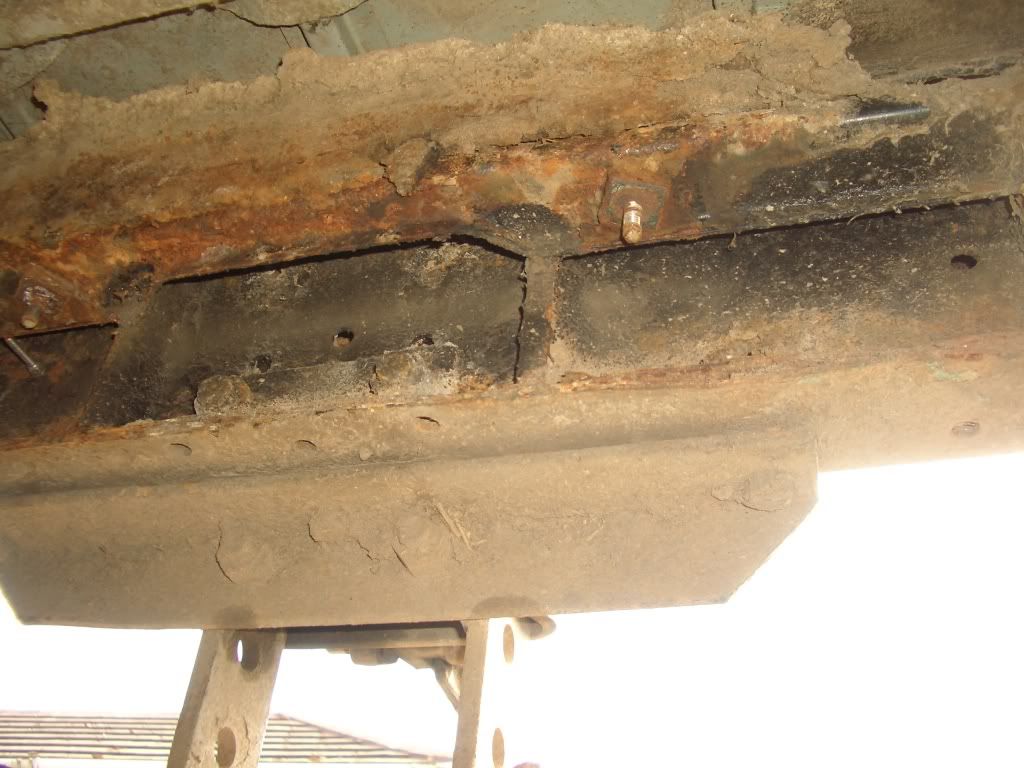

Here's a photie of the two studs at the rear cross member....
The front two are just bolts that fit through the bracket on chassis and fuel tank. Looks like there seems to be a square lockin' nut on there.
Hmmm, ah thought ah did a how to on doin' the tank.... must've forgot!
Oh well, maybe ah'm just spoutin' crap
The front two are just bolts that fit through the bracket on chassis and fuel tank. Looks like there seems to be a square lockin' nut on there.
Hmmm, ah thought ah did a how to on doin' the tank.... must've forgot!
Oh well, maybe ah'm just spoutin' crap
Last edited:
bustersbus
Well-Known Member
- Posts
- 13,755
- Location
- Near Dumfries, Scotland

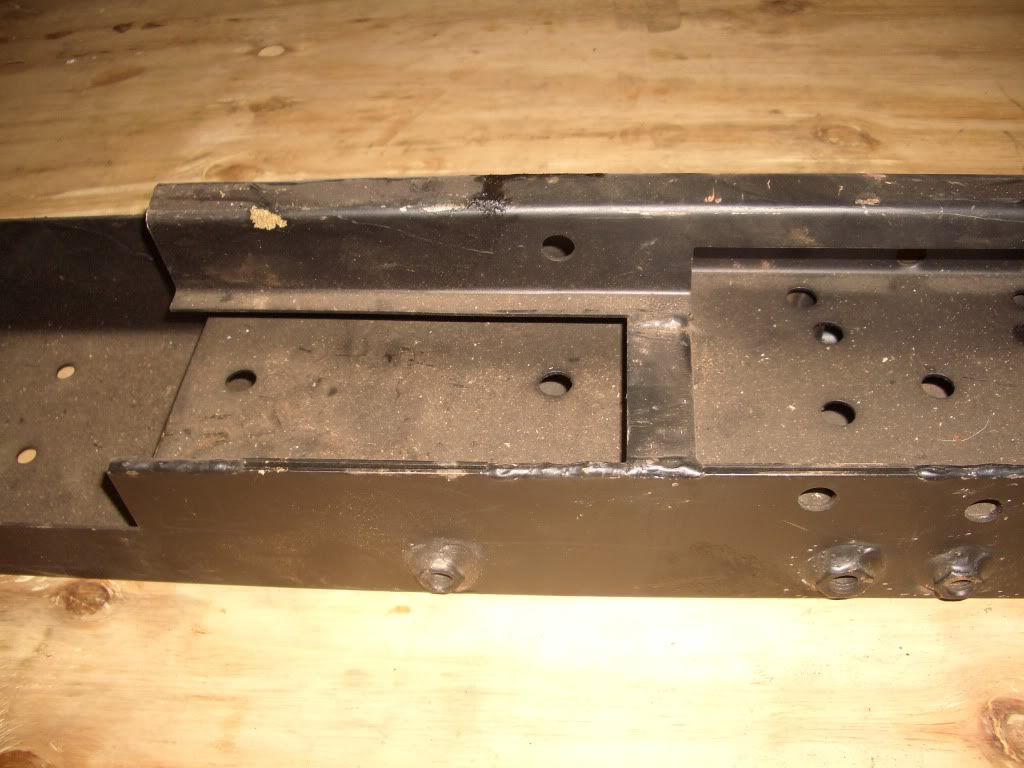

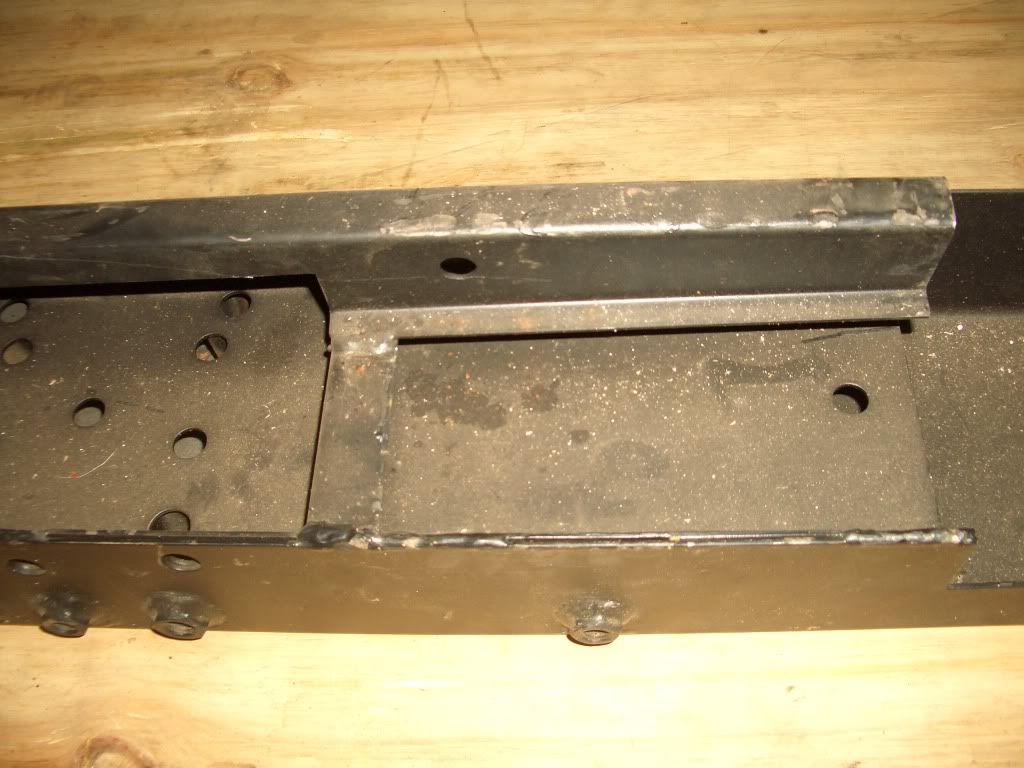

Just checked on the replacement crossmember to see if it came with the studs or not......
... and it doesn't. Ah'd just stick a bolt through and get a couple of them square nuts
... and it doesn't. Ah'd just stick a bolt through and get a couple of them square nuts
Sorted,
Mine are missing those square nuts - one of the previous owners had used wire to lock them off, which promptly snapped this morning. 4hrs later they were undone!
I'll put a nut on them now.
Took the opportunity to clean the chassis - couple of bits need welding (mates coming around in two weeks with his welding kit) - and hammerited it. The rebuild has started............:doh:
Mine are missing those square nuts - one of the previous owners had used wire to lock them off, which promptly snapped this morning. 4hrs later they were undone!
I'll put a nut on them now.
Took the opportunity to clean the chassis - couple of bits need welding (mates coming around in two weeks with his welding kit) - and hammerited it. The rebuild has started............:doh:
bustersbus
Well-Known Member
- Posts
- 13,755
- Location
- Near Dumfries, Scotland
Aye ah took the chance to clean everything up and paint it all when the tank was out mesel'. Luckilly there wasn't any welding to be done
There is a bit of welding to be done but it's underneath the 2nd row floor. Also two of the floor support cross pieces were knackered - then again so was the aluminium floor.
Just need this cold weather to f*kc off so we can get on with the spraying again.
The TD5 bulkhead is now ready for spraying - thanks for the help Bustersbus.
Just need this cold weather to f*kc off so we can get on with the spraying again.
The TD5 bulkhead is now ready for spraying - thanks for the help Bustersbus.
bustersbus
Well-Known Member
- Posts
- 13,755
- Location
- Near Dumfries, Scotland
Did ye end up doin' any mods to the bulkhead mate.... like mountin' the fuel filter housin', blankin' off the big hole in the passenger footwell amongst a couple of other things?
Not really mate, the gear box tunnel lined up with the TD one perfectly. Had to fit two rivnuts for the fuel pump and decided to seperate the wiring rather than drill the 30mm hole. Also, as it came complete with dash and wipers, the old ones will not be getting used.
Bonus.....
Bonus.....
bustersbus
Well-Known Member
- Posts
- 13,755
- Location
- Near Dumfries, Scotland
Just had a quick look in the parts cat. and this is what should be holdin' the rear of the tank on.....
NTC2681 BOLT PLATE | shop | www.lrseries.com | L. R. Series
This is the square nut.....
NTC2837 SPACER REAR TANK MTG | shop | www.lrseries.com | L. R. Series
'Kinell! thur no cheap!!! Ah dare say there'll be an alternative type thing
NTC2681 BOLT PLATE | shop | www.lrseries.com | L. R. Series
This is the square nut.....
NTC2837 SPACER REAR TANK MTG | shop | www.lrseries.com | L. R. Series
'Kinell! thur no cheap!!! Ah dare say there'll be an alternative type thing
bustersbus
Well-Known Member
- Posts
- 13,755
- Location
- Near Dumfries, Scotland
Shifty1962
Well-Known Member
- Posts
- 4,209
- Location
- The Winchester Club - Englandshire
My 90's tank is behind the rear x member. The ECU etc. is under the drivers seat.
Pikey
Dummy Ejection Facilitator..
- Posts
- 47,185
- Location
- in Baron Wet Bum's Slave pit..
My 90's tank is behind the rear x member. The ECU etc. is under the drivers seat.
Yu must have one of them posh TD5 things then that's a defender 90 not a 90. :doh:
Shifty1962
Well-Known Member
- Posts
- 4,209
- Location
- The Winchester Club - Englandshire
Oh yeah. I forgot. :doh::doh::doh:
