Rebuild upgrades and advice

Turboman · Apr 10, 2021

88"Landy said:
Thanks, every bolt so far has snapped but it's probably a good thing. I will make a decision on the bulkhead when it's stripped but, it looks really bad there doesn't look like there is much left.

On an old vehicle, I don't worry too much about undoing fasteners, just break them off, or cut them off.
New ones on assembly, and grease them up with Copper slip, so that you can undo them again if needed.

88"Landy · Apr 10, 2021

Is copper slip the best thing to use or is there some new modern greasy stuff?

Turboman · Apr 10, 2021

88"Landy said:
Is copper slip the best thing to use or is there some new modern greasy stuff?

Some use aluminium paste now, because Copperslip can contain traces of arsenic. I lived for 25 years in a house built on a massive pile of arsenical mine spoil, so I don't worry about it too much.

lynall · Apr 10, 2021

Stainless is lovely, but the way it can gaul up really annoys me!
If you use stainless any grease will certainly help.

I have loats of stainless on my s2, many I have removed a few times for repairs etc, all come out with no issues and no corrosion, but as said above all were greased when fitted.

Normal bolts with grease will last well.

If the car is to live under cover then it will last many years no matter what bolts you use.

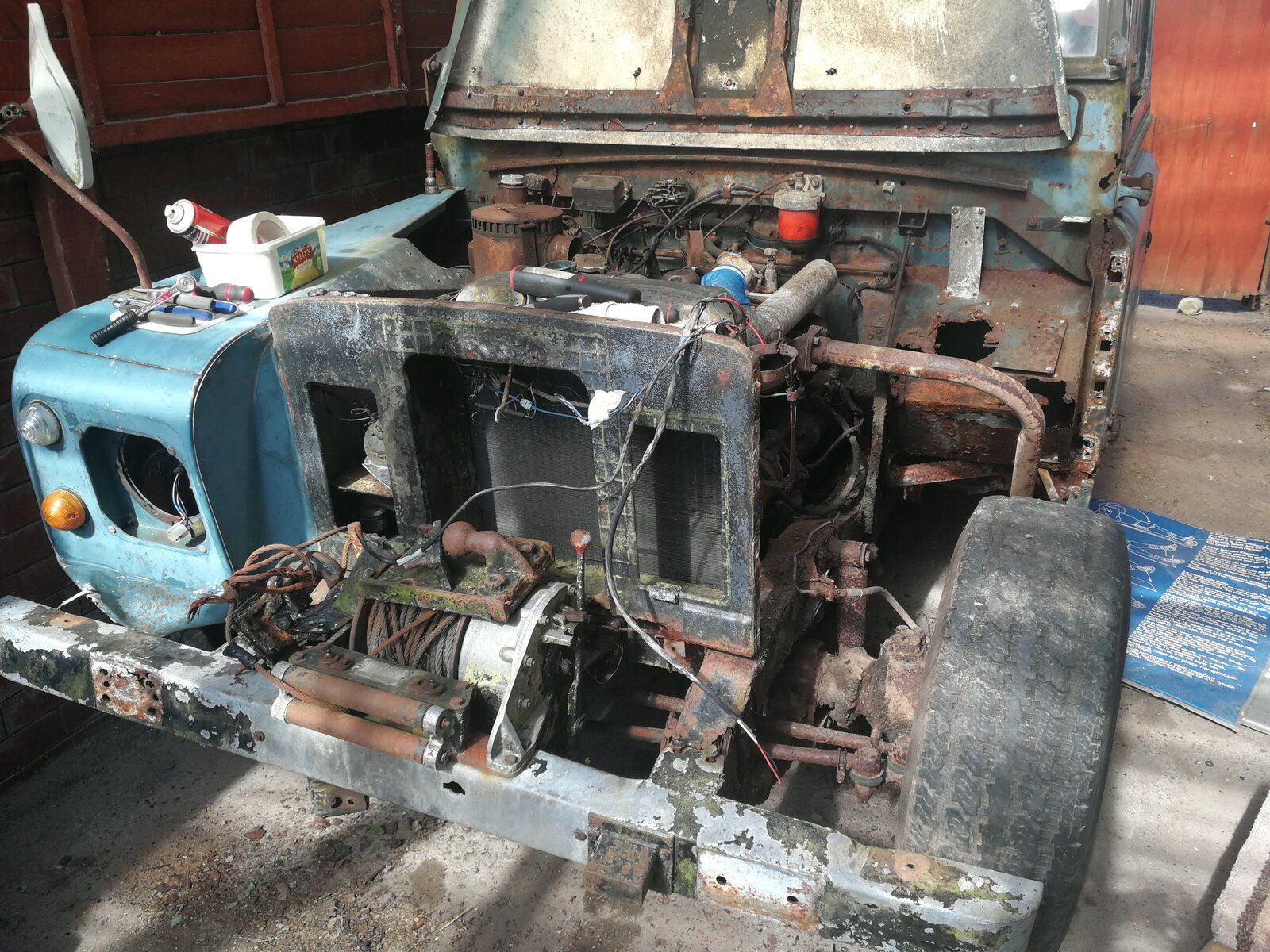

Ps nice winch, has the thinner support bracket broken? if not its then a very rare winch.

88"Landy · Apr 10, 2021

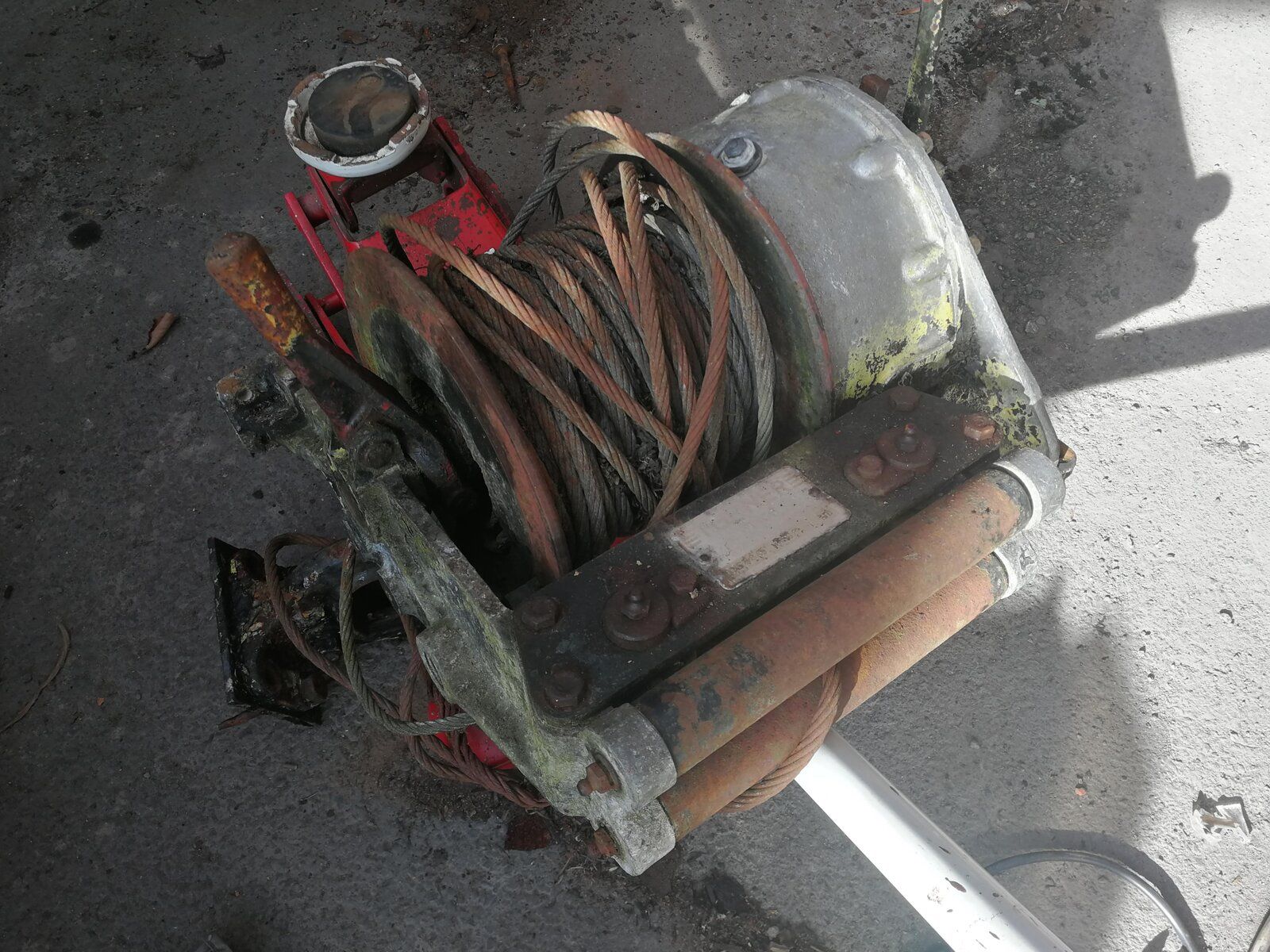

Hi, it's a Turner winch I think. The only thing missing is the drive shaft to the front pulley. I don't think I will be refitting it because its really heavy.

lynall · Apr 10, 2021

88"Landy said:
Hi, it's a Turner winch I think. The only thing missing is the drive shaft to the front pulley. I don't think I will be refitting it because its really heavy.

Yes Turner, if that support bracket is not broken they are worth a few quid, weigth is not really an issue with a series, they are slow no matter what you do!

Google LRWinches to see what some of his winches are listed for, you wont get that money in the UK but its a decentish guide.

lynall · Apr 10, 2021

Scroll right down to the last winch.

http://www.mywinch.com/emag/WinchesHistory.htm

88"Landy · Apr 10, 2021

lynall said:
Yes Turner, if that support bracket is not broken they are worth a few quid, weigth is not really an issue with a series, they are slow no matter what you do!

Google LRWinches to see what some of his winches are listed for, you wont get that money in the UK but its a decentish guide.

OK thanks for the info, that does look like the same one. What support bracket do you mean?

88"Landy · Apr 10, 2021

Marmaduke said:
If it's structural I wouldn't used stainless as it can be brittle. If it were me I'd try to get it running before you strip it

Hi, thanks for rour comments I haven't started it but maybe I will try.

lynall · Apr 10, 2021

88"Landy said:
OK thanks for the info, that does look like the same one. What support bracket do you mean?

The cast spindly one drivers sides.

88"Landy · Apr 10, 2021

lynall said:
The cast spindly one drivers sides.

Yes all of that is OK.

Turboman · Apr 11, 2021

88"Landy said:
Hi, thanks for rour comments I haven't started it but maybe I will try.

Try and start it, or at least wind it over a bit, check for seizure and nasty noises.
That way, if you need lots of engine works, you can be doing that at the same time as you are working on the rolling chassis.

Blackburn · Apr 11, 2021

This company makes great bulkheads
http://www.landroverbulkhead.co.uk/our-bulkheads.html

Turboman · Apr 11, 2021

Blackburn said:
This company makes great bulkheads
http://www.landroverbulkhead.co.uk/our-bulkheads.html

Like the look of those, and the prices look good. I would be more comfortable with painted than galv, to be honest, because galv is quite difficult to paint properly.

88"Landy · Apr 12, 2021

Blackburn said:
This company makes great bulkheads
http://www.landroverbulkhead.co.uk/our-bulkheads.html

Thank you. Have you bought one?

Blackburn · Apr 12, 2021

88"Landy said:
Thank you. Have you bought one?

.
No saw them displayed at Leafers at the pit a couple of years bck at the time they where only making the series 3 one after discussion with Series 2 club they now make series 2 as well have heard no complaints at all.
I bought a second hand one spent months repairing it then getting shotblasted and galvanised . fitted it in 2010 I do get some paint lifting but that was because I only etch primed than painted apparently I should have T washed it 1st which attacks the zinc a little to give the etch primer a better bond.

88"Landy · Apr 12, 2021

Hi,

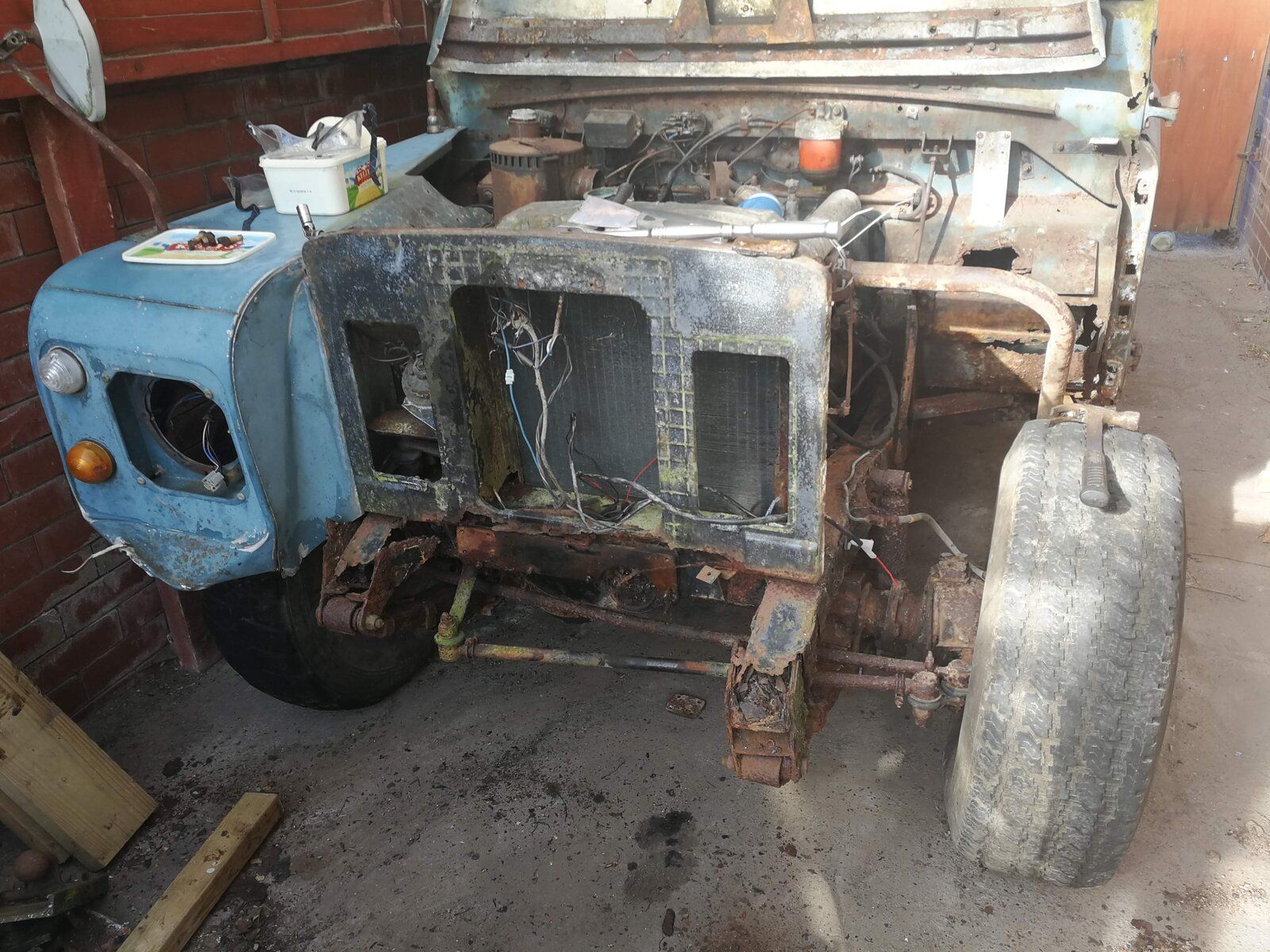

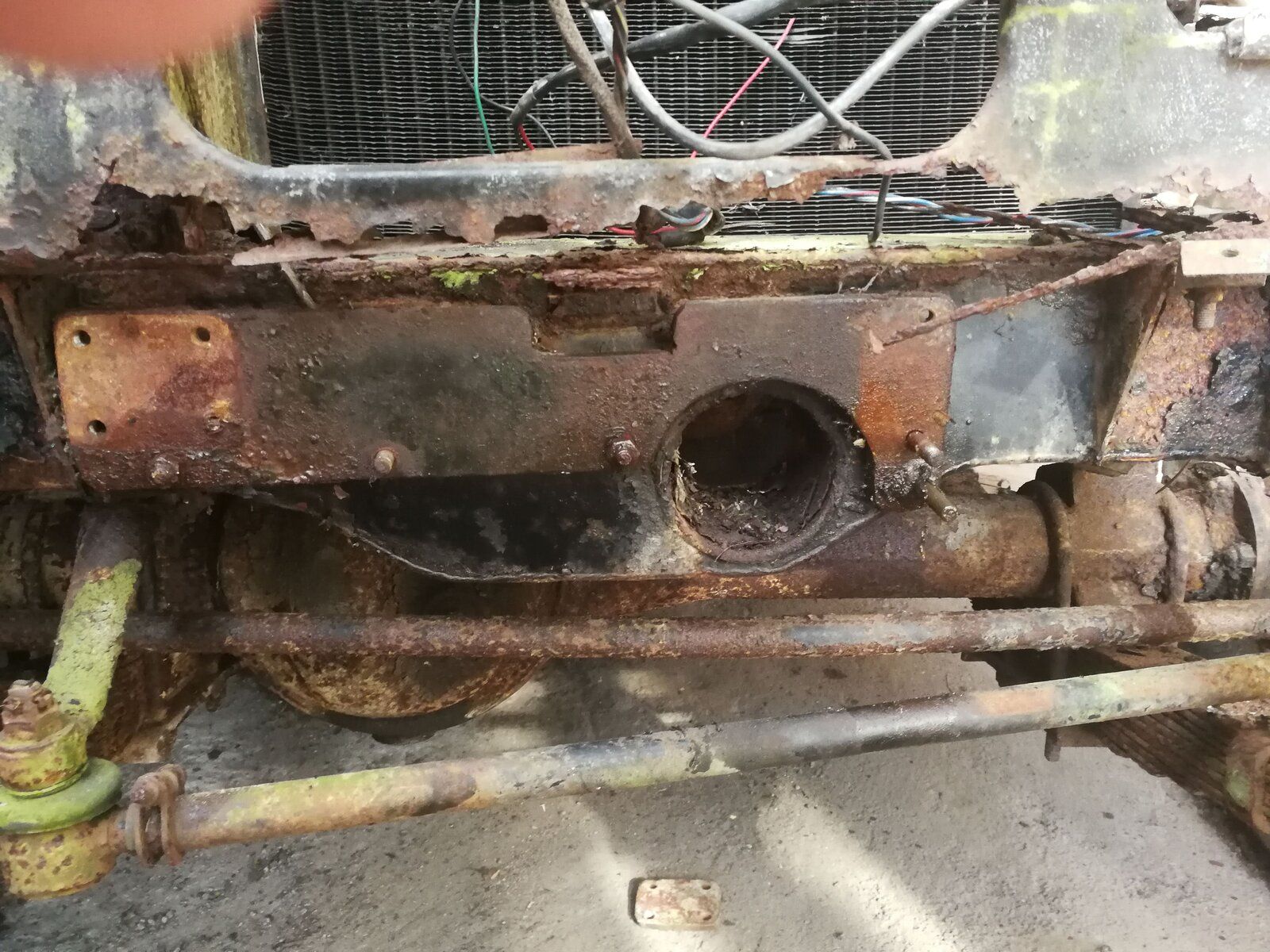

My Chassis is probably repairable but it is really bad.
It would need a new full front repair section and a new back one, all the outriggers also need to be replaced.
Also they rot from the inside too and mine doesn't look great internally.
I have heard about the t wash and also about ruffing the surface up to get better adhesion.
If you did it again would you replace the chassis?

Blackburn · Apr 12, 2021

88"Landy said:
Hi,
My Chassis is probably repairable but it is really bad.
It would need a new full front repair section and a new back one, all the outriggers also need to be replaced.
Also they rot from the inside too and mine doesn't look great internally.
I have heard about the t wash and also about ruffing the surface up to get better adhesion.
If you did it again would you replace the chassis?

I did replace my chassis Marsland fitted in 2010.

88"Landy · May 6, 2021

Did you fit a new bulkhead or did you repair your old one?

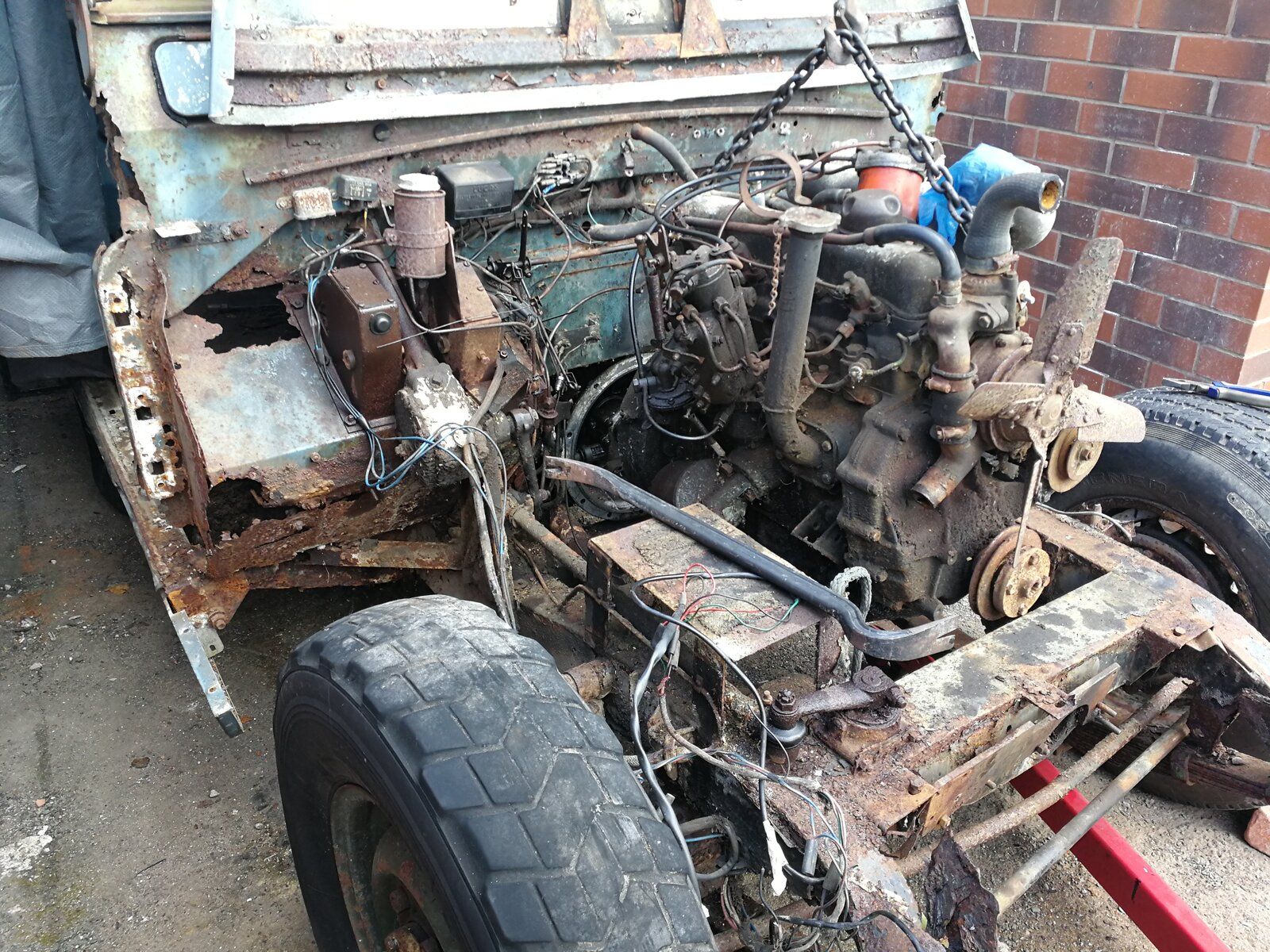

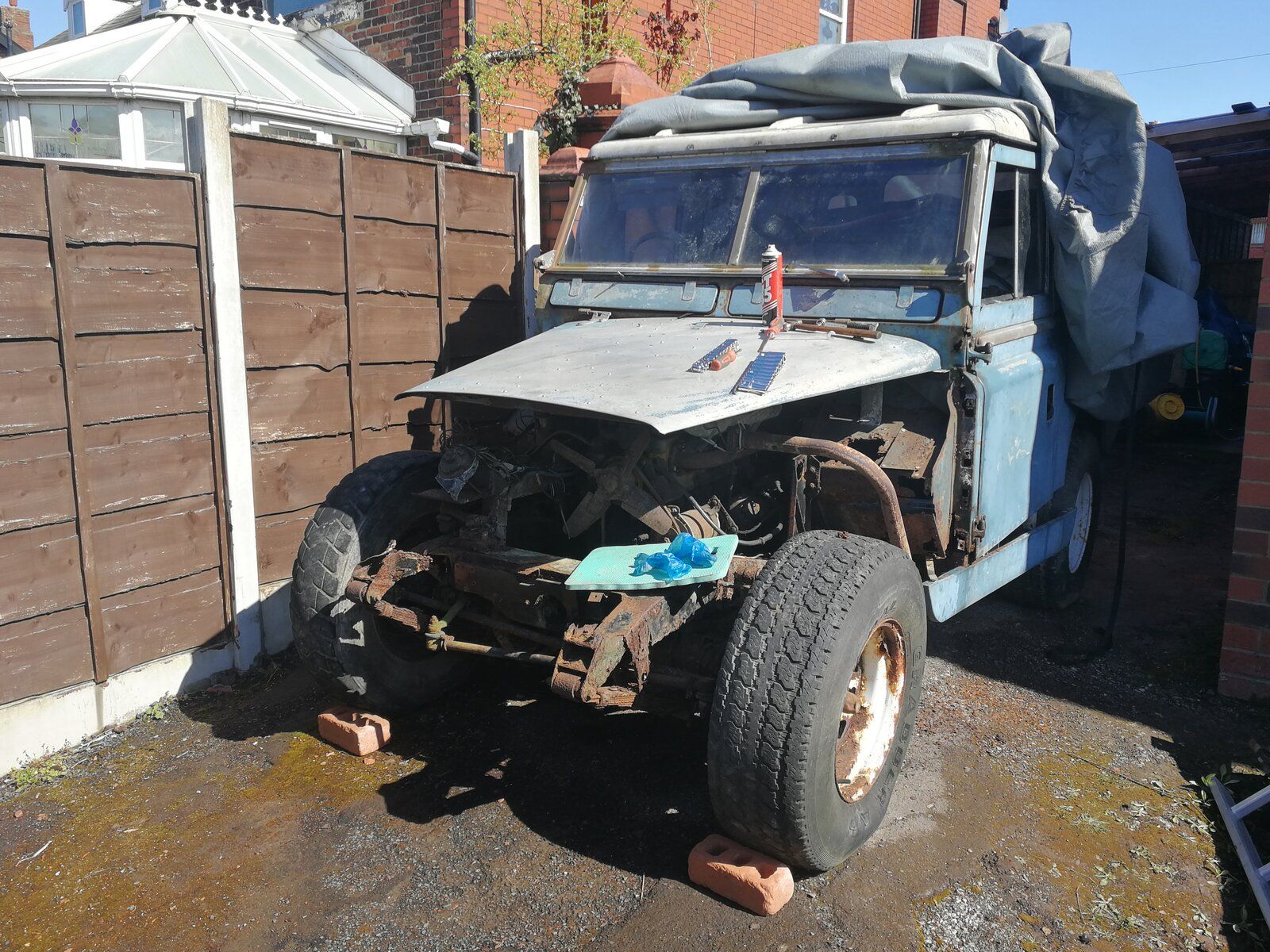

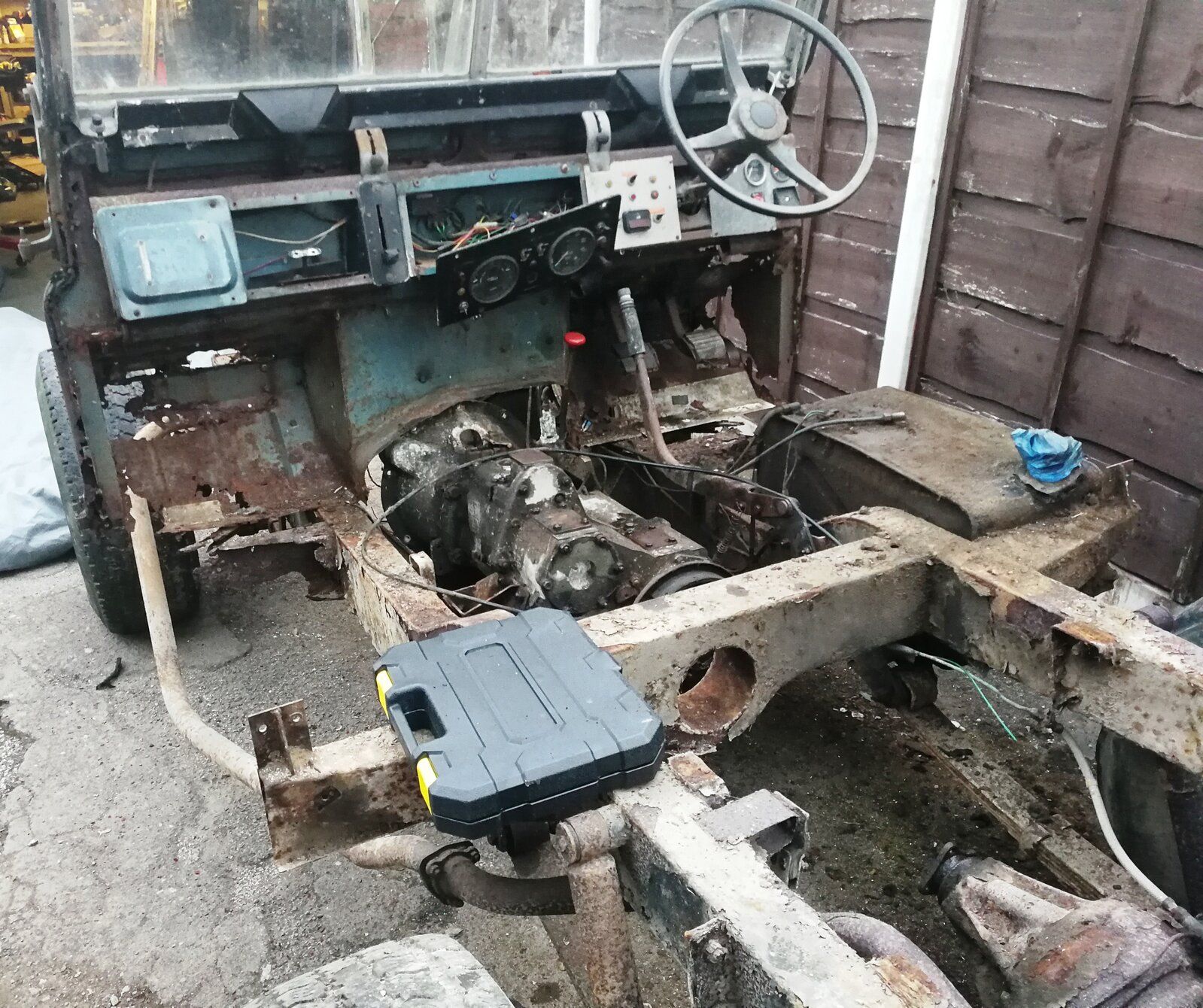

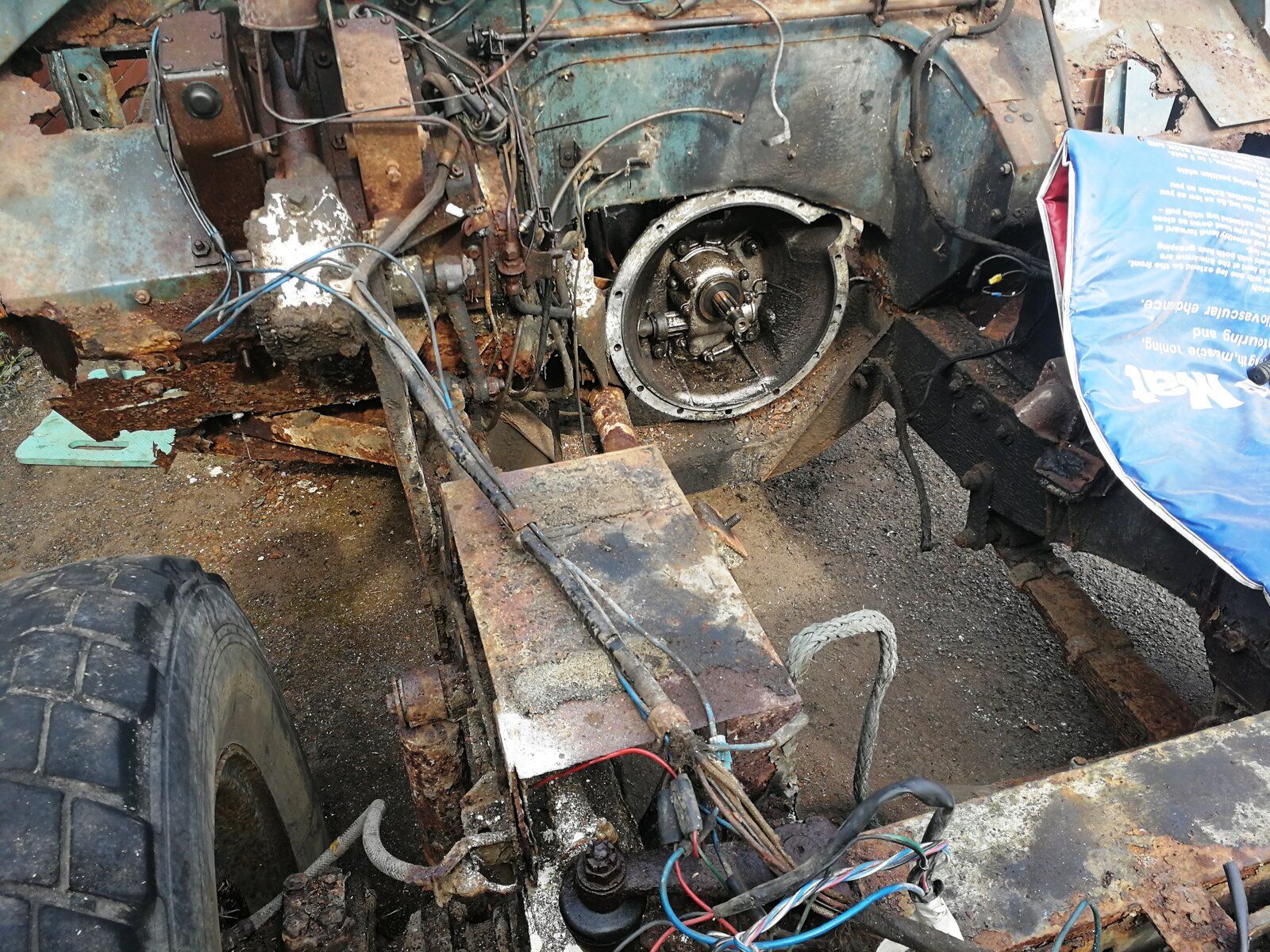

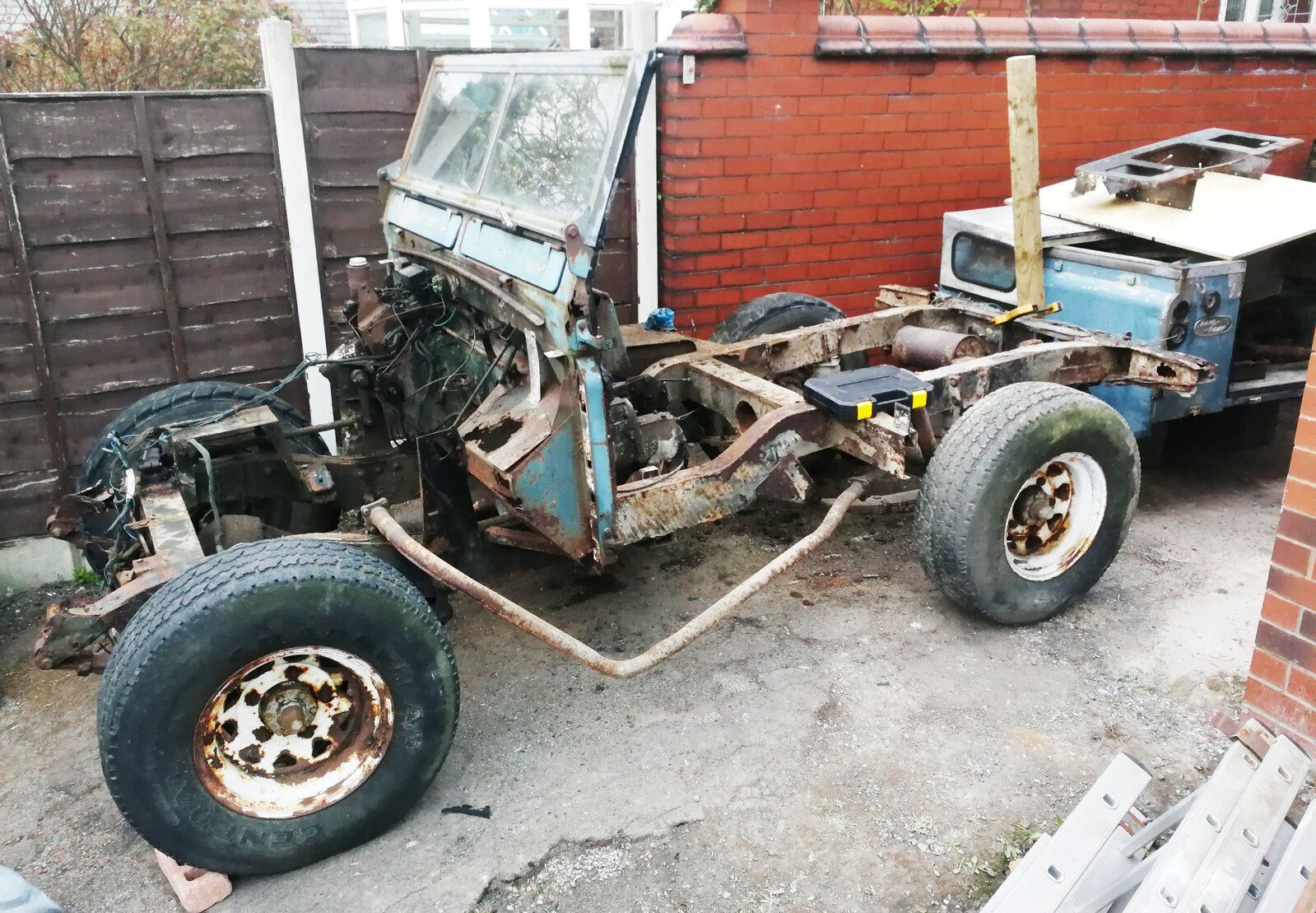

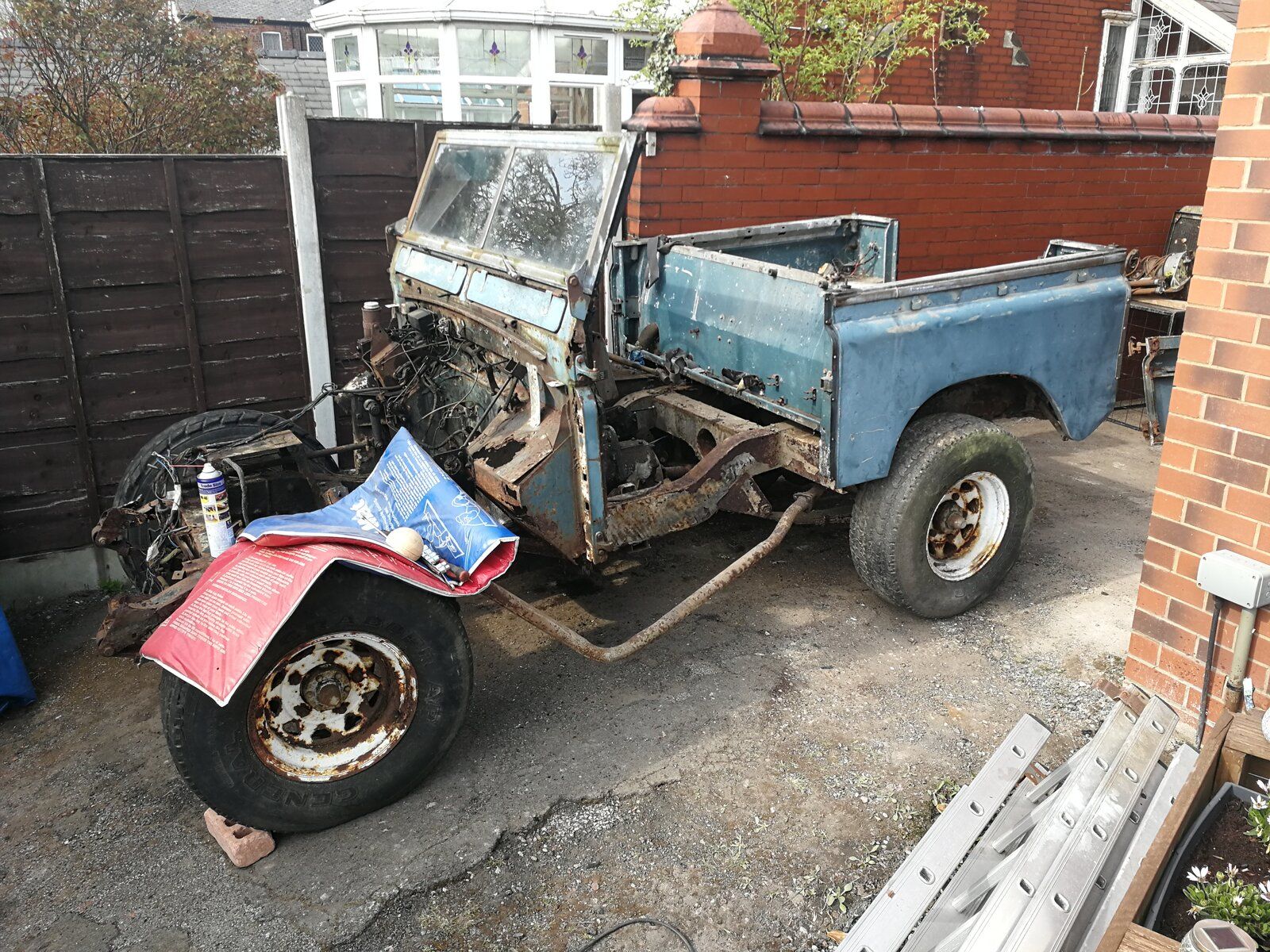

My strip-down has started I couldn't wait any longer....

Blackburn · May 6, 2021

88"Landy said:
Did you fit a new bulkhead or did you repair your old one?
My strip-down has started I couldn't wait any longer....

I had bought a second hand one stripped that down and rebuilt then had it shotblasted and galvanised.
As bought
