Rear left height sensor no supply

Hi all just wondering if anyone has the wiring diagrams for rear left height sensor on discovery 4 sdv6 GS 2011 , have changed and new plug but still says no supply wiring all looks fine to looms etc so maybe wired it wrong any diagrams would be brilliant thanks all !

Here u go mate as managed to find a wiring diagram for u

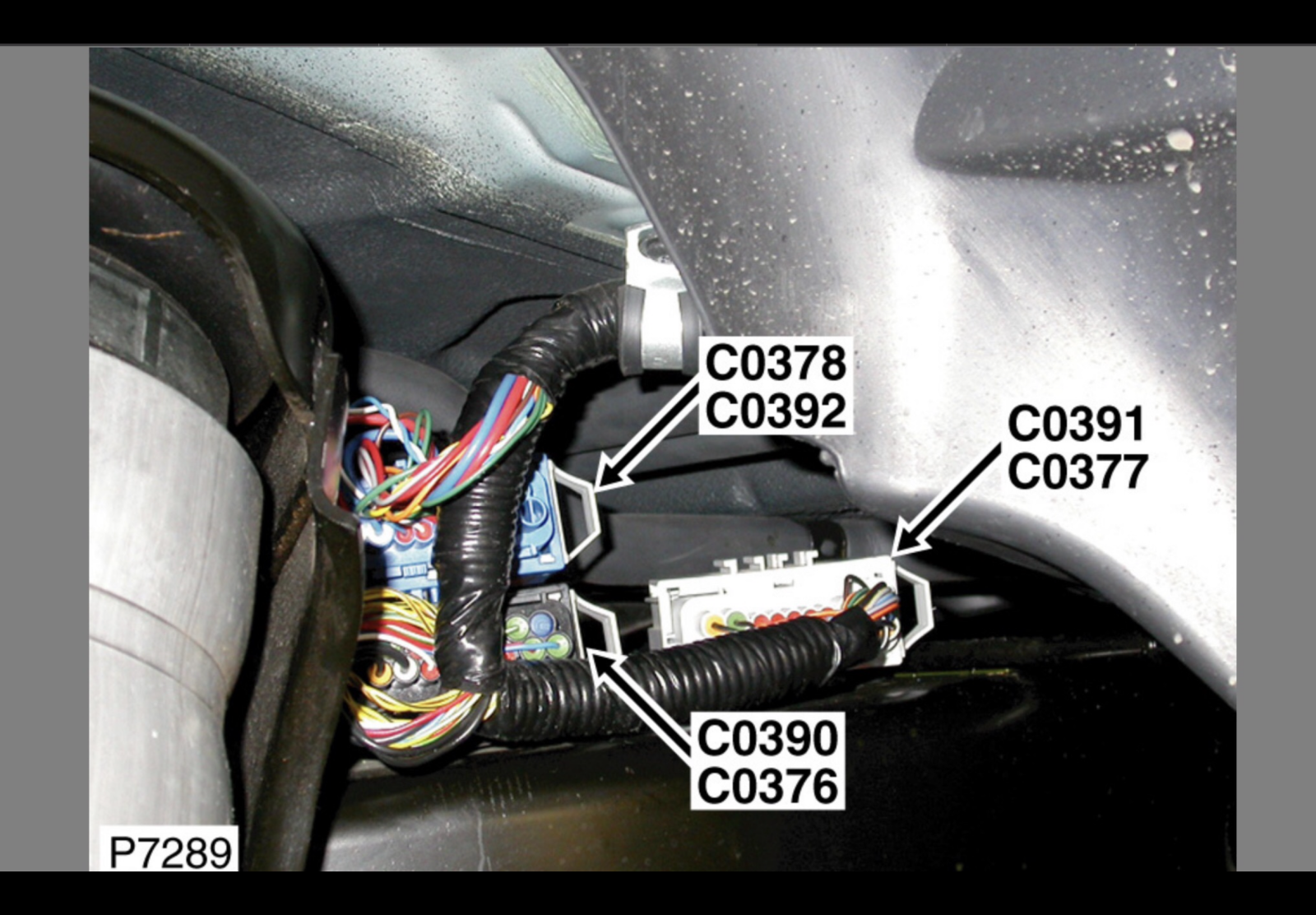

There’s also 3 x connectors that sit on the chassis by the passenger side rear wheel

At least ur be able to trace the wiring back from the height sensor to the large connectors by the rear wheel , if the 5Vdc reference voltage isn’t there u can use a multimeter

Hope that’s helps

Supply should be 5v, only 3 of the 5 cavities are used.
The wiring is mirrored on the other side, have you compared like for like ?

Going back from the height sensor it’s the co376/390 connector, pin 36

Hope that helps

U can also test at the suspension edu that sits on the drivers side A pillar

The far left connection will be C0867R , , pin 8 is for the near side rear height sensor , can use a meter to ensure there’s 5vdc icoming out of the ecu itself

Pin 9 is the signal Vdc coming back from the height sensor to the ecu
Pin 10 is the ground wire

Hope that’s also useful to u
