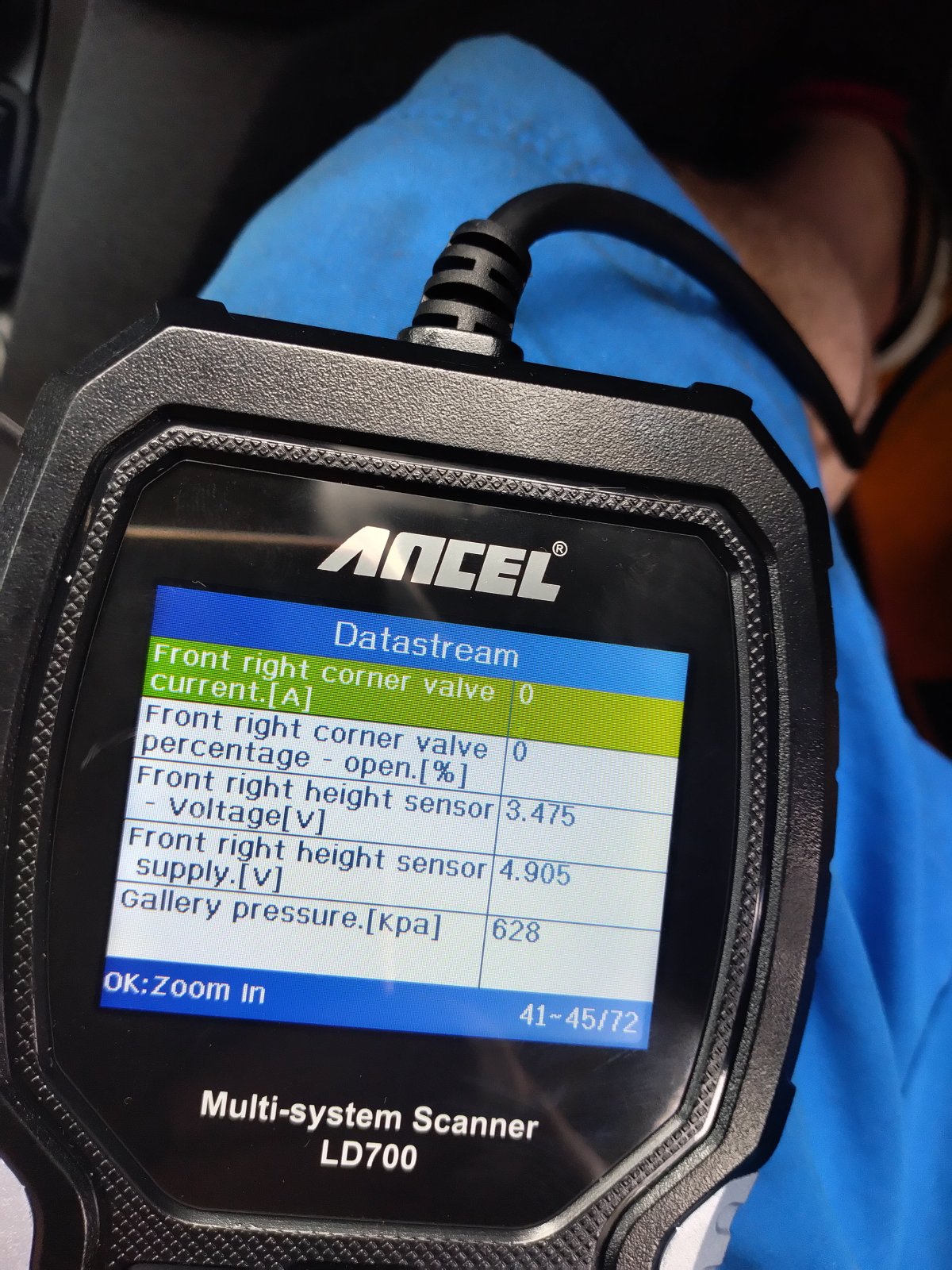

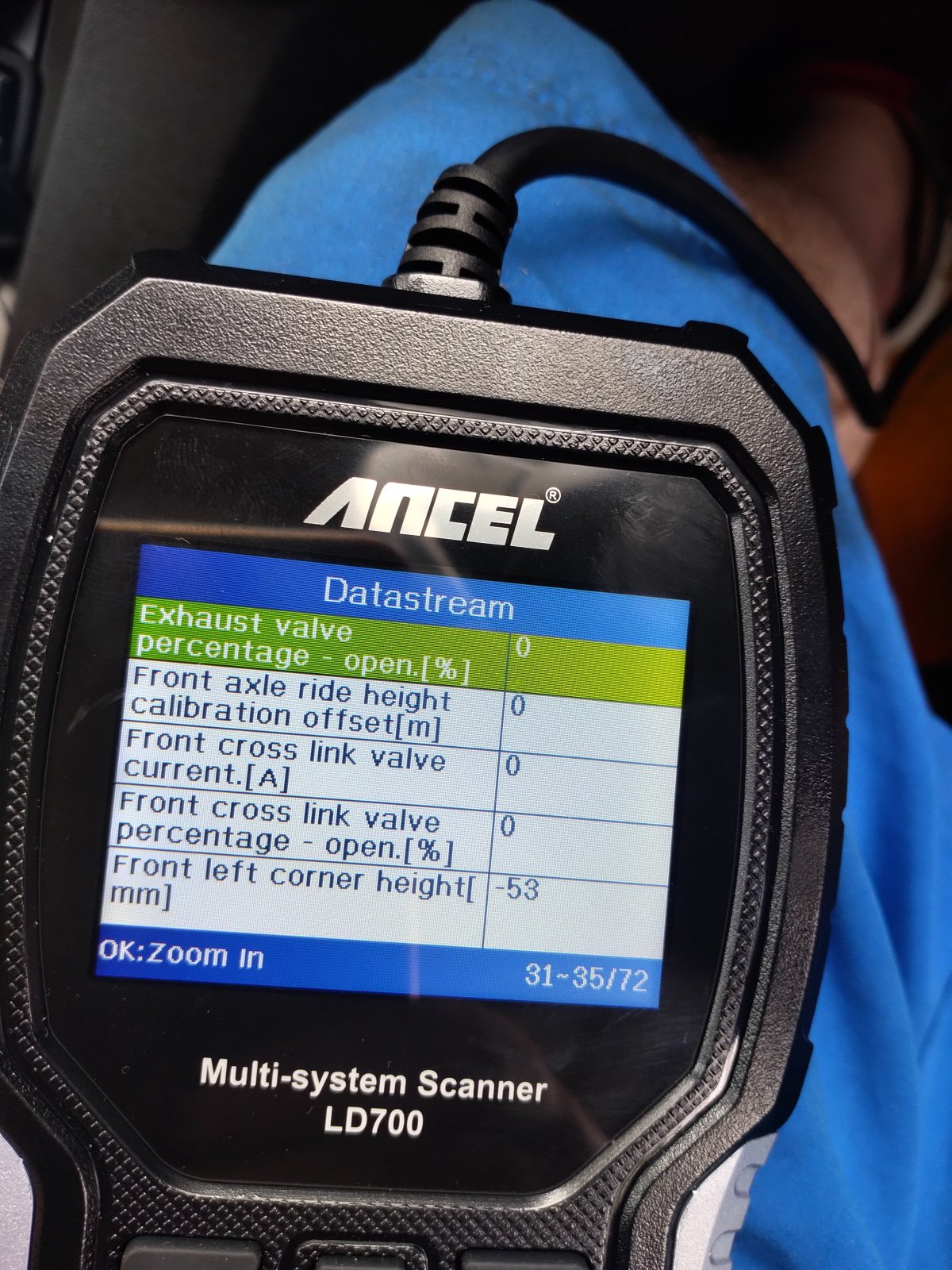

If you have a diagnostic tool that supports live values, you should be able to watch the gallery pressure drop (exhaust valve opening) just before the air compressor starts. You can force the air compressor to start by calling for a height change. The exhaust valve vents the gallery pressure to allow the air compressor to start up more easily.
U can get rebuild kits , managed to find a link for u, that’s if it’s an AMK and not a hitachi or Dunlop, but of course need to ensure voltage is getting to the exhaust valve before changing anything
Need to also ensure the dryer silica hasn’t blocked up the internal filters or material
4x4airseals.com

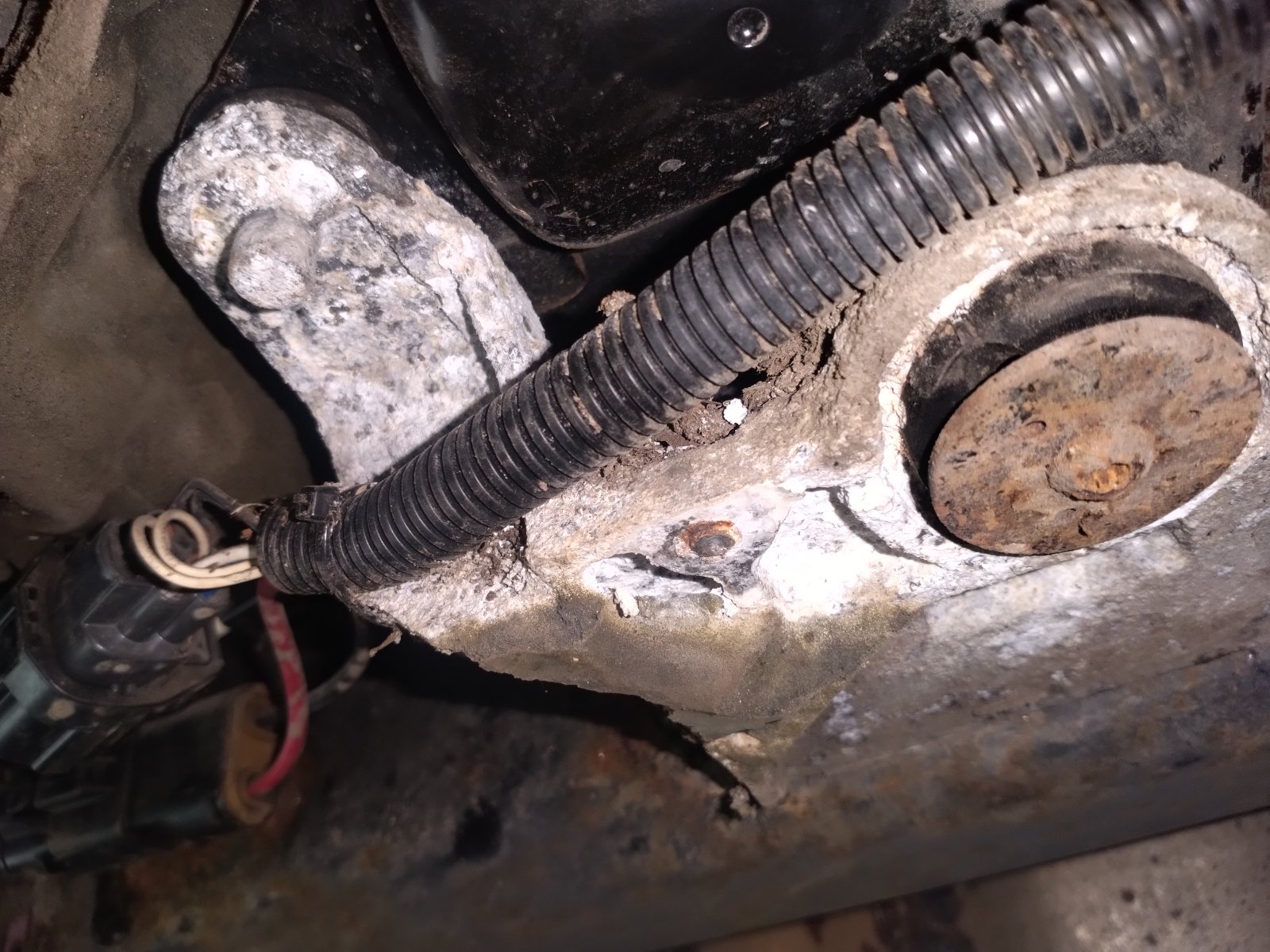

Ref C1A70, plse check the wires and connector pins at that height sensor to ensure there’s no breaks or dirty contacts

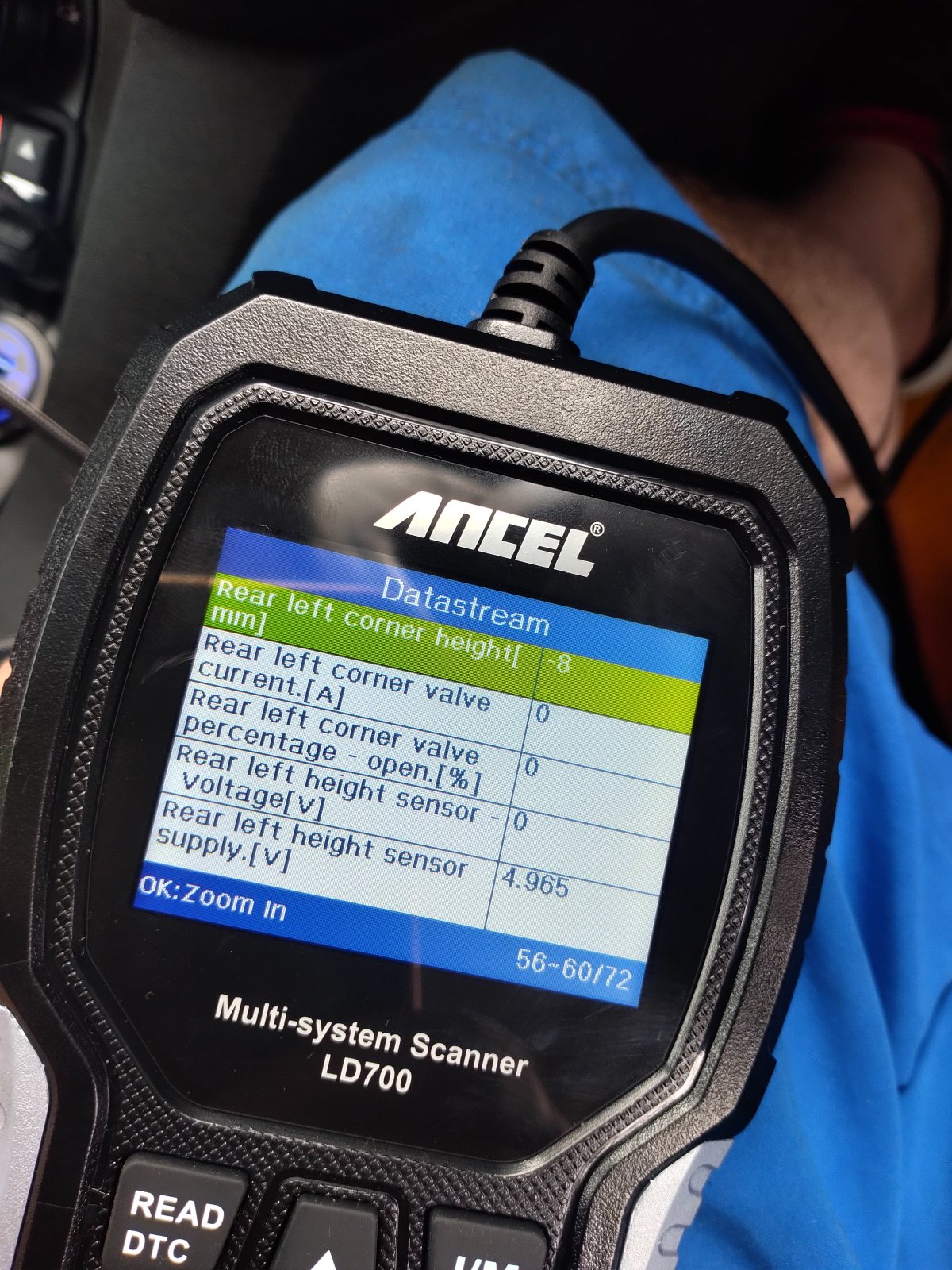

Hopefully the code reader via live data would give u the supply voltage
Hope that helps u
If you have a diagnostic tool that supports live values, you should be able to watch the gallery pressure drop (exhaust valve opening) just before the air compressor starts. You can force the air compressor to start by calling for a height change. The exhaust valve vents the gallery pressure to allow the air compressor to start up more easily.
U can get rebuild kits , managed to find a link for u, that’s if it’s an AMK and not a hitachi or Dunlop, but of course need to ensure voltage is getting to the exhaust valve before changing anything
Need to also ensure the dryer silica hasn’t blocked up the internal filters or material

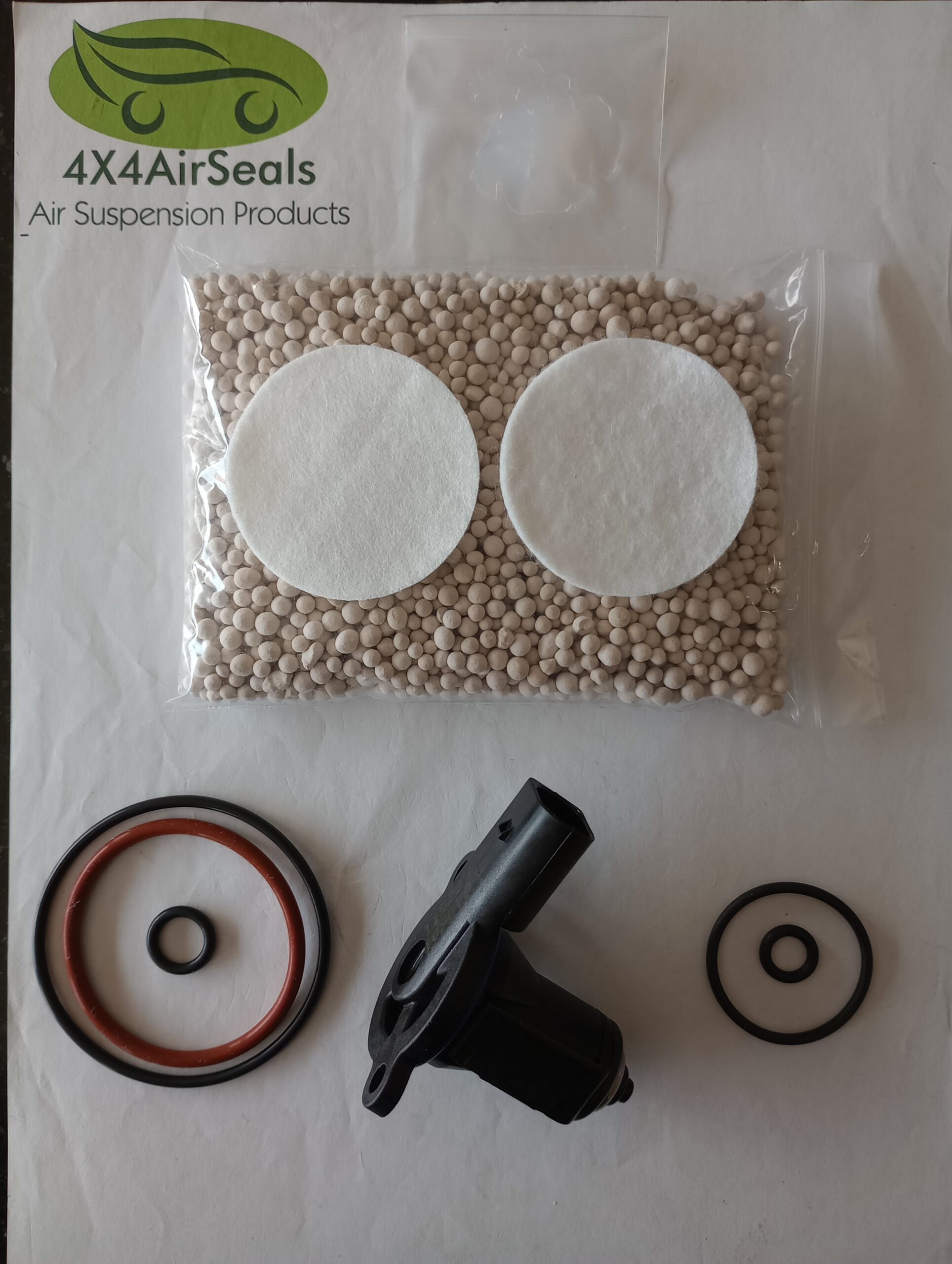

Amk Air Dryer Master Filtration Kit including Exhaust electrical solenoid related to Land Rover C1A13 & C1A20 trouble codes - 4x4 Air Seals
4x4AirSeals is a small manufacturing business in the UK specializing in the supply and manufacture of Air suspension products, we have been providing products for our customers for many years, this experience goes directly into all of our products which we feel is very important ,we are a hands...
4x4airseals.com
Ref C1A70, plse check the wires and connector pins at that height sensor to ensure there’s no breaks or dirty contacts
Hopefully the code reader via live data would give u the supply voltage
Hope that helps u
