Rear door bottom repair
- Thread starter steve2286w
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
steve2286w
Well-Known Member
- Posts
- 4,524
- Location
- monkeyangerland

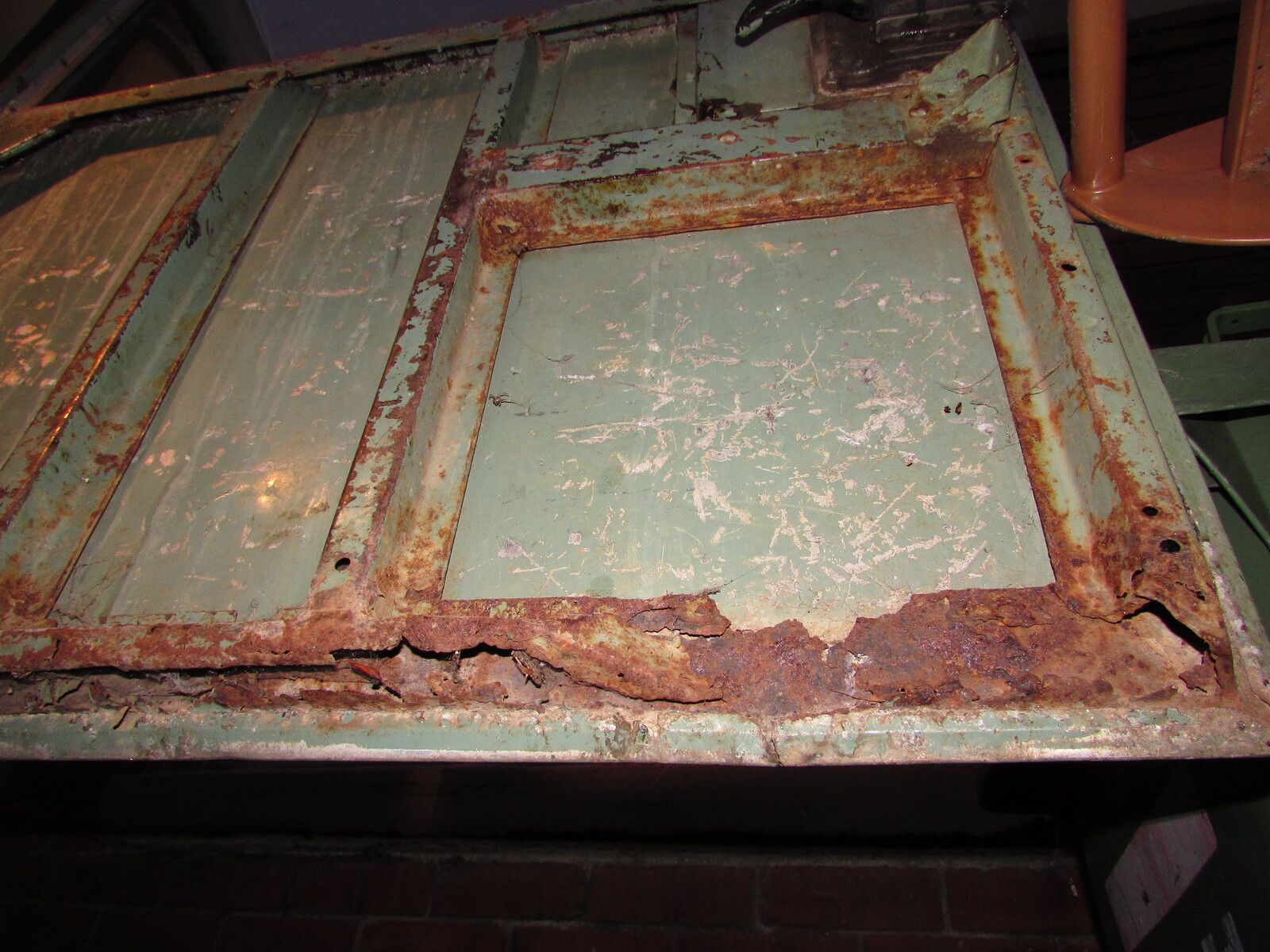

Got the ply cover off , looks like it might need a bottom repair piece but the slider bracket looks ok with a clean up, ordered from YRM and you get enough to go up the sides , the hinge area looks ok so should be fairly straight forward
tottot
Well-Known Member
- Posts
- 8,030
- Location
- west wales coast
I forgot that the series rear door is simpler inside than a defender one.
Looks like a straight forward repair.
Looks like a straight forward repair.
ObiWanKenobi
Active Member
- Posts
- 103
- Location
- Virginia, USA

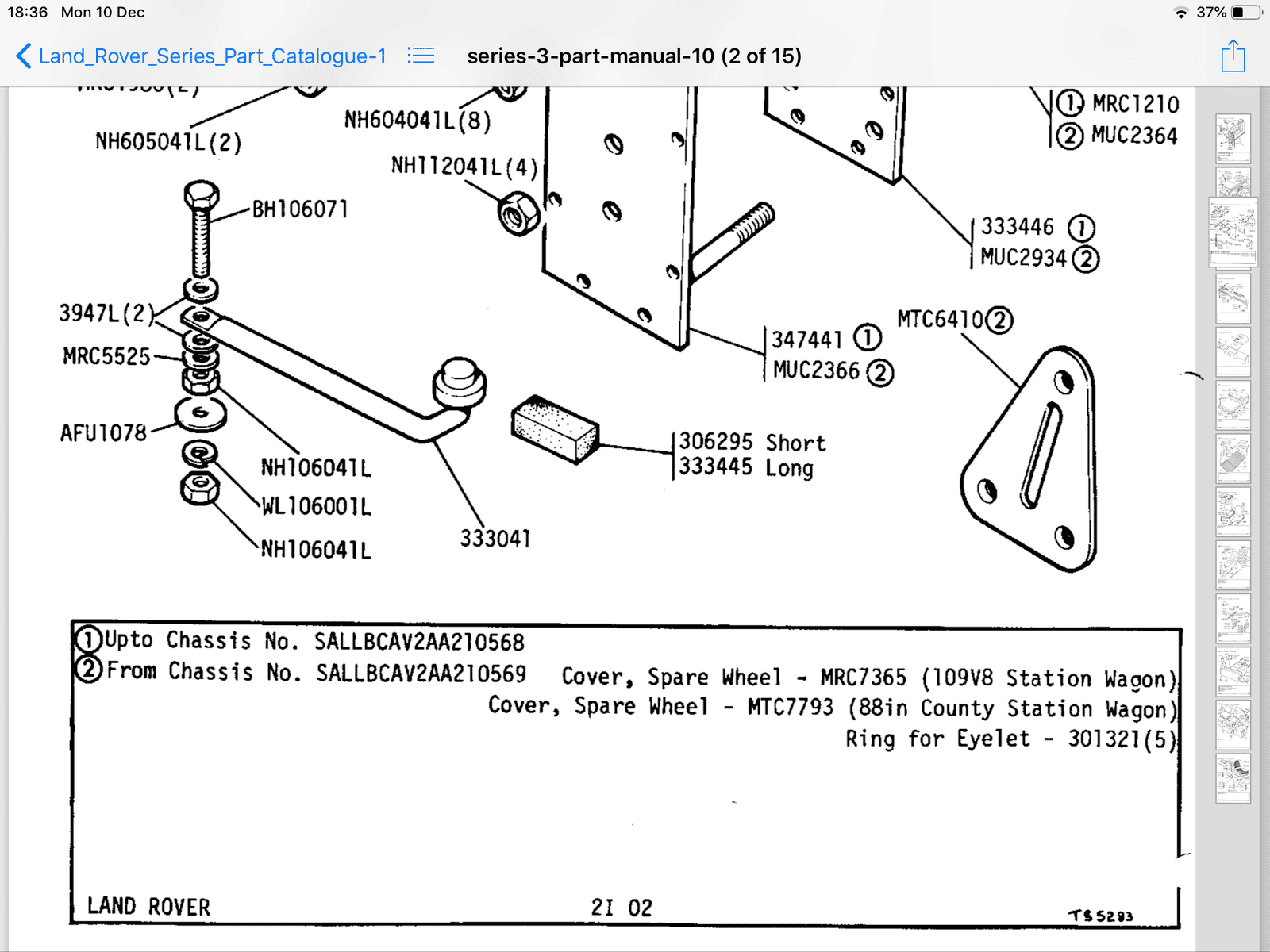

What is the part number of the rod which goes from the tub to the door? I'd like to go that route, and rig up something on my door to hold it. I have a Series IIA, and I've looked in the Series III Parts manual and Series II Parts catalog and can't find this part number. Any ideas where I could order it?
Thanks folks!
Mike
Thanks folks!
Mike
steve2286w
Well-Known Member
- Posts
- 4,524
- Location
- monkeyangerland
steve2286w
Well-Known Member
- Posts
- 4,524
- Location
- monkeyangerland
Not cheap
ObiWanKenobi
Active Member
- Posts
- 103
- Location
- Virginia, USA
Great, thank you! Convenient too!
Much appreciated.
Mike
Much appreciated.
Mike
ObiWanKenobi
Active Member
- Posts
- 103
- Location
- Virginia, USA
Before I shell out the money for it, I'm going to have to find some piece of channeling which might work with it.
Mike
Mike
rob1miles
Well-Known Member
- Posts
- 3,565
- Location
- Slough and Bath
They've sold over 700 so it must be ok:
https://www.ebay.co.uk/itm/REAR-FRO...190953?hash=item3d0d1fc529:g:jx0AAOSwqS5b4bBL
https://www.ebay.co.uk/itm/REAR-FRO...190953?hash=item3d0d1fc529:g:jx0AAOSwqS5b4bBL
ObiWanKenobi
Active Member
- Posts
- 103
- Location
- Virginia, USA
Thanks!
rob1miles
Well-Known Member
- Posts
- 3,565
- Location
- Slough and Bath
Forgot you are in the States so a UK e-bay link is not much use. I have a new section and can measure it if you want to get one made up.
ObiWanKenobi
Active Member
- Posts
- 103
- Location
- Virginia, USA
Thanks for the offer, however I actually have ordered from EBAY sellers in UK. I don't think that's a problem.

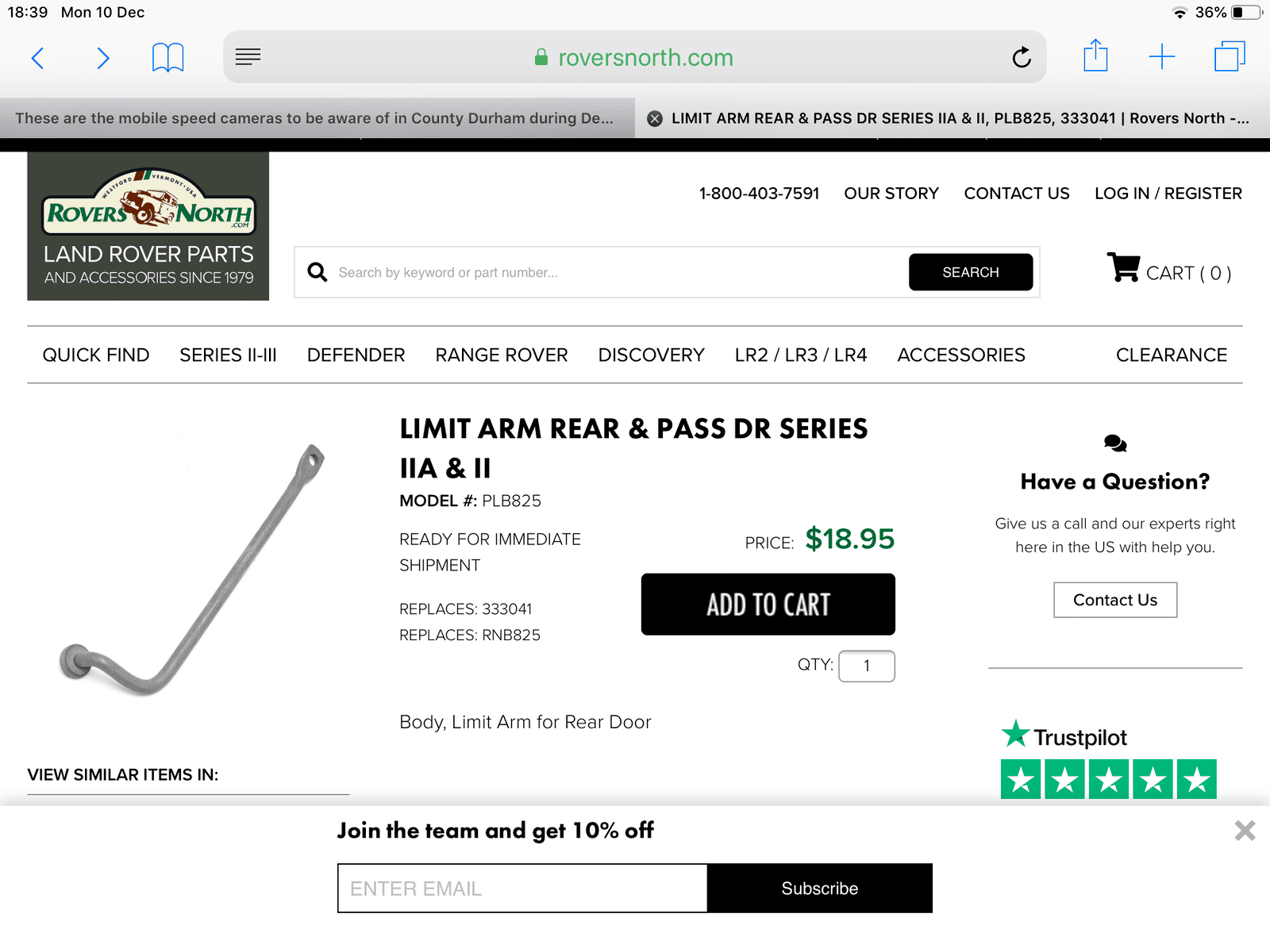

My plan is to buy the limit arm from Rovers North and install it in the tub, then mess around trying to figure out a slot arrangement to go on the inside of the door. The challenge I have is the sheet of aluminum checker-plate over the whole inside of the door. So I need to maybe fabricate a slotted piece of tubing or PVC pipe which can take that limit arm and allow it to slide.
Does the bottom channel which is shown on EBAY have that slot to receive the limit arm rod? I didn't see it in the picture.
Thanks!
Mike
My plan is to buy the limit arm from Rovers North and install it in the tub, then mess around trying to figure out a slot arrangement to go on the inside of the door. The challenge I have is the sheet of aluminum checker-plate over the whole inside of the door. So I need to maybe fabricate a slotted piece of tubing or PVC pipe which can take that limit arm and allow it to slide.
Does the bottom channel which is shown on EBAY have that slot to receive the limit arm rod? I didn't see it in the picture.
Thanks!
Mike
ObiWanKenobi
Active Member
- Posts
- 103
- Location
- Virginia, USA
Okay, thanks! That's going to be my project then. To fabricate one of those.
Thanks!
Thanks!
rob1miles
Well-Known Member
- Posts
- 3,565
- Location
- Slough and Bath

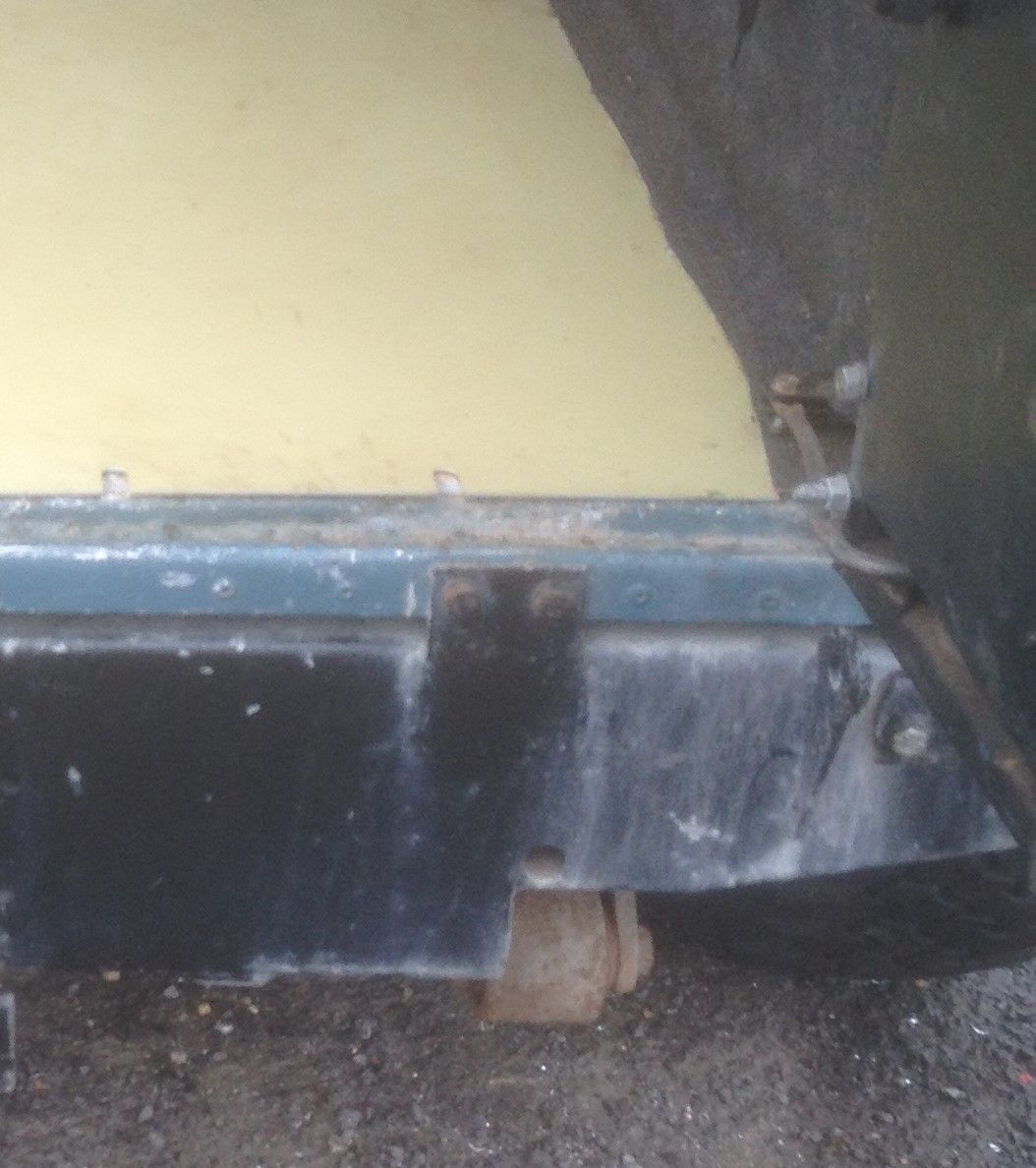

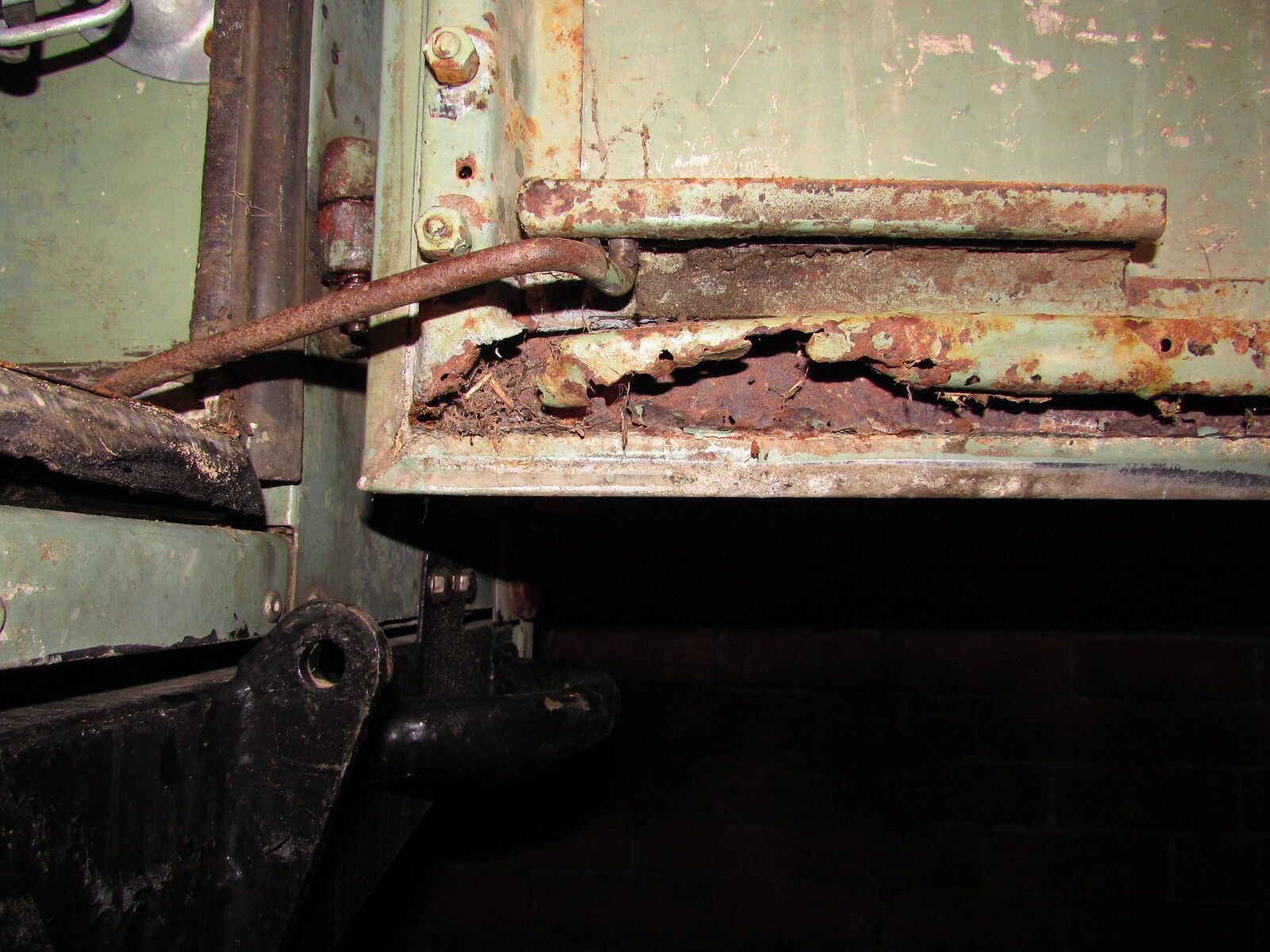

The slot/bracket looks good enough to rescue. Cut it off and weld it to the new channel. My door has a sheet of ally on the inside, its fixed to the door frame with screws. The bottom corner is cut away to clear the arm.
steve2286w
Well-Known Member
- Posts
- 4,524
- Location
- monkeyangerland

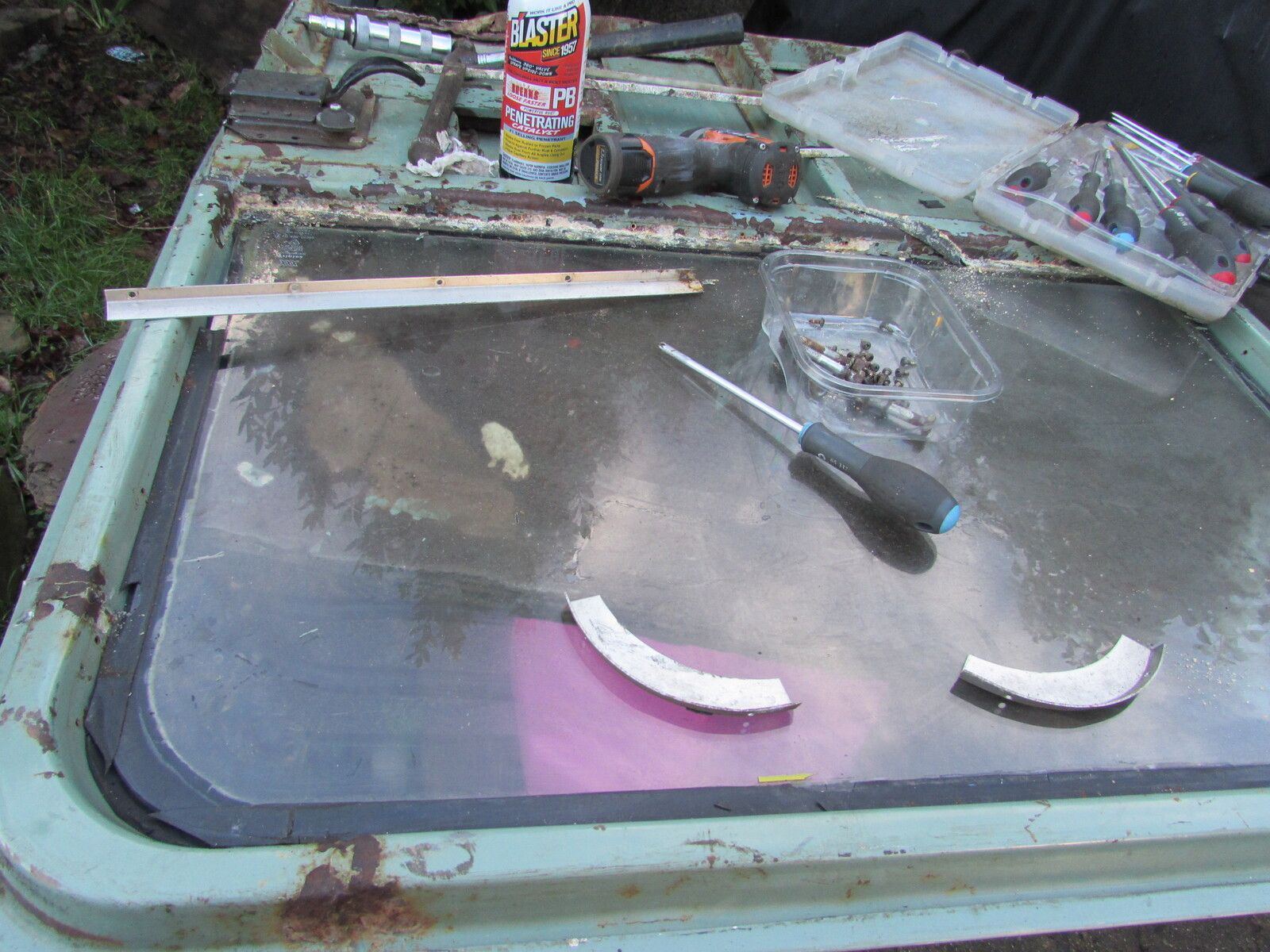

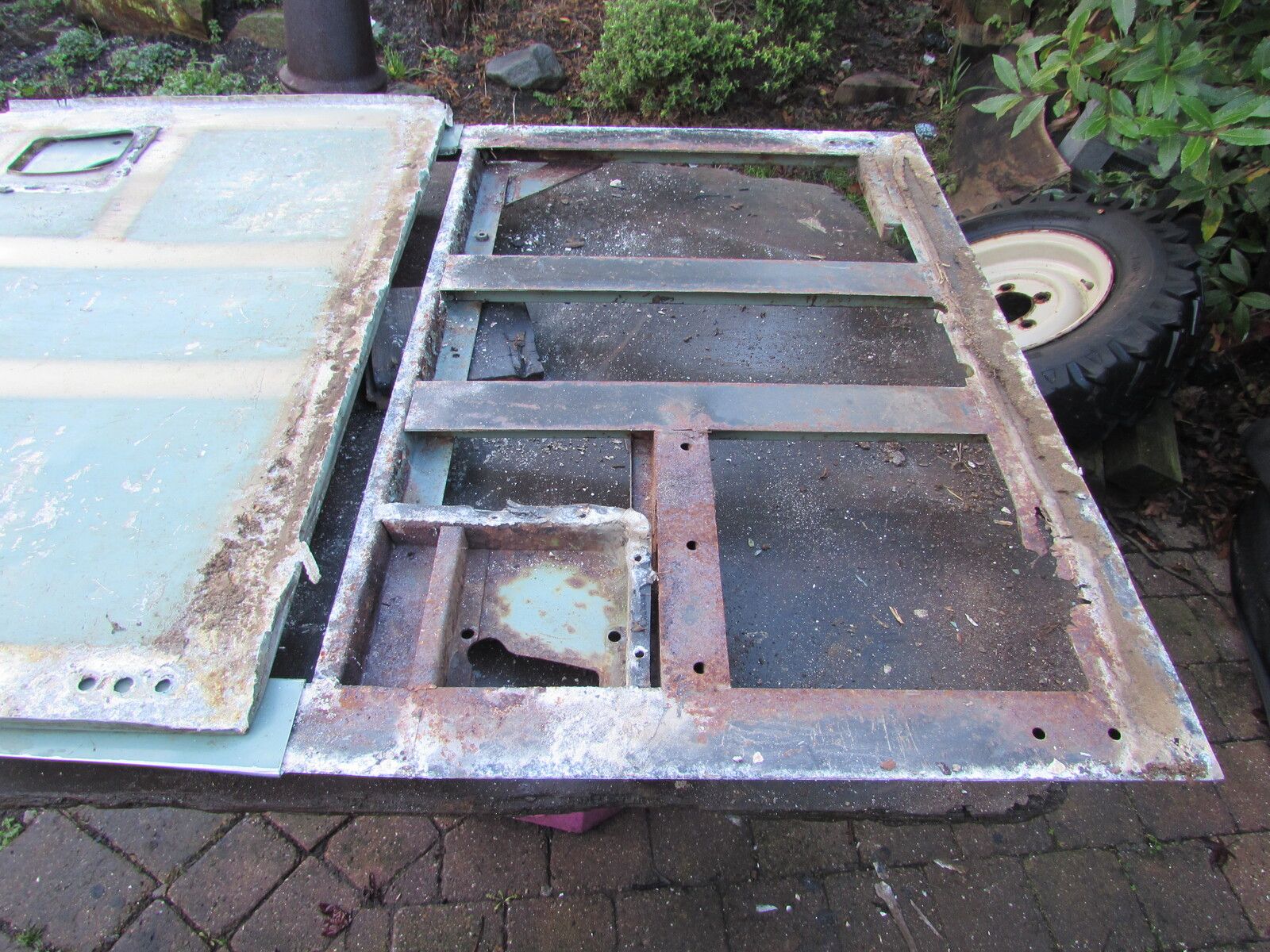

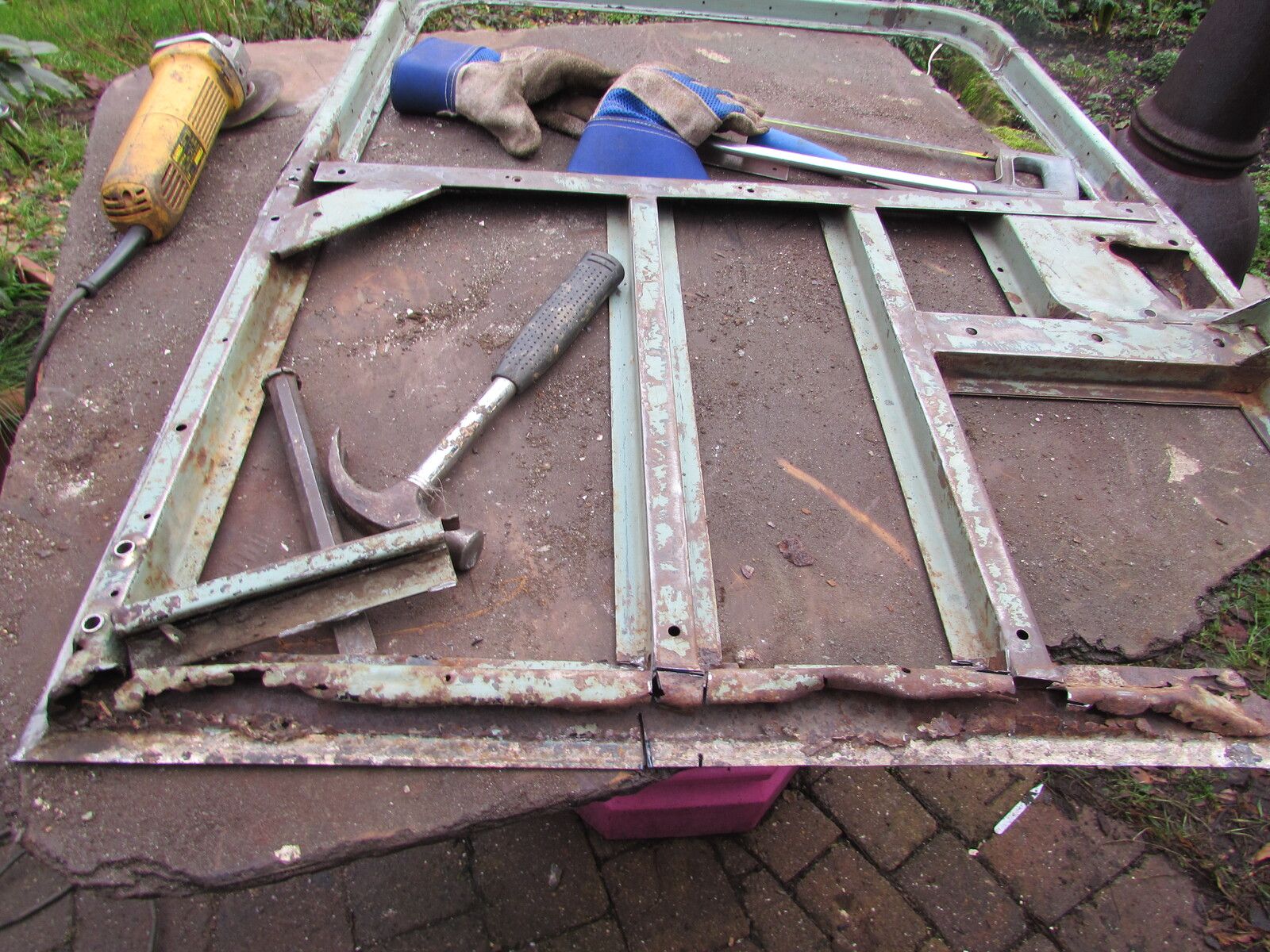

Started on the door bottom today, I bit the bullet and bought a new door skin should have been delivered today, the other one was getting a bit crusty along bottom edge, took the glass out and removed door lock, looks a bit messy after all the chopping out and will need a bit tinkering to get all 4 joints mating with correct dims, the door width is 900mm between outside edges of the steel sections, i will add a small section just below hinge holes, the retainer slot is sound and will clean up and re weld in i think the outer rubber block had disappeared in the slot, which might account for it swinging open too far
Im guessing the new skin just comes in flat and the edges will need to be bent round so without a bending machine was just going to place it on frame, clamp it, and using rubber mallet? hammer edges round (after cleaning, rustproofing and painting frame and skin also plan to use some body sealant/adhesive between frame and skin..
Im guessing the new skin just comes in flat and the edges will need to be bent round so without a bending machine was just going to place it on frame, clamp it, and using rubber mallet? hammer edges round (after cleaning, rustproofing and painting frame and skin also plan to use some body sealant/adhesive between frame and skin..
tottot
Well-Known Member
- Posts
- 8,030
- Location
- west wales coast
Looking good.
rob1miles
Well-Known Member
- Posts
- 3,565
- Location
- Slough and Bath
Nice to see how it all fits, l I'll be having to do something similar in the next couple of years. Looks like a nice job.
steve2286w
Well-Known Member
- Posts
- 4,524
- Location
- monkeyangerland

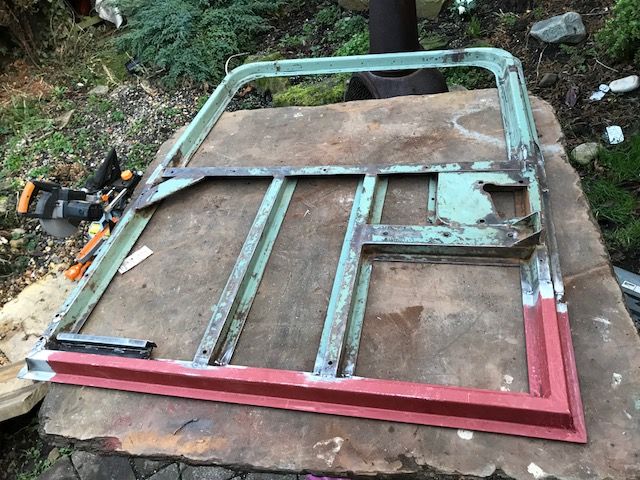

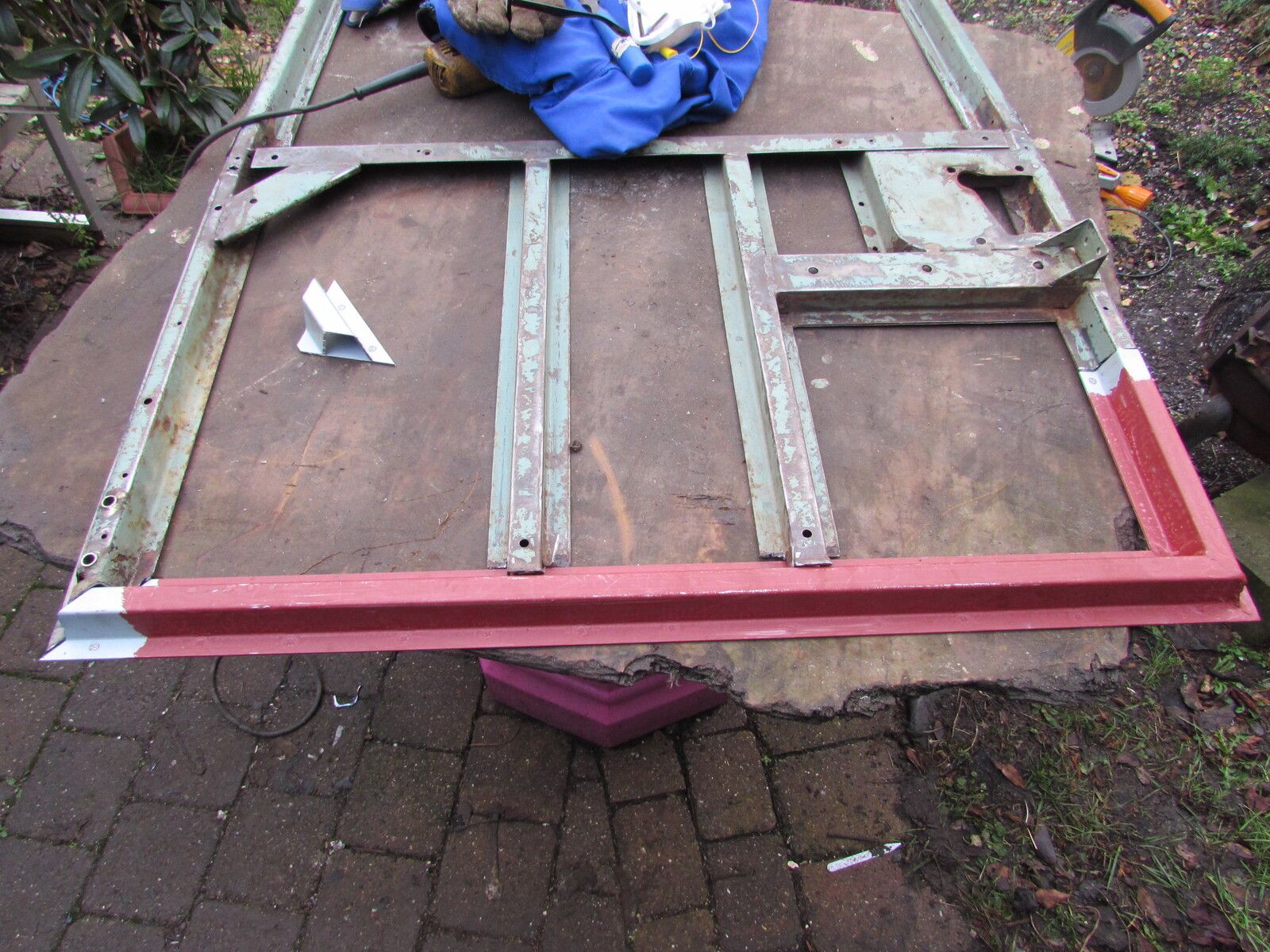

Thanks coming on nicely, ran out of welding wire half way through the door stay bracket, with it being thicker havent got the settings on the MIG 150TE correct yet so its just tacked on , having a chopsaw that does 45 deg mitres helps a lot getting perfect joints, pity my welding lets it down, i added some braces near where the window starts on each side, tomorrow should get it all painted up and hope i have enough dum dum for the window!
