Rear axle suspension shock absorber mounts

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
payydg

payydg

Well-Known Member
Posts
3,907
Location
Aberdeenshire
Changing the rear shocks as they’ve had it. The hole in the mount on the rear axle has worn to an oval slot.

is this the end of the world. I really can be assed to sort this right now?

I’ve heard some people welding in repair washers?

payydg said:
Changing the rear shocks as they’ve had it. The hole in the mount on the rear axle has worn to an oval slot.

is this the end of the world. I really can be assed to sort this right now?

I’ve heard some people welding in repair washers?
Click to expand...


Weld in a washer or you can buy complete weld on brackets

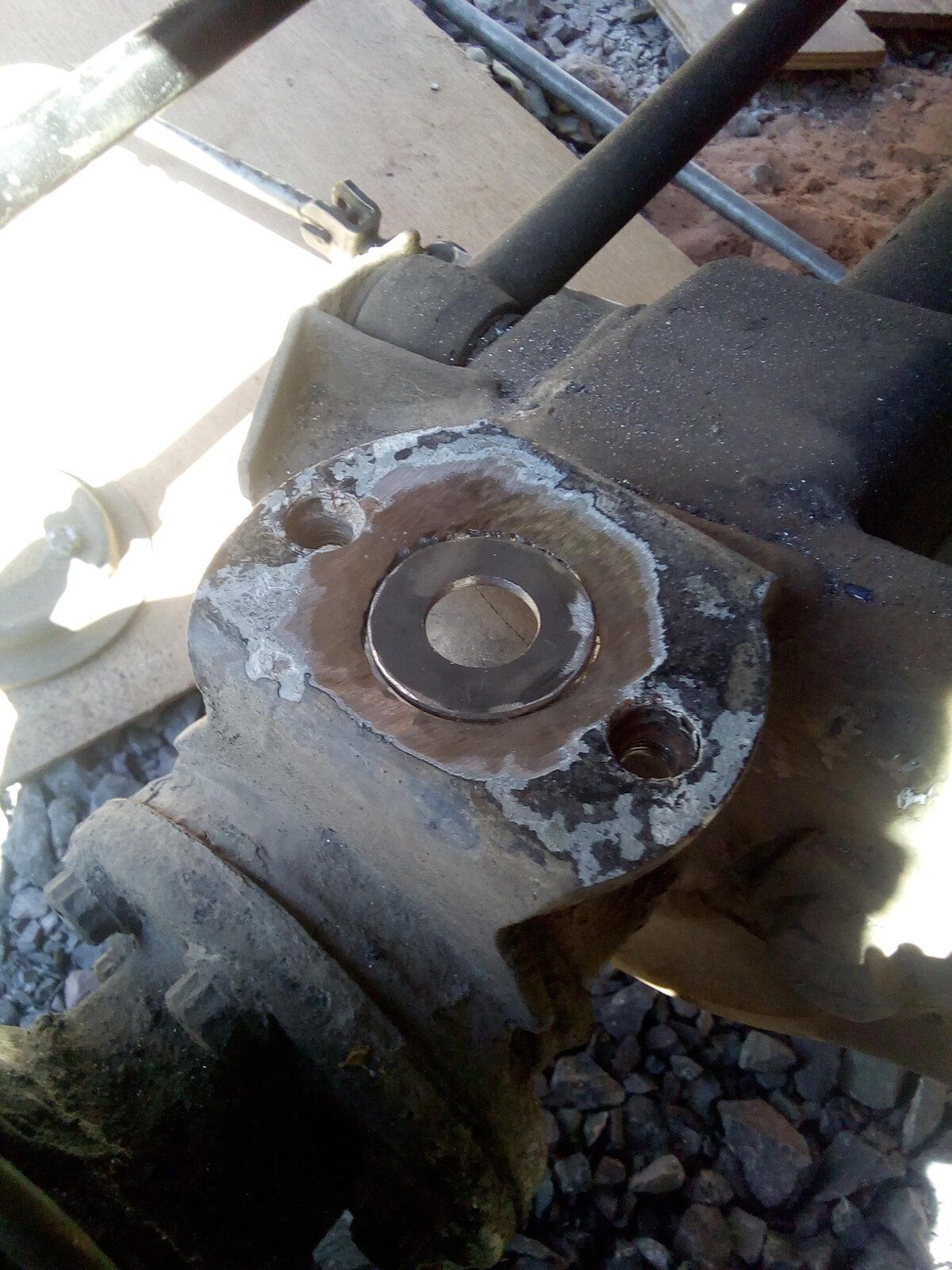

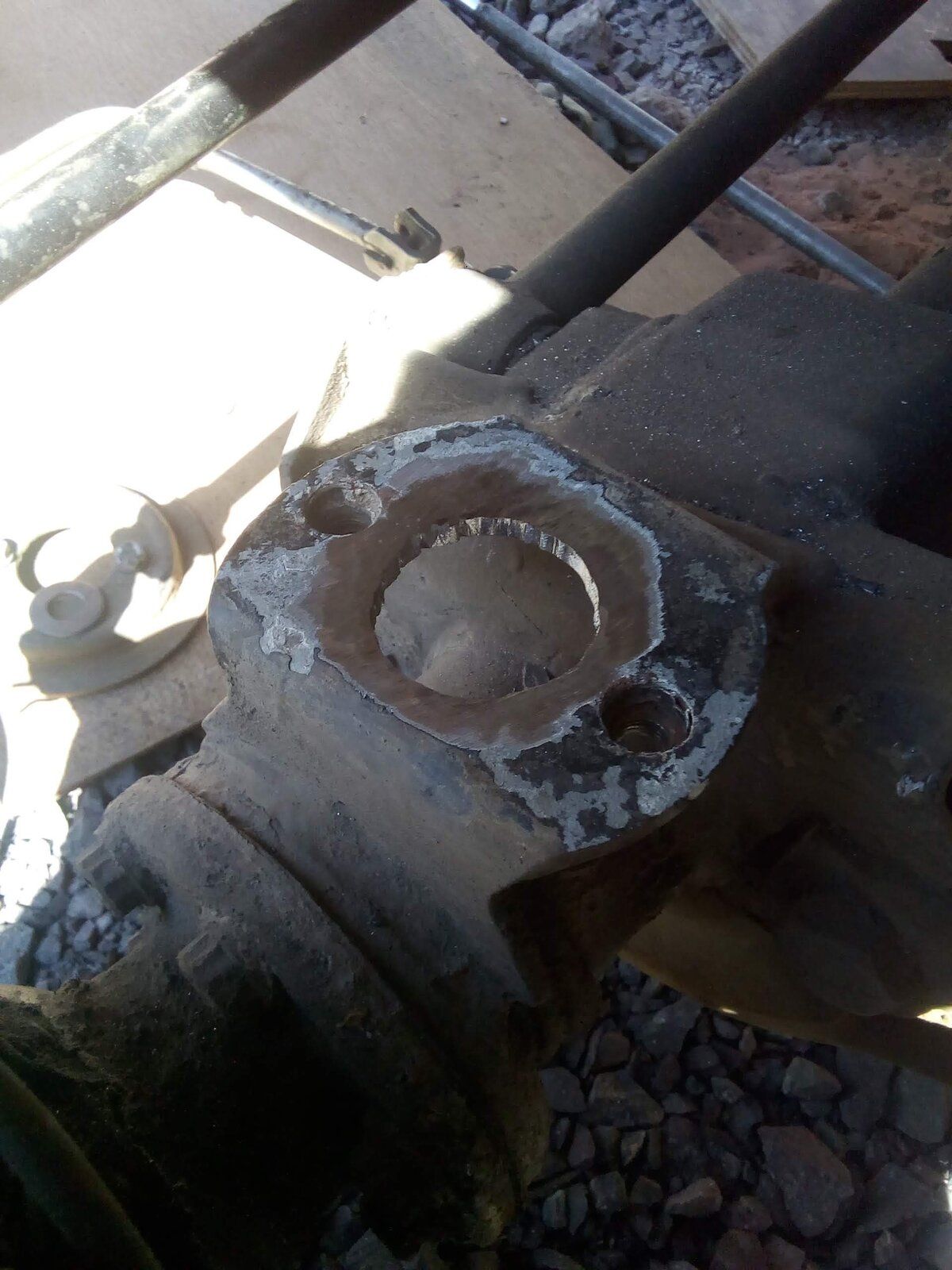

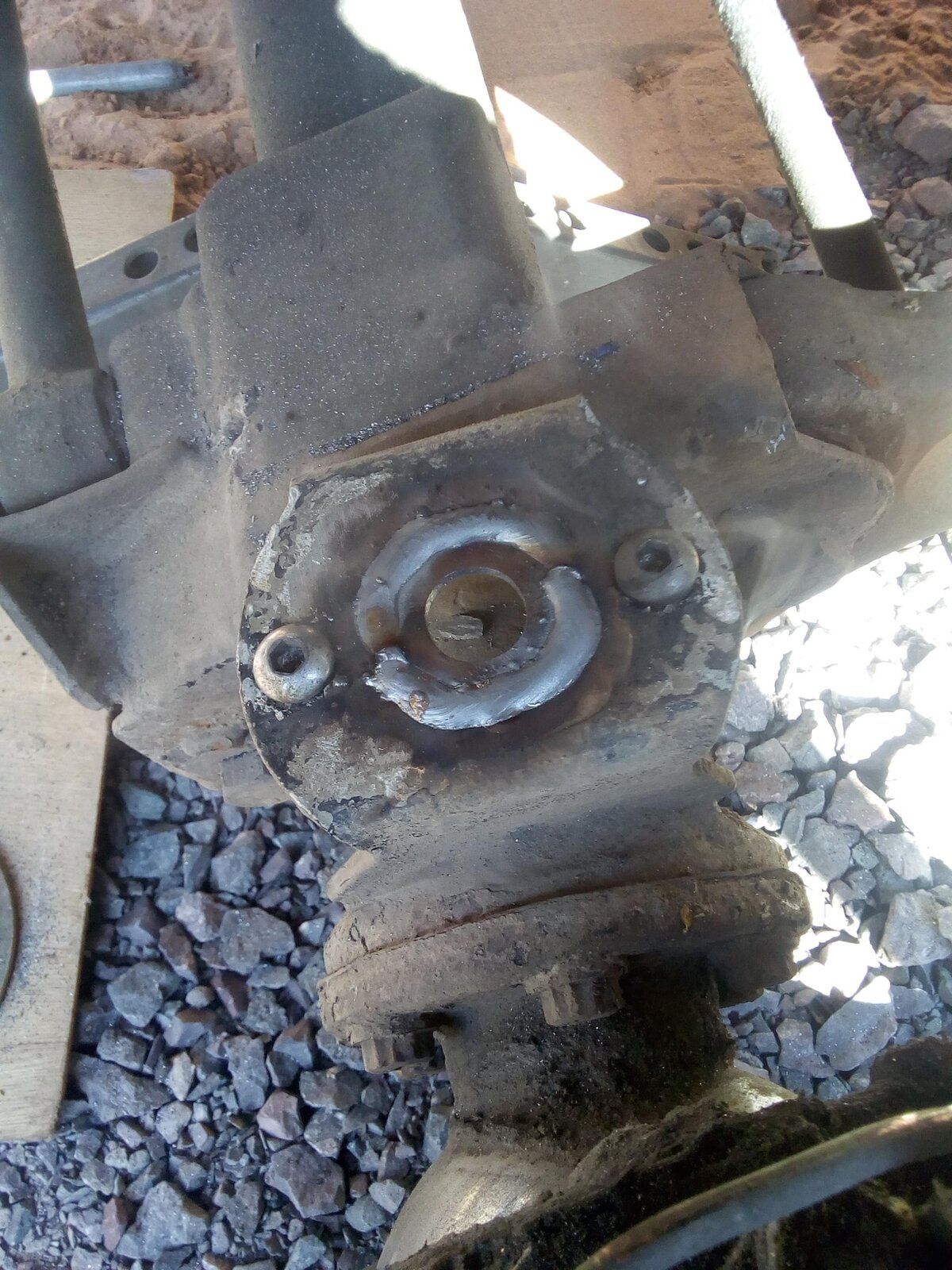

110 front axle on mine. Got a thick washer from a farm supplies place, the outside diameter is larger than the bush cup contact area so no need to grind the weld. I cut it out using a short blade in a jigsaw.

Oh, if you just weld a washer on top you might find that the damper thread won't be long enough. There a bigger to get the nut started without adding extra thickness.

Flossie said:
Oh, if you just weld a washer on top you might find that the damper thread won't be long enough. There a bigger to get the nut started without adding extra thickness.
Click to expand...
+1
Never understood why they don't make the thread a few mm's longer. Space isn't usually an issue. Usually resort to using the old lower bush in order to compress the upper one then switching the lower one over....or not! :(

payydg said:
Oh nice. I might just get some new brackets and pay a man to weld them on for me.
Click to expand...
Washer works.
You may have misunderstood what I said? A repair like my pics above brings it back to original, IF you just weld a plate on top with a hole in it, the overall thickness is greater and you will struggle with starting the damper nut. It should or must be a flush repair or new mounts of course.
Washer is cheap, think it cost me 50p.

Flossie said:
Washer works.
You may have misunderstood what I said? A repair like my pics above brings it back to original, IF you just weld a plate on top with a hole in it, the overall thickness is greater and you will struggle with starting the damper nut. It should or must be a flush repair or new mounts of course.
Washer is cheap, think it cost me 50p.
Click to expand...

My mounts are brackets the attach to the rear axle so probably pretty easy to cut off and weld new ones on
