rear axle holes

sprie · Sep 27, 2023

I have now stripped the chassis, and am starting to look at the refurbishment of the axles.

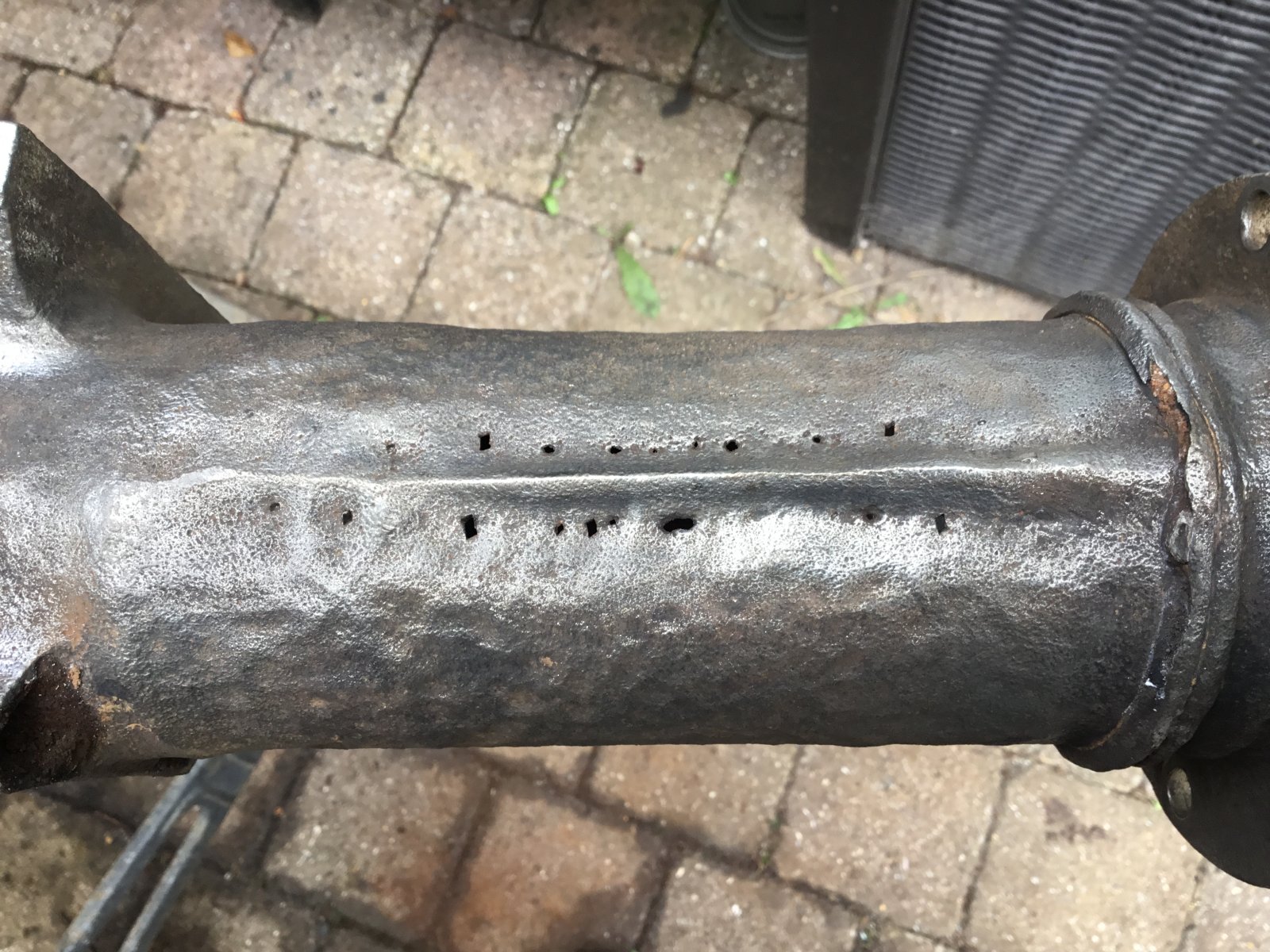

My rear axle has some rust holes in what i am assuming is a strengthening part under the axle (see photo). My front axle doesn't have the same part. I am having trouble deciphering the axle numbers - i think (but i need to do some work to confirm this) that my rear axle is suffix A and the front is suffix B.

I am thinking i cut around the holes and weld in some replacement metal. Is that the sensible thing to do?

marjon · Sep 27, 2023

They are just reinforcement. I am sure you can get others to replace them, have a search. It may be easier/neater to just replace the whole thing but just using same gauge metal welded in would not be an issue IMO

Somebody will be along to say where new are available.

J

Wildefalcon · Sep 27, 2023

Yep. Available on eBay.

Example

My son used spare box section on his.

steve2286w · Sep 27, 2023

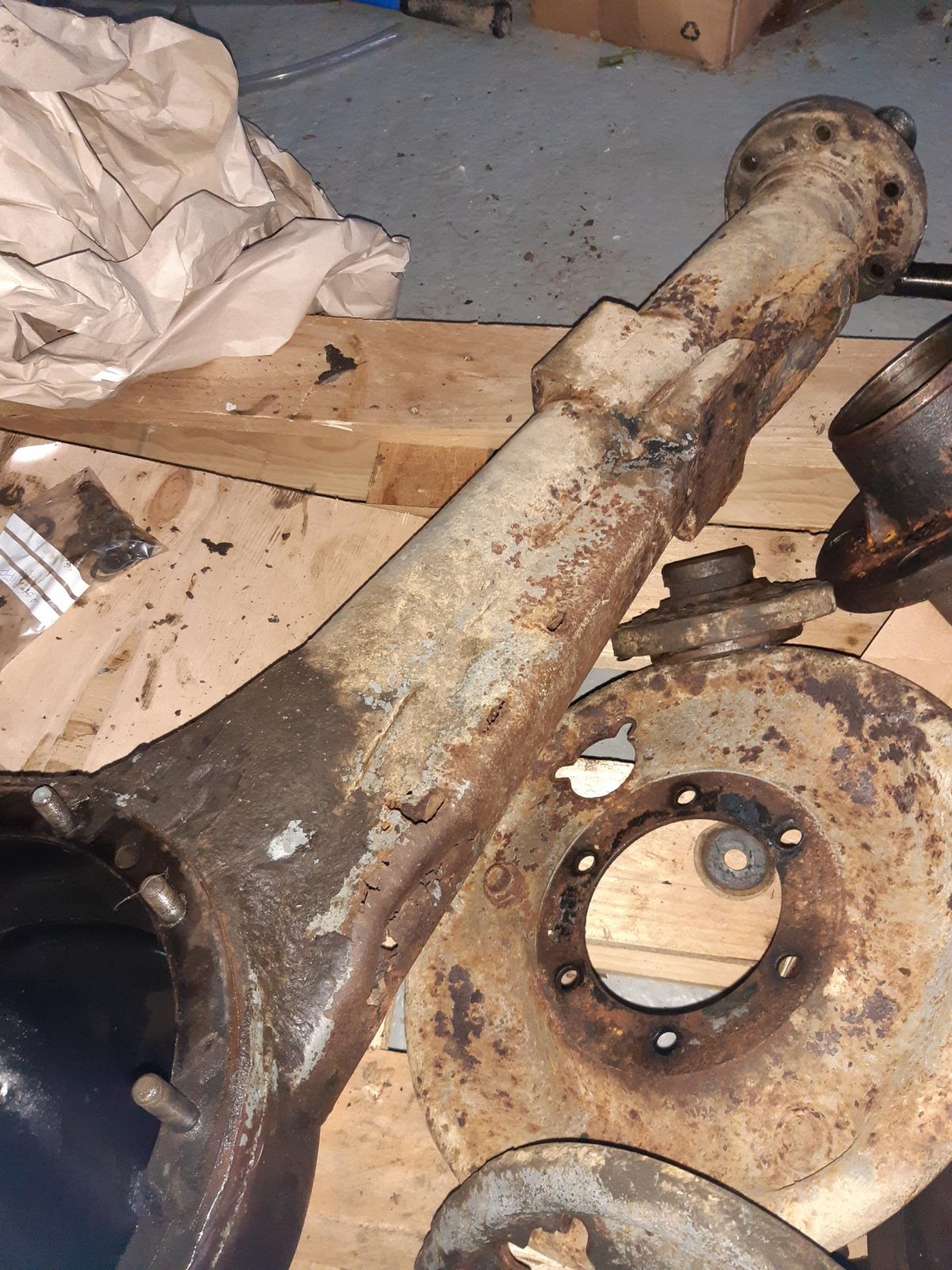

My rear axle when cleaned up showed a few pin holes and a nail tapped through quite readily
I opted for new one, was bout £500 , but if rest of yours is sound then weld on new strengtheners good call

Wildefalcon · Sep 27, 2023

It's all about balancing time and money.

tottot · Sep 27, 2023

Chop it all off to check tube underneath. Not all axles had the strengthening part, mostly on LWB

marjon · Sep 27, 2023

steve2286w said:
My rear axle when cleaned up showed a few pin holes and a nail tapped through quite readily
I opted for new one, was bout £500 , but if rest of yours is sound then weld on new strengtheners good callView attachment 298810

From recent posts/thread I am sure many "puma?" owners would like to see their axles rust out rather than drop off.
And apparently thats a good weld

.

J

Wildefalcon · Sep 27, 2023

Well, they've bought one of those coil spring things, what do you expect? Arms, rods, a-frames, linkages and god knows what holding the axle in place, rather than just two leaf springs like God intended.

boguing · Sep 27, 2023

Wildefalcon said:
Well, they've bought one of those coil spring things, what do you expect? Arms, rods, a-frames, linkages and god knows what holding the axle in place, rather than just two leaf springs like God intended.

To be fair, the leaf spring arrangement was designed before He moved his gaff up above the firmament and the lead suspension engineer was a leading Remain campaigner.

Wildefalcon · Sep 27, 2023

Bloody Romans.
