Radio ignition live

WelshKangarooDisco said:

Ah okay as that’s the next thing to test and if it’s not that then there’s a problem in one of the looms

Click to expand...

sierrafery said:

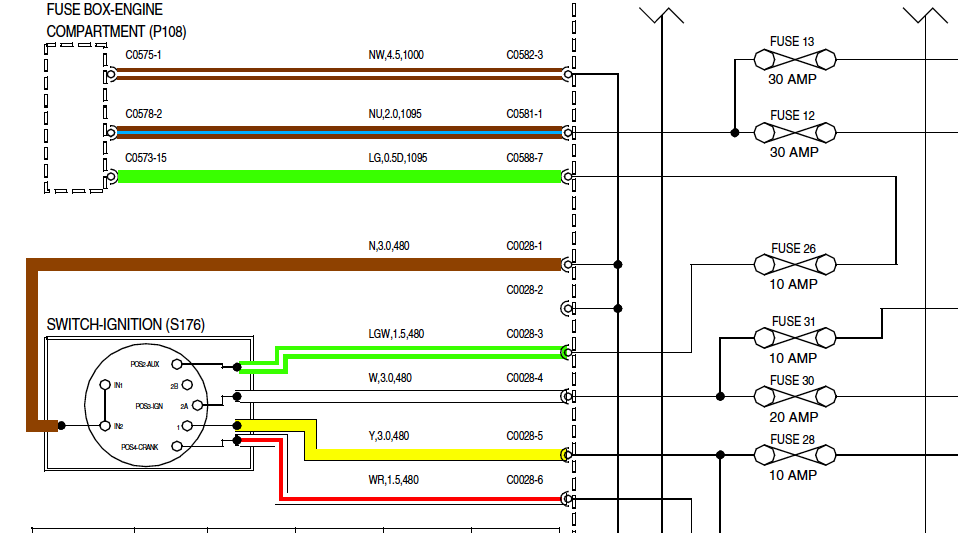

do you know to read electrical wiring diagrams? if yes see the attached diagram and you should see what to do, from F26 the feed goes to the aux relay...

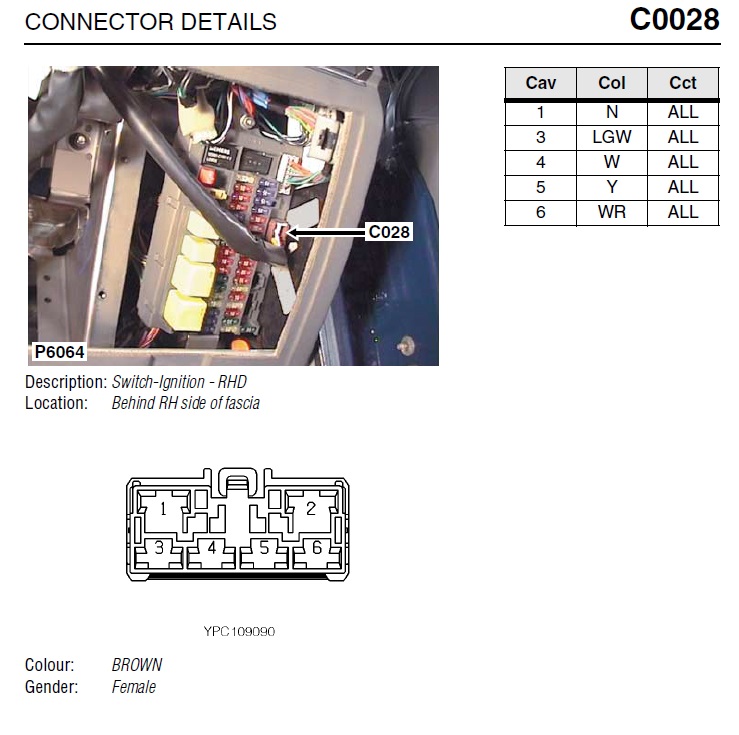

if not check if you have voltage on the light green/white wire(C0028 pin 3, attached), if yes and no voltage on F26 the problem is within the fusebox, if no voltage there it's the ignition switch/harness

Click to expand...

WelshKangarooDisco said:

Ignition switch at fault shown through testing and the corresponding pin on the connector for the ignition switch damaged / loose

Click to expand...

sierrafery said:

do you know to read electrical wiring diagrams? if yes see the attached diagram and you should see what to do, from F26 the feed goes to the aux relay...

if not check if you have voltage on the light green/white wire(C0028 pin 3, attached), if yes and no voltage on F26 the problem is within the fusebox, if no voltage there it's the ignition switch/harness

Click to expand...

sierrafery said:

I'm glad you found te culprit

Click to expand...
