P38A Radio buzz
- Thread starter domino
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
gymmaniac
Well-Known Member
- Posts
- 621
- Location
- Bedfordshire
Issue may not be related at all but to stop my radio interference I've added ferrites to the looms of the LED lights I'd just fitted. You could try adding ferrites to the radio power supply - can't hurt.
- Posts
- 3,878
- Location
- Near Heathrow.
Was posted before, but here's how to resolve the footwell connector problem.
- Look at the wires in the plugs. Should all be different colours, and same colour pin-socket each side of the connector
- Then check somebody hasn't tampered previously, and figure out what.
- Cut the offending connectors off.
- Solder each wire to its matching colour (remembering to slide the heat shrink over first !!
- Have a beer when done.
tomcat59alan
Well-Known Member
- Posts
- 18,611
- Location
- wirral and triquivijate
Was posted before, but here's how to resolve the footwell connector problem.

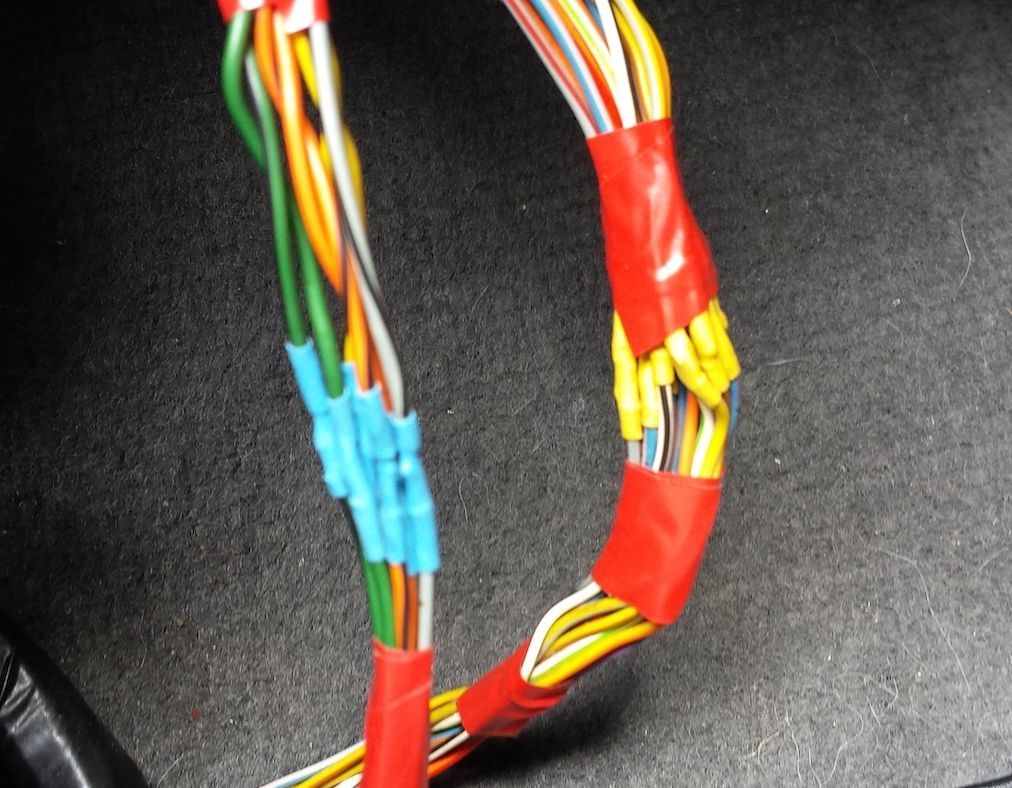

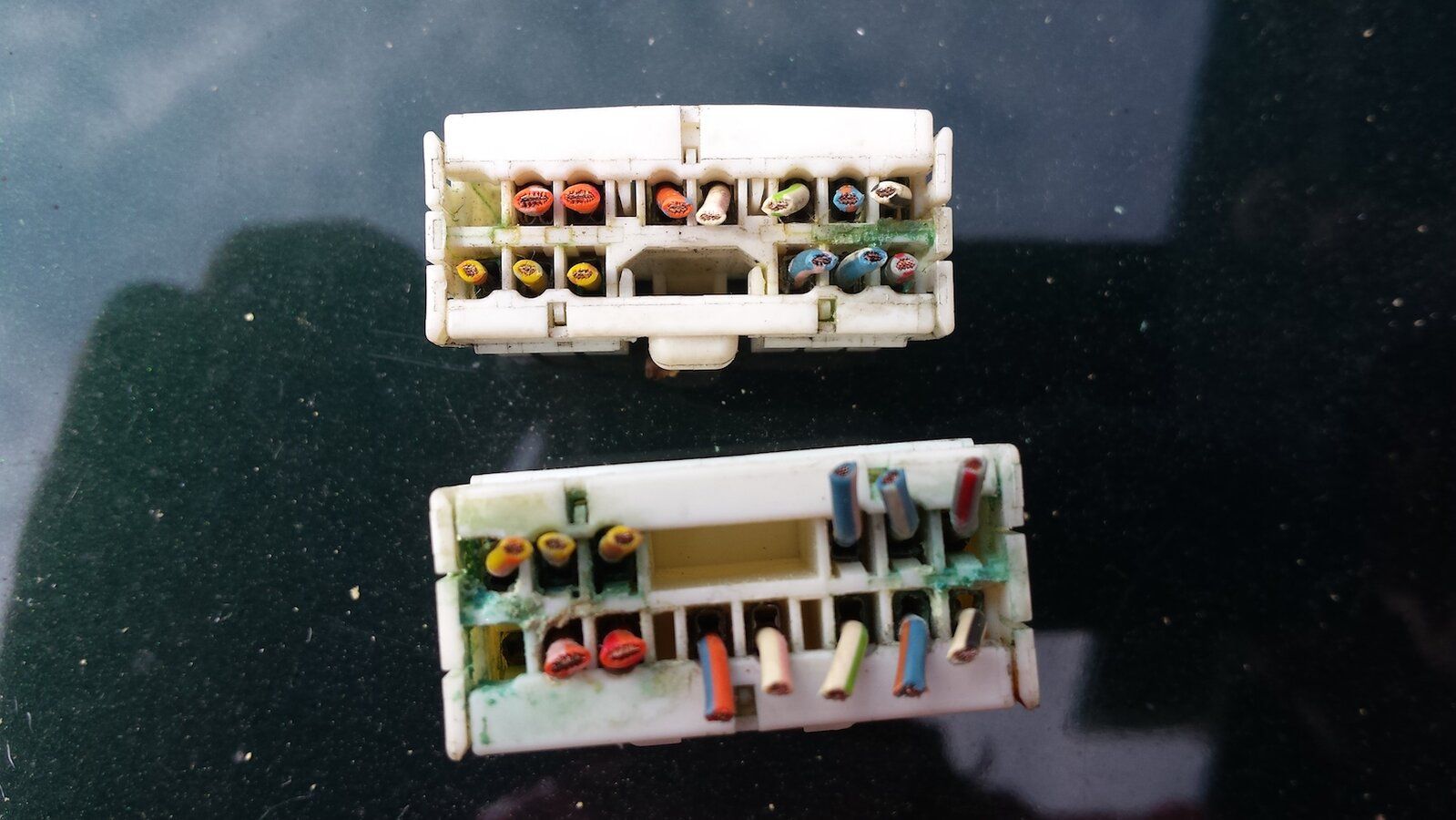

View attachment 224030 View attachment 224029
- Look at the wires in the plugs. Should all be different colours, and same colour pin-socket each side of the connector
- Then check somebody hasn't tampered previously, and figure out what.
- Cut the offending connectors off.
- Solder each wire to its matching colour (remembering to slide the heat shrink over first !!
- Have a lots of beer when done. Edited for accuracy.
- Posts
- 3,878
- Location
- Near Heathrow.
Is the head unit original or aftermarket ? If the latter, then the installer has probably bodged the wiring.
Original High Line HU should have 10-way C224B from the radio, with a pair of wires to each amplifier. Check the continuity from this to each door amplifier. They are a balanced pair, so a break in either will cause buzz, but the audio might still work.
Also check Pin-6 on each door amplifier is properly grounded. All four amps have different ground points !!
Original High Line HU should have 10-way C224B from the radio, with a pair of wires to each amplifier. Check the continuity from this to each door amplifier. They are a balanced pair, so a break in either will cause buzz, but the audio might still work.
Also check Pin-6 on each door amplifier is properly grounded. All four amps have different ground points !!
