kermit_rr said:
Remember the temp gauge isn't. It's a nominal gauge that shows cold, warmer, normal or dead.
When my viscous fan was good, normal driving temp was 92, idle was 95-96. When the fan started to fail, i could see the driving temp creep up over a period of days. I swapped it when driving temp was 94-95 and it went back to 92. I didn't make any other change or ways the rad etc at that time
The temp gauge in the dash status on 'normal' waaaay past 100, i don't recall the figure but by that time a V8 is likely cooked
Click to expand...
The gauge is on normal from 85C to at least 105C on the P38 diesel, maybe higher but I did not fancy going further.

Last edited:
kermit_rr said:
Remember the temp gauge isn't. It's a nominal gauge that shows cold, warmer, normal or dead.
When my viscous fan was good, normal driving temp was 92, idle was 95-96. When the fan started to fail, i could see the driving temp creep up over a period of days. I swapped it when driving temp was 94-95 and it went back to 92. I didn't make any other change or ways the rad etc at that time
The temp gauge in the dash status on 'normal' waaaay past 100, i don't recall the figure but by that time a V8 is likely cooked
Click to expand...

Never been near the red. I rarely tow that much weight these so haven't seen it in a while.

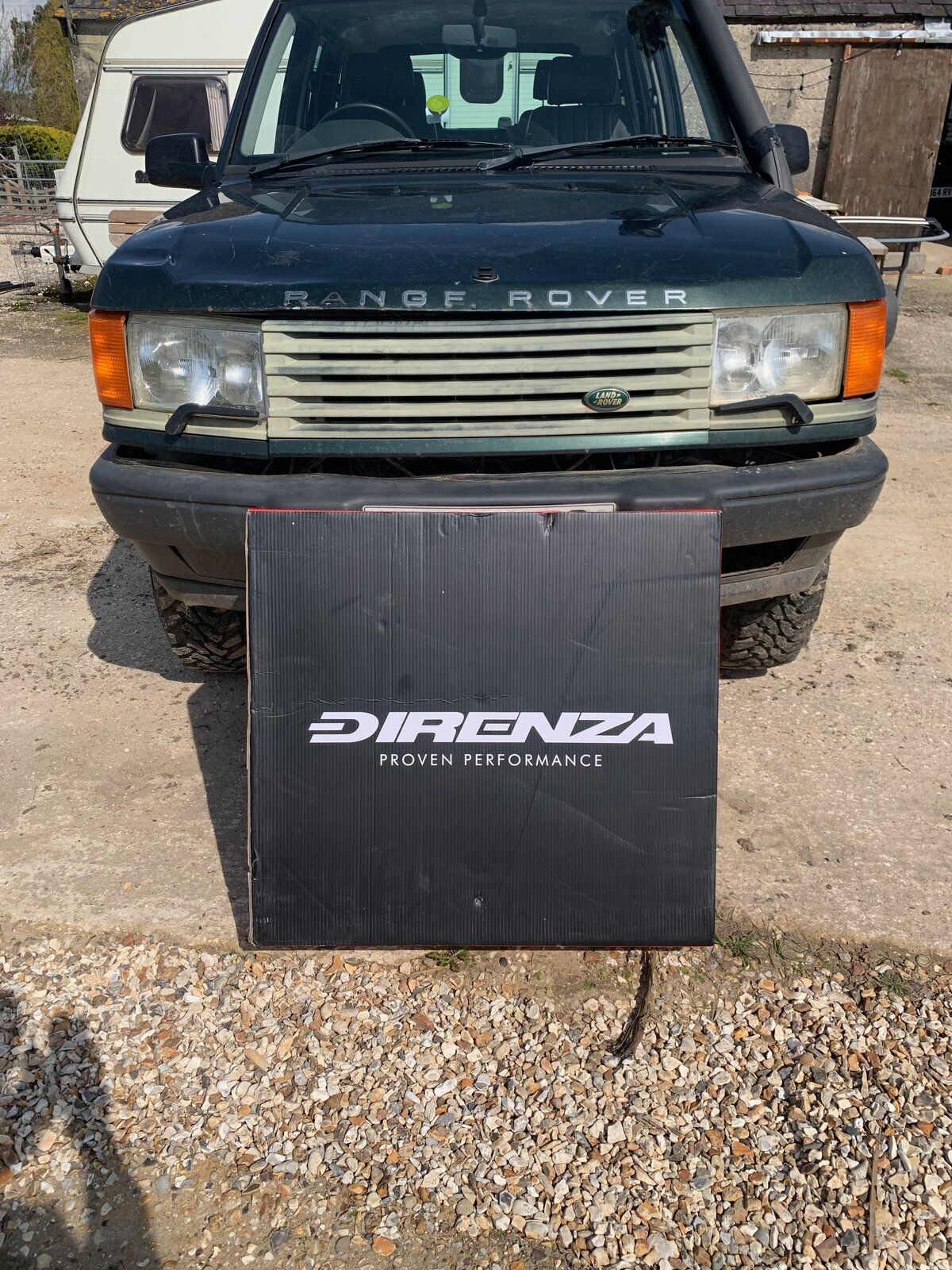

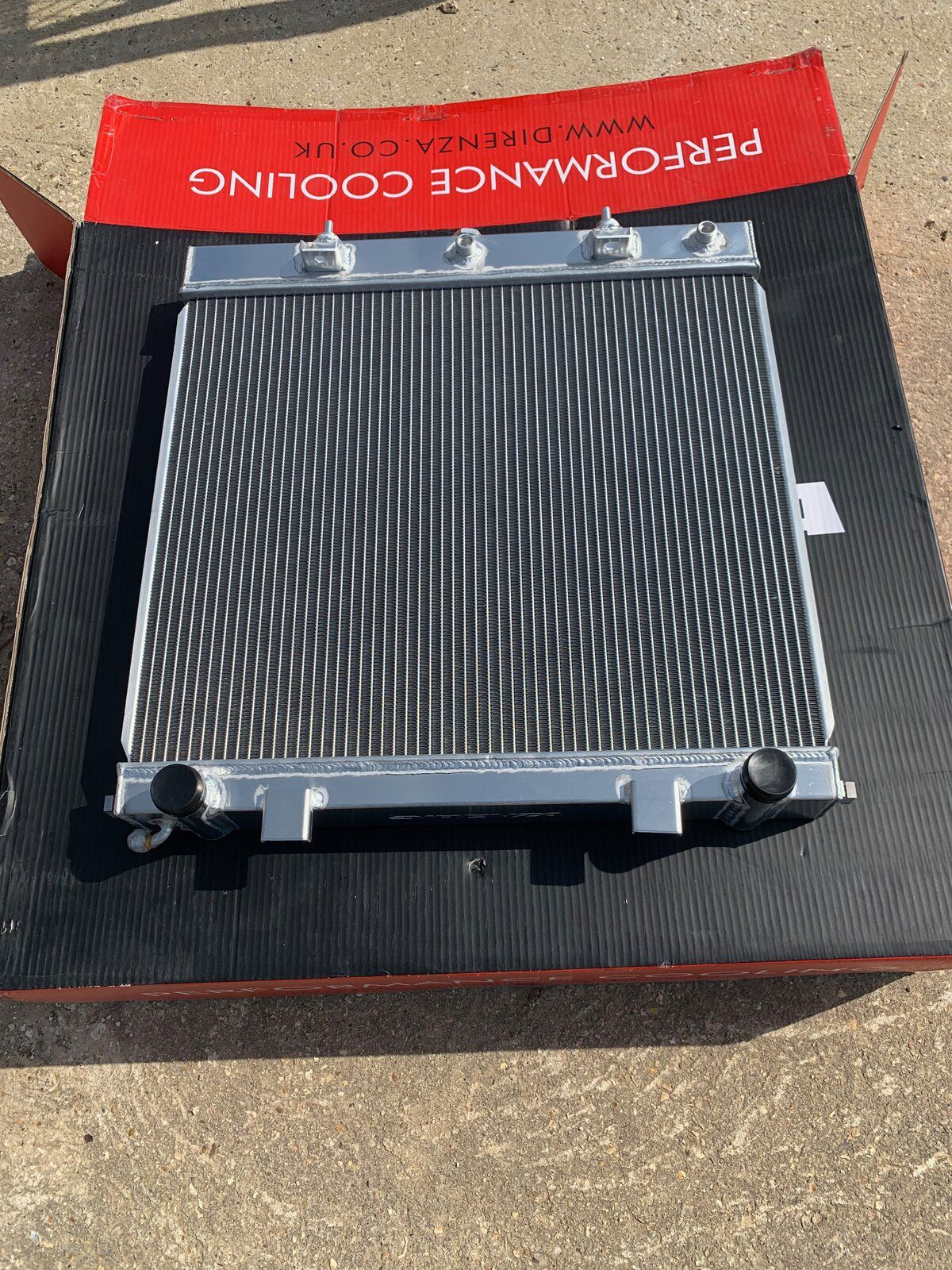

Here is the new rad - and I did it all by myself... which as regular readers know I always have to distinguish between 'I' when I really mean the Royal 'We' - meaning someone else did it - and 'I' when I mean I actually did something myself!

Recents - 1 of 8.jpeg Recents - 2 of 8.jpeg

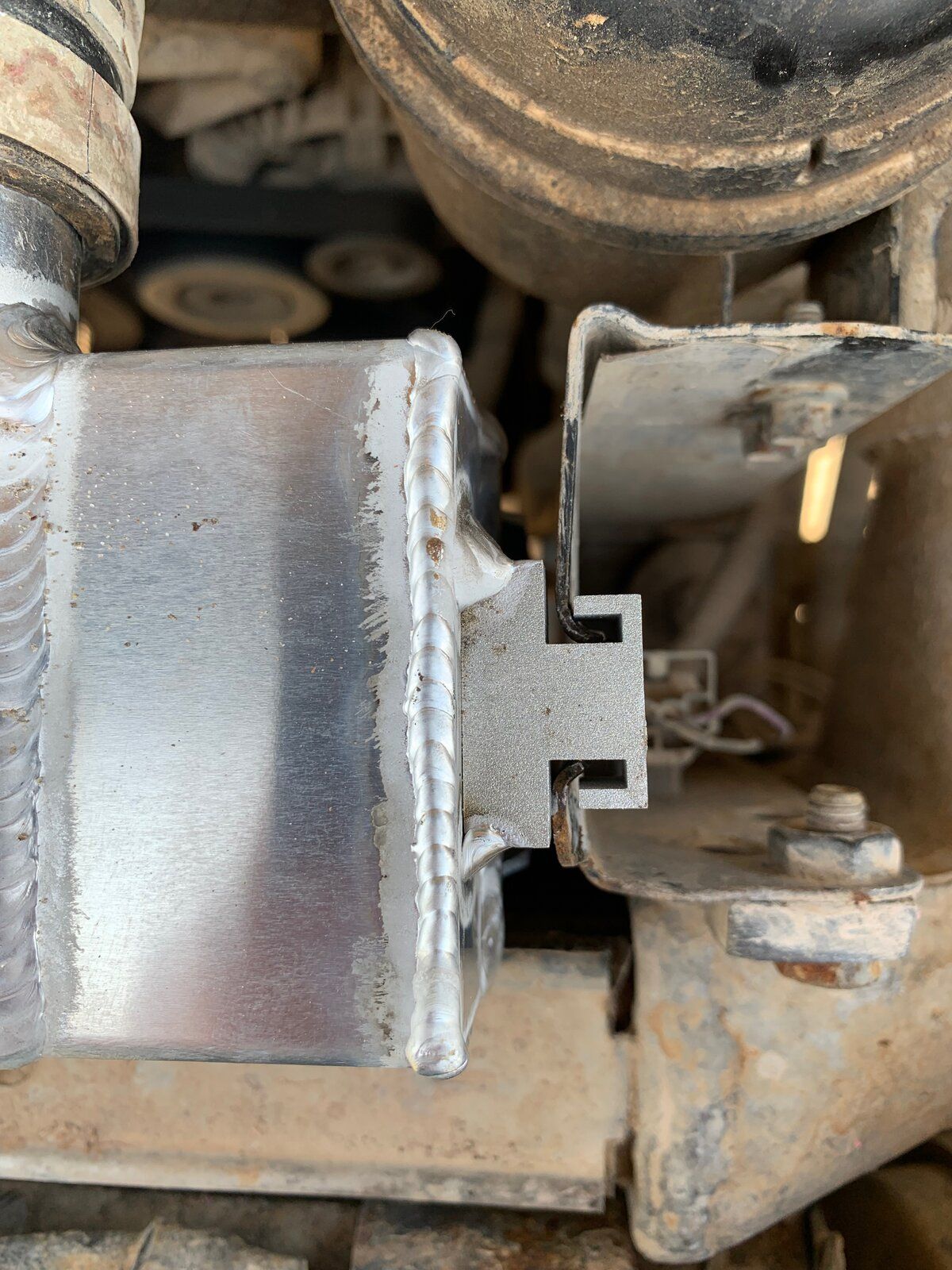

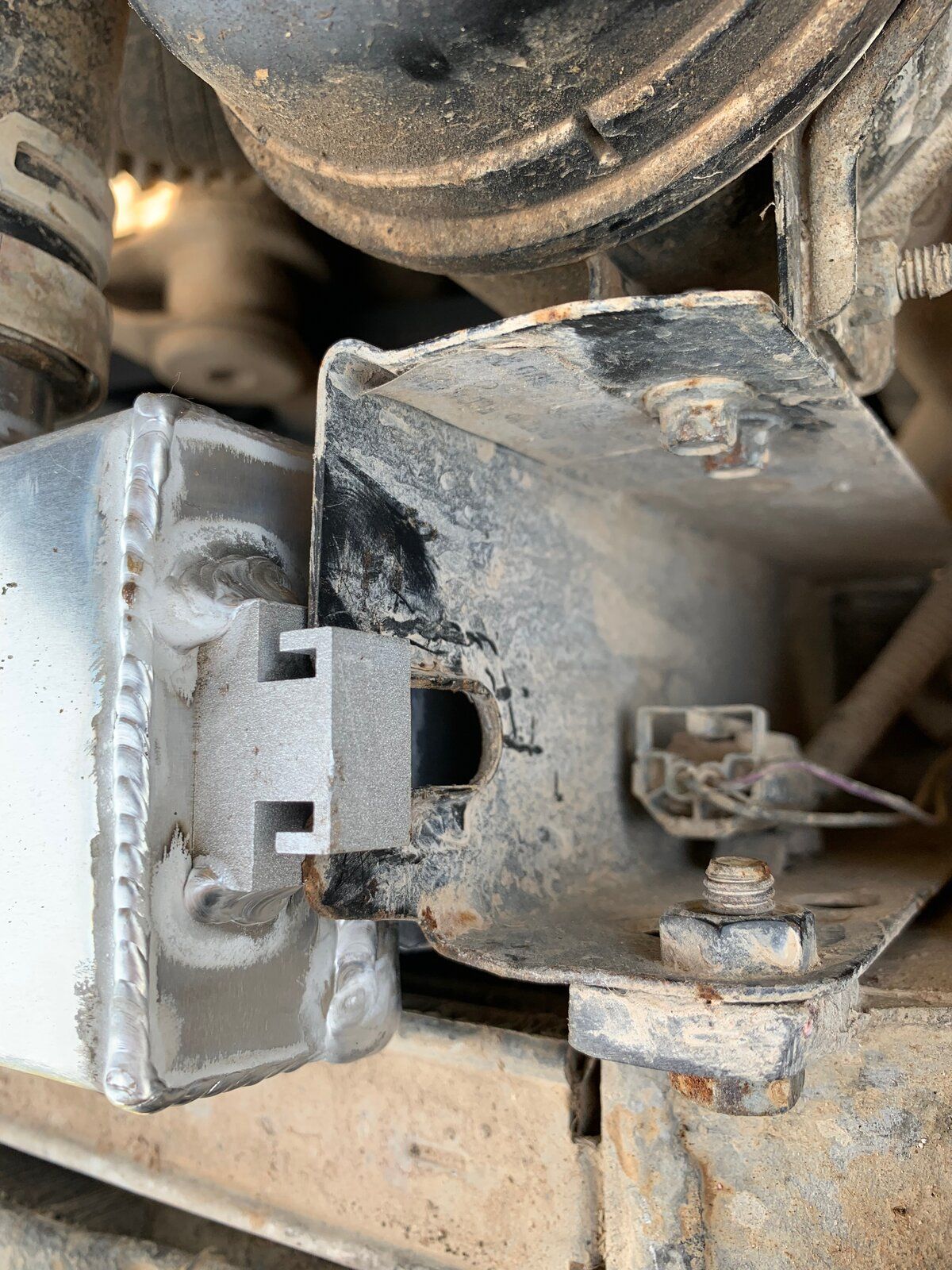

Had to do a bit of jiggery pokery on the locating flanges (ooh that sounds technical - bound to be the wrong phrase)
Recents - 5 of 8.jpeg Recents - 6 of 8.jpeg

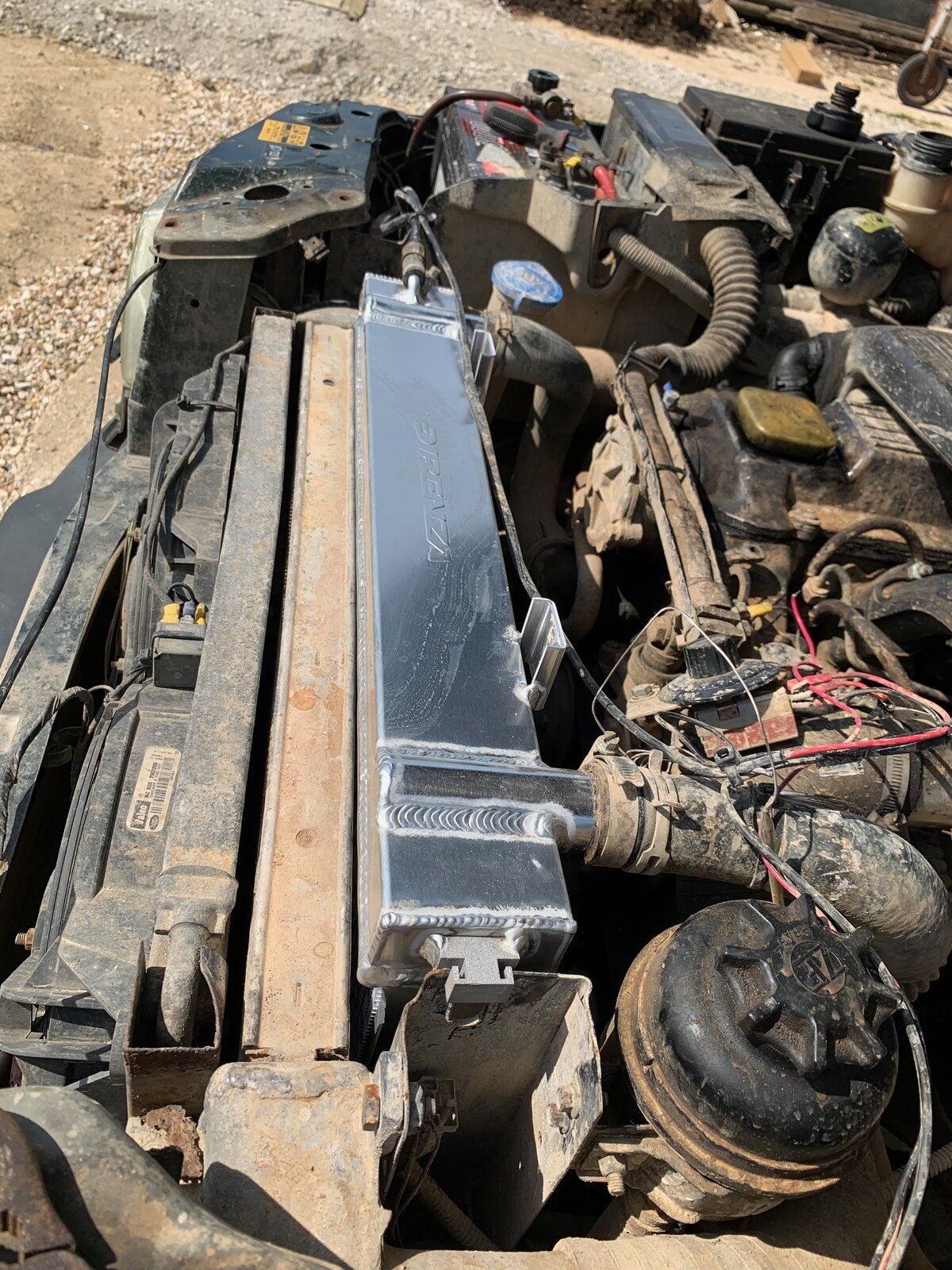

But once in;
Recents - 7 of 8.jpeg

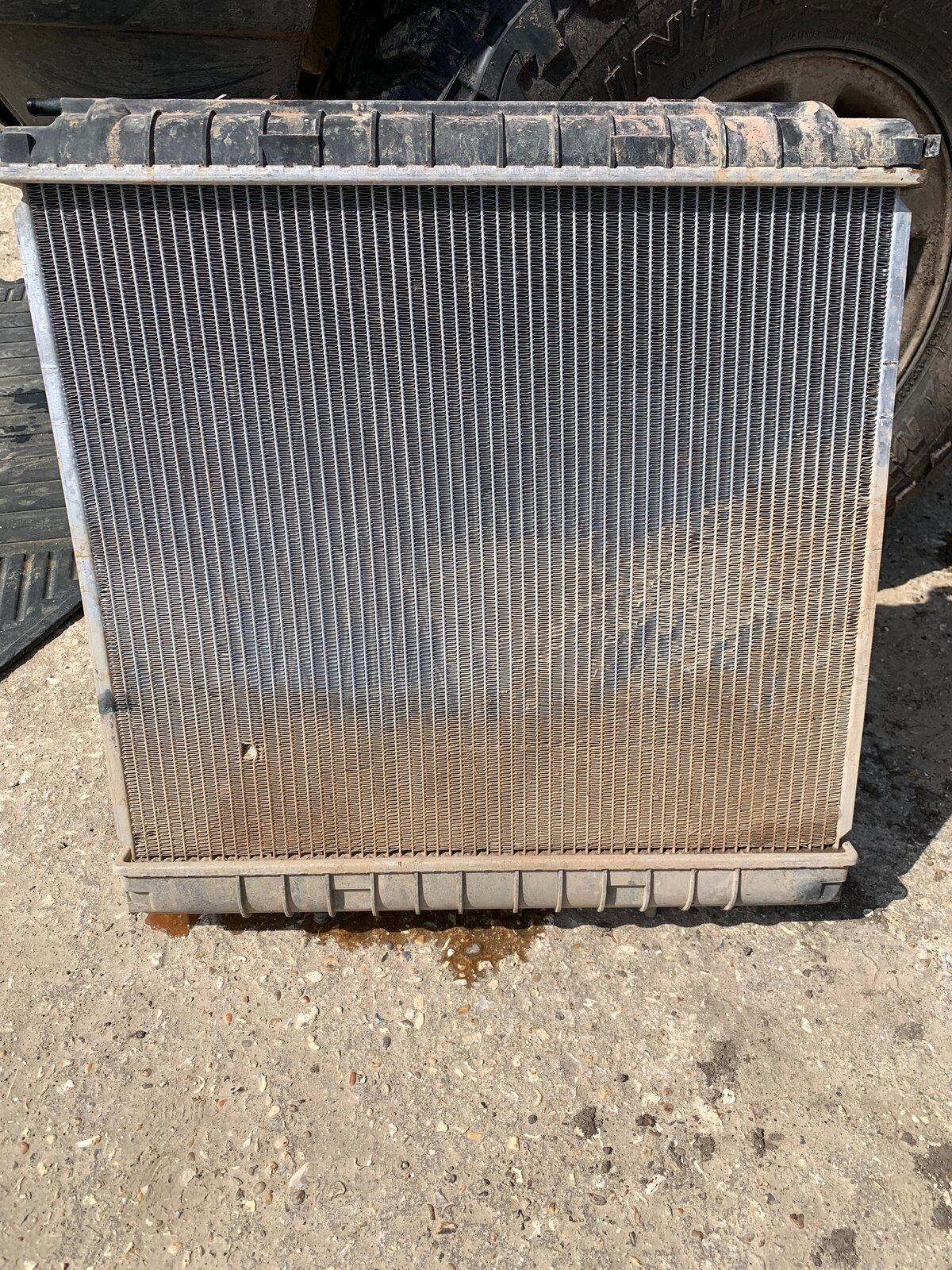

And the old one;
Recents - 3 of 8.jpeg
And in the process of removing it I realised there is nothing wrong with it - just a bit muddy - but the new one gives increased cooling, and when I (Royal 'We') have added a new OEM Fan as well it should be arctic!


Attachments

  • Recents - 8 of 8.jpeg
    Recents - 8 of 8.jpeg
    522.2 KB · Views: 109
Salisbury Nick said:
Here is the new rad - and I did it all by myself... which as regular readers know I always have to distinguish between 'I' when I really mean the Royal 'We' - meaning someone else did it - and 'I' when I mean I actually did something myself!

View attachment 286056 View attachment 286057

Had to do a bit of jiggery pokery on the locating flanges (ooh that sounds technical - bound to be the wrong phrase)
View attachment 286058 View attachment 286059
But once in;
View attachment 286061

And the old one;
View attachment 286060
And in the process of removing it I realised there is nothing wrong with it - just a bit muddy - but the new one gives increased cooling, and when I (Royal 'We') have added a new OEM Fan as well it should be arctic!
Click to expand...

That does look nice. Is it thicker with more surface area like the original?

Remind me how much that cost?

Salisbury Nick said:
Here is the new rad - and I did it all by myself... which as regular readers know I always have to distinguish between 'I' when I really mean the Royal 'We' - meaning someone else did it - and 'I' when I mean I actually did something myself!

View attachment 286056 View attachment 286057

Had to do a bit of jiggery pokery on the locating flanges (ooh that sounds technical - bound to be the wrong phrase)
View attachment 286058 View attachment 286059
But once in;
View attachment 286061

And the old one;
View attachment 286060
And in the process of removing it I realised there is nothing wrong with it - just a bit muddy - but the new one gives increased cooling, and when I (Royal 'We') have added a new OEM Fan as well it should be arctic!
Click to expand...
You need to check the top face meets the baffle inside, mine didn't!! I just tapped it gently down to meet the baffle. Otherwise aprt from the awful stop start welding, it's does a great job:cool:
Sorted squire:D

Mark Piercy said:
You need to check the top face meets the baffle inside, mine didn't!! I just tapped it gently down to meet the baffle. Otherwise aprt from the awful stop start welding, it's does a great job:cool:
Sorted squire:D
Click to expand...
Thank you Sir.
I had exactly that issue - a bit of being with a hammer/chisel - and some gentle persuasion with a rubber mallet worked a treat.
