daveb_1
Member
- Posts
- 33
ok tried to attach pic but didn't work how do I do that?
Propshaft Backlash
- Thread starter frankie310792
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 44,915
- Location
- Hornchurch
daveb_1
Member
- Posts
- 33
exactly what i did, will try photobucket instead
- Posts
- 44,915
- Location
- Hornchurch
Photobucket instead?It sez use photobucket:monitor_punch:
daveb_1
Member
- Posts
- 33

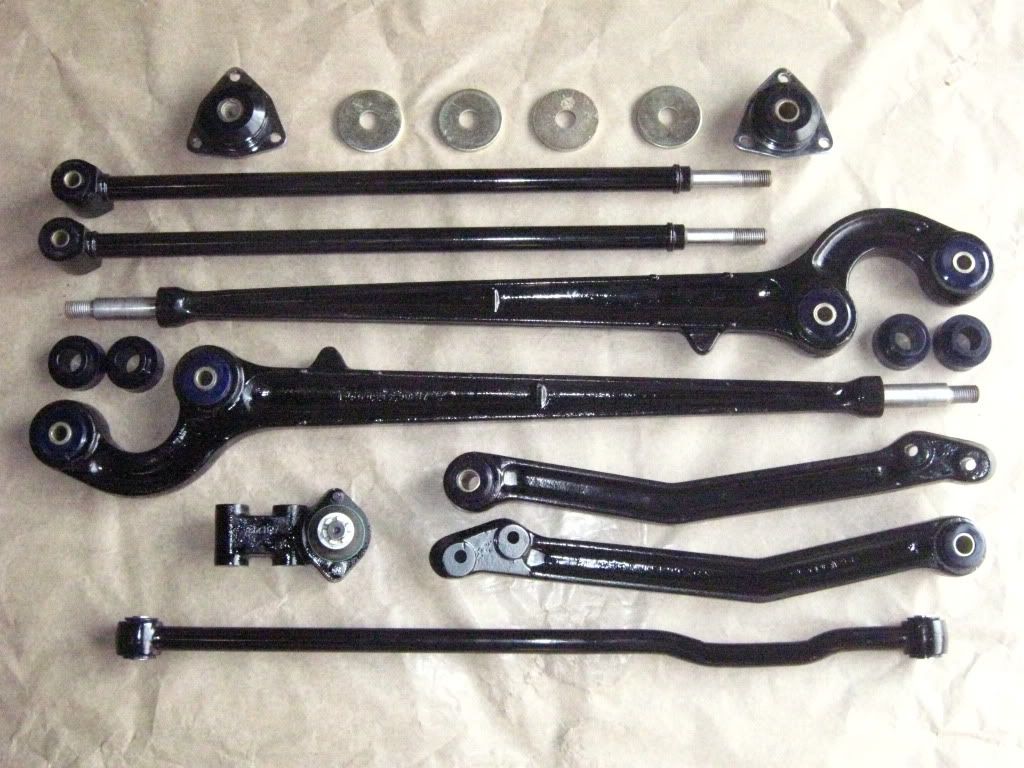

ok seems to be working, the main ball joint took 10 tons of pressure to remove it , glad i didn't try this on my drive way.
Last edited:
- Posts
- 44,915
- Location
- Hornchurch
that works :clap2::cheer2:
:cool2:
:mil79::5bhurray:
:cool2::mil79::5bhurray:daveb_1
Member
- Posts
- 33
the knocking noise is now gone, thanks to all who helped me solve this problem.
Raider td5
Active Member
- Posts
- 214
- Location
- Islamabad-Pakistan
I have a 2001 TD5 110 crew cab...
And my prob shaft has back lash too!! I have already replaced the A frame ball joint although my original one was good too and all four U joints but the back lash is still there.
All rear bushes were replaced 40K ago and are in good shape, my car has done 95000 kms now and I am a pretty frequent off roader as well.
I took out the rear wheels hubs to replace bearing seals and re grease the bearings and found out that my rear half shafts and flanges have very minor free ply; when I pulled out the shafts I was surprised by what I saw..
The shaft splines at the differential ends were twisted on both sides...
Is this the reason of the backlash? I couldn't find new shafts so I re fitted the old ones for now. Will the backlash go when I install new shafts and flanges? Or do I need new Diffs and transfer box?
Cheers!
And my prob shaft has back lash too!! I have already replaced the A frame ball joint although my original one was good too and all four U joints but the back lash is still there.
All rear bushes were replaced 40K ago and are in good shape, my car has done 95000 kms now and I am a pretty frequent off roader as well.
I took out the rear wheels hubs to replace bearing seals and re grease the bearings and found out that my rear half shafts and flanges have very minor free ply; when I pulled out the shafts I was surprised by what I saw..
The shaft splines at the differential ends were twisted on both sides...
Is this the reason of the backlash? I couldn't find new shafts so I re fitted the old ones for now. Will the backlash go when I install new shafts and flanges? Or do I need new Diffs and transfer box?
Cheers!
Raider td5
Active Member
- Posts
- 214
- Location
- Islamabad-Pakistan
bump!
Trewey
Cockernee, Pasty munchin bastid.
- Posts
- 20,088
- Location
- Kernow - Near England
Yes, there should be no free play in the half-shaft splines or drive flanges!
Up to 1/4 of a turn of the propshaft due to backlash in the diff itself seems OK.
Up to 1/4 of a turn of the propshaft due to backlash in the diff itself seems OK.
Raider td5
Active Member
- Posts
- 214
- Location
- Islamabad-Pakistan
Right!!
Would any one know how much do the half shafts cost? Mine is a 2001 TD5, 110 crew cab and it has a big square like rear diff, I would really appreciate if some one can give me part numbers for the half shafts.
Cheers!
Would any one know how much do the half shafts cost? Mine is a 2001 TD5, 110 crew cab and it has a big square like rear diff, I would really appreciate if some one can give me part numbers for the half shafts.
Cheers!
Raider td5
Active Member
- Posts
- 214
- Location
- Islamabad-Pakistan
Rear prop shaft of my defender turns alot less than 1/4 but the front one is probably turning a quarter.
Is any thing wrong there?
Is any thing wrong there?
Trewey
Cockernee, Pasty munchin bastid.
- Posts
- 20,088
- Location
- Kernow - Near England
Trewey
Cockernee, Pasty munchin bastid.
- Posts
- 20,088
- Location
- Kernow - Near England
FTC1724 and FTC1725 are the part numbers for the rear half-shafts.
FTC859 is the drive member.
FTC859 is the drive member.
Raider td5
Active Member
- Posts
- 214
- Location
- Islamabad-Pakistan
Thanks... whats a drive member?
yer a bit old to still be expecting to be spoon fed everything
Hi all,
I am fighting the same battle here.
I replaced both drivemembers and half-shafts. That took care of 50% of the "clunk". I took away the rear propshaft and did a surprisingly smooth test drive without it
. So I think the remainder of the slack is in the back as well. Will put in new uj's and see what happens. If I am still not happy I'll have the A-frame ball joint replaced. After that, I'll start to worry a bit more.
I can turn the rear propshaft about 1 centimeter but from what I read here this is within limits.
Good luck!
Robert
I am fighting the same battle here.
I replaced both drivemembers and half-shafts. That took care of 50% of the "clunk". I took away the rear propshaft and did a surprisingly smooth test drive without it
. So I think the remainder of the slack is in the back as well. Will put in new uj's and see what happens. If I am still not happy I'll have the A-frame ball joint replaced. After that, I'll start to worry a bit more.I can turn the rear propshaft about 1 centimeter but from what I read here this is within limits.
Good luck!
Robert
Raider td5
Active Member
- Posts
- 214
- Location
- Islamabad-Pakistan
Hey...
Yeah you are right!! but thats what these forums are for?? Arn't they? Help each other!!!!
Its a new term I came across so I asked what it means my guess is that its an another name for a drive flange that goes onto the hub. But thats just a guess!
I am in a country where such vehicles are scarce... and mechanics have made up names of different parts in the local language!
Trewey
Cockernee, Pasty munchin bastid.
- Posts
- 20,088
- Location
- Kernow - Near England
correct.
