Problem adjusting shims on steering

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
A

Ausman123

Member
Posts
33
Hi all I am having problems trying to get rid of front wheel play ? I have new track rod ends etc new steering bar which are all right but I am removing shims as the wheel has bad wheel play around the chrome ball . I have got to the stage now that I have removed all the shims and it is still playing are there shims underneath as well all help much appreciated as I need to use it soon

Year of car?
Shims should be equal top and bottom to keep seal centred.
Early axles are different.
Could be pins/bushes/bearings worn.

1973 series 3 I have unbolted the lower 4 bolts with the steering knuckle hole on it but it won't budge the chrome is not pitted infact it looks good thanks for your replies by the way

Leave the lower swivel pin alone, unlikely there is an issue here unless taper bearing is broken.
What you need is a new top swivel bush [Railko bush] kit As @Anaconda notes above. Comes with new pin, bush, thrust washer and set of new shims to set the correct pre load.

Thanks for that can you tell me can you add shims to reduce play as I watched a video on YouTube and the guy was saying this but his play was so bad he said there wouldn't be enough shins in the world to stop it hence I was thinking do you add them just I will still order the bearing as you described Thanks

Have you still got the tufnel thrust washer in place and not worn away
If you add shims under the pin you will increase the play,
how much play do you have

steve2286w said:
pin
Click to expand...
No I don't have that washer infact i cant see it ? Theres about an inch or so of play if you pull but that washer has made me think now as it was steering ok ish till recently does that washer go inside the hole where the top pin sits by any chance ?

That's with all shims out as well ? I have bought the washer and the sleeve I tried buying the kit but had a problem logging onto PayPal some bastard stole my phone recently . I have to say that when I put my finger in the pin hole it felt a bit rough maybe that was the remains of the washer I don't know ? But i willing to pay someone to do this job as i need the thing running in 3 weeks i am based in Pontypool South Wales if you know anyone to drive it is a nightmare it's all over the place I can only imagine it has to be the free play in the wheel as I disconnected the steering arm etc and relay was fine very odd

Ausman123 said:
That's with all shims out as well ? I have bought the washer and the sleeve I tried buying the kit but had a problem logging onto PayPal some bastard stole my phone recently . I have to say that when I put my finger in the pin hole it felt a bit rough maybe that was the remains of the washer I don't know ? But i willing to pay someone to do this job as i need the thing running in 3 weeks i am based in Pontypool South Wales if you know anyone to drive it is a nightmare it's all over the place I can only imagine it has to be the free play in the wheel as I disconnected the steering arm etc and relay was fine very odd
Click to expand...
I can't imagine driving it with 1"play is a wise idea.

Ausman123 said:
Plus its had new rods etc and tracked but obviously when done has to be retracted
Click to expand...
On the 2a I did tracking using an adjustable mop handle and set it straight ahead, seemed just fine and didn't wear tyres.
If you have had tracking done already I wouldn't worry as you have not moved anything on the drag link or steering rod. Had the swivel off my Defender twice recently and haven't redone the tracking.
Although seems kind of pointless having the tracking done with the swivel having so much play, or was it OK when you had the tracking done?

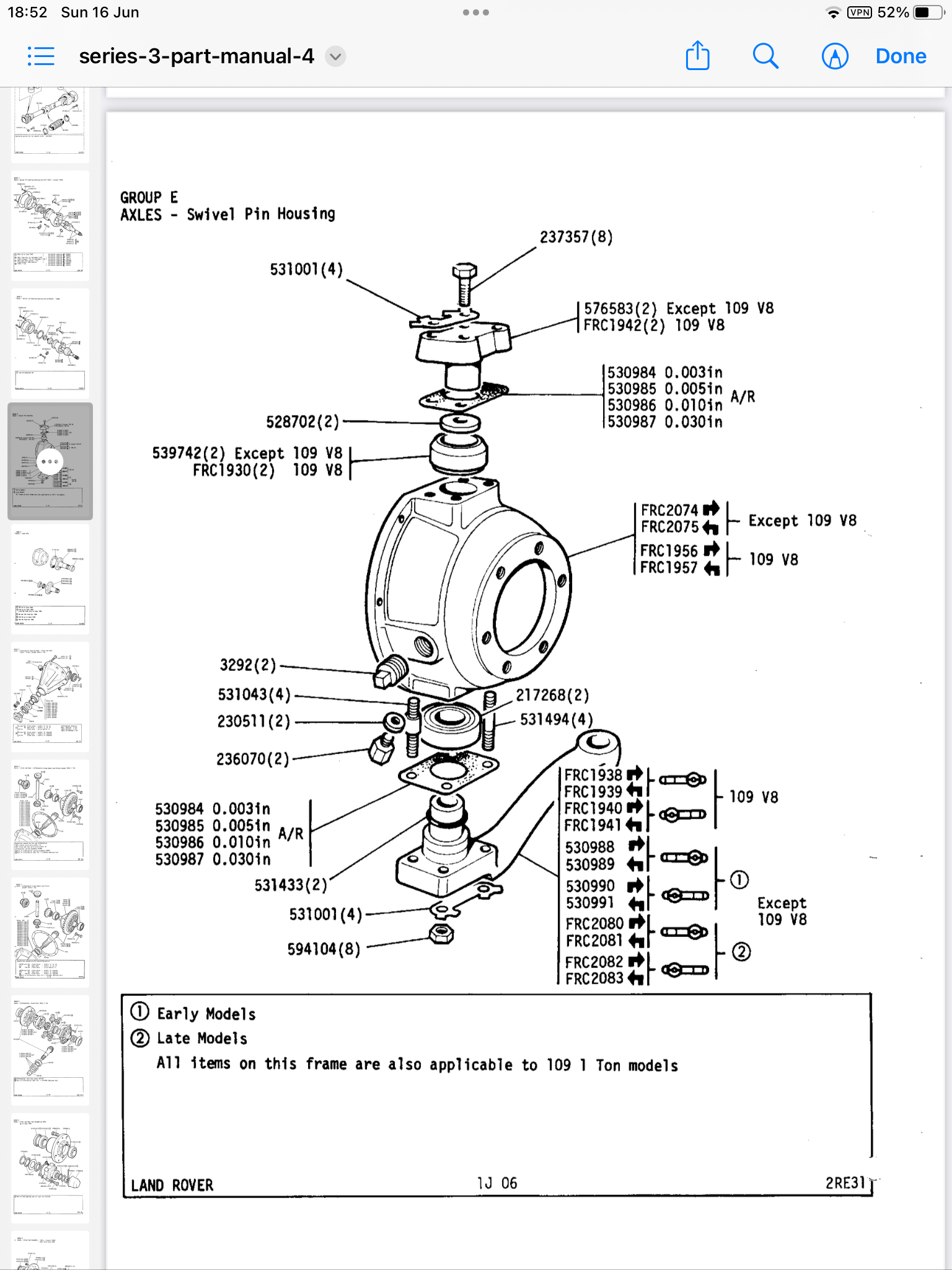

The pin tightens down into the bush , the bush is pressed into the top of the ball tightly and the tufnel washer sits under the pin so not metal rubbing on metal and provides a low ish friction allowing ball to swivel even when pin tight, the shims ensure not too much load on the bush which would make steering heavy,
If you get all parts it’s fairly simple and would sort it well inside 3 weeks

steve2286w said:
The pin tightens down into the bush , the bush is pressed into the top of the ball tightly and the tufnel washer sits under the pin so not metal rubbing on metal and provides a low ish friction allowing ball to swivel even when pin tight, the shims ensure not too much load on the bush which would make steering heavy,
If you get all parts it’s fairly simple and would sort it well inside 3 weeks
Click to expand...
Thanks Steve odd thing is it does not play vertically only horizontally if that makes sense and as I said the ball joints I'm the track rods are new and steering etc infact that's what it feels like when you wobble it sude to side exactly like a worn or loose ball joint but definitely not that at all

Ausman123 said:
Thanks Steve odd thing is it does not play vertically only horizontally if that makes sense and as I said the ball joints I'm the track rods are new and steering etc infact that's what it feels like when you wobble it sude to side exactly like a worn or loose ball joint but definitely not that at all
Click to expand...
do you know how to get the old Bush out ? Or is it an entire strip down that would be handy to know bud
