Play in wiper mechanism MOT failure

stu2985 · Mar 6, 2012

90 just failed its MOT on wiper failing to clear passenger side of the screen sufficiently

Reason play in wiper mechanism.

Does that mean a new motor is requried or is there a cheap fix for this ?

Station House · Mar 6, 2012

You may be able to improve by dismantling the motor, rotating the drive gear 180 degrees and reassembling

Also worth checking whether the wipers themselves are loose on the spines

jamesmartin · Mar 6, 2012

either play in spindle /wiper arm or box behind dash ,you can either unscrew box and turn gear wheel around 180 degrees or pull rack out from motor end stopping just before it comes off gear wheel so that you can reposition gear wheel and feed rack back ,ive found a lot of new parts dont work/fit even some supposedly genuine so worth trying repositioning first

jamesmartin · Mar 6, 2012

**** gettting slow

ratty · Mar 6, 2012

jamesmartin said:
**** gettting slow

Admit it.... You were distracted by daytime telly.

ratty · Mar 6, 2012

I dunno if it's just cos I'm a tight arse but I usually just rotate the wiper box by 120 degs instead of 180. That gives me 2 more goes out of it. If the wiper box is that badly worn though sometimes 180 is the best bet.

jamesmartin · Mar 6, 2012

ratty said:
Admit it.... You were distracted by daytime telly.

no i am actually working as well inbetween

ratty · Mar 6, 2012

jamesmartin said:
no i am actually working as well inbetween

In that case I suspect your computer keyboard is a similar shade of black to mine.

chezvegas · Mar 9, 2012

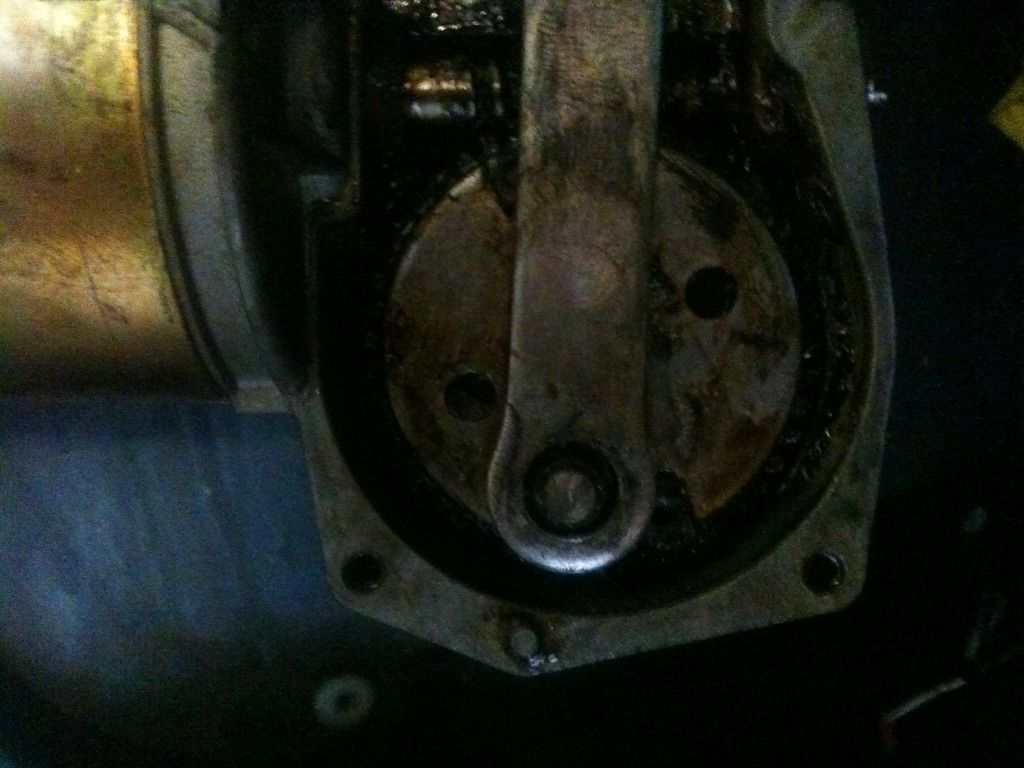

I have a similar problem on mine but I am not sure if I am missing a part. Should there be some type of shim that goes between the spindle on the drive motor and the linkage that connects to the wiper drive cable? See pic below

chezvegas · Mar 9, 2012

Just found the shim on the garage floor,

So which part is it that you rotate?

ratty · Mar 9, 2012

chezvegas said:
Just found the shim on the garage floor,
So which part is it that you rotate?

the wiper box

Withdraw the wiper drive spring, remove the wiper arms, rotate the wiper boxes, re-fit the wiper drive spring, turn wipers on and let em do a cycle and then re-fit wiper arms.

DavidJR · Mar 9, 2012

Get him to squirt water whilst testing them, they go further down with the lubrication, all my defenders owned have stuck up further when the window is dry.

I also use some water repel stuff that makes the screen look greasy from the outside, wipers glide better and less friction.

bustersbus · Mar 10, 2012

Dunno if there's owt in here...
http://www.landyzone.co.uk/lz/f41/wiper-boxes-cable-renewal-99743.html
that ye can use

chezvegas · Mar 17, 2012

Cheers guys, got it stripped down and it was the bolts that hold the wiper boxes on to the cable had come loose so tightened them up and I am back in business!

Trewey · Mar 17, 2012

Find a different MOT station.
That should have been an advisory at most.
