permanent live in engine bay for spotlights

drfoster · 2024-11-03T20:20:05+0000

Hi hive mind,

i've just fitted a bumper bar and 2x72W LED spotlights to my 300tdi 110 , i've got a relay and all the fuses etc. for wiring them in but looking for a good permanent live in the engine bay to tap of rather than having to run a wire back to the battery. any good ideas on where to pick up a live, either switched or constant without having to run wires through the bulkhead.

cheers in advance

Steve

kermit_rr · 2024-11-03T20:30:30+0000

A feed with a spare 12A.. i don't know the loom but I'd say that's unlikely

lynall · 2024-11-03T21:02:43+0000

Run the wire under the car to the battery box, following the battery cables, no need to enter cabin that way, quick as well.

drfoster · 2024-11-03T22:38:00+0000

lynall said:
Run the wire under the car to the battery box, following the battery cables, no need to enter cabin that way, quick as well.

Good plan, I'll see if I can do that. Need some more grommets for the battery box as well

lynall · 2024-11-04T06:57:48+0000

drfoster said:
Good plan, I'll see if I can do that. Need some more grommets for the battery box as well

Remember to fuse the wire as close to the battery as possible.

dag019 · 2024-11-04T08:57:43+0000

lynall said:
Run the wire under the car to the battery box, following the battery cables, no need to enter cabin that way, quick as well.

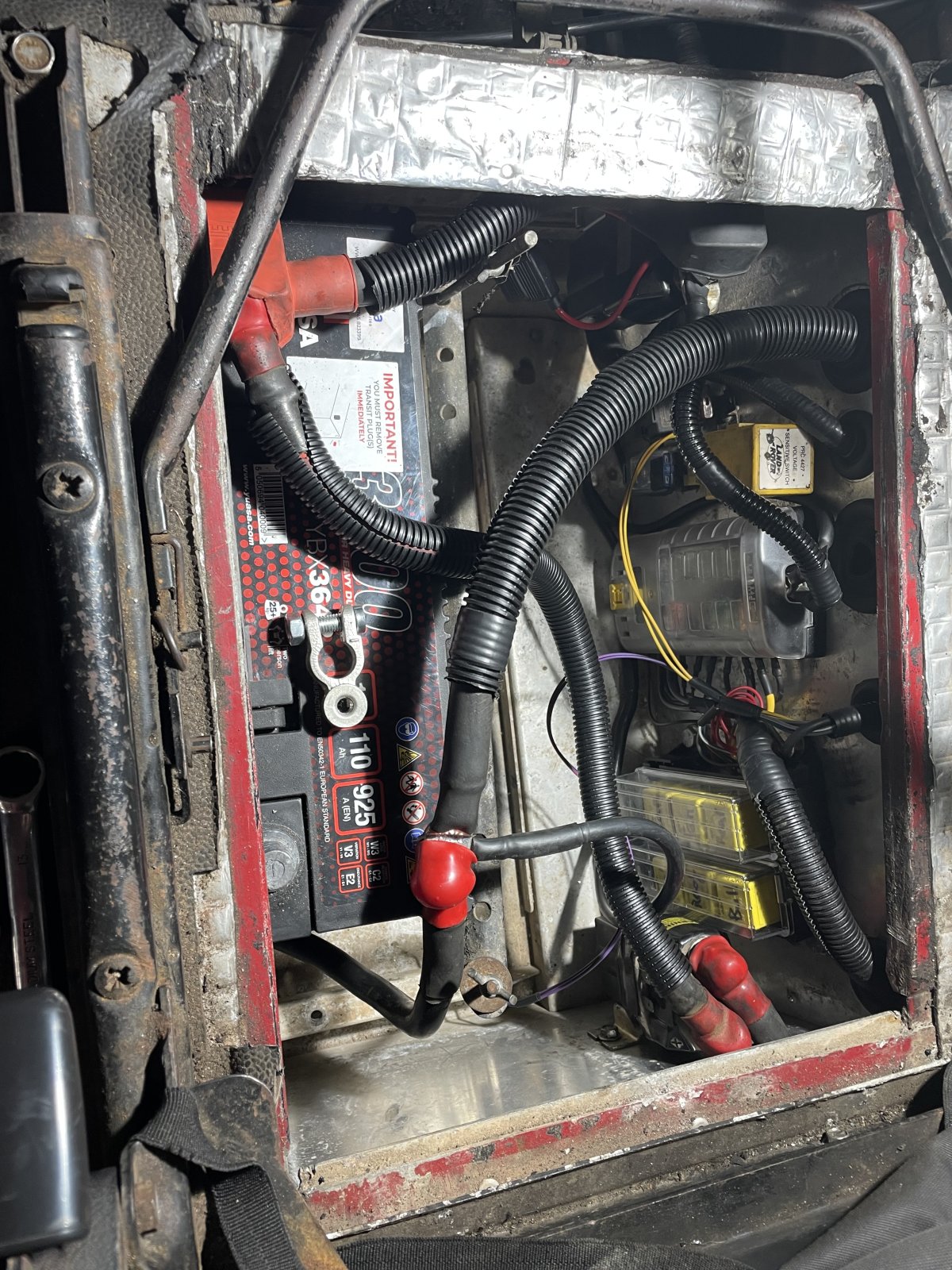

A second on this one. And make sure you put a fuse in the battery box for the wire. The only other place is the back of the starter where the battery cable attaches but I do not like that option. I run everything back to the battery box in mine and have a full aux fuse panel in there for everything (I also have the relays in a box in there as well).
I also run it all as twin core so I have an earth that goes back to the battery as well rather than just the nearest bolt.

dag019 · 2024-11-04T09:18:01+0000

drfoster said:
2x72W LED

What lights are you using? My led lights at the front are only about 20w but I then have 6 on the roof and 5 on the bull bar. But neither location gives as high an output as your setup. A word of warning however the ones I have on the roof (hella black magic mini) are almost too bright and if you have new road sign can produce a lot of glare!

drfoster · 2024-11-04T21:06:30+0000

dag019 said:
What lights are you using? My led lights at the front are only about 20w but I then have 6 on the roof and 5 on the bull bar. But neither location gives as high an output as your setup. A word of warning however the ones I have on the roof (hella black magic mini) are almost too bright and if you have new road sign can produce a lot of glare!

some from Amazon, Colight i think, though i'm dubious on how good they will be

drfoster · 2024-11-04T21:07:38+0000

dag019 said:
A second on this one. And make sure you put a fuse in the battery box for the wire. The only other place is the back of the starter where the battery cable attaches but I do not like that option. I run everything back to the battery box in mine and have a full aux fuse panel in there for everything (I also have the relays in a box in there as well).
I also run it all as twin core so I have an earth that goes back to the battery as well rather than just the nearest bolt.

View attachment 329375

Good idea, i've got a spare fusebox somewhere, just need some grommets to seal the battery box as mine appear to have gone awol over the years.. impressive looking job there!!

drfoster · 2024-11-04T21:31:34+0000

drfoster said:
some from Amazon, Colight i think, though i'm dubious on how good they will be

i lied, they are wowled! not Colight

lynall · 2024-11-04T21:48:12+0000

drfoster said:
some from Amazon, Colight i think, though i'm dubious on how good they will be

Even the cheapies are okay, you pay more money for better quality and hopefully longer life.
