hy can anyone help me find to rent ,hire ,loan or buy the tool that aligns the front hub on a p38 thanks
p38
- Thread starter nokey
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
tomcat59alan
Well-Known Member
- Posts
- 18,611
- Location
- wirral and triquivijate
welcome,what job are you doing? as @marjon said
nokey
New Member
- Posts
- 6
- Location
- chesterfield
hy i changed the ball joints and since then the driveshaft oil seals leak tryed new ones tryed every method i can find on youtube and still they leak oil
- Posts
- 12,606
- Location
- Sud ouest France !
You could try undoing the hub a touch while leaving the cv joint bolted into place and slide the hub and cv assembly out a little so the disk on the shaft allows you to just see behind it and check the shafts height in relation to the seal.
The coller under the bottom ball joint nut raises and lowers the hub carrier.
The lower ball joint has to be loosened and the taper popped to be adjusted.
As a rule you leave the collar as found from the factory. Most seals will leak from age.
The coller under the bottom ball joint nut raises and lowers the hub carrier.
The lower ball joint has to be loosened and the taper popped to be adjusted.
As a rule you leave the collar as found from the factory. Most seals will leak from age.
- Posts
- 2,427
- Location
- Isle Sheppy
Look on utube and make your own tool
tomcat59alan
Well-Known Member
- Posts
- 18,611
- Location
- wirral and triquivijate
+1 there was one posted that used a wheel bearing and a length of plastic pipe.
- Posts
- 2,427
- Location
- Isle Sheppy
- Posts
- 2,427
- Location
- Isle Sheppy

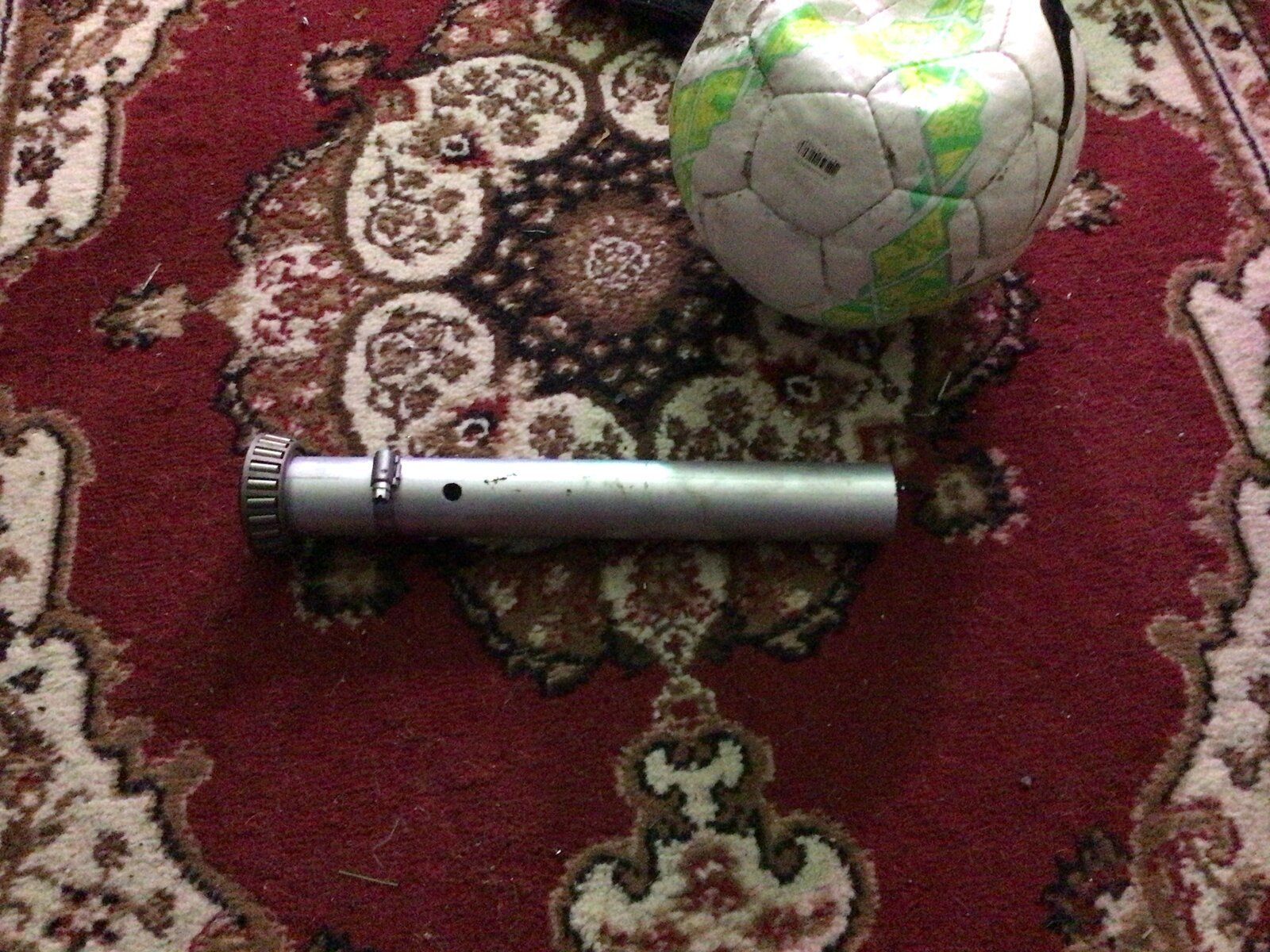

Oh I remember wammers had a post where he machined a tool for the job mines probably not exactly to his specs but then again I couldn’t build planes I wish I could have had some of his knowledge at least that way I wouldn’t have to centre that joint again hopefully all be good when the wheels are back on and running
- Posts
- 2,427
- Location
- Isle Sheppy
What you want to look at is graham edwards swivel hub alignment tool on u tube
tomcat59alan
Well-Known Member
- Posts
- 18,611
- Location
- wirral and triquivijate
- Posts
- 2,427
- Location
- Isle Sheppy
Try telling the dog that the balls bigger than he is
tomcat59alan
Well-Known Member
- Posts
- 18,611
- Location
- wirral and triquivijate
- Posts
- 2,427
- Location
- Isle Sheppy
No just eat it
tomcat59alan
Well-Known Member
- Posts
- 18,611
- Location
- wirral and triquivijate
- Posts
- 2,427
- Location
- Isle Sheppy
nokey
New Member
- Posts
- 6
- Location
- chesterfield
watched it but need some measurements i e size of tube diameter and size of bearing inside and outside diameter
tomcat59alan
Well-Known Member
- Posts
- 18,611
- Location
- wirral and triquivijate
Just buy a wheel bearing and measure the diameters.
nokey
New Member
- Posts
- 6
- Location
- chesterfield
was thinking of making the tool up before i strip it down again to avoid having to run about finding tubes and wheel bearings while its in bits thats all
- Posts
- 2,427
- Location
- Isle Sheppy
You can buy the tool it’s about £1000 now the 1st video is on u tube in the column down the side of the video that plays 1.1/2 inch tube 65mm bearing and race job done
