Been away all week so only getting back to it this morning.
ARP studs have gone in nicely, but I can't for the life of me get the pushrods back in their place.
They came out so easily, but now some of them are being impossible to replace.
Is there a trick to it?
I tried replacing the pushrods before setting the head down, but that stopped the head from sitting nicely.
Pic attached


They'll be pushing against the valve springs. I put mine in with the valve bridge unbolted and then bolted the bridge down (using the sequence in RAVE). As you tighten the bolts down, the valves will open on those valves that are being acted on by the camshaft, but the pushrods will be in place. I do each bolt a little at a time so nothing is bending.




Screenshot 2025-03-22 at 13.14.22.png

Last edited:
They'll be pushing against the valve springs. I put mine in with the valve bridge unbolted and then bolted the bridge down (using the sequence in RAVE). As you tighten the bolts down, the valves will open on those valves that are being acted on bythe camshaft.

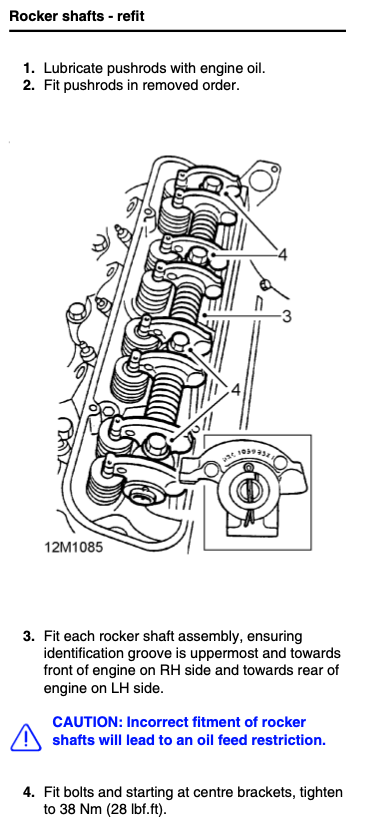

View attachment 337601

That's how I usually do them ...

Good news, both heads are on and have been torqued down to ARP spec (although that doesn't feel very tight!)

Next step is the exhaust manifolds, I made a start on them but the new gasket slipped between the heat shield and the engine block, so I called it a day. I'll try and get it tomorrow and continue. If I can get the manifolds and heat shields done, then that's the hardest parts out of the way.

Afternoon folks, been fitting the exhaust manifolds today. All but one went in without issue - the one by the steering shaft may have gone it at a slight angle, so I'll need to take it out and check I haven't buggered the threads.

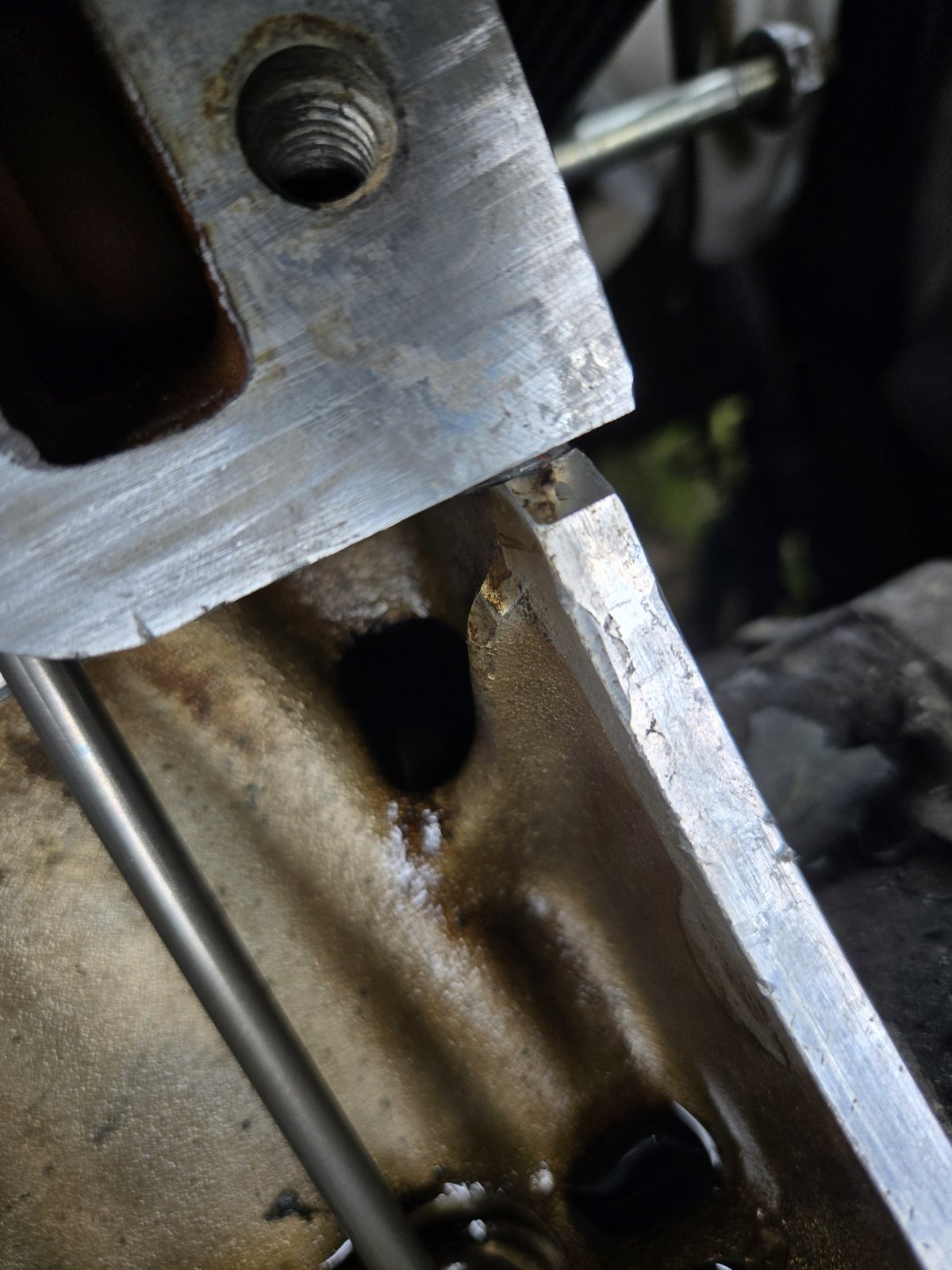

Another question - is this one of the notches that's supposed to be sealed with RTV? The diagram isn't too clear

They are the notches yes.

I run the bead all the way along that top edge too so it joins up with the notch on the other side. And go around the coolant ports at the back and front.

I've always has a weep of coolant from this area unless I seal EVERYTHING!

Do you think I can remember where I put the valley gasket clamp bolts? Not a chance. It feels like nothing fits.
Also, is the correct order (from top to bottom) clamp, seal, gasket? My RAVE manual seems to skip straight from rocker cover to cylinder head.

yes the valley gasket first, you've really got to push it down quite hard so the ports line up, the rubber gasket at each end, with the clamps holding them in place
dont tighten the clamp bolts until the inlet manifold is torqued up

Afternoon folks, it's been a busy week so not been able to spend much time on the car.
Does anyone have a link to where I can buy the bolts for the valley gasket seal clamp? I've tried each bolt that I thought was it, but none of them seem to screw in after the first few mm. I figured it would be quicker to buy new ones than find the originals.
